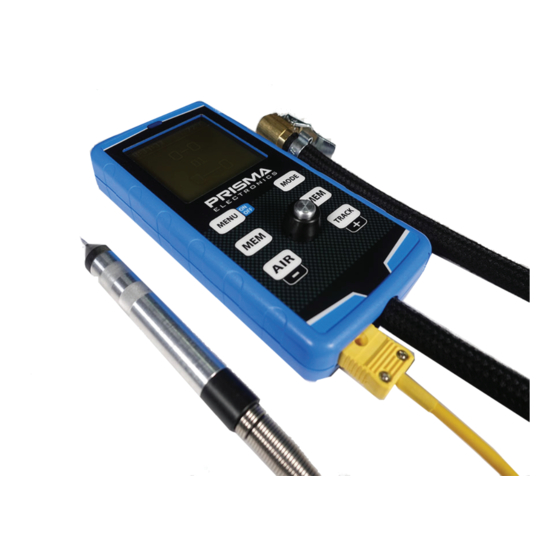

- Page 1 RACING INSTRUMENTS Get Ahead... REFERENCE MANUAL T3:123°C Multifunctions instrument TIRE PRESSURE GAUGE TIRE PYROMETER Part number : HPM4+PYR2 MADE IN ITALY...
- Page 2 PRESSURE GAUGE MODE Auto Power off after 2,5 minutes if inactivity. 1 - Power ON MENU To Power off manually , press and hold the Press button ON/OFF button. 2 - The display shows the test number [ 01 ] : Measure and set the pressure of the tire shown on the display.
- Page 3 5 - Repeat the same procedure for the HOT TIRES PRESSURE 1.50 1.50 1.70 1.65 For a new Test press +0.20 +0.15 1.65 1.65 1.85 1.80 +0.20 +0.15 Press for TIRE TEMPERATURES MODE MODE TIRE TEMPERATURE MODE Press to save AIR temperture.The display show A : XX°C TRACK Press to save TRACK temperature.The display show T : YY°C Press to save tire temperatures.
- Page 4 01 : Test number A : 23°C --> AIR temperature T : 26°C --> TRACK temperature 01 --> Test number T3 : 123°C --> Last saved temp 123°C --> Temperature Press to return PRESSURE MODE MODE...
-
Page 5: Display Backlight
CONFIGURE - RESET - READ MEMORY ------ Press MENU The display shows all the Menu and which buttons need to press . RESET DATA READ SAVED PRESSURES CONFIGURE MODE Follow the instructions shown on the display. FUNCTION PRESSURE DIFFERENCE This function is used to show the difference from COLD and HOT tire pressures on the display. - Page 6 For Technical support visit www.prismaelectronics.com MADE IN ITALY...
