Star Mini Phantom
Interior Undercover Mini LED Light
PATENTS D530,029 and D632,421
ULB9E Series
IMPORTANT: Please read all of the following instructions before installing your new light.
CAUTION: Please be sure to check that your cigarette plug outlet or hard wire is properly
fused with a 5 amp fuse. Testing the light before this fuse is properly
installed will void the warranty on the light.
Please Note: These instructions are provided as a general guideline only. Specific
mounting, wiring, and/or weather-sealing may be necessary and are the sole
responsibility of the installer. Star Headlight assumes no responsibility for the
integrity of the installation for this or any of its products.
™
PLIT528 REV. B
4/1/16
Advertisement
Table of Contents
Related Manuals for Star Headlight & Lantern Star Mini Phantom ULB9E Series
Summary of Contents for Star Headlight & Lantern Star Mini Phantom ULB9E Series

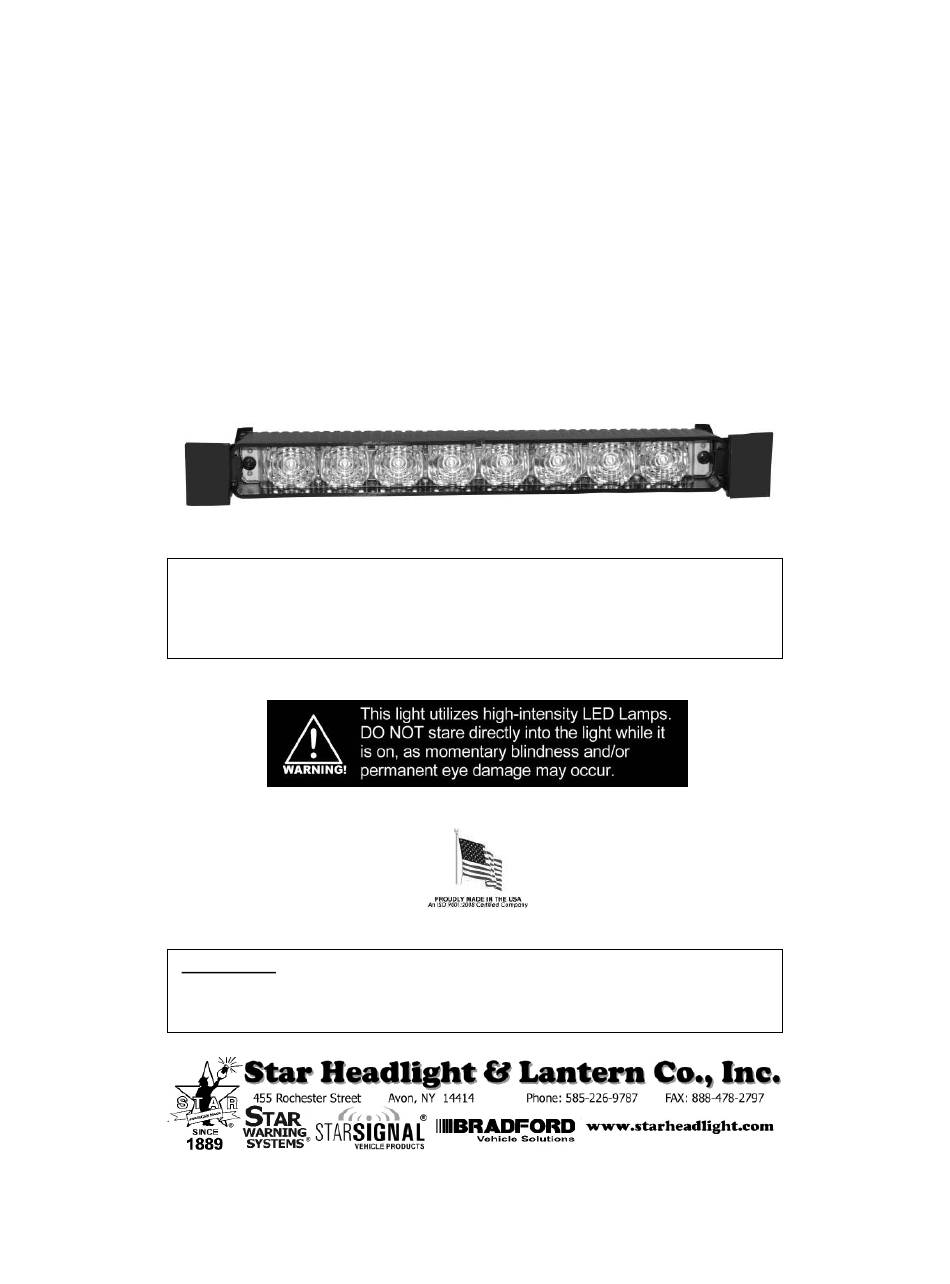

- Page 1 Star Mini Phantom ™ Interior Undercover Mini LED Light PATENTS D530,029 and D632,421 ULB9E Series IMPORTANT: Please read all of the following instructions before installing your new light. CAUTION: Please be sure to check that your cigarette plug outlet or hard wire is properly fused with a 5 amp fuse.
- Page 2 This light is designed to be mounted on the inside of your vehicle. It is not intended for exterior applications and is not warranted against water damage. It is the sole responsibility of the owner to ensure the warning light is secure.
- Page 3 ULB9E Mounting Front Windshield Adhesive Mount The hood can be installed such that the cord can exit either side. Route the cord through the appropriate slot and slide the hood onto the back of the light until the hooks on the hood “latch”...
- Page 4 (ULB9S Mounting CONT’D) Optional Reflective Hood Label Installation Practice installing label BEFORE removing backing. 1. Align the notch in the label with the center of the hood taking care that the front edge of the label lines up with the front edge of the hood. 2.
- Page 5 Optional Bracket Mounting (Deck, Mirror, or Suction Cup) (Optional mounting kit 274-ULB9-BKT sold separately) 1. Decide which side you want the cord to exit the light and determine which way you will need to mount the ULB9-BKT to your light. 2.
- Page 6 ULB9E Connections and Operation (cig plug version only) The ULB9E (cig plug version) can be left plugged into the cig plug outlet in your vehicle. It can be turned on and off using the lighted power switch on the cord. The pattern select switch is used to preset the desired pattern.
- Page 7 (Programming CONT’D) PATTERNS The ULB9E Series lights are designed with 12 different patterns in one of two phases. To change patterns, press and release the Pattern Select Button or touch and release the Green wire to ground. Note: The second phase will only be noticeable when synchronizing two of the ULB9E-1 lights (hardwire versions only).
- Page 8 STEADY BURN PROGRAMMING 1. Hold the Pattern Select Button or touch the green wire to Ground until the light blinks 6 times (approximately 18 seconds), then release it. For lights in Split Mode, one of the two halves will become steady, while the other flashes.
