DLQSMC-4 Quick Stick
MULTICOLORED WARNING STICK
Please Note: These instructions are provided as a general guideline only. Specific
mounting and/or wiring, may be necessary and are the sole responsibility of the
installer.
Star Headlight & Lantern Co., Inc. assumes no responsibility for the
integrity of the installation for this or any of its products.
PLIT594-4 REV. REV. B
2/27/20
Advertisement
Table of Contents
Related Manuals for Star Headlight & Lantern DLQSMC-4
Summary of Contents for Star Headlight & Lantern DLQSMC-4

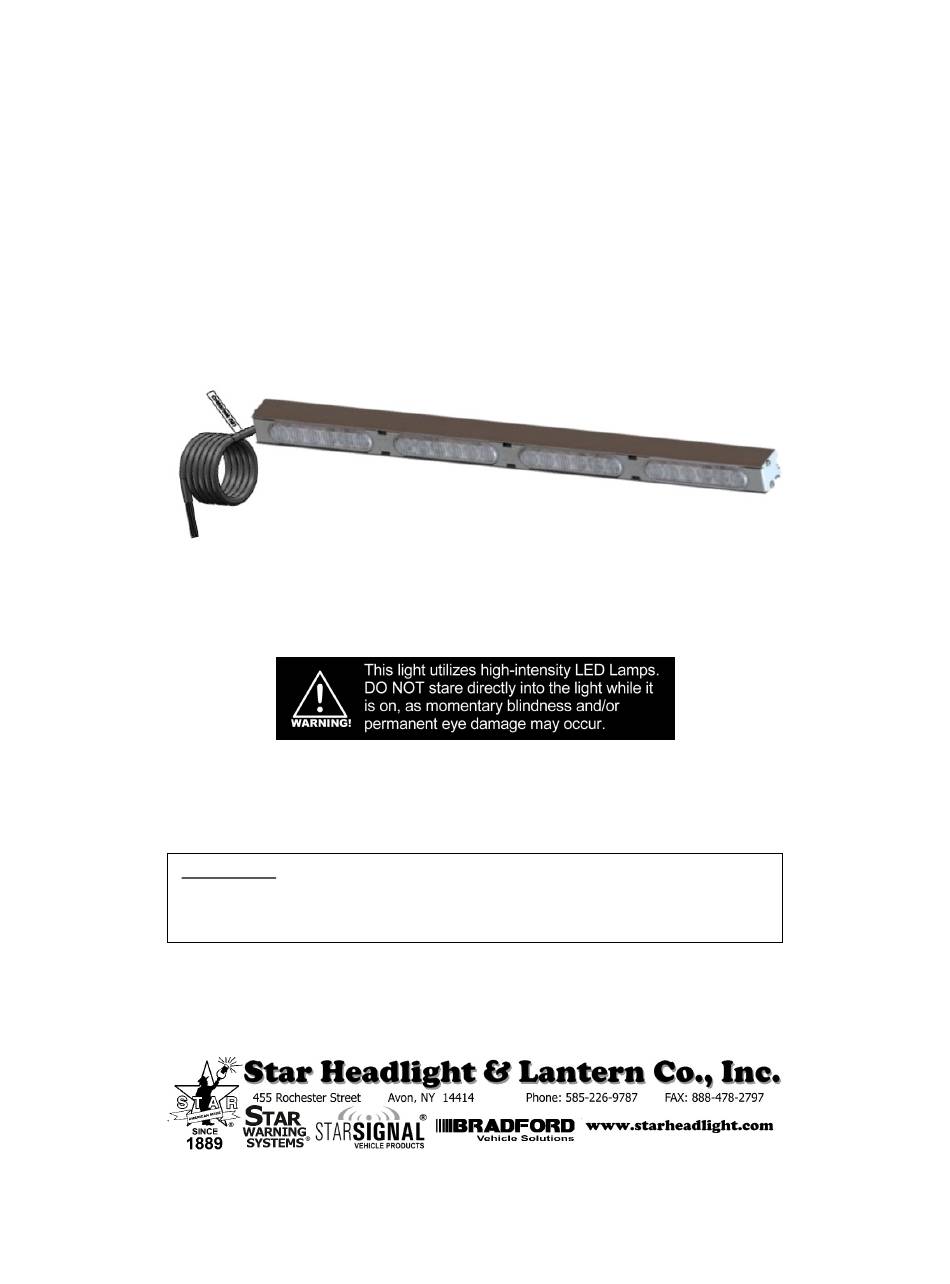

- Page 1 DLQSMC-4 Quick Stick MULTICOLORED WARNING STICK Please Note: These instructions are provided as a general guideline only. Specific mounting and/or wiring, may be necessary and are the sole responsibility of the installer. Star Headlight & Lantern Co., Inc. assumes no responsibility for the integrity of the installation for this or any of its products.
-
Page 2: Mounting Instructions
Before beginning the installation: Decide where you are going to mount the warning stick (on your roof, in your rear window, on the back of the vehicle, etc.). Check to see that there are no obstructions hindering the visibility of your warning stick. -
Page 3: Electrical Connections
Electrical Connections This wiring diagram below applies to the default programming of this light. There are several additional advanced features that, if used, will affect the wire functions shown below. Most applications will not require this reprogramming, but you can find these options described in detail under the Advanced Programming section. -
Page 4: Standard Programming
Standard Programming This light has been designed for maximum versatility and has many different options that can be programmed. This manual has divided the Programming into two sections. Most users will not need to change any of the Advanced Programming options. -
Page 5: Operation
(Standard Programming CONT’D) Resetting To Factory Defaults If you ever need to reset the entire light to the Factory Default Settings, follow the steps below: 1. Connect only the Red wire to power and the Black wire to Ground. 2. Hold the Pattern Select wire (RED w/GREEN) to +12VDC until the unit flashes three times (~9 seconds - It will flash once, twice, then three times). -
Page 6: Advanced Programming
Advanced Programming STOP !! This section is OPTIONAL. Most applications will not require any Advanced Programming. You should only need to reference this section if you require specialized programming. Advanced Programming Options Alternate Default Wire Setups Custom Wire Programming / Priority Modification Includes Work Lights (bright steady burn), Cruise Mode (dim steady burn), and California Title 13 (single head steady burn) ... - Page 7 (Advanced Programming CONT’D) Wiring Setup 4 RED - Power PINK - Left Arrow (TD PATTERN STYLE 8) WHITE w/BROWN - Right Arrow (TD PATTERN STYLE 8) GREEN w/YELLOW - Flashing (Color 1 - PATT 8) ORANGE w/RED - Flashing (Color 2 - PATT 8) YELLOW - Cruise RED w/GREEN - Pattern Select BLACK - Ground...
- Page 8 (Advanced Programming CONT’D) Custom Wire Programming and Priority Modification Higher priority wires will override the patterns on any lower priority wires for the heads that are enabled. HIGHEST PRIORITY LOWEST PRIORITY Pink > White w/Brown > Green w/Yellow > Orange w/Red > Yellow If none of the 4 Wiring setups fits your needs (functions or priority of functions), you can custom program each of the five input wires (Pink, White w/Brown, Green w/ Yellow, Orange w/Red, or Yellow) for any function (* Note: The Pink wire cannot be...
- Page 9 (Advanced Programming CONT’D) Head Enable This warning stick also has the ability to allow the installer to select which heads are active for any given function. Some examples of this might include options such as these: Turning one of the colors On or Off for a particular function ...
- Page 10 (Advanced Programming - Head Enable CONT’D) Phase Selection (Programmable for Patterns 1-21 only) Each head has two Phases, an “On” phase and an “Off” phase (or a “Color 1” Phase and a “Color 2” phase). All of the heads/colors set for Phase 1 will illuminate at the same time and flash opposite from all of the heads/colors set for Phase 2.
- Page 11 LED FIVE YEAR LIMITED WARRANTY The manufacturer warrants this LED light against factory defects in material and workmanship for five years after the date of purchase. The owner will be responsible for returning to the Service Center any defective item(s) with the transportation costs prepaid. The manufacturer will, without charge, repair or replace at its option, products, or part(s), which its inspection determines to be defective.
- Page 12 -11-...
