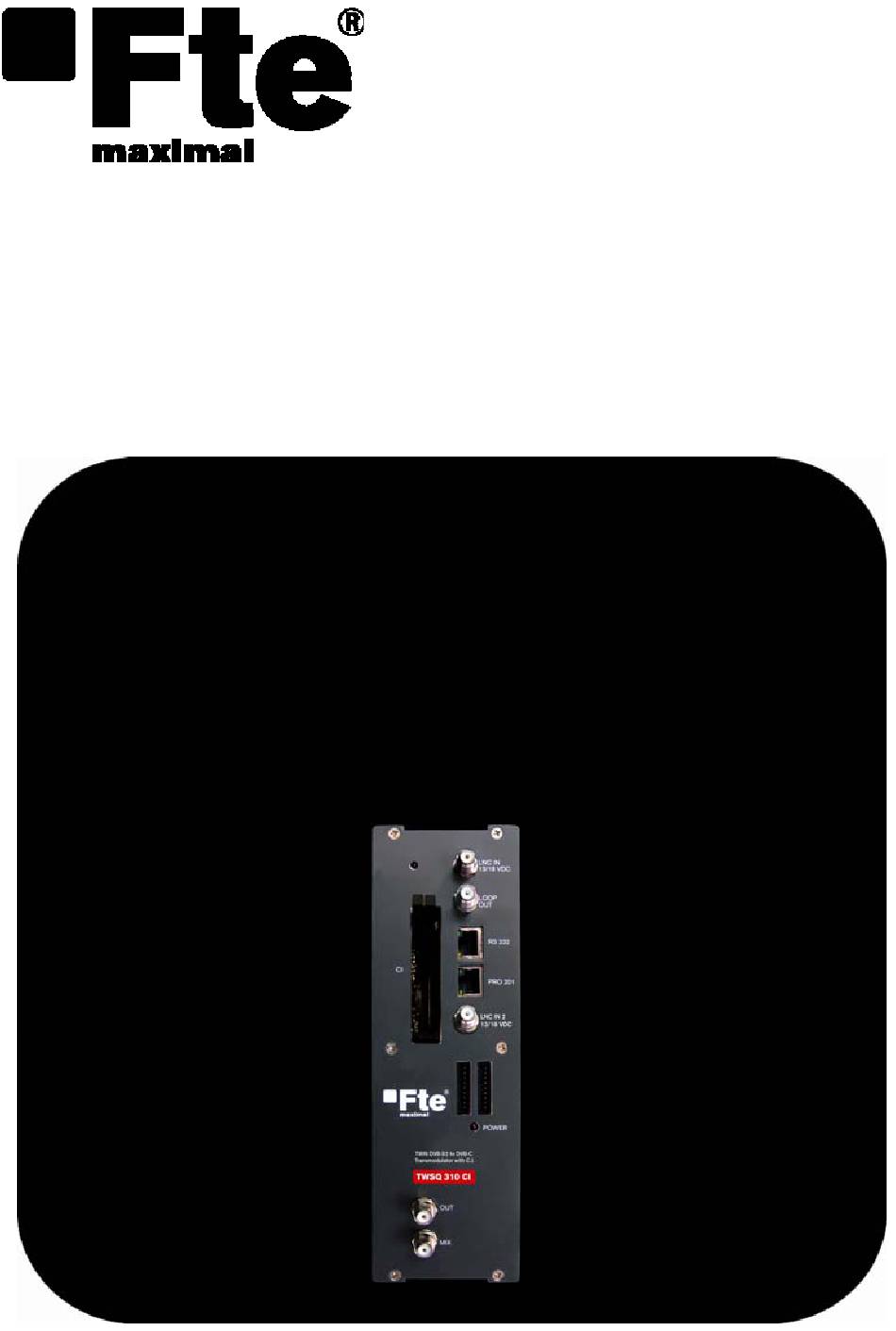

- Page 1 TWSQ 310 CI USER’S MANUAL...
- Page 2 User’s manual · TWSQ 310 CI NOTE: This user’s guide is adapted to software version v.0.1.37 of TWSQ 310 CI dated 04/04/2012. For future software updates, you can download the user’s guide from the following website: http://www.ftemaximal.com/ Chapter 1. Installation.
- Page 3 1.3. Description and connections The module TWSQ 310 CI is used for the reception of free channels that obey the DVB-S / DVB-S2 standards. Each module allows the reception of 2 complete transponders in DVB-S (QPSK) / DVB-S2 (QPSK/8PSK), and the subsequent modulation in DVB-C (QAM) of it.
- Page 4 User’s manual · TWSQ 310 CI Stages of transmodulator TWSQ 310 CI Input 1 Input 2 Selection of a tuned satellite transponder Transmodulation TP 1 TP 2 The tuned channels of the transponders are modulated according to the DVB-C rules in two multiplex. In cases where the transponder has encoded channels, if you wish to distribute them freely, you will have to link a PCMCIA + subscriber card to each one of the two outputs of the multiplex.
- Page 5 User’s manual · TWSQ 310 CI 1.4.2. Programming Below you will find the steps to follow in order to make the programming both from corresponding EVO and MINI field strength meter as well as from PRO 201. mediaMAX EVO / mediaMAX MINI In order to start programming the TWSQ 310 transmodulator, you will have to go to “Tools”...
- Page 6 User’s manual · TWSQ 310 CI 2. State of the module In the option “State of the module” are specified the main parameters of the module at this moment. - Transmodulator input: It indicates whether the module is hooked or without signal.
- Page 7 User’s manual · TWSQ 310 CI 4. Modulator configuration This option allows you to configure the DVB-C modulator that the device has. - Symbol speed: The available symbol speed ranges from 1 to 6.96 MS/s. In order to estimate the output symbol speed you have to take into account the following parameters: input modulation, input symbol speed, input FEC, output modulation.
- Page 8 User’s manual · TWSQ 310 CI 6. System This option provides information of the transmodulator. - System logfile: In this field are indicated the registered events in the module. - Read log: It allows reading the registered events in the module.
- Page 9 User’s manual · TWSQ 310 CI - Upgrade: - Send Firmware from USB: It allows carrying out the firmware update from the USB device. - Send firmware to all: It allows carrying out the update of all the modules that are interconnected at the same time.
- Page 10 User’s manual · TWSQ 310 CI Adding services: 1. Select “Service to add” option 2. Select one of the transponder 3. Once you have chosen the services you want to add. service, select the “Add/Remove” button to include the service in the multiplex.
- Page 11 User’s manual · TWSQ 310 CI - Remove all services: It allows removing all the services included in the multiplex. - Modify LCN: The LNC function allows assigning automatically a predetermined position to each one of the services of the multiplex. This function will allow the users who have a receiver with LNC support to make the ordination of channels automatically.
- Page 12 User’s manual · TWSQ 310 CI - HDSimulCast: In cases where we receive in an installation the same channel in high definition and in standard definition, the HD Simualcast function allows to exchange the position of the LNC of both channels. If the user has a device compatible...
- Page 13 User’s manual · TWSQ 310 CI - Deactivate: No actions will me made in the CAM. - Update: When it is detected that the decryption of the CAM has been lost, the rights will be sent systematically until the decryption gets back.
- Page 14 User’s manual · TWSQ 310 CI - Freq (Input Frequency (MHz)): Transponder frequency that you wish to tune. In order to introduce the frequency, press the “OK” button and the cursor will be placed over the frequency. With the keys of the cursor, we can move through all the digits and change the values.
- Page 15 User’s manual · TWSQ 310 CI Summary table: Satellite input Cable output TV output - L.O. frequency - Invert (Spectrum Inversion) - RF Channel - Input Frequency - Modulation - RF Level - Symbol Rate - Roll-off factor - Antenna...
- Page 16 User’s manual · TWSQ 310 CI - Read log: It allows reading the registered events in the module. TWSQ310CI TWSQ310CI TWSQ310CI N:00001 Status:03 OK to Show LOG >Read LOG file 07/02/11 09:05:02 Front-end lock Delete LOG file 1. Select the option “Read LOG file”...
- Page 17 - Global Update: It allows carrying out the update of all the modules that are interconnected at the same time. 1.5. Accessories and example of installation Example of installation Installation that consist of 6 TWSQ 310 CI and that will allow tuning channels up to 12 different transponders and to distribute them through a network of modulated cable in DVB-C.
- Page 18 User’s manual · TWSQ 310 CI The number of modules that can be fed by the power supply SPS 310 will depend on the number of CAM’s and their consumptions: If the total amount of modules that are connected to the power supply have two CAM’s inserted, the SPS will be able to feed only 5 modules.
-
Page 19: Technical Features
Weight 1,5Kg Chapter 3. Declaration of conformity CONFORMITY DECLARATION “WE , FTE MAXIMAL, DECLARE THAT THE PRODUCT TWSQ 310 CI IS IN CONFORMITY WITH FOLLOWING DIRECTIVES Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC” If you wish a copy of the conformity declaration, please contact to the company... - Page 20 ESPAÑA FRANCE ITALIA Mogoda, 110 16 ZAE Les Mouilles Via Edison, 29 Pol. Industrial Can Salvatella 74570 Groisy 42040 Calerno di Tel. 00 33 450 68 80 17 08210 Barberà del Vallès Sant’Ilario d’Enza (RE) Fax. 00 33 450 68 84 68 Tel.
