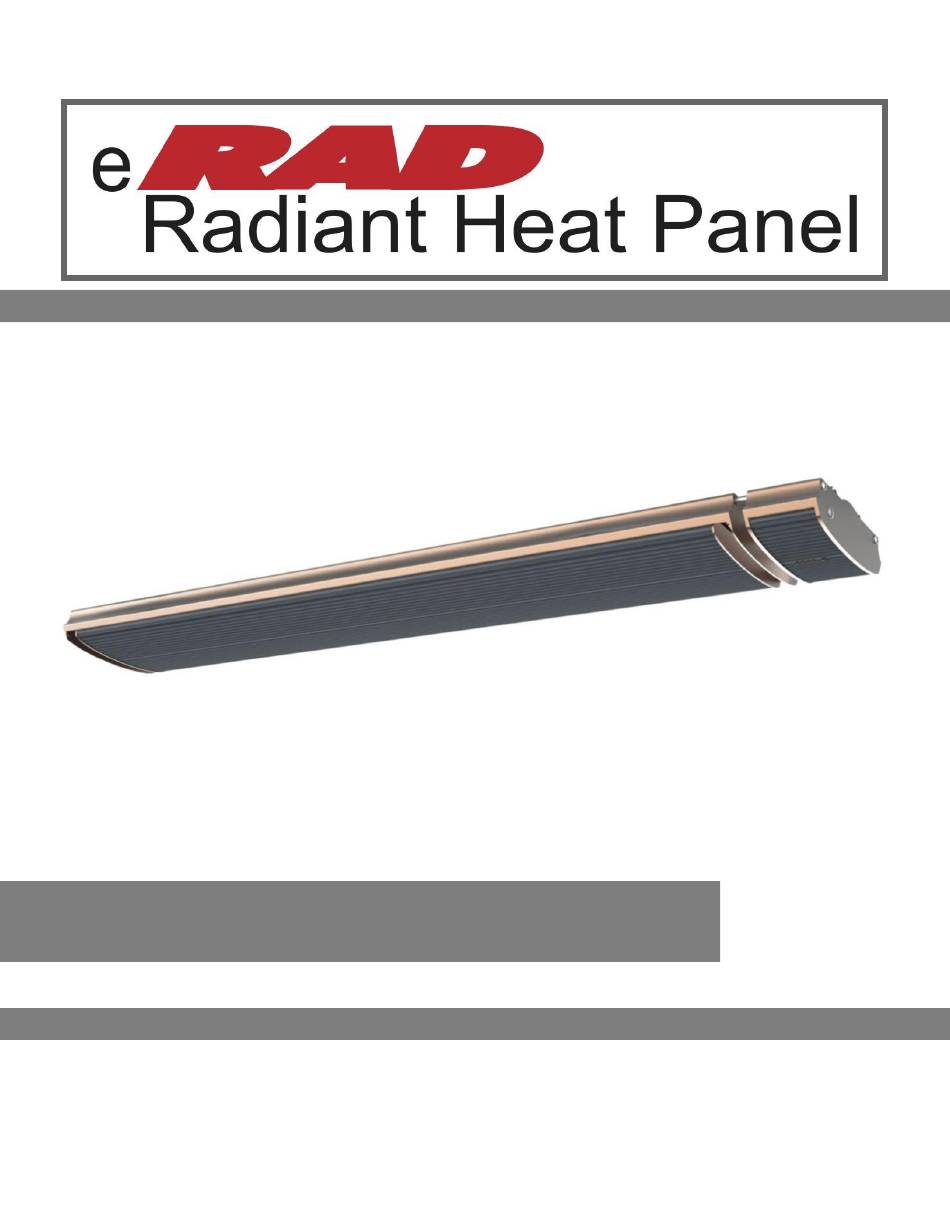

OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
•
Read all instructions carefully before setting up and operating this unit.
•
This manual is designed to provide you with the information needed to set up,
operate, and maintain your radiant heater.
•
Failure to follow these instructions may damage and / or impair its operation.
THE HEAT IS ON
1
Advertisement
Table of Contents
Related Manuals for RADtec eRAD10R
Summary of Contents for RADtec eRAD10R
- Page 1 THE HEAT IS ON OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS • Read all instructions carefully before setting up and operating this unit. • This manual is designed to provide you with the information needed to set up, operate, and maintain your radiant heater. •...
-
Page 2: Blank Page For Notes
BLANK PAGE • FOR NOTES •... -
Page 3: How Far-Infrared Heating Works
When finished, this production process delivers our unique aluminum alloy radiant panels. We at RADtec refer to this as “slimline” technology. The surface of each panel is prepared with a special coating. Inside, each heater is an embedded heating element. When supplied with electrical power (turned on), this heating element generates and transfers heat to people and objects. -
Page 4: Product Overview
3. PRODUCT OVERVIEW Discrete, stylish heating for outdoor and indoor areas eRAD heaters can provide effective and energy efficient comfort heating for outdoor and indoor areas. eRAD heaters have successfully enabled many entertainment venues such as restaurants, pubs, and clubs to utilize their outdoor dining areas day and night, all year long. Within your workplace or business, eRAD can provide heating for designated outdoor smoking and leisure areas, as well as for workstation spot heating in factories, warehouses, and showrooms. -
Page 5: Performance Features
5. OPERATING CONDITIONS Ambient (surrounding) Temperature: • -30°C ~ +30°C • -22°F ~ +86°F Rated Voltage: • 220-240V (eRAD18R, eRAD24R, eRAD32R); • 110-120V (eRAD15R, eRAD10R) Rated Frequency: 50Hz/60Hz Relative Humidity: less than 95%... -
Page 6: Installation Requirements
Never locate the heater where it may fall into a bathtub, pool, spa, or other wet area. Electrical Parameters Table Model No. Wattage(W) Amperage(A) Voltage(V) Wire Length(in) 1000 110-120 78.74 eRAD10R 1500 13.6 110-120 78.74 eRAD15R 1800 220-240 78.74 eRAD18R 2400 10.4... -
Page 7: Installation Instructions
7. INSTALLATION INSTRUCTIONS ll--04.5mm 2-06.5mm ..9.5cm 3.7in 1.2cm l.6in 2-¢7mm 10cm 3.9in .47in 7.2cm2.8in... - Page 8 Model No. Dimension A (in) Dimension B (in) Dimension C (in) 23.6 3.74 eRAD10R 39.37 27.6 3.74 eRAD15R 39.37 27.6 3.74 eRAD18R 47.2 3.74 eRAD24R 78.7 66.9 3.74 eRAD32R Step 1: Remove packing materials from both ends of heater. Step 2: Installation of adjusting bracket and sliding bracket.
- Page 9 Step 3: Installation of sliding bracket and heater, as arrow points. Step 4: Fix adjusting bracket into wall with expansion screws. Step 5: Installation of two adjusting brackets. Make sure to lock brackets tightly by using the butterfly hand screw.
-
Page 10: Installation Diagram
8. INSTALLATION DIAGRAM Ceiling Can not place within 100cm of other objects (39.4in) 220cm 86.6in Ground "" ct ure 1 220cm 86.6in Ground Picture 2... -
Page 11: Remote Control Instructions
9. REMOTE CONTROL INSTRUCTIONS Temperature controller parts LED indicating lights: As shown above, there are four indicating lights on the “temperature controller.” These four lights are used to indicate the machine’s operating level. No. 5 is the far-infrared receiver. *Attention: The No. 1 indicating light functions in two colors, red and green* 1. -
Page 12: Inspection Items After Installation
10. INSPECTION ITEMS AFTER INSTALLATION Items to be checked Improper installation Is the unit stable? The equipment may fall off or shake May damage objects close to unit Is heat insulation adequate? Equipment failure Is power voltage the same as voltage shown on product nameplate? Equipment failure Is the wired connection correct? Is grounded electrical connection safe? -
Page 13: Packing List
14. PACKING LIST 15. PRODUCT SPECIFICATIONS Model No. Indoors Outdoor Enclosed Outdoor Exposed 30ft ~ 2.8m 25ft ~ 2.3m 20ft ~ 1.9m eRAD10R 50ft ~ 4.6m 40ft ~ 3.7m 30ft ~ 2.8m eRAD15R 50ft ~ 4.6m 40ft ~ 3.7m 30ft ~ 2.8m... -
Page 14: Warranty And Return Policy
Except as provided below, RADtec is not liable for any loss, cost, expense, inconvenience or damage that may result from use or inability to use the heater. Under no circumstances shall RADtec be liable for any loss, cost, expense, inconvenience or damage exceeding the purchase price of the heater. - Page 15 6. You must have filled out and filed your Warranty Card with RADtec to activate this warranty. Return of Non-Defective Products A non-defective product may be returned to RADtec within thirty (30) days of the invoice date for a refund of the original purchase price with the following amendments/fees: 1.
- Page 16 It will also be null and void if there are indications of misuse and/or abuse. RADtec has the option of voiding the warranty if anyone other than an RADtec technician attempts to service the product. RADtec will not warrant any problems arising from an act of God (lightning, flooding, tornado, etc.), electrical spikes or surges, or problems arising...
- Page 17 Warranty Form Cut along dotted, fill out warranty card and mail to RADtec. -------------------------------------------------------------------------------------------------------------------...
- Page 18 BLANK PAGE • FOR NOTES •...
