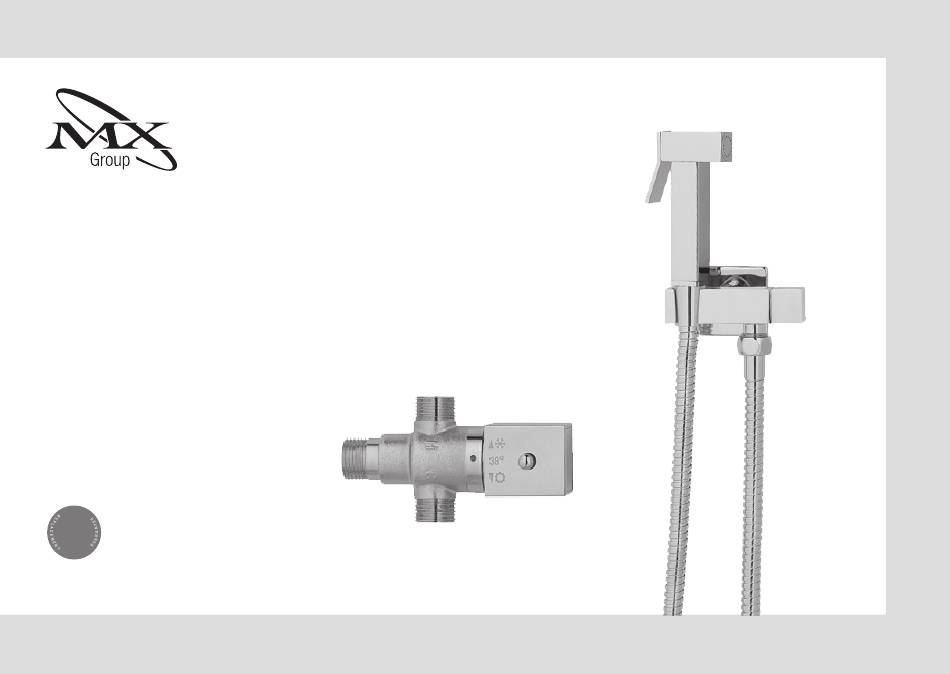

  • Page 1 Square Thermostatic Douche Bidet Kit YEAR 1215KL...
  • Page 2 Before you Start These instructions contain all the necessary installation information for your MX Douche Bidet Kit. Please read these instructions carefully and check all the components for any sign of damage before starting your installation. The installation must be carried out by a suitably competent person.
  • Page 3 Tools and Materials Required (not supplied) Suitable Drill Bits Pencil Safety Eyewear Power Drill Adjustable Spanner Safety Notes Caution: Prior to drilling walls, check that there are no hidden electrical cables or water pipes. When using power tools do not forget to use safety eyewear and clothing. Unplug power tools when not being used.

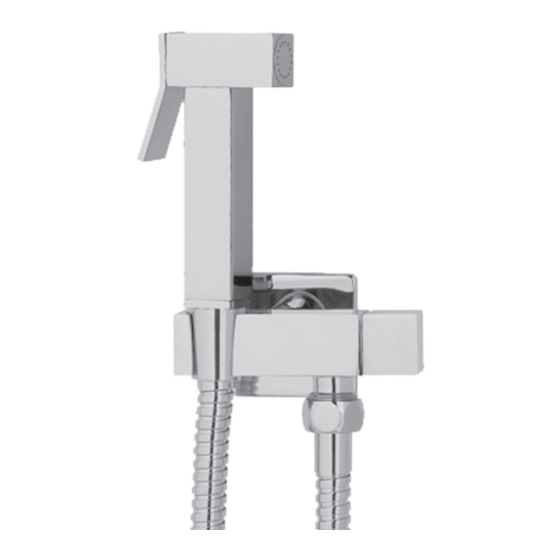

  • Page 4 Parts Supplied Square Thermostatic Douche Bidet Kit Spray Head x 1 Hose x 1 Valve with built in bracket x 1 Thermostatic Mixer Valve x 1...
  • Page 5 Installation – Square Thermostatic Douche Bidet Kit Having established the position of the thermostatic mixer valve so it can be connected to both Hot and Cold water supplies. Hot connected to the outlet indicated by H and cold connected to the outlet indicated C.
  • Page 6 Installation – Square Thermostatic Douche Bidet Kit Connecting the hose and spray head. Connect the hexagon nut to the outlet of the valve making sure the sealing washer is in place. Screw remaining cone nut to the thread of (fig.2) the spray head, again making sure the sealing washer is fitted.
  • Page 8 Marleton Cross Limited Trading as The MX Group Alpha Close, Delta Drive,Tewkesbury Industrial Estate,Tewkesbury, Glos. GL20 8JF. www.mx-group.com email: sales@mx-group.com 12_15_KL Product supplied by the MX Group and/or its subsidiaries Technical Service Line: 0845 505 2211 / 01684 293311 Open Mon–Fri 9am–5pm...
