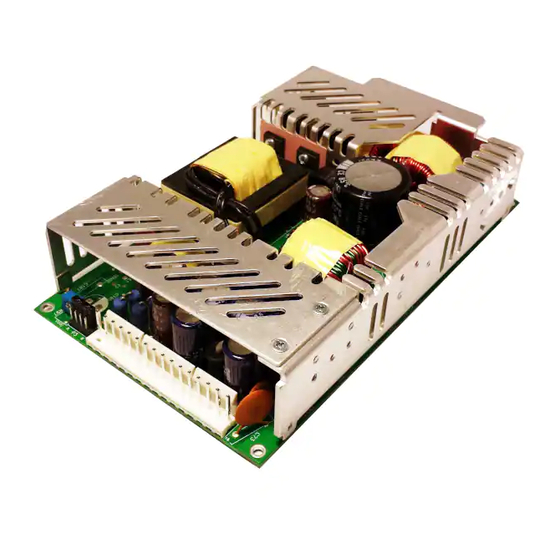

Integrated Power Designs REL-185 Series Operating Instructions

INTEGRATED
POWER DESIGNS
INPUT RATING: 100-240VAC, 4 A, 50-60 Hz.
OUTPUT RATING: 185 Watts Maximum Total Continuous Output Power with 300 LFM Forced Air.
135 Watts Maximum Total Continuous Output Power Convection Cooled.
110 Watts Maximum Total Continuous Output Power Convection Cooled with Chassis and Cover.
MODEL LISTING:
Model
REL-185-4001
REL-185-4002
REL-185-4003
REL-185-4004
REL-185-4005
REL-185-4006
REL-185-4007
REL-185-4008
REL-185-4009
REL-185-4010
REL-185-3001
REL-185-3002
REL-185-2001
REL-185-2002
REL-185-2003
REL-185-2004
REL-185-2005
REL-185-2006
REL-185-2007
REL-185-1001
REL-185-1002
REL-185-1003
REL-185-1004
REL-185-1005
REL-185-1006
REL-185-1007
REL-185-1008
REL-185-1009
REL-185-1010
NOTES: 1. Total current from Outputs 1 and 2 must not exceed 20 Amps with convection cooling.
2. Total current from Outputs 3 and 4 must not exceed 3 Amps with convection cooling.
3. Rated 15 Amps maximum with convection cooling.
4. Rated 27 Amps maximum with convection cooling.
5. A suffix may be added to the model number to indicate the following optional configurations:
(CH-chassis, CO-cover, IO-isolated outputs, RE-remote inhibit, TS-terminal strip)
6. Output is ES3 type.
Manufacturer: Integrated Power Designs, Inc.
Manufacturer's Address: 300 Stewart Road, Wilkes-Barre, PA 18706 USA
Product Type: Switchmode AC-DC Power Supply
Declares all models listed above including all options are in compliance with the following European Community Directives:
Low Voltage Directive 2014/35/EU of 26 February 2014
RoHS Directive 2015/863/EU of 31 March 2015
As well as with the requirements set out in the Laws of the United Kingdom relating to and applying the following standards:
Electrical Equipment (Safety) Regulations 2016 SI No. 1101
BS EN 62368-1:2014
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 SI No. 3032 + 2019 SI No.492
In addition, all models are Certified to be in compliance with applicable requirements of UL 62368-1:2014, ANSI/AAMI ES60601:2005/(R) 2012, IEC 62368-
1:2014 and IEC 60601-1:2005/A1:2012 including all EU national deviations, CAN/CSA-C22.2 No. 62368-1-14, CAN/CSA- C22.2 No. 60601-1:2014, EN
62368-1:2014 and EN 60601-1:2006/A1:2013.
BY: Steven Thompson- President
PLACE: Integrated Power Designs
300 Stewart Road, Wilkes-Barre, PA 18706 USA
DATE: February 16, 2021
DRAWING NO: 1080023
REVISION: 34
300 Stewart Road
Wilkes-Barre, PA 18706 USA
Phone: (570) 824-4666
REL-185 SERIES OPERATING INSTRUCTIONS
Output 1
(1)
+3.3VDC/20A
(3)
+5VDC/20A
(3)
+5VDC/20A
(3)
+5VDC/20A
(3)
+5VDC/20A
(3)
+5VDC/20A
(3)
+5VDC/20A
(3)
+3.3VDC/20A
(3)
5VDC/15A
5VDC/20A
+5VDC/20A
(3)
+5VDC/20A
(3)
+3.3VDC/20A
(3)
+5VDC/20A
(3)
+5VDC/20A
(3)
+12VDC/10A
+15VDC/8A
+15VDC/6A
+35VDC/3.5A
2.5VDC/37A
(4)
3.3VDC/37A
(4)
5VDC/37A
(4)
12VDC/15.4A
15VDC/12.3A
24VDC/7.7A
28VDC/6.6A
48VDC/3.8A
6.3VDC/29A
31VDC/6A
DECLARATION OF CONFORMITY
Output 2
(1)
+5VDC/10A
+3.3VDC/10A
+3.3VDC/10A
-5VDC/10A
-5VDC/10A
+24VDC/3A
+24VDC/3A
+6.7VDC/5A
12VDC/4A
5VDC/10A
+12VDC/5A
+15VDC/4A
+5VDC/10A
+12VDC/8A
+24VDC/4A
-12VDC/4A
-15VDC/5A
+24VDC/4A
+12VDC/5.2A
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
EUROPEAN CONTACT:
Compumess Elektronik GmbH
Lise-Meitner-Strasse 1
85716 Unterschleiβheim
Telephone (089) 32 15 01-0
Web: www.ipdpower.com
Email: sales@ipdpower.com
Fax: (570) 824-4843
Output 3 Output 4
(2)
+12VDC/2A -12VDC/2A
+12VDC/2A -12VDC/2A
+15VDC/2A -15VDC/2A
+12VDC/2A -12VDC/2A
+15VDC/2A -15VDC/2A
+12VDC/2A -12VDC/2A
+15VDC/2A -15VDC/2A
+12VDC/2A -6.7VDC/2A
28VDC/0.8A 12VDC/2A
(6)
24VDC/1A 24VDC/1A
(6)
----- -12VDC/3A
----- -15VDC/3A
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
----- -----
UK CONTACT:
ALL PSU LTD
Laser Quay, Culpeper Close
Rochester Kent ME2 4HU
Tel : 01634 725527
(2)
(6)
