Universal Tool UT1520C Operating Instructions page 2

Specifications
:
Shank ................................................................................................................................1-1/2"
Speed..............................................................................................................................4,500 RPM
Working Torque.....................................................................................................725-2500 ft. lbs.
Max. Torque ...............................................................................................................3,500 ft. lbs.
Weight................................................................................................................................33.7 lbs.
Overall length......................................................................................................................14.7 in.
Average air consumption..................................................................................................15 CFM
Recommended hose size...................................................................................................3/4" I.D.
Air inlet..............................................................................................................................1/2" NPT
Maximum operating pressure .........................................................................................90 psi

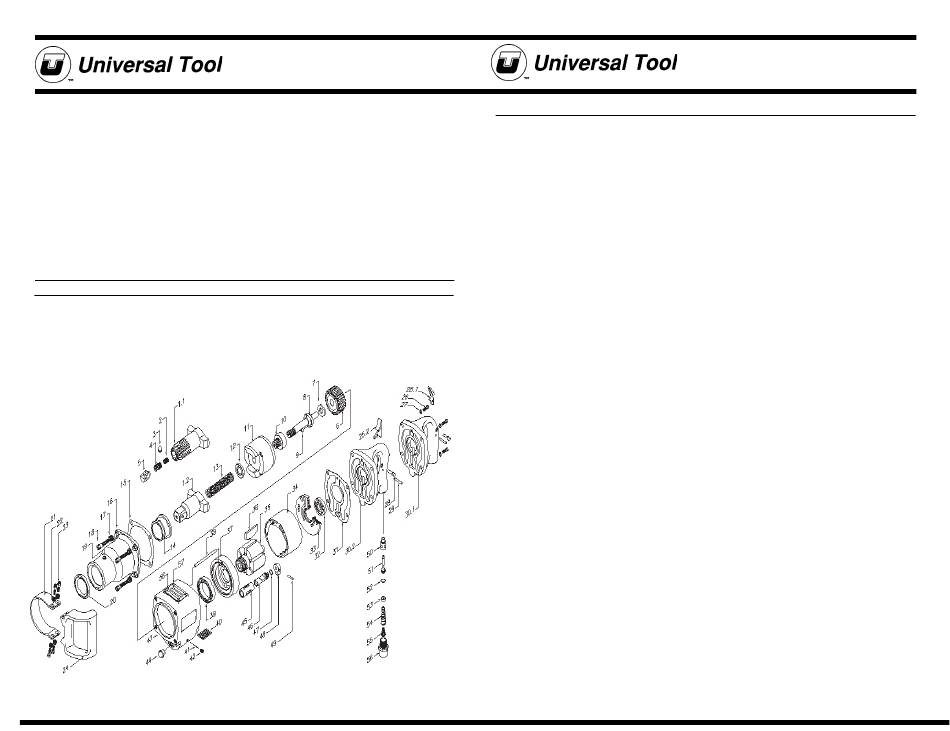

Parts Breakdown for UT1520C
USE ONLY IMPACT SOCKETS & ACCESSORIES
Sockets and accessories used shall be of the impact socket type. Always check sockets,
retainers and drives regularly for wear or damage and replace whenever necessary
UT1520C
1-1/2" STRAIGHT IMPACT WRENCH
Replacement Parts for UT1520C
REF # PART# DESCRIPTION
1.2 C-117620 1 1/2" SQUARE DRIVE ANVIL
6 C-117061 COUPLING
7 C-117051 THRUST WASHER
8 C-117067 TIMING SHAFT
9 P-004254 BALL
10 C-117060 CAM DOG
1 1 C-117068 DOG
12 C-117051 SPRING SEAT
13 C-117054 SPRING
14 C-117053 CLUTCH HOUSING BUSHING
15 C-117049 CLUTCH HOUSING GASKET
16 C-117827 CLUTCH HOUSING
17 NL8 5/16 NORD LOCK WASHER
18 S-062777 SCREW
19 C-068064 PIPE PLUG
20 C-117576 GREASE SEAL
21 C-119061 ASSIST HANDLE BAND
22 NL6 1/4" NORD LOCK WASHER
23 P-073025 SCREW
24 CA-048548 ASSIST HANDLE
25.2 C-063747 INSIDE TRIGGER
26 S-062777 SCREW
27 NL8 5/16" NORD LOCK WASHER
28 C-113758 TRIGGER PIN
29 P-072359 TRIGGER STOP PIN
30.2 C-117866 INSIDE TRIGGER HANDLE (INCL. # 50)
31 C-117050 MOTOR HOUSING GASKET
32 C-075812 BALL BEARING
33 C-120682 UPPER END PLATE
34 C-117064 CYLINDER LINER
35 C-117066 ROTOR
36 C-117056 ROTOR BLADES
37 C-120683 FRONT END PLATE
38 C-117048 DOWEL PIN
39 C-117047 BEARING
40 C-120076 AIR SCREEN
41 CA-094316 OIL METERING PIN
42 C-059641 PIPE PLUG
43 C-117072 MOTOR HOUSING
44 C-119253 EXHAUST DEFLECTOR
45 C-117057 REV. VALVE BUSHING
46 C-117065 REVERSE VALVE
47 S-082809 O RING
48 C-117058 REV. VALVE LEVER
49 CA-091533 ROLL PIN
50 C-106817 THROTTLE VALVE BUSHING
51 C-106825 THROTTLE VALVE
52 A-043001 O RING
53 C-106818 O RING RETAINER
54 C-088079 THROTTLE VALVE SPRING
55 C-087505 AIR SCREEN
56 C-094354 THROTTLE CAP
57 N/A NAMEPLATE RIVETS
58 N/A NAMEPLATE (INCL. # 57)
Limited Warranty
Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of
purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by
someone other than Universal Tool or its authorized service centers. If a Universal Tool proves defective in
material of workmanship within one year after purchase, return it to any authorized service center or to Universal
Tool, freight prepaid. Please enclose your name, address and adequate proof of purchase date with a brief
description of the defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs
or replacements are warranted as described above for the remainder of the warranty period. Universal Tool's sole
liability and your exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential
or special damages, or any other damages, costs or expense of repair or replacement as described above.
UT1520C
1-1/2" STRAIGHT IMPACT WRENCH
