Page 2: Table Of Contents
04 SOFTWARE INSTALLATION ............... 12 GeForce Experience Software Installation ................12 05 CONFIGURING SLI (NVLink) ..............14 Accessing the NVIDIA Control Panel ................... 14 Enabling / Disabling SLI ..................... 15 06 CONFIGURING HDMI ................16 Enabling Audio Over HDMI ....................16 07 FEATURES .................... -
Page 3: Introduction
Turing™ architecture to give you incredible new levels of gaming realism, speed, power efficiency, and immersion. This is graphics reinvented. About This Guide This installation guide discusses the installation and operation of the NVIDIA GeForce RTX 2080 Ti graphic card. NVIDIA GeForce RTX 2080 Ti User Guide... -
Page 4: Minimum System Requirements
• Microsoft Windows 7, 64-bit • Linux, 64-bit • > System Memory 8 GB system memory (16 GB recommended) > Internet connection for driver installation > 1.5 GB of available hard disk space NVIDIA GeForce RTX 2080 Ti User Guide... -
Page 5: Unpacking
UNPACKING Prior to unpacking your new NVIDIA GeForce RTX 2080 Ti graphics card, it is important to make sure you meet all the system requirements listed on page 4 for a smooth installation. Be sure to inspect each piece of equipment shipped in the packing box. -
Page 6: Equipment

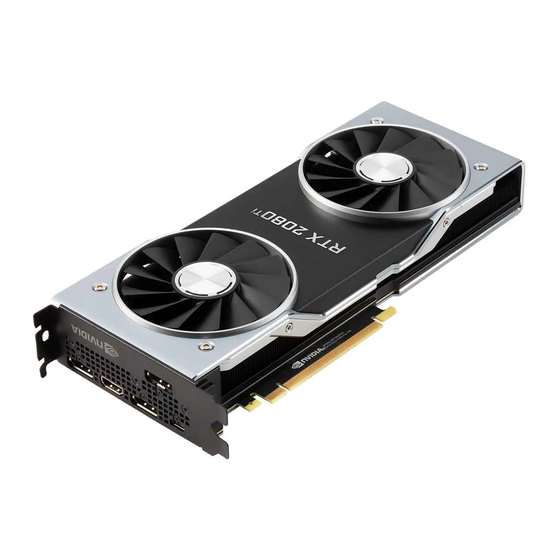

DisplayPort to DVI-D Dongle GeForce RTX 2080 Ti Graphics Card Two 8-pin power connectors GeForce RTX NVLink™ Connector HDMI (High-Definition Multimedia Interface) Connector DisplayPort Connectors (Qty 3) USB Type-C™ Connector GeForce RTX 2080 Ti Graphics Card NVIDIA GeForce RTX 2080 Ti User Guide... -
Page 7: Hardware Installation
Place this product securely on a stable surface. Serious damage to this product may result if it falls. > Do not allow anything to rest on the power cord. Do not place this product where a person can step or trip on the power cord. NVIDIA GeForce RTX 2080 Ti User Guide... -
Page 8: Before You Begin
Hardware Installation Before You Begin The GeForce RTX 2080 Ti graphics card is a PCI Express 3.0 ×16 graphics card. Your computer may already have a graphics card installed in the PCI Express slot. If so, you will need to remove that graphics card and replace it with the GeForce RTX 2080 Ti graphics card. - Page 9 PCI-Express slot you are installing the GeForce RTX 2080 Ti graphics card in. Note: The GeForce RTX 2080 Ti card is double-wide and requires removing two slot covers. Plug the GeForce RTX 2080 Ti graphics card into the Primary PCI Express x16 slot on your motherboard.
- Page 10 Connect two 8-pin power connectors from the power supply to the power connectors on the top edge of the GeForce RTX 2080 Ti graphics card. Note that the connector and socket on the graphics card have a unique shape and connect one way only.
- Page 11 Hardware Installation Reinstall the cover on your computer and reconnect any cables that you removed earlier in the installation. DisplayPort connectors (Qty 3) HDMI (High-Definition Multimedia Interface) Connector USB Type-C Connector NVIDIA GeForce RTX 2080 Ti User Guide...
-
Page 12: Software Installation
Download and install GeForce Experience software. Go to http://www.geforce.com/geforce-experience/download and click • Download Now. Accept the NVIDIA software license agreement by selecting Agree and • Continue. GeForce Experience software begins to install. Select Close to finish the installation. • Optimize your installed games. - Page 13 Software Installation Congratulations! Your GeForce RTX 2080 Ti graphics card is now ready to use! Note: If you have any questions about your NVIDIA product you can Chat live with NVIDIA Customer Care at www.nvidia.com/support or call 1-800-493-4578 (US) or 0800-404-7747 (UK).
-
Page 14: Configuring Sli (Nvlink)
Accessing the NVIDIA Control Panel To access the NVIDIA Control Panel, you can right-click the Windows desktop and select NVIDIA Control Panel from the menu. Other ways to access the NVIDIA Control Panel depends on the operating system. NVIDIA GeForce RTX 2080 Ti User Guide... -
Page 15: Enabling / Disabling Sli
Configuring SLI (NVLink) Enabling / Disabling SLI Once you have the NVIDIA Control Panel open, click on Configure SLI, Surround, PhysX in the left task pane. Enable SLI by making sure the Disable SLI button is not checked. NVIDIA GeForce RTX 2080 Ti User Guide... -
Page 16: Configuring Hdmi
On the Playback tab, select your HDMI display and select Set Default. Congratulations! Your GeForce graphics card(s) is now ready to use! For detailed instructions on using the NVIDIA Control Panel, consult the Control Panel User’s Guide found at www.geforce.com/drivers (select your driver, then click on Control Panel User’s Guide to download the User’s Guide). -
Page 17: Features
NVIDIA G-SYNC requires an NVIDIA G-SYNC-ready monitor Blu-ray 3D playback requires the purchase of a compatible software player from CyberLink or Corel. Upgrade your GPU to full 3D capability with NVIDIA 3DTV Play software, enabling 3D gaming, picture viewing and 3D web video streaming. See www.nvidia.com/3dtv... -
Page 18: Compliances
COMPLIANCES The NVIDIA GeForce RTX 2080 Ti graphics card is compliant with the following regulations: > Federal Communications Commission (FCC) > Industry Canada (IC) > Conformité Européenne (CE) > Australian Communications and Media Authority (C-tick) > Voluntary Control Council for Interference (VCCI) >... -
Page 19: United States Federal Communications Commission (Fcc)
FCC Warning: The FCC requires that you be notified that any changes or modifications to this device not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NVIDIA GeForce RTX 2080 Ti User Guide | 19... -
Page 20: Underwriters Laboratories (Ul)
EMC Directive 2014/30/EU > RoHS Directive 2011/65/EU for hazardous substances A copy of the Declaration of Conformity to the essential requirements may be obtained directly from NVIDIA GmbH (Floessergasse 2, 81369 Munich, Germany). NVIDIA GeForce RTX 2080 Ti User Guide | 20... -
Page 21: Japan
特定化学物質記号 主な分類 Cr(VI) PBDE PCBボード パッシブ電子部品 除外項目 アクティブ電子部品 除外項目 ケーブル/コネクター 除外項目 プロセッサー メモリ 機械部品 除外項目 はんだ付け材料 フラックス、クリームはんだ、ラベル、 その他消耗品 注： 1.「0」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008に記載されている含有率基準値より低 いことを示します。 2.「除外項目」は、特定化学物質が含有マークの除外項目に該当するため、特定化学物質について、日 本工業規格JIS C 0950:2008に基づく含有マークの表示が不要であることを示します。 3.「0.1wt%超」または「0.01wt%超」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008 に記載されている含有率基準値を超えていることを示します。 NVIDIA GeForce RTX 2080 Ti User Guide | 21... - Page 22 3. “Exceeding 0.1wt%” or “Exceeding 0.01wt%” is entered in the table if the level of the specified chemical substance exceeds the threshold level specified in the standard, JIS C 0950: 2008 NVIDIA GeForce RTX 2080 Ti User Guide | 22...
-
Page 23: Korea
NVIDIA Corporation Importer: This for is publicly certify That NVIDIA Company has undergone the confirmation and evaluation procedures for the acceptable amounts of hazardous materials contained in graphic card according to the regulations stipulated in Article 3 of the ‘Status on the Recycling of Electrical and Electronic Products, and Automobiles’ and that company has graphic card adhered to the Enforcement Regulations of Article 11, Item 1 of the statute. -
Page 24: Australia/New Zealand
AUSTRALIA/NEW ZEALAND Australian Communications and Media Authority This product meets the applicable EMC requirements for Class B, I.T.E equipment and applicable radio equipment requirements TAIWAN Bureau of Standards, Metrology & Inspection (BSMI) NVIDIA GeForce RTX 2080 Ti User Guide | 24... - Page 25 All parts named in this table with an “-” are in compliance with the European Union’s RoHS Legislation. 注：環保使用期限的參考標識取决與產品正常工作的温度和濕度等條件 Note: The referenced Environmental Protection Use Period Marking was determined according to normal operating use conditions of the product such as temperature and humidity. NVIDIA GeForce RTX 2080 Ti User Guide | 25...
-
Page 26: China
The table according to SJ/T 11364 O：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 标准规定的限量要求以下。 O: Indicates that this hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in GB/T 26572. NVIDIA GeForce RTX 2080 Ti User Guide | 26... -
Page 27: India
Weight placing on product other Schedule I name RoHS info country, of E-Waste Yes/No booklet name of the market (M) Rules, Yes/No country 2016 manufactured TEW2 Graphic (Graphic China Card Card) NVIDIA GeForce RTX 2080 Ti User Guide | 27... - Page 28 NVIDIA does not accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this specification, or (ii) customer product designs.
