Summary of Contents for Nvidia Geforce RTX 2080

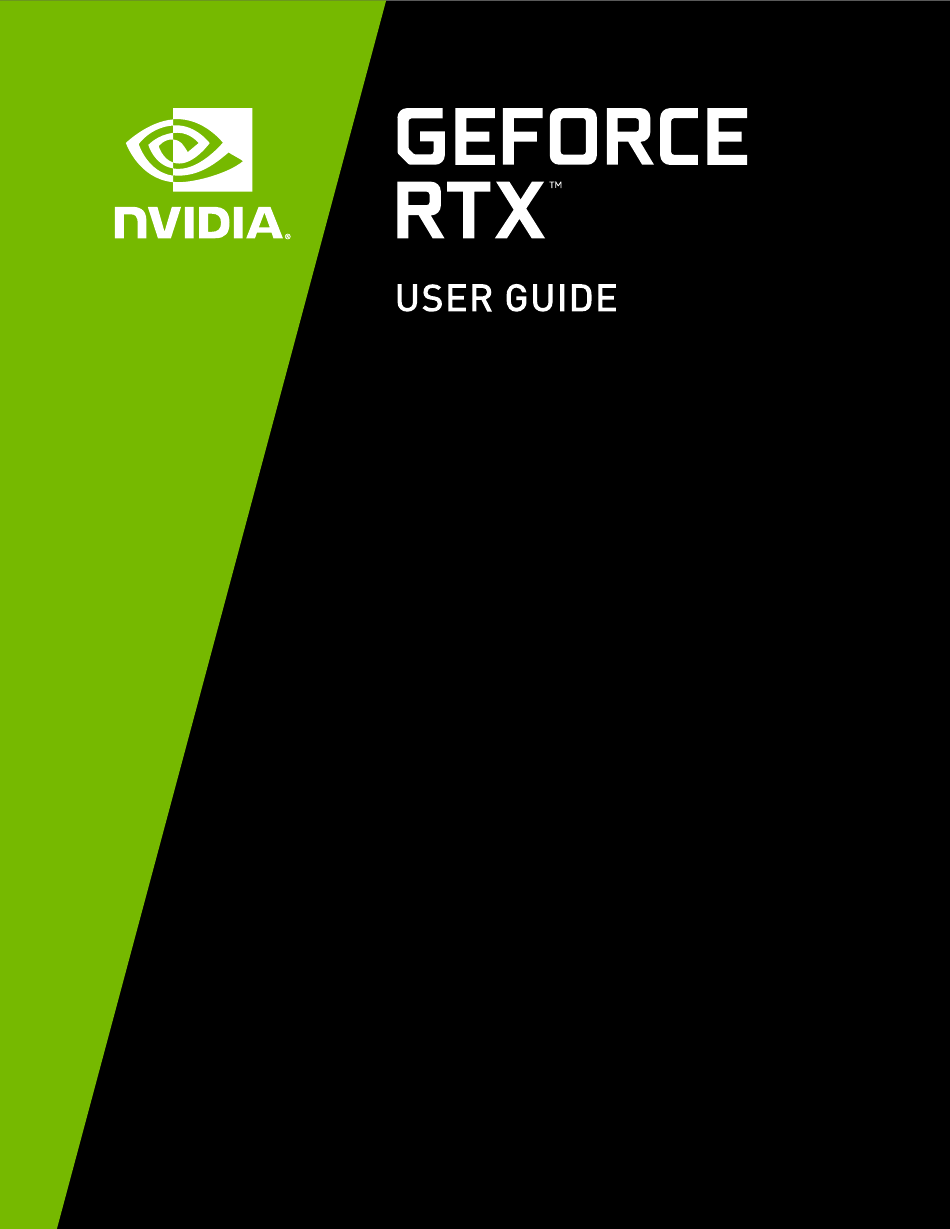

- Page 1 2080...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 01 INTRODUCTION ..................3 About This Guide ..........................3 Minimum System Requirements ....................... 4 02 UNPACKING ..................5 Equipment ............................6 03 Hardware Installation ................7 Safety Instructions ..........................7 Before You Begin ..........................8 Installing the GeForce Graphics Card ....................8 04 SOFTWARE INSTALLATION .............. -
Page 3: Introduction
Turing™ architecture to give you incredible new levels of gaming realism, speed, power efficiency, and immersion. This is graphics reinvented. About This Guide This installation guide discusses the installation and operation of the NVIDIA GeForce RTX 2080 graphic card. NVIDIA GeForce RTX 2080 User Guide... -
Page 4: Minimum System Requirements
® • Microsoft Windows 7, 64-bit • Linux, 64-bit • > System Memory 8 GB system memory (16 GB recommended) > Internet connection for driver installation > 1.5 GB of available hard disk space NVIDIA GeForce RTX 2080 User Guide... -
Page 5: Unpacking
UNPACKING Prior to unpacking your new NVIDIA GeForce RTX 2080 graphics card, it is important to make sure you meet all the system requirements listed on page 4 for a smooth installation. Be sure to inspect each piece of equipment shipped in the packing box. -
Page 6: Equipment
DisplayPort to DVI-D Dongle GeForce RTX 2080 Graphics Card One 6-pin and one 8-pin power connector GeForce RTX NVLink™ Connector HDMI (High-Definition Multimedia Interface) Connector DisplayPort Connectors (Qty 3) USB Type-C™ Connector GeForce RTX 2080 Graphics Card NVIDIA GeForce RTX 2080 User Guide... -
Page 7: Hardware Installation
HARDWARE INSTALLATION Installing the NVIDIA GeForce graphics card hardware involves opening your computer. RTX 2080 Follow all the safety instructions provided here to ensure that there is no damage to you, your computer, or the graphics board. Safety Instructions To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions. -
Page 8: Before You Begin
Hardware Installation Before You Begin The GeForce RTX 2080 graphics card is a PCI Express 3.0 ×16 graphics card. Your computer may already have a graphics card installed in the PCI Express slot. If so, you will need to remove that graphics card and replace it with the GeForce RTX 2080 graphics card. - Page 9 PCI-Express slot you are installing the GeForce RTX 2080 graphics card in. Note: The GeForce RTX 2080 card is double-wide and requires removing two slot covers. Plug the GeForce RTX 2080 graphics card into the Primary PCI Express x16 slot on your motherboard.
- Page 10 Connect a 6-pin and 8-pin power connectors from the power supply to the power connectors on the top edge of the GeForce RTX 2080 graphics card. Note that the connector and socket on the graphics card have a unique shape and connect one way only.
- Page 11 Hardware Installation DisplayPort connectors (Qty 3) HDMI (High-Definition Multimedia Interface) Connector USB Type-C Connector NVIDIA GeForce RTX 2080 User Guide...
-
Page 12: Software Installation
Download and install GeForce Experience software. Go to http://www.geforce.com/geforce-experience/download and click • Download Now. Accept the NVIDIA software license agreement by selecting Agree and • Continue. GeForce Experience software begins to install. Select Close to finish the installation. • Optimize your installed games. - Page 13 Click CLOSE when the driver install completes. • Congratulations! Your GeForce RTX 2080 graphics card is now ready to use! Note: If you have any questions about your NVIDIA product you can Chat live with NVIDIA Customer Care at www.nvidia.com/support or call 1-800-493-4578 (US) or 0800-404-7747 (UK).
-
Page 14: Configuring Nvlink
Accessing the NVIDIA Control Panel To access the NVIDIA Control Panel, you can right-click the Windows desktop and select NVIDIA Control Panel from the menu. Other ways to access the NVIDIA Control Panel depends on the operating system. NVIDIA GeForce RTX 2080 User Guide... - Page 15 CONFIGURING SLI Enabling / Disabling SLI Once you have the NVIDIA Control Panel open, click on Configure SLI, Surround, PhysX in the left task pane. Enable SLI by making sure the Disable SLI button is not checked. NVIDIA GeForce RTX 2080 User Guide...
-
Page 16: Configuring Hdmi
On the Playback tab, select your HDMI display and select Set Default. Congratulations! Your GeForce graphics card(s) is now ready to use! For detailed instructions on using the NVIDIA Control Panel, consult the Control Panel User’s Guide found at www.geforce.com/drivers (select your driver, then click on Control Panel User’s Guide to download the User’s Guide). -
Page 17: Features
FEATURES > NVIDIA GeForce Experience™: Ensures the best gaming experience, the day a game releases, by automatically updating your game-ready drivers. Plus, it allows users to optimize the game settings to their PC with a single click. GeForce Experience also includes SHARE that lets you capture and share your favorite gaming moments. - Page 18 Blu-ray 3D playback requires the purchase of a compatible software player from CyberLink or Corel. Upgrade your GPU to full 3D capability with NVIDIA 3DTV Play software, enabling 3D gaming, picture viewing and 3D web video streaming. See www.nvidia.com/3dtv for more details.
-
Page 19: Compliances
COMPLIANCES The NVIDIA GeForce RTX 2080 graphics card is compliant with the following regulations: > Federal Communications Commission (FCC) > Industry Canada (IC) > Conformité Européenne (CE) > Australian Communications and Media Authority (C-tick) > Voluntary Control Council for Interference (VCCI) >... -
Page 20: United States Federal Communications Commission (Fcc)
FCC Warning: The FCC requires that you be notified that any changes or modifications to this device not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NVIDIA GeForce RTX 2080 User Guide | 20... -
Page 21: Underwriters Laboratories (Ul)
EMC Directive 2014/30/EU > RoHS Directive 2011/65/EU for hazardous substances A copy of the Declaration of Conformity to the essential requirements may be obtained directly from NVIDIA GmbH (Floessergasse 2, 81369 Munich, Germany). NVIDIA GeForce RTX 2080 User Guide | 21... -
Page 22: Japan
機器名称：グラフィックカード 特定化学物質記号 主な分類 Cr(VI) PBDE PCBボード パッシブ電子部品 除外項目 アクティブ電子部品 除外項目 ケーブル/コネクター 除外項目 プロセッサー メモリ 機械部品 除外項目 はんだ付け材料 フラックス、クリームはんだ、ラベル、 その他消耗品 注： 1.「0」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008に記載されている含有率基準値より低 いことを示します。 2.「除外項目」は、特定化学物質が含有マークの除外項目に該当するため、特定化学物質について、日 本工業規格JIS C 0950:2008に基づく含有マークの表示が不要であることを示します。 3.「0.1wt%超」または「0.01wt%超」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008 に記載されている含有率基準値を超えていることを示します。 NVIDIA GeForce RTX 2080 User Guide | 22... - Page 23 JIS C 0950: 2008. 3. “Exceeding 0.1wt%” or “Exceeding 0.01wt%” is entered in the table if the level of the specified chemical substance exceeds the threshold level specified in the standard, JIS C 0950: 2008 NVIDIA GeForce RTX 2080 User Guide | 23...
-
Page 24: Korea
NVIDIA Corporation Importer: This for is publicly certify That NVIDIA Company has undergone the confirmation and evaluation procedures for the acceptable amounts of hazardous materials contained in graphic card according to the regulations stipulated in Article 3 of the ‘Status on the Recycling of Electrical and Electronic Products, and Automobiles’... -
Page 25: Australia/New Zealand
② 전기 전자 제품의 경우 모델명 (번호), 자동차의 경우, 제원관리번호를 기재합니다. ③ 해당제품의 제조업자 또는 수입업자를 기재합니다. AUSTRALIA/NEW ZEALAND Australian Communications and Media Authority This product meets the applicable EMC requirements for Class B, I.T.E equipment and applicable radio equipment requirements NVIDIA GeForce RTX 2080 User Guide | 25... -
Page 26: Taiwan
All parts named in this table with an “-” are in compliance with the European Union’s RoHS Legislation. 注：環保使用期限的參考標識取决與產品正常工作的温度和濕度等條件 Note: The referenced Environmental Protection Use Period Marking was determined according to normal operating use conditions of the product such as temperature and humidity. NVIDIA GeForce RTX 2080 User Guide | 26... -
Page 27: China
All parts named in this table with an “X” are in compliance with the European Union’s RoHS Legislation. 注：环保使用期限的参考标识取决于产品正常工作的温度和湿度等条件 Note: The referenced Environmental Protection Use Period Marking was determined according to normal operating use conditions of the product such as temperature and humidity. NVIDIA GeForce RTX 2080 User Guide | 27... -
Page 28: India
RoHS Per Schedule I name Weight (g) product name of the Yes/No of E-Waste info booklet country market (M) Rules, 2016 Yes/No manufactured TEW2 Graphic China (Graphic Card) Card NVIDIA GeForce RTX 2080 User Guide | 28... - Page 29 NVIDIA does not accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this specification, or (ii) customer product designs.
