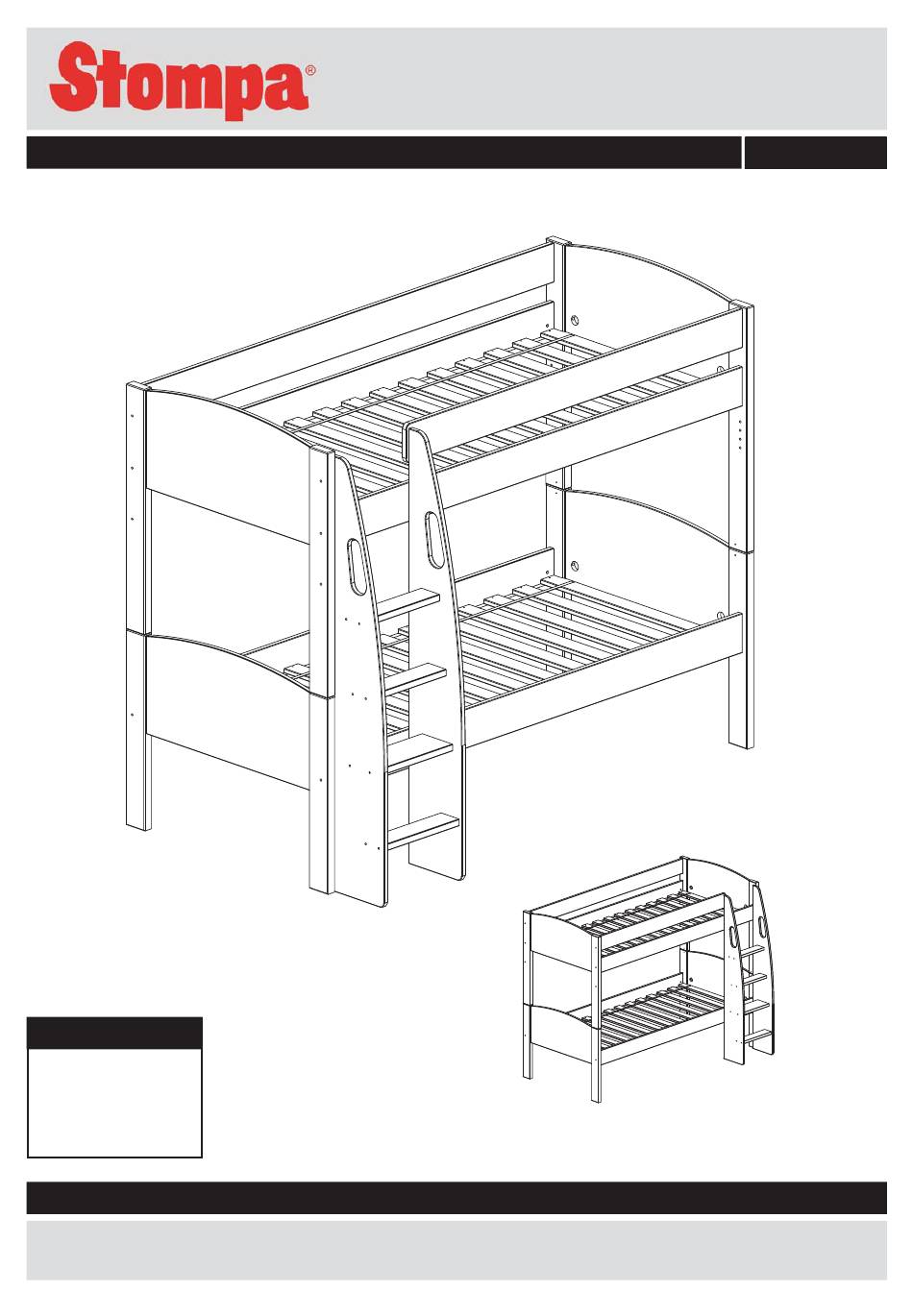

White - 4ft6 Bed with Slats

Assembly Instructions

Dimensions

208,2 cm

Width - 148cm

122,2 cm

Depth - 204cm

Height -109cm

166,2 cm

Important

– Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline:

T1054-02 NR541-V6/V8

- Uno S Bunk bed

- Please keep for future reference

Batch nr:

Ladder can be fitted

right or left side

6564942

T1054-02

0844 8008475

Issue 2 - 01/03/18

Issue 1 - 25/11/14

Issue 1 - 22/10/10

1 of 15

Need help?

Do you have a question about the Uno S Bunk Bed and is the answer not in the manual?

Questions and answers

Summary of Contents for Stompa Uno S Bunk Bed

Page 1 White - 4ft6 Bed with Slats - Uno S Bunk bed Assembly Instructions 6564942 T1054-02 - Please keep for future reference Ladder can be fitted right or left side Dimensions 208,2 cm Width - 148cm 122,2 cm Depth - 204cm...
Page 2 IMPORTANT, READ CAREFULLY - RETAIN FOR FUTURE REFERENCE · Always follow the manufacturer`s • The bunk bed meets the european EN 747+A1:2015 standards for security instructions and durability. ·Do not use the bed if any structural part isbroken or missing ·...
Page 3 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Conformat screw Ø7x 60mm Screw 3.5 x 35mm Dowel Ø8x40 M6x10x13 Cross dowel x 8 M6x75 Bolt x 8...
Page 4 Components - Panels Components 1 Bed rail x 2 (200,6x14,5x2 cm) 10 Bed rail x 2 (200,6x14,5x2 cm) 9 Ladder side x 2 6 Bed safety rail x 1 (200,6x14,5x2 cm) (160x26x1,8 cm) 4 of 15...
Page 5 Components - Panels 13 Step x 1 (36x11,5x2,5 cm) 8 Step x 3 (36x90x2,5 cm) 5 Slats x 2 7 Front safety rail x 1 (164x14,5x2 cm) 2 End rail x 4 (80,2x40,4x1,9 cm) 3 Leg x 2 4 Leg x 2 11 Leg x 2 12 Leg x 2 (90,3x9x3,8 cm)
Page 6 7x60 Screw x 8 6 of 15...
Page 7 8x40 Wooden dowel x 40 D=35 Sector x 8 D35 Cover Cap x 8 7 of 15...
Page 8 8x40 Wooden dowel x 27 D4x13 Cover Cap x 16 7x50 Screw x 16 8 of 15...
Page 9 D15x18 Cover Cap x 4 M6x75 Bolt x 4 M6x10x13 Cross dowel x 4 3,5x40 Screw x 30 9 of 15...
Page 10 D15x18 Cover Cap x 4 6,3x70 Screw x 2 M6x75 Bolt x 2 M6x10x13 Cross dowel x 2 D15x18 Cover Cap x 2 M6x75 Bolt x 2 M6x10x13 Cross dowel x 2 10 of 15...
Page 11 3,5x40 Screw x 30 15x80 Wooden dowel x 4 4,2x35 Screw x 8 11 of 15...
Page 12 Left or Right Max. mattress height! 6,3x70 Screw x 1 D15x18 Cover Cap x 1 55/12,5x5(Zn) x 6 12 of 15...
Page 13 D8x13 Cover Cap x 23 D8x13 Cover Cap x 32 D15x18 Cover Cap x 4 13 of 15...
