Desisti SOFT LED 8 Vari-White Instruction Manual

360w led softlight 90-250v 50/60 hz (white light, with tunable correlated color temperature from 2.800 degrees to 6.600 degrees k)
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

(white light, with tunable correlated color temperature from 2.800° to 6.600°K)

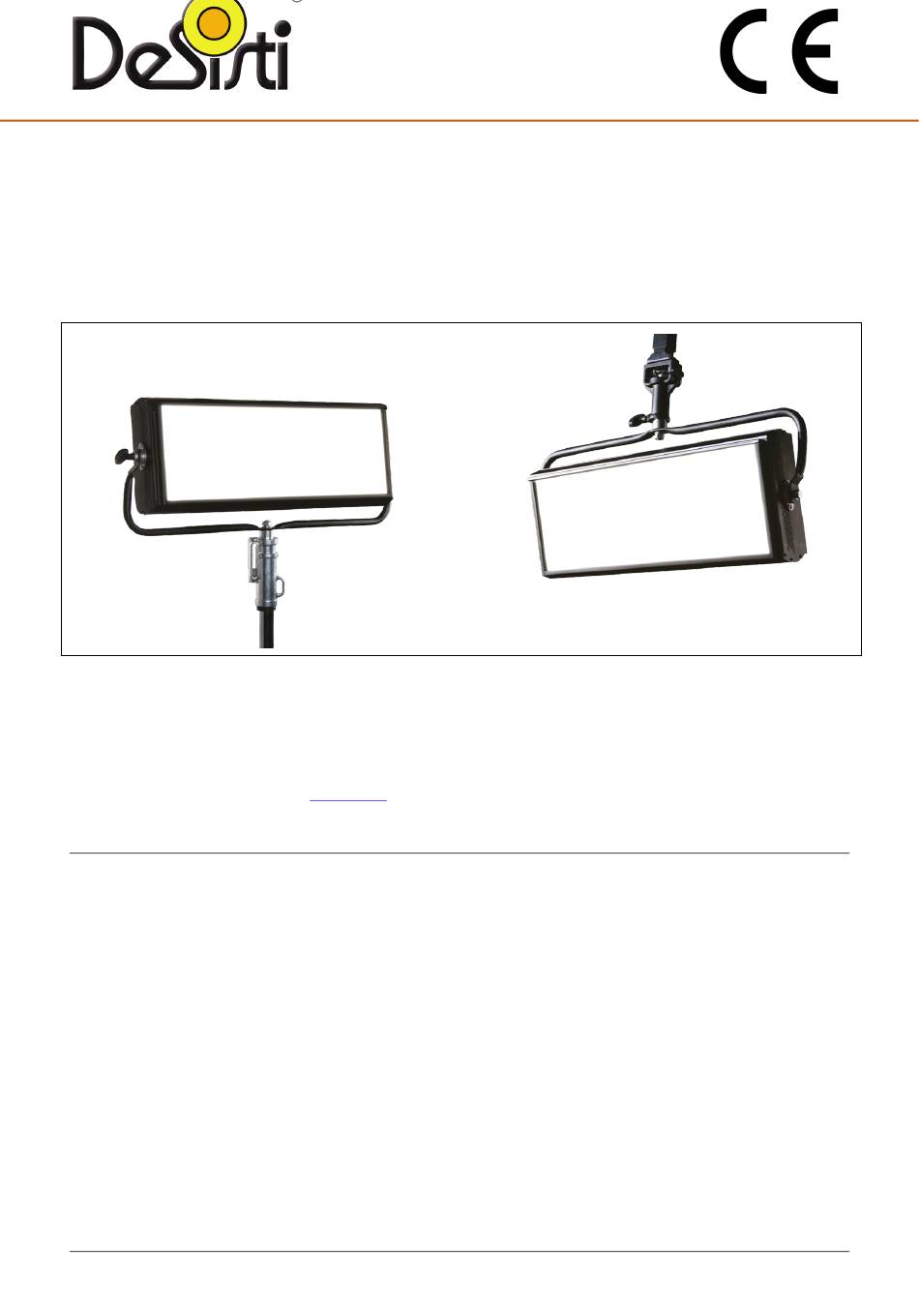

Manual Operated
MANUFACTURER
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
U.R.L.: www.desisti.it
1. INTRODUCTION
Congratulations on your purchase of a SOFT LED 8 Vari-White lighting fixture.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design innovation and manufacturing of
lighting products for the professional Entertainment Industry means you can depend upon the quality of this product.
The SOFT LED 8 Vari-White is a innovative 360W LED SOFTLIGHT, with a COLOR RENDERING INDEX – CR higher than 95 at any CCT within a
range, from a minimum of 2.800°K to a maximum of 6.600°K; it provides a smooth and soft shadow projecting beam, yet within a controlled
field that makes it ideal for multiple camera set ups.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is equipped with either a 90-250V
50/60Hz power supply for AC feed and the front Remote Phosphors Panel is easily interchangeable and it is available with either Tungsten or
Daylight Balanced CCT.
Standard accessories are available such as Black or White Honeycombs with either narrow or medium cells for different beam shaping and
control, Colour Frame, Beam Intensifier and a special yoke for multiple fixtures configuration, for background lighting applications.
This Manual is applicable to
SOFT LED 8 VW
ILT ITALY srl
Via Cancelliera, 10/a
00041 Albano Laziale (Rome) Italy
tel. +39 06-902901 fax +39 06-90231051
www.desisti.it
SOFT LED 8 Vari-White
360W LED SOFTLIGHT 90-250V 50/60 Hz
INSTRUCTION MANUAL
E-mail:
desisti@desisti.it
(Pole Operated available, not shown)
REPRESENTATIVE
Revised August 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOFT LED 8 Vari-White and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Desisti SOFT LED 8 Vari-White

Summary of Contents for Desisti SOFT LED 8 Vari-White

  • Page 1 Entertainment Industry means you can depend upon the quality of this product. The SOFT LED 8 Vari-White is a innovative 360W LED SOFTLIGHT, with a COLOR RENDERING INDEX – CR higher than 95 at any CCT within a range, from a minimum of 2.800°K to a maximum of 6.600°K;...
  • Page 2 ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it 2. YOKE AND ACCESSORIES ASSEMBLY This Manual is applicable to Revised August 2018 SOFT LED 8 VW...

  • Page 3: Safety Instructions

    ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it 3. POWER AND DMX DAISY CHAIN The SOFT LED permits both POWER and DMX DAISY CHAIN. In fact each Fixture is respectively equipped with:...

  • Page 4: Installation Instructions

    Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it A. Do not cover the apertures of the luminaire housing. They are essential for correct ventilation. B. Use only original accessories and spares from De Sisti Lighting.

  • Page 5: Local Menu

    Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it 6. LOCAL MENU The SOFT LED8 Vari-White has a GRAPHIC DISPLAY backlit, with two local knobs, each one having a push/click function in addition to the rotation: KNOB 1 It is as a DEFAULT the CCT Variation Knob, By rotating it clockwise the CCT Changes from 2.750°K up to 6.900 °K.
  • Page 6 Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it CHANNEL SETTING (RESOLUTION & FUNCTION) This function is to SET THE DIMMING RESOLUTION either at 8 bits or at 16 bits. Select DMX resol by rotating and pushing KNOB2, the following choices are available: - 8 bits resolution (the display will show 8 bit).
  • Page 7 ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it INFORMATION PROVIDED ON THE DISPLAY Display of Correlated Colour Temperature Display of LED Case TEMPERATURE Display of DMX Leve DMX Address Display of local potentiometer level (when in local control or turned off turned DMX controller) Graphic Scale of Dimming 7.

  • Page 8: Periodic Inspection & Maintenance

    ILT ITALY srl Via Cancelliera, 10/a 00041 Albano Laziale (Rome) Italy tel. +39 06-902901 fax +39 06-90231051 www.desisti.it 8. DIMENSIONS Dimensions: Black=mm. Red=inches Dimensions: Black=mm. Red=inches 9. PERIODIC INSPECTION & MAINTENANCE This product requires very little routine maintenance, if any, but has special cleaning instructions: Disconnect fixture from power and allow it to cool for 10 min.
