Coemar i spot FLEX Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

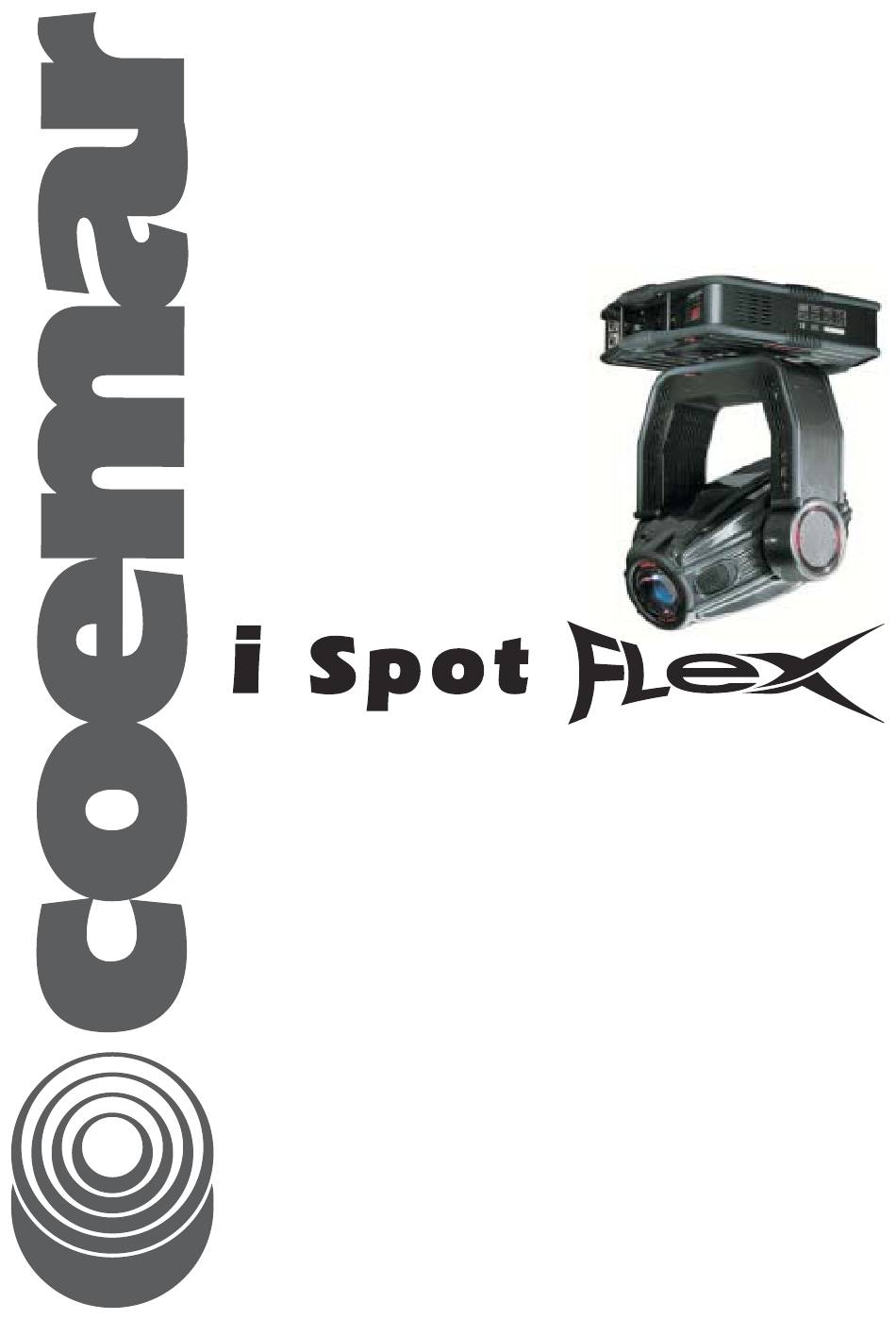

provisional
instruction
manual
st
2
edition, july 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i spot FLEX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar i spot FLEX

Summary of Contents for Coemar i spot FLEX

  • Page 1 provisional instruction manual edition, july 2004...
  • Page 3 Index International Warnings Page 4 2. Compliance / Safety Information 2.1. Manufacturer 2.2 Model Information 2.3 Fuse Specification 2.4 Lamp Specification 3. Product Specifications 3.1. Mechanical Specifications 3.2. Electrical Specifications 3.3 Certifications 4. Navigating the Display Panel 4.1. Display Overview 4.2 Menu Constructs Map 4.3.

  • Page 4: Section 1: Warnings

    Section 1: Warnings WARNING! / AVERTISSEMENT! Please read these warnings before proceeding / Prière de lire ces avertissements avant de continuer Risk of Electrical Shock Disconnect AC mains power before servicing and when not in use. Insure that a proper earth ground is provided to the fixture. Connect to an AC power source provided with overload protection with sufficient current capacity and in compliance with local electrical codes.

  • Page 5: Fuse Specification

    Section 2: Compliance & Safety Information 2.1. Manufacturer coemar, SpA, Via Inghilterra 2/a, 46042 Castel Goffredo (MN) Italy 2.2. Model Information Product Model iSPOT Flex™, part number 9116 2.3. Fuse Specification Power supply: 5x20 mm, T 6,3 A/250V Main (2 fuses): 6,3x32 mm, T 16 A/250V 2.4.

  • Page 6: Mechanical Specifications

    Section 3. Product Specifications 3.1. Mechanical Specifications Mechanical drawings 545mm 21,46” 315mm 315mm 560mm 12,40” 12,40” 22,05” 370mm 14,57” Figure W1 Dimensioned line dwgs. as shown + angular rotation values...
  • Page 7 Materials Housing: Carbon Fiber / epoxy composite/ rubber overmold on aluminum Internal: Passivated steel and aluminum Flammability rating:Housing – V0 Installation Orientation: Any orientation Mounting: Supplied with two mounting brackets fitted with quarter turn fasteners to attach to track on fixture base suitable for use with clamps fitted with 1.3cm (0.5”) bolts.

  • Page 8: Section 4: Navigating The Display Panel

    Section 4: Navigating the Display Panel 4.1. Display Overview To change DMX address use ( + ) and ( -- ); Fig. W3 below shows the display panel. The 4 character alpha-numeric display to record press (enter). To select a function press ( menu ). provides information on the addressing and status of the fixture.
  • Page 9 SFAN displays the velocity for each of the 16 different fans in your Flex from 0 to maximum RPM. See the fan and sensor map in the Additional Technical Information Section 3 to identify the location of fans. To access the sub-menus from the SFAN menu press <enter>...
  • Page 10 ALIG RE.LA Special Functions ALIG RE.LA The special functions menus allows for recalibration of the internal components including pan, tilt, shut- ter, iris, lens, color, gobo and effects positioning along with buss addressing and lamp reset. It is NOT recommended to alter these settings unless rebuild of a module requires it to be recalibrated or readdressed.
  • Page 11 BUS4 FAIL The number of motor cards found on bus 4 does not match the software version installed. (MOTOR NUMBER) RST ERR The indicated motor has failed to reset in the allotted time. Check that the motor is free to move and that the wiring from the motor board to the motor is intact.
  • Page 12 Section 5: DMX Chart 1.DMX Chart Refer to Additional Technical Information, Section 1 for DMX chart Section 6: Installation Installation Read all warnings and safety information before attempting installation, service or maintenance of the lighting fixture. 6.1. Power Always remove power from the fixture prior to installation. Verify that the power to be supplied is compliant with the power settings on the fixture.
  • Page 13 6.2.2.Fitting Clamps When installing the fixture always use clamps or fasteners that are designed for this purpose and rated for at least 10X the weight of the fixture. This fixture is a dynamic load and must be RIGIDLY mounted. All fasteners used to secure the fixture should be fitted with lock washers and nuts or flat washers with lock- ing nuts to insure that the fasteners cannot work loose.

  • Page 14: Data Connection

    100m a splitter/repeater should be utilized. The section below describes the proper installation and use of the coemar dr2 display replicator and coemar bidos dmx splitter/repeater. If there is any question regard- ing proper wiring and the use of the dr2 and bidos splitter/repeater please contact your coemar dealer.
  • Page 15 In the event that more than 100m of data cable or 24 fixtures are utilized on the DMX data line, a bi-directional splitter/repeater such as the coemar bidos should be inserted in the line imme- diately after the 24 fixture or 100m of data cable.

  • Page 16: Lamp Replacement

    Section 7: Maintenance 7.1. Lamp Replacement Disconnect mains before servicing! The lamp should be replaced at the end of its service life to avoid possible lamp explosion and damage to the Flex fixture. The service life for the MSR-2000/SA is 750 hours. It is suggested that you HOUR LIFE MEAS...
  • Page 17 7.3. Accessing the internal components Removing covers To access the internal components in the head of the Flex remove the top cover. The top cover is the one with the lamp exhaust fins over the lamp housing. Remove the cover by unscrewing the four retaining screws. Figure W12A Removing Fixture Covers Figure W12B Removing Fixture Covers To access the PCB’s located in the yoke remove the four screws retaining the covers and pull the covers upward and out.
  • Page 18 7.4. Changing Colors, Gobos and Prisms Refer to the Additional Technical Information Section 6 for a chart of standard fitted colors. Flex SPOT is fitted with three removable modules to provide easy access to the colors and gobos. The module closest to the lamp housing is the CYM+CTO+Dim module.
  • Page 19 Figure W16 Removing Color Filter Obtaining replacement colors for your Flex: Flex Your new produces very high energy levels. To withstand this level of energy, coemar uses only the most advanced dichroic Flex coemar filter technology available. To insure continued performance of your...

  • Page 20: Service Information

    Changing the Prisms Optional prism effects are available from Coemar. To change the prism effect remove the bottom cover. Move the prism assem- bly as far back as possible from the front lens by rotating the lead screw of the focus motor. Using a small flat blade screw driv- er, remove the 4 screws holding the prism assembly to the rail and remove the prism assembly.
  • Page 21 Additional technical information edition, june 2003...
  • Page 23 Index 1. DMX Chart/Tabella funzionamento DMX 512 Pg. 4 2. Menu navigation map / Menu di navigazione rapida ,,. 10 3. Fan network / Mappatura delle ventole ,,. 11 4. Temperature sensor network / Posizione dei sensori di temperatura ,,. 11 5.

  • Page 24: Dmx Chart

    1.a DMX Chart channe l functio n typ e o f co ntro l e ffe ct de cimal p e rc e ntag e Pan (X) mo ve me nt, co ntro l o f the mo ve me nt o f the b e am o f lig ht b y p ro p o rtio nal p ro p o rtio nal - 2 5 5 - 1 0 0 %...
  • Page 25 channe l functio n typ e o f co ntro l e ffe ct de cimal p e rc e ntag e ste p no e ffe ct - 10 - 4 % co ntinuo us ro tatio n o f the g o b o in a clo ckw ise dire ctio n w ith p ro p o rtio nal - 1 3 1 - 5 1 %...
  • Page 26 channe l functio n typ e o f co ntro l e ffe ct de cimal p e rc e ntag e ste p p ark, no functio n - 10 - 4 % ste p lamp o ff - 32 - 1 3 % ste p pan and tilt re se t (o nce o nly)
  • Page 27 1.b Tabella Funzionamento DMX 512 canale funzio ne tipo di co ntro llo e ffe tto de cimal p e rc e ntag e asse X, mo vime nto co ntro llo de l mo vime nto de l fascio di luce co n ro tazio ne p ro p o rzio nale - 2 5 5 - 1 0 0 %...
  • Page 28 canale funzio ne tipo di co ntro llo e ffe tto de cimal p e rc e ntag e live llo unico ne ssun e ffe tto - 10 - 4 % ro tazio ne co ntinua g o b o s in se nso o rario , co n ve lo cità p ro p o rzio nale - 1 3 1 - 5 1 %...
  • Page 29 canale funzio ne tipo di co ntro llo e ffe tto de cimal p e rc e ntag e po te nza de lla lampada, re g o la l'inte nsità lumino sa se il canale p ro p o rzio nale re g o lazio ne de lla po te nza de lla lampada da minima a massima, - 2 5 5 - 1 0 0 %...
  • Page 30 2. Menu Navigation Map / Menu di Navigazione Rapida < more > WARNING: Improper use of these functions can cause fixture errors. Refer to trained service technicians. < menu > AOO1 MODE MEAS FUNC ALIG RE.LA EFFF < menu > <+ –>...
  • Page 31 3. Fan network / Mappatura delle ventole iPROFILE Flex edition / versione: 25/06/2003 * No feed back # In parallel 4. Temperature sensor network / Posizione dei sensori di temperatura iPROFILE Flex edition / versione: 25/06/2003...
  • Page 32 FLEX iPROFILE FLEX COEMAR CODE: A-1402 COEMAR CODE: A-1401 7. Standard color wheel chart / Disposizione dei colori standard su ruota Color Wheel Coemar Code...
  • Page 33 8. Allignment value label / Etichetta valori di taratura motori Default Value Valori di default settati da coemar sull’apparecchio Param. Align. Value Param. Align. Value KN.A1 TILT KN.A2 SH-R KN.B1 SH-L KN.B2 FOCU KN.C1 ZOOM KN.C2 PR.1 KN.D1 PR.2 KN.D2 IRIS KN.RO...
  • Page 34 9.a PCB assignment Address PCB network/map electronic pcb iPROFILE Flex edition / versione: 25/06/2003 bus 2 bus 4 add.5 front add.4 back add.2 lock add.6 add.1 add.7 add.2 add.8 add.3 lock the other side add.1 Fixture position display Posizione proiettore Assign pcb in the serial bus 2) Press and keep pressed the key Now the display is ON and...
  • Page 35 Now proceed with the assignment of 4 motors pcb in the bus 4 SAB2 9) <menu> Back to the assignment of serial bus 2 SAB4 <+> To assign serial bus 4 (4 motors pcb) 11)<enter> The display shows 01B4 01B4 (pcb address 1, 4 motors bus) 12)Press the key B of the pcb to...
  • Page 36 9.b Assegnazione schede PCB network/mappa indirizzo schede elettroniche iPROFILE Flex edition / versione: 25/06/2003 bus 2 bus 4 add.5 front add.4 back add.2 lock add.6 add.1 add.7 add.2 add.8 add.3 lock the other side add.1 Fixture position display Posizione proiettore Assegnare le schede nel bus seriale 1) Accendete il proiettore mante- display...
  • Page 37 Procedete ora nell’assegnazione delle schede a 4 motori nel bus 4. SAB2 9) <menu> Ritorna all’assegnazione bus seriale 2. SAB4 <+> Assegnare bus seriale 4 (per le schede a 4 motori) 11)<enter> Il display visualizza 01B4 01B4 (per scheda ad indirizzo 1, bus 4 motori) 12)Premete il tasto B della scheda Il led A smette di lampeg-...
  • Page 38 10.a Updating electronic pcb software 10.1. Updating DMX software 1) Switch on the fixture keeping the key Now the display is ON and shows the dmx address A001 <more> pressed. (for example 001), the fixture is supplied, the reset is not done by the motors. ALIG 2) Press e and keep pressed <more>, together Alignment and service hidden menu.
  • Page 39 10.b Aggiornamento software schede elettroniche 10.1. Aggiornamento software DMX 1) Accendete il proiettore mantenendo il tasto l display si accende mostrando l’indirizzo dmx (ad A001 <more> premuto. esempio 001), il proiettore è alimentato, i motori non hanno eseguito il reset. ALIG 2) Premete e mantenere premuto il tasto Menu nascosto allineamento e di servizio.
  • Page 40 11. Electric diagrams / Schemi elettrici...
