manuale di istruzioni
instructions manual
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panorama LED RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar Panorama LED RGB

Summary of Contents for Coemar Panorama LED RGB

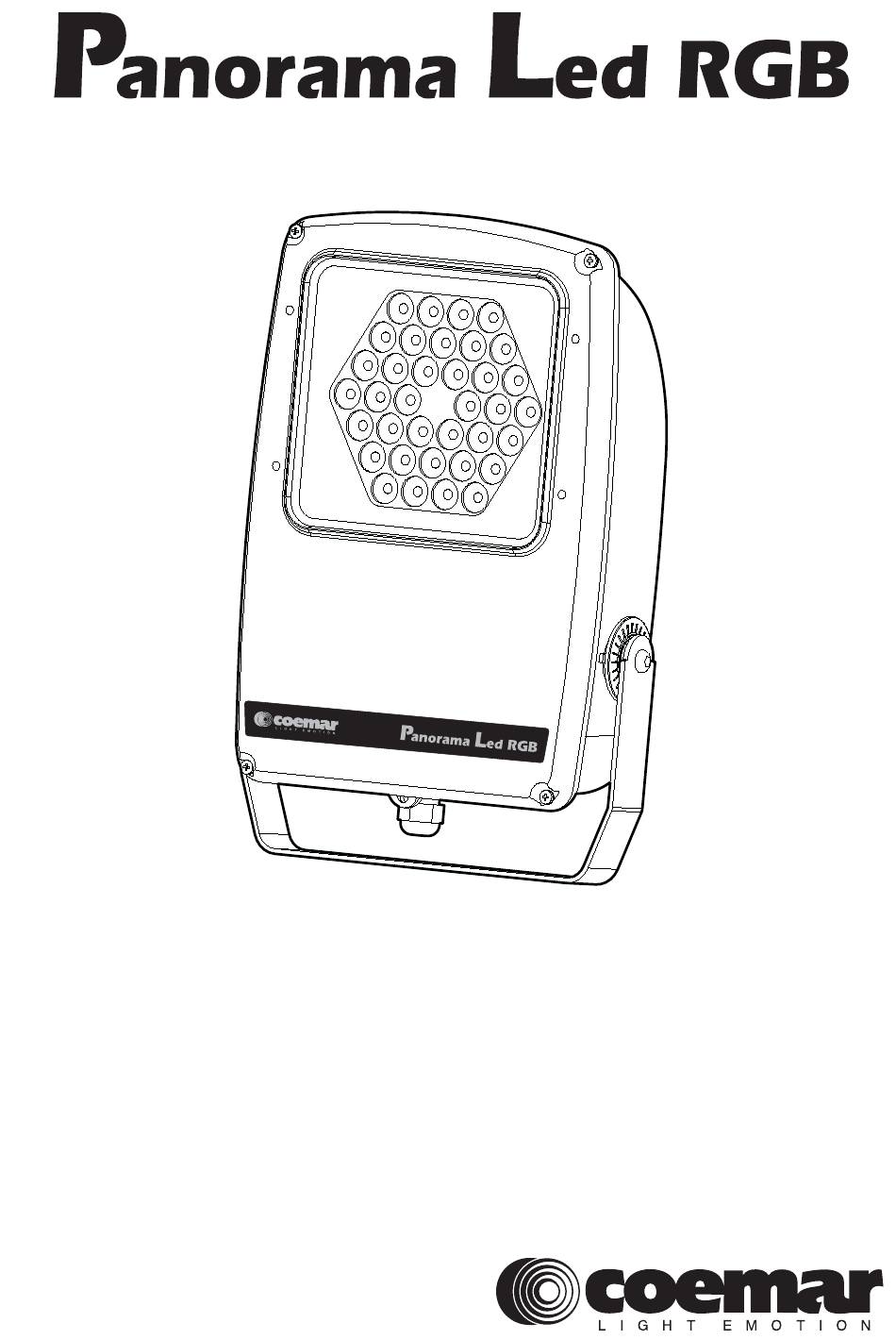

  • Page 1 manuale di istruzioni instructions manual Version 1.1...
  • Page 2 Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro Panorama Led RGB: ci permetteranno di assistervi con la massima rapidità e precisione. Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Panorama Led RGB : this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
  • Page 3 English Index 1. Packaging and transportation Pag. 4 1.1. Packaging “ 1.2. Transportation “ 2. General information Pag. 4 2.1. Important safety information “ 2.2. Warranty conditions “ 2.3. CE Certification “ 3. Product specifications Pag. 5 3.1. Technical characteristics “...
  • Page 4 2. For mains connection, adhere strictly to the guidelines outlined in this manual. 3. The level of technology inherent in the Panorama Led RGB requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre.

  • Page 5: Product Specifications

    9.72” 9.68” 6.41” 278 mm 10.94” 3.3. Projector components The principal components and dimensions of the Panorama Led RGB are shown in the diagram below. Component description 1. Rear housing 2. Led housing 3. Reflector 4. Lens support (optional) 5. Colour filter holder (optional) 6.

  • Page 6: Installation

    4.2. Safety chain When hanging the Panorama Led RGB we recommend the use of a safety chain affixed to the appropriate hole in the fixture and to the suspen- sion device. The safety chain should be either a metal wire rope or a metal chain, both suitably rated for the purpose.

  • Page 7: Adjusting Beam Direction

    4.3. Adjusting beam direction The Panorama Led RGB can be tilted to adjust the beam output. To perform this adjustment, follow the instructions set out below. 1. using a suitable tool, loosen the two screws “A” located on the sides of the projector, thus allowing the inclination to be changed.
  • Page 8 6. Fit the appropriate filterholder “F”. 7. Refasten the 4 screws “A”. 8. Reclose the cover. The following table details the range of beam angle and diffusion filters available for the Panorama led RGB. Optical group Beam angle 1. Narrow Lenses (cod. 9844) 12°...

  • Page 9: Operating Voltage And Frequency

    • Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for use with the Panorama Led RGB. • A good earth connection is essential for the correcdt operation of the Panorama Led RGB. Never install the unit unless the yellow/gree earth cable is securely connected.

  • Page 10: Connecting Dmx Signal

    Control signal is digital and is transmitted via two pair screened cable, as recommended in international standards for the transmission of DMX512. Connection is serial, utilising the XLR3 sockets located on the base of the Panorama Led RGB. Coemar supplies the unit with XLR3 connectors with an IP67 protection rating;...

  • Page 11: Dmx Addressing

    IMPORTANT NOTE: the following points are valid for all the instructions which follow. 1. Setting a dip-switch to the ON position activates its function 2. The DMX address may be altered without the need to turn the Panorama Led RGB off. The following are examples only for setting DMX addresses.

  • Page 12: Test Function

    English 7. Test function With the dip-switch set to the ON position, Panorama Led RGB will test each individual channel without the need for a DMX con- troller to be connected. For example: set the dip-switch to ON on the Panorama Led RGB.

  • Page 13: Auto Function

    9.1. MASTER/SLAVE mode In MASTER/SLAVE mode, it is possible to control, via a projector set as MASTER, a series of Panorama Led RGB units set to act as SLAVE fixtures. The table below displays the settings required for fixtures to be connected in this manner.

  • Page 14: Standalone Mode

    ALONE running program 1 8 16 32 64 128 To configure the Panorama Led RGB as STAND ALONE simply set dip-switch Auto to the ON position and select the program you wish to run and the hold and crossfade times...
  • Page 15 DMX signal. 10.1. MASTER/SLAVE mode In MASTER/SLAVE mode it is possible to control a fixture set as MASTER, and other Panorama Led RGB configured as SLAVES. The fol- lowing diagram outlines the necessary settings for this configuration. IR MASTER...
  • Page 16 2) force leds on 3) function mode To initiate communications with the Panorama Led RGB the DR1 must be installed into the DMX signal chain between the fixture and the controller following the instructions located internally on the unit. The DR1 dip-switch must be set to the ON position; from this point on, dip-switches 1 to 128 take on the task of assigning an iden- tifying value (ID) to the fixture.
  • Page 17 11.1. Function modes using DR1 (MODE) Using the inbuilt functionality of the Panorama Led RGB via the DR1, it is possible to alter the function mode of the fixture. The fol- lowing diagram illustrates the menu navigation system of the DR1 in MODE.
  • Page 18 11.2. Setting up functionality via DR1 (FUNC) Using the inbuilt functionality of the Panorama Led RGB via the DR1, it is possible to alter the function settings of the fixture. The fol- lowing diagram illustrates the menu navigation system of the DR1 in FUNC.
  • Page 19 The initial configuration settings are fautly or have been loaded incorrectly. The projector has loaded its default configuration. Turn the projector off and on again and if the error persists the EEPROM is either defective or absent; refer to your Coemar service centre for a replacement component. DMX ADDRESS Error ADER The projector is not receiving all the DMX channels necessary for its operation.

  • Page 20: Maintenance

    DMX OK connected 13. Thermal protection A thermal sensor in the body of the Panorama Led RGB protects the fixture against overheating. The sensor operates by removing power to the leds should the operating temperature exceed the factory preset. 14. Maintenance Whilst every possible precaution has been taken to ensure the trouble-free operation of your Panorama Led RGB, the following peri- odic maintenance is highly recommended.

  • Page 21: Frequently Asked Questions

    - Panorama Led RGB may be incorrectly addressed. Check the DMX addressing. The Panorama Led RGB is set to auto but is not running In addtion to setting the AUTO dip-switch to on, it is necessary to also any programs select a program number (see section 9.0 AUTO function).
  • Page 22 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
