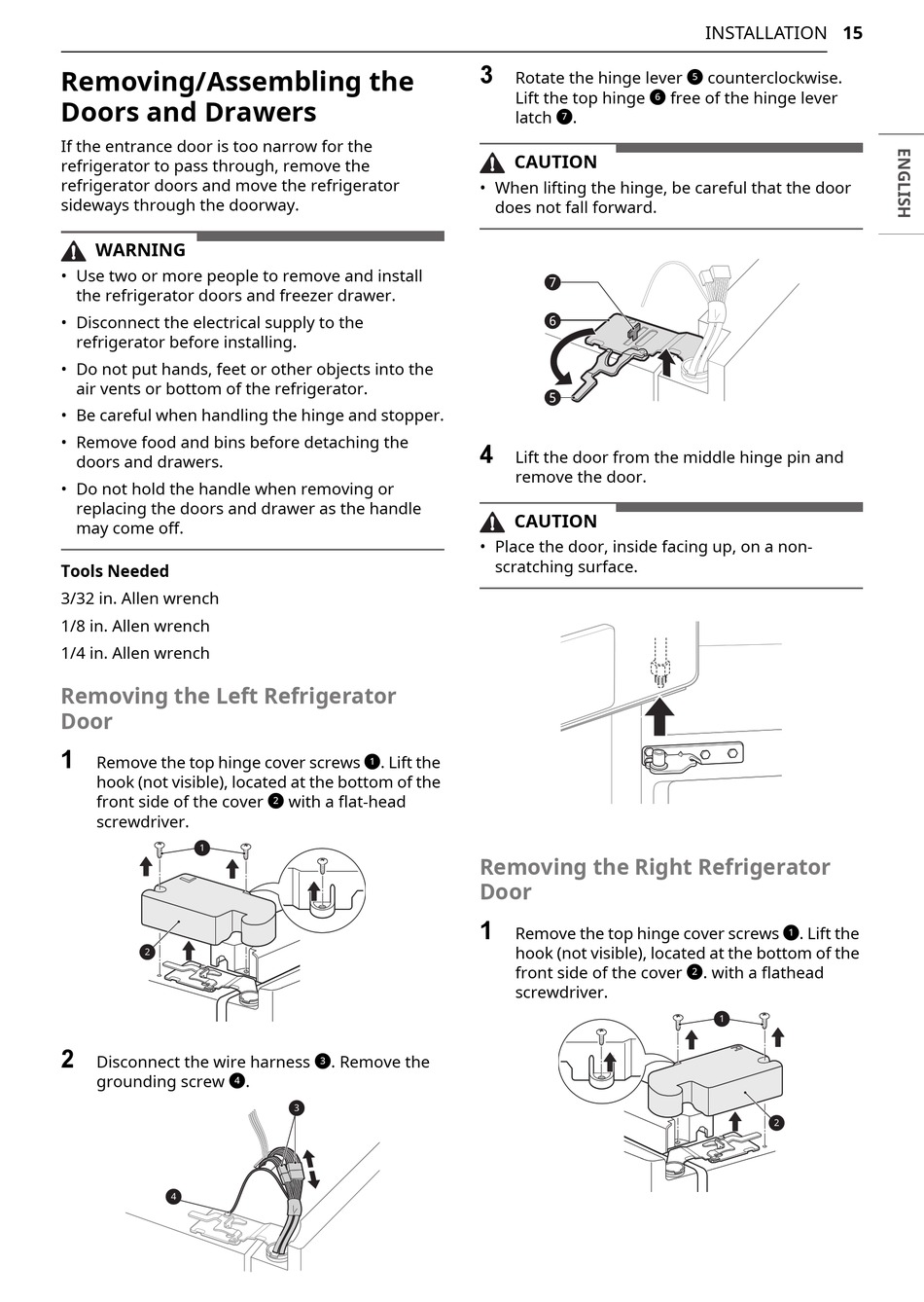

Removing/Assembling the
Doors and Drawers
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
WARNING
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and stopper.
• Remove food and bins before detaching the
doors and drawers.
• Do not hold the handle when removing or
replacing the doors and drawer as the handle
may come off.
Tools Needed
3/32 in. Allen wrench
1/8 in. Allen wrench
1/4 in. Allen wrench
Removing the Left Refrigerator
Door
1
Remove the top hinge cover screws
hook (not visible), located at the bottom of the
front side of the cover
screwdriver.
2
Disconnect the wire harness
grounding screw
d
. Lift the
a
with a flat-head
b
. Remove the
c
.
3
Rotate the hinge lever
Lift the top hinge
f
latch .
g
CAUTION
• When lifting the hinge, be careful that the door
does not fall forward.
4
Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door, inside facing up, on a non-
scratching surface.
Removing the Right Refrigerator
Door
1
Remove the top hinge cover screws
hook (not visible), located at the bottom of the
front side of the cover
screwdriver.
INSTALLATION 15
counterclockwise.
e
free of the hinge lever
. Lift the
a
. with a flathead
b
