Thermaltake Pacific RL360 D5 Installation Manual

Pacific
RL360
D5
Water Cooling Kit
Cautions: Make sure there's enough space when you start set up the LCS product
Radiators
To ensure a clean loop, flush and rinse your radiators
and water blocks with distilled water before using.
Make sure the fittings are screwed securely when
placing them onto the radiator.
Pump and Reservoir
Choose the proper way to mount the pump and reservoir
by referring to the manual (suggest vertical palcement)
or
1
Place the motherboard into the case.
Water Cooling Kit
This product is intended for installation only by expert users. Please consult with a qualified technician for
installation. Improper installation may result in damage to your equipment.
1. Please carefully read the manual before beginning the installation process !
2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Opaque Coolant.
3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack
and fail ! Do not clean it using alcohol either !

Before Installation

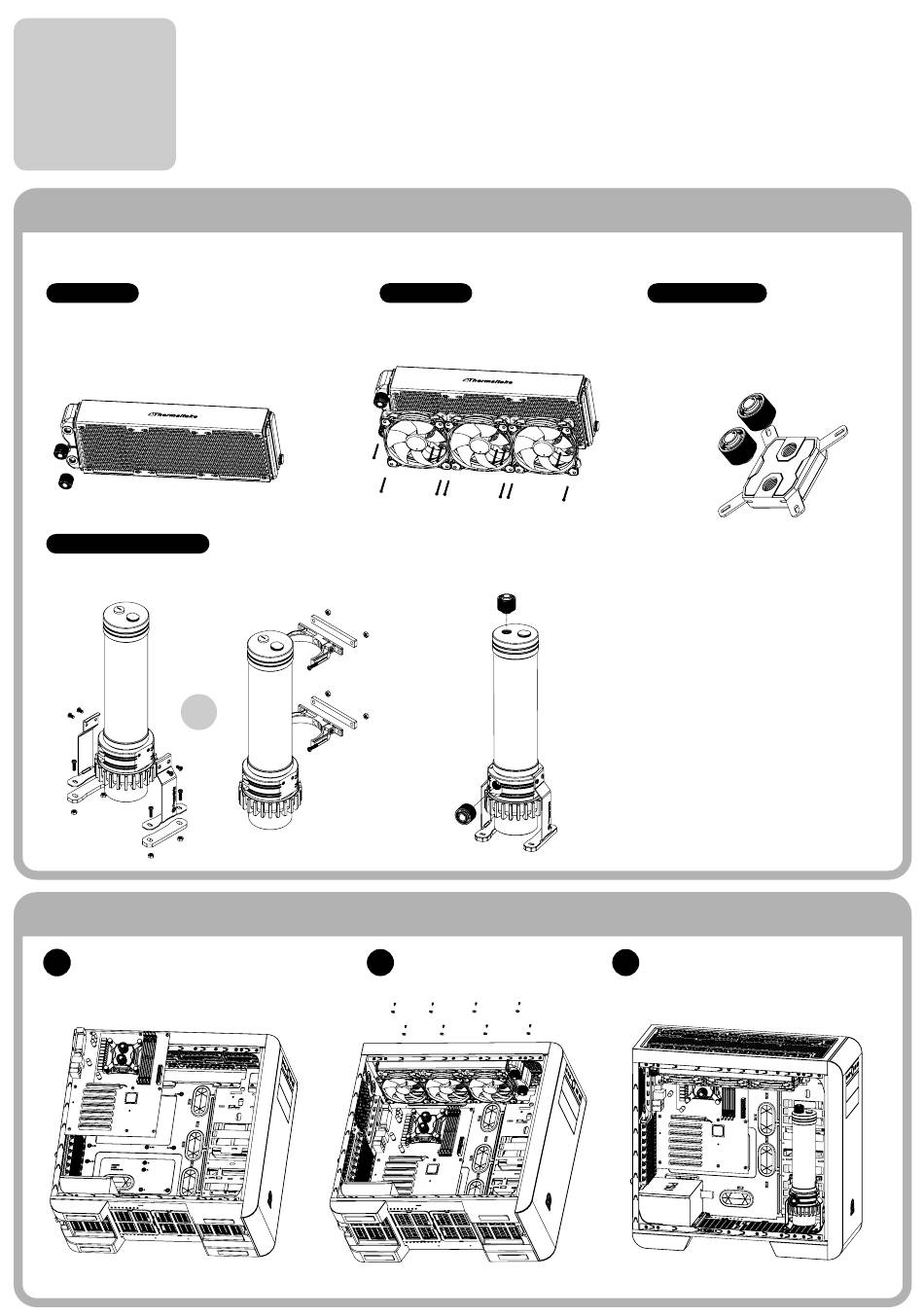

Installation Walkthrough

Case Fan
Attach the fans to the radiator
Attach fittings onto the pump and reservoir
(Example: Core V51)
2
Position the radiator.
Water Blocks
Attach the fittings to the inlet and outlet of
the waterblock.
Attach the waterblock onto the motherboard
by referring to the enclosed manual.
3
Attach the pump and reservoir into
the chosen locations.
