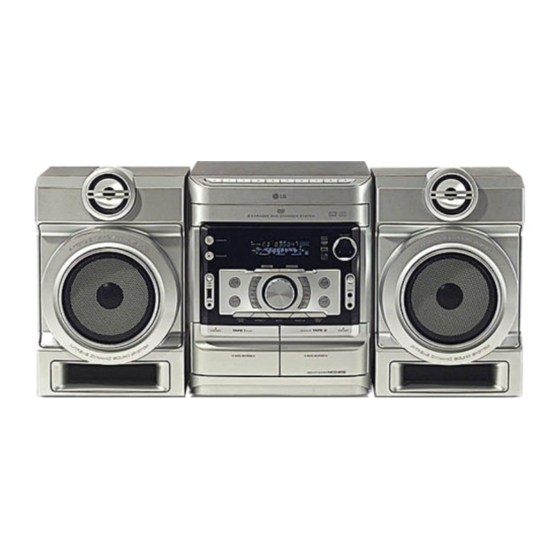

- Page 1 LGESA_MDD102_62-A5U_ENG_MFL36762910 KARAOKE Mini Home Theater OWNER’S MANUAL MODEL : MDD102 MDD102-A5U/ D5U/ X5U MDS102V MDD62 MDD62-A5U/ D5U/ X5U MDS62V Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
-
Page 2: Safety Precautions
Safety Precautions CAUTION concerning the Power Cord CAUTION Most appliances recommend they be placed upon a dedi- RISK OF ELECTRIC SHOCK DO NOT OPEN cated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK specification page of this owner's manual to be certain. -
Page 3: Table Of Contents
Table of Contents Before Use Introduction Playable Discs Safety Precautions....... . 2 Table of Contents. -
Page 4: Front Panel/ Rear Panel
Front Panel/ Rear Panel NUMERIC buttons (0-9) • Z PUSH EJECT position (TAPE 1) DISC DOOR • Z PUSH EJECT position (TAPE 2) • MIC VOLUME knob : OPTIONAL • ( / [ )POWER button • MIC Jacks (MIC1/ MIC2): 3.5 mm : OPTIONAL •... -
Page 5: Remote Control
Remote Control POWER button POWER D.SKIP D.SKIP FUNCTION SELECT buttons (TUNER/BAND,DVD/KARAOKE, AUX, USB) DVD/ DVD/ TUNER/BAND TUNER/BAND KARAOKE NUMERIC buttons (0-9) TAPE FUNCTION buttons SLEEP • PLAY ( • REWIND/ FAST FORWARD PLAY ( DIMMER • TAPE 1-2 SELECT buttons (1-TAPE-2) •... -
Page 6: Connections
Connections Connecting to a TV Progressive Scan connection • If your television is a high-definition or “digital ready” Make one of the following connections, depending on television, you may take advantage of this unit’s the capabilities of your existing equipment. progressive scan output for higher video resolution. - Page 7 Connections Connecting to Antenna Connecting to Auxiliary Equipment Connect the supplied FM/AM antennas to listen to the You can use VCR or other unit connected to the AUX radio. connector. • Connect the AM loop antenna to the AM antenna connector.
- Page 8 Connections Speaker System Connection USB Function Connect the speakers using the speaker cables by You can enjoy the media files such as tunes matching the colors of the terminals and those of the (MP3/WMA) saved in an MP3 player or USB memory cords.
-
Page 9: Before Operation
Before Operation Volume Adjustment XDSS (Extreme Dynamic Sound System) Press XDSS plus to reinforce treble, bass and the sur- • Turn VOLUME knob clockwise to increase the sound round effect. The “XDSS ON” or “NORMAL” indicator level, or counterclockwise to decrease it. lights. - Page 10 Before Operation Setting the Clock Using Microphone (OPTIONAL) You can sing to a music source by connecting a Press CLOCK. microphone to the unit. (If the clock requires setting, press and hold CLOCK for more than 2 seconds.) Connect your microphone to the MIC1/ MIC 2 - The hours display begins to blink.
- Page 11 Before Operation Timer Function Set the minute to switch on by pressing . b b b b /B B B B > > on the front panel. With the TIMER function you can have the radio recep- tion, CD play, USB play and TAPE play turned on and off Press SET/CD [[ to confirm the turn on at the desired time.
- Page 12 Before Operation GENERAL OPERATION Displaying Disc Information On-screen Press SETUP. The Setup menu appears. You can display various information about the disc loaded on-screen. to select the desired option then Press DISPLAY to show various playback infor- press to move to the second level. mation.
- Page 13 Before Operation DISPLAY Progressive Scan Progressive Scan Video provides the highest quality pic- tures with less flickering. When you are using the COMPONENT VIDEO OUT jacks, but are connecting the unit to a standard (analog) television, set Progressive Scan to Off. If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.
- Page 14 Before Operation AUDIO 3. Select a rating from 1 to 8 using the buttons. Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restric- tive. Unlock: If you select unlock, parental control is not active and the disc plays in full.
- Page 15 Before Operation OTHERS Semi Karaoke When a chapter/ title / track is fully finished, this function shows the score in the screen with a fanfare sound. Semi Karaoke on : - Turn the “Semi Karaoke” function on. When you finished singing a score will appear on the screen.
-
Page 16: Operation
Operation General features Buttons Operations Discs Z (OPEN / CLOSE) Opens or closes the disc tray. X (PAUSE) During playback, press X to pause playback. Press X repeatedly to play Frame-by-Frame. DivX SKIP (. / >) During playback, press SKIP (. or >) to go to the next chapter/track or to return to the beginning of the current chapter/track. - Page 17 Operation Additional features Last Scene Memory This unit memorizes the last scene from the last disc Time Search DivX that is viewed. The last scene remains in the memory even if you remove the disc from the unit or To start playing at any chosen time on the disc: switch off the unit.
-
Page 18: Operation With Audio Cd Or Mp3/Wma File
Operation with Audio CD or MP3/WMA file Playing an Audio CD or MP3/WMA file Programmed Playback This unit can play Audio CDs or MP3/WMA files. The program function enables you to store your favorite tracks from any disc in the unit memory. A program can MP3/ WMA/ Audio CD contain 300 tracks. -
Page 19: Operation With Jpeg File
Operation with JPEG file Viewing a JPEG files Slide Show to highlight the (Slide Show) This unit can play discs containing JPEG files. then press SELECT/ENTER. Before playing JPEG recordings, read the notes on JPEG Recordings on right. Moving to another File Insert a disc and close the tray. -
Page 20: Operation With Divx File
Operation with DivX file The unit can play the DivX files. DivX disc compatibility with this player is limited Insert a disc and close the tray. as follows: The DivX menu appears on the TV screen. • Available resolution size of the DivX file is under 720x576 (W x H) pixel. -
Page 21: Operation With Radio
Operation with RADIO Presetting the radio stations Listening to the radio Press TUNER/BAND on the remote control to You can preset 50 stations for FM and AM. Before tuning, make sure that you have turned the vol- show either FM or AM in the display window. Or ume down to the minimum level. - Page 22 Operation with RADIO Programme Search (PTY) : OPTIONAL RDS Function : OPTIONAL A major benefit of RDS is its ability to encode broad- About RDS : OPTIONAL casts with Programme Type (PTY) codes that indicate This unit is equipped with RDS (Radio Data System), the type of material being broadcast.
-
Page 23: Operation With Tape
Recording Operation with TAPE Basic Playback Basic Setting Press TAPE1-2 (or TAPE) to select tape function. Select a function you want to record except tape function. (“NO TAPE ” appears in the display window.) Open the cassette deck TAPE 2 and insert a Open cassette TAPE1-2 by pushing to the blank cassette into the cassette compartment. -
Page 24: Operation With Karaoke
Operation with KARAOKE You can play KARAOKE (singing along) with karaoke disc by connecting a microphone to the unit. You can enjoy KARAOKE with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the singer’s voice. Karaoke Basic Playback To Adjust ECHO Volume You can give an echo effect to the sound from the Check if the system is connected. - Page 25 Operation with KARAOKE Karaoke MENU Playback MUSIC LIST ( LOCAL SONG ( ) and POP Preparation Press MENU on the karaoke mode. SONG ( The main menu appears on the screen. Select by pressing the Main menu (On the TV screen) on the main menu.
- Page 26 Operation with KARAOKE CLASSIC ( SINGER LIST ( 1. Select and select the initial Select by pressing the of the singer you want by pressing the and press SELECT/ ENTER in the LOCAL SONG, POP and then press SELECT/ ENTER. SONG and CLASSIC menu.
- Page 27 Operation with KARAOKE 2. Select the composer you want by pressing the Select by pressing , and press SELECT/ ENTER. , and select one of NUMERIC buttons 1~9 by pressing to set number to win , then press SELECT/ ENTER. BALAKIREV BEETHOVEN Select...
-
Page 28: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Correction No power. • The power cord is disconnected. • Plug the power cord into the wall outlet securely. The power is on, but the •... -
Page 29: Language Code List
Language Code List Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Finnish 7073 Macedonian 7775 Slovenian 8376 Afar 6565 French 7082 Malagasy... -
Page 30: Specifications
General Power supply Refer to the main label. Power consumption Refer to the main label Net Weight 5.4 kg (MDD102) 5.32 kg (MDD62) External dimensions (W x H x D) 273 X 371 X 326 mm Tuner/Amplifier Tuning Range 87.5 - 108.0 MHz or 65 -74 MHz, 87.5 -108.0 MHz Intermediate Frequency 10.7 MHz...
