- Page 1 LASER ENGRAVER M3050 Redsail Technology Co.,Ltd Website: http://www.hflaser.com/ Tel: +86-531-86516855 Fax:+86-531-86516858 Email: sales@redsailcutters.com...
- Page 2 This type of Laser Machine is GB4 series Laser Product .Please note laser radiation when use it. Avoid your eyes or skin get direct or scattering radiation!
- Page 3 Prolog Thank you for choosing Redsail Products ! This use manual provides the users with Machine’s Safety, installation, operation and daily maintenance of the relevant considerations and guidance. For your safety，proper use the product，be sure to read this manual carefully before operation, to be fully understood and save it for your later use.After...
-
Page 4: Matters Need Attention
Matters need attention All of the products will be full tested before delivery. Considering transportation and other reasons, please confirm the following points: During transport, device is deformed or damage, please dont use if the device is damaged to avoid the hurt from danger, please inform our company or local agent in time for such condition. -
Page 5: Chapter 1 Safety Directions
Chapter 1 Safety Directions 1.1 Machinery Safety 1.1.1 General Safety Rules (1) Know your machine For your personal safety ，read this manual and CNC system manual carefully, Know applications and limitations of the machine,and potential danger related to the machine, make the operation according to the manual direction. - Page 6 Machine maintenance should be made properly, such as lubrication and adjustment. (10) Must be close the machine power when repair, replace the parts or assembly and reassemble the motor. (11) Dont make the machine running when nobody 1.1.2 General Safety Items Please read this manual and CNC system manual carefully before operation, make the operation according to according to the User Manual directions.
- Page 7 avoid the accident. When machine lifting, prohibit to cling to the machine and also prohibit to cling to the hanger and rope in order to avoid the accident . Attention Items When machine lifting and handling, please note whether there is an barrier or person around the machine, please clean the barrier and let people leave before hanging.
- Page 8 Please check and make sure all indicators for accessories are working properly. Be sure the machine enclosure right grounding use of range 1.1.5 Mechanical Safety After unpacking, firstly you must check the equipment is intact after long transportation. Turn on the machine when the first time or when stopping using for a long time, please check if there is interfere in all axis, then lubricate the machine fully before you run the machine.
- Page 9 Safety Attention: This section is direction for the important iterms that the user must abey, such as receipt confirmation, storage, handling, installation, wiring, operation, inspection, liquid waste disposal, etc. Danger Please supply the power for the machine according to the mentioned voltage, frequency in this manual.
- Page 10 when the power is opened. Otherwise it may damage the machine, even cause the personal injury . Settings, checking, fault diagnosis and troubleshooting should be done by qualified person. Otherwise will cause the fire, electric shock or injury. Please don ’ t damage or pulling electric cable vigorously, don ’ t make too big pulling force to the cable, don’t embed the fixture in the cables.
- Page 11 Near to corrosive gas, flammable gas Too much dust, salinity and metal-powder Water, oil and medicines and chemical reagents may drip Vibration or impact can be transmitted to machine. ■Installation Attention Note This machine is the precise product , please avoid the strong impact. Otherwise will cause the malfunction.
- Page 12 times/minute if need to turn on/off many times. There are large apacitor in the machine, the large charging current will flow when the power is turned on, so the performance for the internal components of machine will descend if power is turned on / off frequently. ■...
- Page 13 General Attention Items ■ Please note when operating Redsail have no responsibility for any damage and loss made by unauthorized modification for the machine. Corrosive liquid is forbidden for lead rail and working table when cleaning the machine. Prepare two units portable - type dry powder fire extinguisher to avoid the accident.
-
Page 14: Chapter 2 Summary

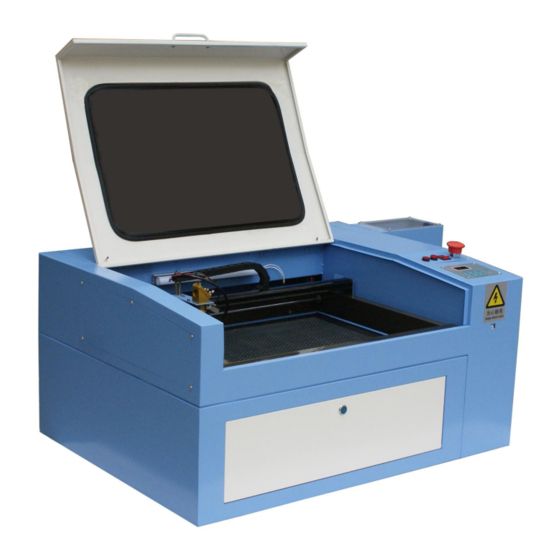

Chapter 2 Summary Redsail M3050 Laser Machine is with high speed engraving and high running accuracy; 2.1 character: Laser Type: Sealed Co2 glass, Laser Power: 50W Working Area: 300*500mm Cutting Speed: 0 - 500mm/s Repeatability:±0.05mm ... -
Page 15: Chapter 3 Machine Installation And Directions
Chapter 3 Machine Installation and Directions 3.1 Laser Tube Installation 1·Mirror Holder 2·Water outlet 3Cathode- 4·Water in 5·Anode+ 6·Tube holder 7·Laser out Please refer to the above Figure when you install the laser tube. According to Figure, solder the anode wire (red/thick), the cathode wire (black/thin) in the correct location of laser tube.(While soldering, please don’t keep the electric soldering iron touching the welding point in so long a time in case it burn out the laser tube), poor soldering is not allowed. - Page 16 Connect the water pipe to Entrance and Exit at back of machine Connect the water pipe into the water pump...
- Page 17 Put the water pump and output pipe into the water tank Connect the power, then the water will be flow into the laser tube and keep the water circulation. 3.3 Air Pump Installation Connect the air pump with the machine together.
- Page 18 Connect the power cable, the gas will come out from the air pipe near to the laser head, it can keep the lens clean, also can avoid the materials burned during working. 3.4 Installation for vent pipe...
- Page 19 3.5 Connect the ground wire 3.5 Connect the power cable...
- Page 20 Connect the machine with the computer...
- Page 21 Control Panel Instruction Adjust the focal length (Adjust the table height by moving the belt to meet the suitable focal length) Turn on the power, the machine can work well after reset.
- Page 22 Adjustment of Optical Path After connecting all accessories of the machine, please switch on the power of water cooler (in front of water cooler), when the water inside the laser tube circulate normally, then please switch on the machine(including Leakage protector，Emergency switch and General supply switch) Optical path adjustment: Adjusting laser beam is the important step in use.
- Page 23 Put the test paper (paper self-adhesive tape) in front of the first reflecting mirror, then press “TEST ”button slightly(loose immediately after pressing slightly, only you can see the spot on the test paper), then check whether there is a spot in the center of the first reflecting mirror.
- Page 24 of the laser head, press "TEST" key slightly and check the spot. Then move the laser head to the right of the X axis, press "TEST" again, and check whether the two spots coincide with each other, if coincide and the two spots are within the hole of the laser head, then optical path is correct.
-
Page 25: Maintenance
Maintenance 4.1 Replacement of water and cleaning water tank.( Recommends that cleaning the water tank and replacement of recycled water once a week) Attention: Before work the machine must ensure the laser tube filled with recycled water The quality of the circulating water and the water’s temperature direct impact the life of the laser tube, recommend that using the pure water, and keeping the temperature below 35℃. - Page 26 4.2 The cleaning of the fan As a long time fan use, will accumulate a lot of solid dust inside the fan, make the fan have a great noise, and also it is bad for exhaust and remove the smell. When the fan have insufficient suction and poor smoke, first we should turn off the power, unload the fan on the pipe and out into the air duct, remove the dust inside, then inverted the fan, and toggle inside the fan, until it is cleaned up, then install...
-
Page 27: Equipment Notes
4.5 Optical inspection Laser engraving machine for optical system is completed by mirror reflection and focus lens focus, focusing mirror in the light path does not have the offset problem , But the three mirrors is fixed by the mechanical parts, more likely to offset, so the user must check the light path before each work and ensure it is normal. - Page 28 5.6 During processing, the operator should not leave the machine without allowed, Should always pay attention to the machine's working condition, Shutdown the power immediately for any abnormal condition. 5.7 Ground Wire is very important, it must be fully grounded, and the machine's power supply and the computer need to share the same power row and grounded.
