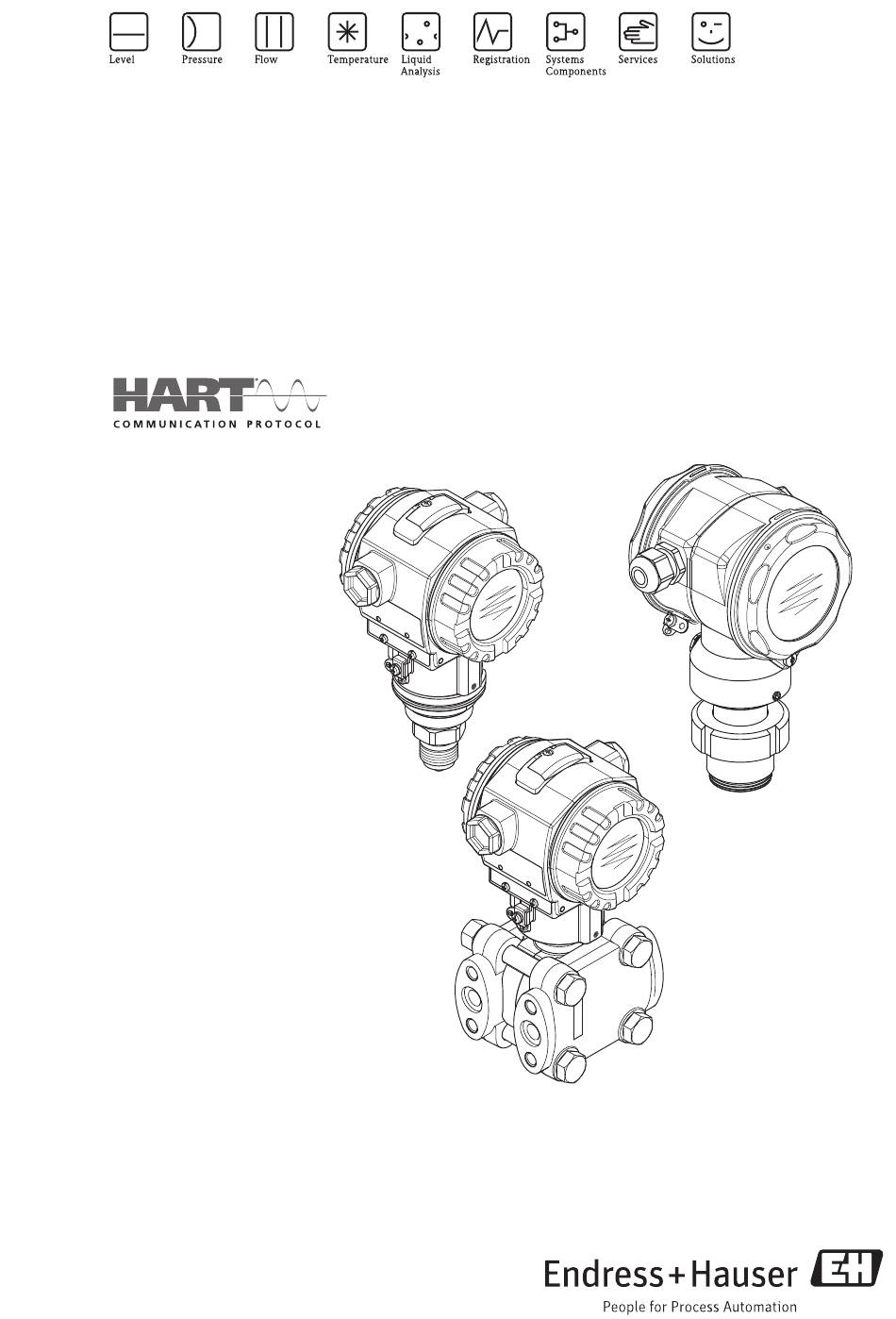

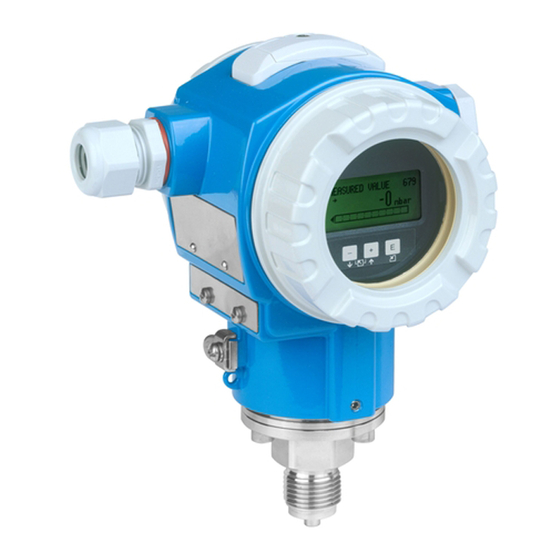

Operating Instructions – Description of Instrument Functions
Cerabar S PMC71, PMP71/75
Deltabar S FMD76/77/78, PMD70/75
Deltapilot S FMB70
Process pressure / Differential pressure, Flow / Hydrostatic
BA00274P/00/EN/16.14
71260321
valid from Software version:
02.20.zz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cerabar S PMC71 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Cerabar S PMC71

Summary of Contents for Endress+Hauser Cerabar S PMC71

  • Page 1 Operating Instructions – Description of Instrument Functions Cerabar S PMC71, PMP71/75 Deltabar S FMD76/77/78, PMD70/75 Deltapilot S FMB70 Process pressure / Differential pressure, Flow / Hydrostatic BA00274P/00/EN/16.14 71260321 valid from Software version: 02.20.zz...
  • Page 2 Cerabar S/Deltabar S/Deltapilot S 4...20mA HART Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    ......142 Index ......151 Endress+Hauser...

  • Page 4: Notes On Use

    In Section 7, all the parameters of a function group are compiled in a table. Finding parameter description using parameter names (index) The index lists all the parameters in alphabetical order. The page reference/link takes you to the parameter in question. Endress+Hauser...

  • Page 5: Finding Parameter Description Using

    SIM. CURRENT HART MESSAGE ADDITIONAL INFO. PRESSURE – "Pressure" measuring mode PRESSURE – "Level" measuring mode PRESSURE – "Flow" measuring mode LONG TAG NUMBER See Safety Manual SD00189P for Deltabar S, SD00190P for Cerabar S and SD00213P for Deltapilot S. Endress+Hauser...
  • Page 6 CALIBRATION MODE – "Linear" level type CALIBRATION MODE – "Height Linearized" level type LIN. EDIT MODE TOTALIZER 1 UNIT – "Volume p. cond." flow type TOTALIZER 2 UNIT – "Volume p. cond." flow type NEG. FLOW TOT. 1 ACK. ALARM MODE Endress+Hauser...
  • Page 7 TOT. 2 USER UNIT MAX PRESS. FLOW 53 or 95 SET LRV – "Flow" extended setup SET URV – "Flow" extended setup SIM.FLOW VALUE FLOW-MEAS. TYPE TOTALIZER 1 TOTAL. 1 OVERFLOW TOTALIZER 2 TOTAL. 2 OVERFLOW STD. FLOW UNIT Endress+Hauser...
  • Page 8 ADJUSTED DENSITY – "Linear" level type ADJUSTED DENSITY – "Height Linearized" level type PROCESS DENSITY DENSITY UNIT – "Linear" level type DENSITY UNIT – "Height Linearized" level type 100 % POINT – "Linear" level type 100 % POINT – "Height Linearized" level type Endress+Hauser...
  • Page 9 MAX PRESS. FLOW LOW FLOW CUT-OFF SET. L. FL. CUT-OFF SET LRV SET URV LINEAR/SQROOT. DAMPING VALUE CONF. PASSWORD TANK VOLUME TANK HEIGHT CURRENT OUTPUT See Safety Manual SD00189P for Deltabar S, SD00190P for Cerabar S and SD00213P for Deltapilot S. Endress+Hauser...

  • Page 10: Graphic Representation Of Function Groups

     OPERATING   DIAGNOSTICS (562)  SIMULATION   MESSAGES   USER LIMITS   SERVICE (561)  SYSTEM 2  See Safety Manual SD00189P for Deltabar S, SD00190P for Cerabar S and for SD00213P Deltapilot S. Endress+Hauser...

  • Page 11: Pressure Measurement

    – Page 96, Table 15: EXTENDED SETUP – Page 121, Table 25: PROCESS VALUES. Warning! If the measuring mode is changed, the span setting (URV) must be verified in the "Calibration"  "Basic Setup" operating menu and, if necessary, reconfigured. Endress+Hauser...

  • Page 12: Calibration Without Reference Pressure

    0 mbar and 300 mbar (4.5 psi) are assigned to the 4 mA value and 20 mA value respectively. Prerequisite: • This is a theoretical calibration, i.e. the pressure values for the lower range and upper range value are known. Endress+Hauser...
  • Page 13 • You can also perform calibration without reference pressure by means of the QUICK SETUP menu. See Page 47 ff, Table 3: QUICK SETUP menu. • You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT (Page 56). Endress+Hauser...

  • Page 14: Level Measurement

    % must not be in direct proportion to the measured pressure. A linearisation table must be entered for the 2nd measured variable. The 2nd measured variable is assigned to the 1st measured variable by means of this table. Endress+Hauser...

  • Page 15: Level Easy Pressure" Level Selection

    LEVEL SELECTION parameter. See Table, Step 9. On-site display: Menu path: GROUP SELECTION  MEASURING See Table, Step 10. MODE "Level"  LEVEL SELECTION Digital communication: Menu path: OPERATING MENU  SETTINGS  BASIC SETUP MEASURING MODE "Level"  LEVEL SELECTION Endress+Hauser...
  • Page 16 For operation using the on-site display, the parameters EMPTY CALIB. (Page 61) and FULL CALIB. (Page 61) also show the respective pressure present at the device. For operation using Digital communication, the pressure present at the device is displayed in the PROCESS VALUES group (menu path: OPERATING MENUPROCESSINFO  PROCESS VALUES). Endress+Hauser...
  • Page 17 BASIC SETUP MEASURING MODE "Level"  dry calibration LEVEL SELECTION See Table, Steps 7 and 8. See Table, Steps 9 and 10. On-site display: Select BASIC SETUP function group. Menu path: GROUP SELECTION  OPERATING MENU  SETTINGS BASIC SETUP Endress+Hauser...
  • Page 18 See Table, Step 9. See Table, Step 10. See Table, Step 11. See Table, Step 12. Note! For this level mode, the measured variables %, level, volume and mass are available. See also parameter description for OUTPUT UNIT, Page 60. Endress+Hauser...

  • Page 19: Level Easy Height" Level Selection

    – Page 96, Table 16: EXTENDED SETUP – Page 122, Table 28: PROCESS VALUES. Warning! If the measuring mode is changed, the span setting (URV) must be verified in the "Calibration"  "Basic Setup" operating menu and, if necessary, reconfigured. Endress+Hauser...
  • Page 20 MODE "Level"  LEVEL SELECTION Digital communication: Menu path: OPERATING MENU  SETTINGS  BASIC SETUP MEASURING MODE "Level"  LEVEL SELECTION On-site display: Select BASIC SETUP function group. Menu path: GROUP SELECTION  OPERATING MENU  SETTINGS BASIC SETUP Endress+Hauser...
  • Page 21 See Table, Step 12. See Table, Step 13. See Table, Step 14. See Table, Step 15. Note! For this level mode, the measured variables %, level, volume and mass are available. See also parameter description for OUTPUT UNIT, Page 64. Endress+Hauser...
  • Page 22 LEVEL SELECTION See Table, Steps 8 and 9. See Table, Steps 10 and 11. On-site display: See Table, Steps 12 and 13. Select BASIC SETUP function group. Menu path: GROUP SELECTION  OPERATING MENU  SETTINGS BASIC SETUP Endress+Hauser...
  • Page 23 See Table, Step 12. See Table, Step 13. See Table, Step 14. See Table, Step 15. Note! For this level mode, the measured variables %, level, volume and mass are available. See also parameter description for OUTPUT UNIT, Page 64. Endress+Hauser...

  • Page 24: Level Standard" Level Selection, "Linear" Level Type

    LEVEL SELECTION parameter. See table, step 11. On-site display: Menu path: GROUP SELECTION  MEASURING See table, step 12. MODE "Level"  LEVEL SELECTION Digital communication: Menu path: OPERATING MENU  SETTINGS  BASIC SETUP MEASURING MODE "Level"  LEVEL SELECTION Endress+Hauser...
  • Page 25 For this level type, the measured variables %, level, volume and mass are available. See Page 70 ff. The EMPTY PRESSURE (Page 74) and FULL PRESSURE (Page 74) parameters display the pressure values belonging to the EMPTY CALIB. and FULL CALIB. parameters. Endress+Hauser...
  • Page 26 BASIC SETUP MEASURING MODE "Level"  dry calibration LEVEL SELECTION See table, step 9. See table, step 10. On-site display: See table, step 11. Select BASIC SETUP function group. Menu path: GROUP SELECTION  OPERATING MENU  See table, step 12. SETTINGS BASIC SETUP Endress+Hauser...
  • Page 27 SET LRV and SET URV parameters. By means of the ENTER RESET CODE parameter ( Page 126), you can use the code 2710 to automatically set the SET LRV and SET URV parameters to level values which are within the editing limits. Endress+Hauser...

  • Page 28: Level Standard" Level Selection, "Pressure Linearized" Level Type

    If necessary, select "Level Standard" level mode using the LEVEL SELECTION parameter. On-site display: Menu path: GROUP SELECTION  MEASURING MODE "Level"  LEVEL SELECTION Digital communication: Menu path: OPERATING MENU  SETTINGS  BASIC SETUP MEASURING MODE "Level"  LEVEL SELECTION Endress+Hauser...
  • Page 29 On-site display: Select the "Editor table" option by means of the TABLE SELECTION parameter. Select the "Semiautomatic" option by means of the LIN. EDIT MODE parameter. Select the "New table" option by means of the EDITOR TABLE parameter. Endress+Hauser...
  • Page 30 For this level type, the measured variables %, volume and mass are available. See Page 78 ff. You can also specify customer-specific units. See parameter description for PRESS. ENG. UNIT (Page 67), HEIGHT UNIT ( Page 79), UNIT VOLUME (Page 79) and MASS UNIT ( Page 80). Endress+Hauser...
  • Page 31 MENU SETTINGS LINEARISATION Select TANK CONTENT MIN parameter . Specify the minimum tank contents to be expected, here for example. Select TANK CONTENT MAX parameter . [mbar] Specify the maximum tank contents to be expected, here 3.5 m for example. P01-PMP75xxx-19-xx-xx-xx-002 Endress+Hauser...
  • Page 32 SET URV parameters are also changed. If you want to assign values other than those for TANK CONTENT MIN and TANK CONTENT MAX to the lower and upper current values, the desired values must be entered for SET LRV and SET URV. Endress+Hauser...

  • Page 33: Level Standard" Level Selection, "Height Linearized" Level Type

    If necessary, select "Level Standard" level mode using the LEVEL SELECTION parameter. On-site display: Menu path: GROUP SELECTION  MEASURING MODE "Level"  LEVEL SELECTION Digital communication: Menu path: OPERATING MENU  SETTINGS  BASIC SETUP MEASURING MODE "Level"  LEVEL SELECTION Endress+Hauser...
  • Page 34 Select FULL CALIB. parameter. Enter the level value, here 3 m (9.8 ft) for example. Confirm the value to assign the pressure value present to the upper level value. Result: The calibration for the 1st measured variable is carried out. Endress+Hauser...
  • Page 35 – The measured value display and the See the following note, point 4. TANK CONTENT parameter display the 2nd measured value (here the volume). – The LEVEL BEFORE LIN parameter displays the 1st measured value (here the height). See also the following note, point 5. Endress+Hauser...
  • Page 36 LEVEL MIN and LEVEL MAX to the lower and upper current values, the desired values must be entered for SET LRV and SET URV. You can use the MENU DESCRIPTOR parameter (Page 110) to specify which measured value should be displayed on the on-site display. Endress+Hauser...
  • Page 37 Enter the density of the fluid via the ADJUST DENSITY parameter, here 1 kg/dm for example. If necessary, enter a level offset via the ZERO POSITION parameter, here 0 m for example. Result: The calibration for the 1st measured variable is carried out. P01-PMP75xxx-19-xx-xx-xx-005 Endress+Hauser...
  • Page 38 It could be the case that the 2nd value, and thus the highest X-VAL. of the linearisation table, is smaller than the minimum span permitted ( MINIMUM SPAN, Page 119). The message goes out as soon as the highest X-VAL. is larger than the minimum span. Endress+Hauser...
  • Page 39 LEVEL MIN and LEVEL MAX to the lower and upper current values, the desired values must be entered for SET LRV and SET URV. You can use the MENU DESCRIPTOR parameter (Page 110) to specify which measured value should be displayed on the on-site display. Endress+Hauser...

  • Page 40: Flow Measurement

    – Page 98, Table 15: EXTENDED SETUP – Page 123, Table 29: PROCESS VALUES. Warning! If the measuring mode is changed, the span setting (URV) must be verified in the "Calibration"  "Basic Setup" operating menu and, if necessary, reconfigured. Endress+Hauser...
  • Page 41 NORM FLOW UNIT (Page 93), STD. FLOW UNIT (Page 94) and MASS FLOW UNIT (Page 94). A flow value or a pressure value is assigned to both the lower and upper current value with the SET LRV (Page 99) and SET URV (Page 100) parameters. Endress+Hauser...
  • Page 42 PRESS. FLOW to the lower and upper current values, the desired values must be entered for SET LRV and SET URV. In the lower measuring range, small flow quantities (creepages) can lead to large measured value fluctuations. You can activate low flow cut-off via the LOW FLOW CUT-OFF parameter ( Page 99). Endress+Hauser...

  • Page 43: Totalizers

    The TOTALIZER 2 and TOTAL. 2 OVERFLOW parameters display the totalised flow value of the second totalizer. See Page 123 ff, PROCESS VALUES function group. • You can use the MENU DESCRIPTOR parameter (Page 110) to specify which measured value should be displayed on the on-site display. Endress+Hauser...

  • Page 44: Description Of Parameters

    • In the operating program and in the HART handheld terminal, the LANGUAGE parameter is arranged in the DISPLAY function group. • Select the menu language for FieldCare via the "Options" menu  "Settings"  "Language" tab "Tool language" field. Factory setting: English Endress+Hauser...
  • Page 45 If the measuring mode is changed, the span setting (URV) must be verified in the "Calibration"  "Basic Setup" operating menu and, if necessary, reconfigured. Options: • Pressure • Level • Deltabar S: Flow Factory setting: • Cerabar S and Deltabar S: Pressure • Deltapilot S: Level Endress+Hauser...
  • Page 46 Level Easy Pressure  For LEVEL SELECTION = "Level Easy Pressure" see Page 58, Table 8.  For LEVEL SELECTION = "Level Easy Height" see Page 62, Table 9.  For LEVEL SELECTION = "Level standard" see Page 67, Table 10. Endress+Hauser...
  • Page 47 If the measuring mode is changed, the span setting (URV) must be verified in the "Calibration"  "Basic Setup" operating menu and, if necessary, reconfigured. Prerequisite: • Digital communication Options: • Pressure • Level • Deltabar S: Flow Factory setting: • Cerabar S and Deltabar S: Pressure • Deltapilot S: Level Endress+Hauser...
  • Page 48 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0...999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 49 Options: • Pressure • Level • Deltabar S: Flow Factory setting: • Cerabar S and Deltabar S: Pressure • Deltapilot S: Level LEVEL SELECTION (020) Select level mode. Parameter description, see Page 46. Options Factory setting: Level Easy Pressure Endress+Hauser...
  • Page 50 "+"- or "–" key before confirming with the "E" key. This applies also if the level value is to remain unchanged. Factory setting: Endress+Hauser...
  • Page 51 OPERATING MENU LANGUAGE MEASURING MODE MEASURING MODE Pressure Level Flow POS. ZERO ADJUST MAX. FLOW MAX. PRESS. FLOW 1) Display via on-site display only 2) Display via digital communication DAMPING VALUE P01-xxxxxxxx-19-xx-xx-xx-082 Fig. 25: Quick Setup menu, "Flow" measuring mode Endress+Hauser...
  • Page 52 SET URV to assign a flow to the upper current value. If you want to assign the upper current value a value other than that for MAX. FLOW, you must enter the desired value for SET URV. ( SET URV, Page 100). Factory setting: Endress+Hauser...
  • Page 53 – POS. INPUT VALUE: Cerabar S with absolute pressure sensor. • The pressure difference between zero (set point) and the measured pressure is known. – CALIB. OFFSET: Deltabar S, Cerabar S with gauge pressure sensor, Cerabar S with absolute pressure sensor or Deltapilot S. Endress+Hauser...
  • Page 54 To correct the MEASURED VALUE to 0.0 mbar, you must enter the value 2.2 here. (MEASURED VALUE = MEASURED VALUE – CALIB. OFFSET) – MEASURED VALUE (after entry for calib. offset) = 0.0 mbar – The current value is also corrected. Factory setting: Endress+Hauser...
  • Page 55 If the measuring mode is changed, the span setting (URV) must be verified in the "Calibration"  "Basic Setup" operating menu and, if necessary, reconfigured. Prerequisite: • Digital communication Options: • Pressure • Level • Deltabar S: Flow Factory setting: • Cerabar S and Deltabar S: Pressure • Deltapilot S: Level Endress+Hauser...
  • Page 56 – Result: MEASURED VALUE = 1 PU Factory setting: SET LRV (245) Set lower range value – without reference pressure. Entry Enter pressure value for the lower current value (4 mA). Factory setting: 0.0 or as per order specifications Endress+Hauser...
  • Page 57 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0...999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 58 Specify two pressure-level value pairs for this level mode. Two calibration modes, "Wet" and "Dry", are available. Prerequisite: • MEASURING MODE = Level (see also Page 45.) • LEVEL SELECTION = Level Easy Pressure (See also Page 46.) Endress+Hauser...
  • Page 59 – You want the measured value to be displayed in "PU" (PU: packing unit). – MEASURED VALUE =10000 Pa i 1 PU – Entry CUSTOMER UNIT P: PU – Entry CUST. UNIT FACT. P: 0.0001 – Result: MEASURED VALUE = 1 PU Factory setting: Endress+Hauser...
  • Page 60 "+"- or "–" key before confirming with the "E" key. This applies also if the level value is to remain unchanged. Factory setting: 100.0 Endress+Hauser...
  • Page 61 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 62 Two calibration modes, "Wet" and "Dry", are available. Prerequisite: • MEASURING MODE = Level (see also Page 45.) • LEVEL SELECTION = Level Easy Height (See also Page 46.) Endress+Hauser...
  • Page 63 – You want the measured value to be displayed in "PU" (PU: packing unit). – MEASURED VALUE =10000 Pa i 1 PU – Entry CUSTOMER UNIT P: PU – Entry CUST. UNIT FACT. P: 0.0001 – Result: MEASURED VALUE = 1 PU Factory setting: Endress+Hauser...
  • Page 64 • kg/m • US lb/in • US lb/ft Factory setting: kg/dm ADJUST DENSITY (007) Enter density of fluid. The measured pressure is converted to a height using the HEIGHT Entry UNIT, DENSITY UNIT and ADJUST DENSITY parameters. Factory setting: Endress+Hauser...
  • Page 65 The values entered for the FULL CALIB. and FULL HEIGHT parameters form the height- level value pair for the upper calibration point. The unit is selected via the OUTPUT UNIT parameter ( Page 64). Prerequisite: • CALIBRATION MODE = Dry Factory setting: 100.0 Endress+Hauser...
  • Page 66 LEVEL MODE parameter See Page 69, Fig. 31 for LEVEL MODE = Linear, See Page 78, Fig. 33 for LEVEL MODE = Pressure Linearized, See Page 82, Fig. 34 for LEVEL MODE = Height Linearized Endress+Hauser...
  • Page 67 1) The conversion factor of the pressure units refers to a reference temperature of 4 °C (39.2 °F). 2) The conversion factor of the pressure units refers to a reference temperature of 0 °C (32 °F). Factory setting: Depends on the sensor nominal measuring range mbar or bar or as per order specifications Endress+Hauser...
  • Page 68 % like for the "Pressure Linearized" option.  See also Page 83 ff, Table 11. Factory setting: Linear For LEVEL MODE = Linear, see Page 70, Table 9. For LEVEL MODE = Pressure Linearized, see Page 78, Table 10. For LEVEL MODE = Height Linearized, see Page 83, Table 11. Endress+Hauser...
  • Page 69 Parameters marked with an asterisk "*" SET URV are not always displayed. The display depends on the settings of other parameters, DAMPING VALUE see the following Table. P01-xxxxxxxx-19-xx-xx-xx-087 Fig. 31: BASIC SETUP function group for the "Level" measuring mode and "Linear" level type Endress+Hauser...
  • Page 70 FieldCare, all eight characters are displayed. In the HART handheld terminal, the customer-specific unit is only displayed in the CUSTOMER UNIT H parameter. The measured value is displayed with the additional text "User Unit". Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 71 FieldCare, all eight characters are displayed. In the HART handheld terminal, the customer-specific unit is only displayed in the CUSTOMER UNIT H parameter. The measured value is displayed with the additional text "User Unit". Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 72 FieldCare, all eight characters are displayed. In the HART handheld terminal, the customer-specific unit is only displayed in the CUSTOMER UNIT M parameter. The measured value is displayed with the additional text "User Unit". Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 73 "+"- or "–" key before confirming with the "E" key. This applies also if the level value is to remain unchanged. Factory setting: Endress+Hauser...
  • Page 74 • LIN. MEASURAND = Level, CALIBRATION MODE = Dry • LIN. MEASURAND = % (Level), CALIBRATION MODE = Dry • LIN. MEASURAND = Volume, CALIBRATION MODE = Dry • LIN. MEASURAND = Mass, CALIBRATION MODE = Dry Factory setting: 1000.0 Endress+Hauser...
  • Page 75 – Result: MEASURED VALUE = 1 bucket Factory setting: TANK VOLUME (858) Enter tank volume. Entry Prerequisite: • LIN. MEASURAND = Volume, CALIBRATION MODE = Dry • LIN. MEASURAND = Mass, CALIBRATION MODE = Dry Factory setting: 1.0 m Endress+Hauser...
  • Page 76 – Result: MEASURED VALUE = 1 PU Factory setting: TANK HEIGHT (859) Enter tank height. Entry Prerequisite: • LIN. MEASURAND = Volume, CALIBRATION MODE = Dry • LIN. MEASURAND = Mass, CALIBRATION MODE = Dry Factory setting: 1.0 m Endress+Hauser...
  • Page 77 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0...999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 78 – Page 96 ff, Table 16: EXTENDED SETUP – Page 100 ff, Table 18: LINEARISATION – on-site operation – Page 104 ff, Table 19: LINEARISATION – Digital communication – Page 122 ff, Table 28: PROCESS VALUES – Page 14 ff, Section 5 "Level measurement". Endress+Hauser...
  • Page 79 – You want the measured value to be displayed in "buckets". – MEASURED VALUE = 0.01 m3 i 1 bucket – Entry CUSTOMER UNIT V: bucket – Entry CUST. UNIT FACT. V: 100 – Result: MEASURED VALUE = 1 bucket Factory setting: Endress+Hauser...
  • Page 80 Enter the minimum hydrostatic pressure to be expected. Entry The input limits for the calibration (editing limits) are derived from the value entered. The closer the value entered corresponds to the minimum hydrostatic pressure to be expected, the more accurate the measurement result. Factory setting: Endress+Hauser...
  • Page 81 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0...999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 82 Fig. 34: BASIC SETUP function group for the "Level" measuring mode and the "Height Linearized" level type, continue calibration with LINEARISATION function group See Page 100 ff for on-site operation and Page 104 ff for operation with digital communication. Endress+Hauser...
  • Page 83 • COMB. MEASURAND = Height and Volume, Height and Mass or Height and % Options: • mm • dm • cm • m • inch • ft • User unit, see also the following parameter description for CUSTOMER UNIT H and CUST. UNIT FACT. H. Factory setting: Endress+Hauser...
  • Page 84 • hl • cm • dm • m • m • ft • ft • gal • Igal • bbl • User unit, see also the following parameter description for CUSTOMER UNIT V and CUST. UNIT FACT. V. Factory setting: Endress+Hauser...
  • Page 85 • COMB. MEASURAND = Height and Mass or %-Height and Mass Options: • g • kg • t • oz • lb • ton • User unit, see also the following parameter description for CUSTOMER UNIT M and CUST. UNIT FACT. M. Factory setting: Endress+Hauser...
  • Page 86 SET URV to assign a height to the upper current value. If you want to assign the upper current value a value other than that for LEVEL MAX, you must enter the desired value for SET URV. (SET URV, Page 98 and ASSIGN CURRENT, Page 113) Factory setting: 100.0 Endress+Hauser...
  • Page 87 Displays the density calculated from the upper and lower level point. Display Prerequisite: • COMB. MEASURAND = Height and Volume, CALIBRATION MODE = Wet • COMB. MEASURAND = Height and Mass, CALIBRATION MODE = Wet • COMB. MEASURAND = Height and %, CALIBRATION MODE = Wet Endress+Hauser...
  • Page 88 • COMB. MEASURAND = %-Height + %, CALIBRATION MODE = Dry Options: • mm • dm • cm • m • inch • ft • User unit, see also the following parameter description for CUSTOMER UNIT H and CUST. UNIT FACT. H. Factory setting: Endress+Hauser...
  • Page 89 • COMB. MEASURAND = %-Height + %, CALIBRATION MODE = Dry Example: – The 100 %-point should correspond to 4 m (13 ft). – Select the "m" unit via the HEIGHT UNIT parameter. – Enter the value "4" for this parameter (100% POINT). Factory setting: Endress+Hauser...
  • Page 90 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0...999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 91 Note: See also – Page 52, Table 5: QUICK SETUP – Page 98, Table 15: EXTENDED SETUP – Page 107, Table 18: TOTALIZER SETUP – Page 123, Table 27: PROCESS VALUES. – Page 40 ff, Section 6 "Flow measurement". Endress+Hauser...
  • Page 92 FieldCare, all eight characters are displayed. In the HART handheld terminal, the customer-specific unit is only displayed in the CUSTOMER UNIT P parameter. The measured value is displayed with the additional text "User Unit". Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 93 Prerequisite: • FLOW-MEAS. TYPE = Gas norm conditions Options: • Nm3/s, Nm3/min, Nm3/h, Nm3/day • User unit, see also this table, parameter description for CUSTOMER UNIT F and CUST. UNIT FACT. F Factory setting: Endress+Hauser...
  • Page 94 FieldCare, all eight characters are displayed. In the HART handheld terminal, the customer-specific unit is only displayed in the CUSTOMER UNIT F parameter. The measured value is displayed with the additional text "User Unit". Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 95 The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and current output react to a change in the pressure. Input range: 0.0...999.0 s Factory setting: 2.0 s or as per order specifications Endress+Hauser...
  • Page 96 • R Factory setting: °C Table 16: (GROUP SELECTION )OPERATING MENU SETTINGS EXTENDED SETUP "Level" Parameter name Description Prerequisite: • MEASURING MODE = Level (see also Page 45). Note: • See also Page 14 ff, Section 5 "Level measurement". Endress+Hauser...
  • Page 97 In the event that the pressure falls with increasing levels (LIN. MEASURED: Volume), such as in the case of a residual volume measurement, a negative value shall be entered for this parameter. Factory setting: Endress+Hauser...
  • Page 98 ( LEVEL MAX, Page 86.) Factory setting: 100.0 Table 17: (GROUP SELECTION ) OPERATING MENU SETTINGS EXTENDED SETUP "Flow" Parameter name Description Prerequisite: • MEASURING MODE = Flow (see also Page 45). Note: • See also Page 40 ff, Section 6 "Flow measurement". Endress+Hauser...
  • Page 99 Depending on the setting in the LINEAR/SQROOT parameter (Page 113), enter a flow Entry value or a pressure value for the lower current value (4 mA) here. • LINEAR/SQROOT = Flow (square root) (factory setting) flow value • LINEAR/SQROOT = Differential pres. pressure value Factory setting: Endress+Hauser...
  • Page 100 – on-site operation Parameter name Description Prerequisite: • MEASURING MODE = Level (see also Page 45). • LEVEL MODE = Pressure Linearized or Height Linearized (see also Page 68). Note: – See also Page 14 ff, Section 5 "Level measurement". Endress+Hauser...
  • Page 101 Enter the value pairs for the linearisation table. • Semiautomatic: the container is filled or emptied in stages in this entry mode. The device automatically records the hydrostatic pressure. The associated volume, mass or %-value is entered. Factory setting: Manual Endress+Hauser...
  • Page 102 COMB. MEASURAND parameter, enter a level value or % value. – Y-VAL.: depending on the setting in the COMB. MEASURAND parameter, enter the related volume, mass or % value. Factory setting: LINE-NUMB = 1, X-VAL. = 0.0, Y-VAL. = 0.0 Endress+Hauser...
  • Page 103 Enter tank description. (max. 32 alphanumeric characters) Entry Factory setting: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 104 TANK CONTENT MIN, you must enter the desired value for SET LRV. ( SET LRV, Page 98). • For the setting LEVEL MODE "Height Linearized" and ASSIGN CURRENT "Linear", the TANK CONTENT MIN parameter does not affect the SET LRV parameter. (SET LRV, Page 98 and ASSIGN CURRENT, Page 113) Factory setting: Endress+Hauser...
  • Page 105 • If you change a value via the X-VAL. or Y-VAL. parameters, the table in the "Lin.-Tab." window is not updated. To view the table saved in the device, this table must first be read out of the device. Factory setting: New table Endress+Hauser...
  • Page 106 – Using the TABLE EDITOR parameter, select the option "Delete point". – The 5th point is deleted. All of the following points are pushed up one number i.e. following deletion, the 6th point becomes Point 5. Factory setting: Next point Endress+Hauser...
  • Page 107 Fig. 40: TOTALIZER SETUP function group Table 20: (GROUP SELECTION )OPERATING MENU SETTINGS TOTALIZER SETUP Parameter name Description Prerequisite: • MEASURING MODE = Flow (see also Page 45). Note: • See also Page 40 ff, Section 6 "Flow measurement". Endress+Hauser...
  • Page 108 Specify way of counting negative flows for totalizer 1. Selection positive flow negative flow Options Inc. on. neg. flow Total increases Total increases Dec. on neg. flow Total increases Total decreases Total increases Stop on neg. flow Total remains constant P01-xMD7xxxx-16-xx-xx-xx-003 Factory setting: Inc. on neg. flow Endress+Hauser...
  • Page 109 GROUP SELECTION LANGUAGE OPERATING MENU SETTINGS DISPLAY POSITION ADJUSTMENT TOTALIZER SETUP MENU DESCRIPTION MAIN DATA FORMAT ALTERNATE DATA LANGUAGE 1) Display via on-site display only 2) Display via digital communication DISPLAY CONTRAST DIGITS SETS P01-xxxxxxxx-19-xx-xx-xx-093 Fig. 41: DISPLAY group Endress+Hauser...
  • Page 110 • For on-site operation, the LANGUAGE parameter is arranged directly under GROUP SELECTION (menu path: GROUP SELECTION LANGUAGE, see also Page 44). • Select the menu language for FieldCare via the "Options" menu  "Settings"  "Language" tab "Tool language" field. Factory setting: English Endress+Hauser...
  • Page 111 ASSIGN CURRENT mode only Flow measuring 1) Display via on-site display only LINEAR/SQROOT mode only P01-xxxxxxxx-19-xx-xx-xx-094 Fig. 42: OUTPUT group Table 22: (GROUP SELECTION ) OPERATING MENU OUTPUT Parameter name Description OUTPUT CURRENT (254) Displays the current current value. Display Endress+Hauser...
  • Page 112 • Min. alarm (–10%): 3.6 mA See also this table SET MAX. ALARM and Operating Instructions BA00270P (Deltabar S), BA00271P (Cerabar S) or BA00332P (Deltapilot S), Section 8.2.1. "Setting current output for alarm". Factory setting: Max. alarm 110% (22 mA) Endress+Hauser...
  • Page 113 • Differential pres.: the linear pressure signal is used for the current output. • Flow (square root): the root flow signal is used for the current output. The "Flow (square root)" current signal is indicated on the on-site display with a root symbol. Factory setting: Flow (square root) Endress+Hauser...
  • Page 114 For the PROCESS CONNECTION function group, see Page 117, Table 25 For the SENSOR DATA function group, see Page 119, Table 26 Table 23: (GROUP SELECTION ) OPERATING MENU TRANSMITTER INFO HART DATA Parameter name Description HART VERSION (585) Displays the HART Version. Display Endress+Hauser...
  • Page 115 Factory setting: MANUFACTOR ID (432) Displays the manufacturer number in a decimal numerical format. Display Here: 17 Endress+Hauser HART MESSAGE (271) Enter message (max. 32 alphanumeric characters). Entry On command from the master, this message is sent via the HART protocol.
  • Page 116 Table 24: (GROUP SELECTION ) OPERATING MENU TRANSMITTER INFO TRANSMITTER DATA Parameter name Description DEVICE SERIAL No (354) Displays the serial number of the device (11 alphanumeric characters). Display ELECTR. SERIAL No (386) Displays the serial number of the main electronics (11 alphanumeric characters). Display Endress+Hauser...
  • Page 117 Pmax PROC. CONN. (570) For entering and displaying the maximum permitted pressure of the process connection. Entry Factory setting: In accordance with nameplate data (see also Operating Instructions BA00270P (Deltabar S), BA00271P (Cerabar S) or BA00332P (Deltapilot S), Section 2.1.1 nameplate) Endress+Hauser...
  • Page 118 • CR • MVQ • PTFE glass • PTFE graphite • PTFE oxygen • Copper • Copper f. oxygen Factory setting: As per order specifications BOLTS MATERIAL For selecting and displaying the material of the bolts. Prerequisite: • Digital communication Endress+Hauser...
  • Page 119 Displays the serial number of the sensor (11 alphanumeric characters). Display PRESS. SENS LOLIM (484) Displays the lower measuring limit of the sensor. Display PRESS. SENS HILIM (485) Displays the upper measuring limit of the sensor. Display MINIMUM SPAN (591) Displays the smallest possible span. Display Endress+Hauser...
  • Page 120 Tmin SENSOR (368) Displays the lower nominal temperature limit of the sensor. Display Tmax SENSOR (369) Displays the upper nominal temperature limit of the sensor. Display SENS H/WARE REV (487) Displays the revision number of the sensor hardware. Display e.g.: 1 Endress+Hauser...
  • Page 121 MEASURED VALUE (679) Displays the measured value In the "Pressure" measuring mode, this value corresponds to the PRESSURE parameter. Prerequisite: • Digital communication On-site operation: • For on-site operation, the MEASURED VALUE parameter is displayed on the 1st level. Endress+Hauser...
  • Page 122 Displays the measured pressure before sensor trim, position adjustment and damping.  SENSOR PRESSURE (584) Display See also PRESSURE diagram. SENSOR TEMP. (367) Displays the temperature currently measured in the sensor. This temperature can deviate Display from the process temperature. Endress+Hauser...
  • Page 123 Displays the trend of the pressure measured value. Display Possibilities: increasing, decreasing, constant SUPPRESSED FLOW (375) Displays the current flow. Depending on the flow mode selected (FLOW-MEAS. Display TYPE), a volume flow, mass flow, standard volume flow or corrected volume flow is displayed. Endress+Hauser...
  • Page 124 Displays the largest electronics temperature measured. Display PCB COUNT:T < Tmin (492) Displays the number of times the specified temperature range of the electronics has been Display undershot. PCB MIN. TEMP. (494) Displays the smallest electronics temperature measured. Display Endress+Hauser...
  • Page 125 For the OPERATING group, see Page 126, Table 31 For the SIMULATION function group, see Page 127, Table 32 For the MESSAGES function group, see Page 128, Table 33  For the USER LIMITS function group, see Page 130, Table 34 Endress+Hauser...
  • Page 126 DEVICE DESIGN. and the parameters of the POSITION ADJUSTMENT and PROCESS CONNECTION group are overwritten. • Electronics replace: With this option, all parameters except for the parameters of the POSITION ADJUSTMENT group are overwritten. Factory setting: ® Copy config. (if HistoROM /M-DAT is attached to the electronic insert) Endress+Hauser...
  • Page 127 Factory setting: Current pressure measured value SIM. FLOW VALUE (639) Enter simulation value. See also SIMULATION MODE. Entry Prerequisite: • MEASURING MODE = Pressure and SIMULATION MODE = Flow • MEASURING MODE = Flow and SIMULATION MODE = Flow Endress+Hauser...
  • Page 128 • Use the RESET ALL ALARMS parameter to delete the messages listed in the LAST DIAG. CODE parameter. ACK. ALARM MODE (401) Switch on acknowledge alarm mode. See also ACK. ALARM. Selection Options: • On • Off Factory setting: Endress+Hauser...
  • Page 129 If an alarm appears and the alarm display time elapses before the alarm has been acknowledged, the message will be cleared once it has been acknowledged. See also these Operating Instructions, Section 8.3 "Confirming messages". Input range: 0...999.9 s Factory setting: 0.0 s Endress+Hauser...
  • Page 130 Measured value GROUP SELECTION LANGUAGE OPERATING MENU SETTINGS SERVICE POSITION ADJUSTMENT TOTALIZER SETUP SYSTEM 2 CURR. TRIM 4mA CURR. TRIM 20mA OFFSET 4mA TRIM OFFSET 20mA TRIM 1) Display via on-site display only P01-xxxxxxxx-19-xx-xx-xx-144 Fig. 47: SYSTEM 2 group Endress+Hauser...
  • Page 131 Displays the difference between 4 mA and the value entered for the CURRENT TRIM Display 4mA parameter. Factory setting: OFFSET 20mA TRIM (044) Displays the difference between 20 mA and the value entered for the CURRENT TRIM Display 20mA parameter. Factory setting: Endress+Hauser...

  • Page 132: Trouble-Shooting

    • If the device detects a defect in the on-site display during initialization, special error messages are generated. For the error messages, see Page 139, Section 8.1.1 "On-site display error messages". • For support and further information, please contact Endress+Hauser Service. • See also Section 8.4, 8.5 and 8.6. Code...
  • Page 133 – Main electronics defect. – Replace electronics. 602 (W602) Warning Funktion C>Linearisation curve not – The linearisation table is not – Add to linearisation table or check (C) monotone monotonic increasing or perform linearisation again. decreasing. Endress+Hauser...
  • Page 134 BA00271P (Cerabar S) or BA00332P (Deltapilot S), Section 5.5.1 "Copying configuration data".) 703 (A703) Alarm Failure (F) B>Measurement error – Fault in the main electronics. – Briefly disconnect device from the power supply. – Main electronics defect. – Replace main electronics. Endress+Hauser...
  • Page 135 – Replace sensor with a suitable sensor. – Unsuitable download carried out. – Check configuration and perform download again. 713 (A713) Alarm Funktion B>100% POINT level out of – The sensor was replaced. – Carry out calibration again. check (C) edit limits Endress+Hauser...
  • Page 136 – Perform reset (Code 2710) and check (C) CALIB. out of edit limits been changed. carry out calibration again. 723 (A723) Alarm Funktion B>MAX. FLOW out of edit – FLOW-MEAS. TYPE has been – Carry out calibration again. check (C) limits changed. Endress+Hauser...
  • Page 137 – Change value for Pmin ALARM setting: parameter. WINDOW if necessary. (See Warning C also Page 130, parameter description Pmin ALARM WINDOW.) – Loose connection at sensor cable – Wait a short period of time and tighten the connection, or avoid loose connection. Endress+Hauser...
  • Page 138 – Select a device with a suitable FLOW. measuring range. 741 (A741) Alarm Funktion B>TANK HEIGHT out of edit – LEVEL MIN or LEVEL MAX has – Perform reset (Code 2710) and check (C) limits been changed. carry out calibration again. Endress+Hauser...
  • Page 139 S), TI00383P (Cerabar S) or TI00416P (Deltapilot S). – Main electronics defect. – Replace main electronics. 8.1.1 On-site display error messages If the device detects a defect in the on-site display during initialization, the following error messages can be displayed: Endress+Hauser...
  • Page 140 Cerabar S/Deltabar S/Deltapilot S 4...20mA HART Message Measure Initialization, VU Electr. Defect A110 Exchange on-site display. Initialization, VU Electr. Defect A114 Initialization, VU Electr. Defect A281 Initialization, VU Checksum Err. A110 Initialization, VU Checksum Err. A112 Initialization, VU Checksum Err. A171 Endress+Hauser...

  • Page 141: Response Of Outputs To Errors

    122 for "Sensor not number such as 613 for "Simulation is digit number such as 731 for "URV user connected". active". limits exceeded". Menu path: (GROUP SELECTION ) OPERATING MENU  OUTPUT Menu path: (GROUP SELECTION ) OPERATING MENU MESSAGES Endress+Hauser...

  • Page 142: Confirming Messages

    PRESS. ENG. UNIT parameter. These parameters are indicated with a "*". • For a description of the parameters, please refer to chapter 7 "Description of parameters". The exact dependency of individual parameters on one another is explained here. Endress+Hauser...
  • Page 143 There are parameters that are only displayed if other parameters are appropriately configured. For example the CUSTOMER UNIT P parameter is only displayed if the "User unit" option was selected for the PRESS. ENG. UNIT parameter. These parameters are indicated with a "*". P01-xxxxxxxx-19-xx-xx-xx-138 Endress+Hauser...
  • Page 144 There are parameters that are only displayed if other parameters are appropriately configured. For example the CUSTOMER UNIT P parameter is only displayed if the "User unit" option was selected for the PRESS. ENG. UNIT parameter. These parameters are indicated with a "*". P01-xxxxxxxx-19-xx-xx-xx-139 Endress+Hauser...
  • Page 145 There are parameters that are only displayed if other parameters are DAMPING VALUE appropriately configured. For example the CUST. UNIT FACT. H parameter is only displayed if the "User unit" option was selected for the HEIGHT UNIT parameter. These parameters are indicated with a "*". P01-xxxxxxxx-19-xx-xx-xx-140 Endress+Hauser...
  • Page 146 There are parameters that are only displayed if other parameters are appropriately configured. For example the TOT. 1 USER UNIT parameter is only displayed if the "User unit" option was selected for the TOTALIZER 1 UNIT parameter. These parameters are indicated with a "*". P01-xxxxxxxx-19-xx-xx-xx-101 Endress+Hauser...
  • Page 147 2) Display via digital communication 3) Level measuring mode only See Safety Manual SD190P for Cerabar S, 4) Flow measuring mode only SD189P for Deltabar S or 5) only LEVEL SELECTION = Level Easy Pressure SD213P for Deltapilot S. P01-xxxxxxxx-19-xx-xx-xx-141 Endress+Hauser...
  • Page 148 NR OF REMOTE SEAL THIRD VALUE FILL FLUID 4TH VALUE IS 4 TH VALUE 2) Display via digital communication There are parameters that are only displayed if other parameters are appropriately configured. These parameters are indicated with a "*". P01-xxxxxxxx-19-xx-xx-xx-142 Endress+Hauser...
  • Page 149 Tank content Current SIM. PRESSURE SIM. FLOW VALUE SIM. LEVEL SIM. TANK CONT. SIM. CURRENT SIM. ERROR NO. There are parameters that are only displayed if other parameters are appropriately configured. These parameters are indicated with a "*". P01-xxxxxxxx-19-xx-xx-xx-143 Endress+Hauser...
  • Page 150 Appendix Cerabar S/Deltabar S/Deltapilot S 4...20mA HART Endress+Hauser...

  • Page 151: Index

    ELECTR. SERIAL No (386) ..... . . 116 CURR. TRIM 4mA (045) ......131 Endress+Hauser...
  • Page 152 LEVEL MODE (718) ......68 OUTPUT UNIT (023), "Level Easy Pressure" level selection 60 Endress+Hauser...
  • Page 153 SET LRV (762), "Level" extended setup ....98 X-VAL., digital communication ....106 Endress+Hauser...
  • Page 154 Y-VAL., digital communication ....106 ZERO POSITION (814), "Height linearized" level type ..90 ZERO POSITION (814), "Linear" level type ... . 77 Endress+Hauser...
  • Page 155 Cerabar S/Deltabar S/Deltapilot S 4...20mA HART Index Endress+Hauser...
  • Page 156 www.endress.com/worldwide BA00274P/00/EN/16.14 71260321 CCS/FM+SGML 9 71260321...

This manual is also suitable for:

Cerabar s pmp71Cerabar s pm75Deltabar s fmd76Deltabar s fmd77Deltabar s fmd78Deltabar s pmd70 ... Show all

Table of Contents
