VINCELL 7.0" Boxed Manual
For PCB revision 0.7 or for HW 1.1 or later

Advertisement

Table of Contents
loading

Related Manuals for Garz & Fricke VINCELL 7.0" Boxed

Summary of Contents for Garz & Fricke VINCELL 7.0" Boxed

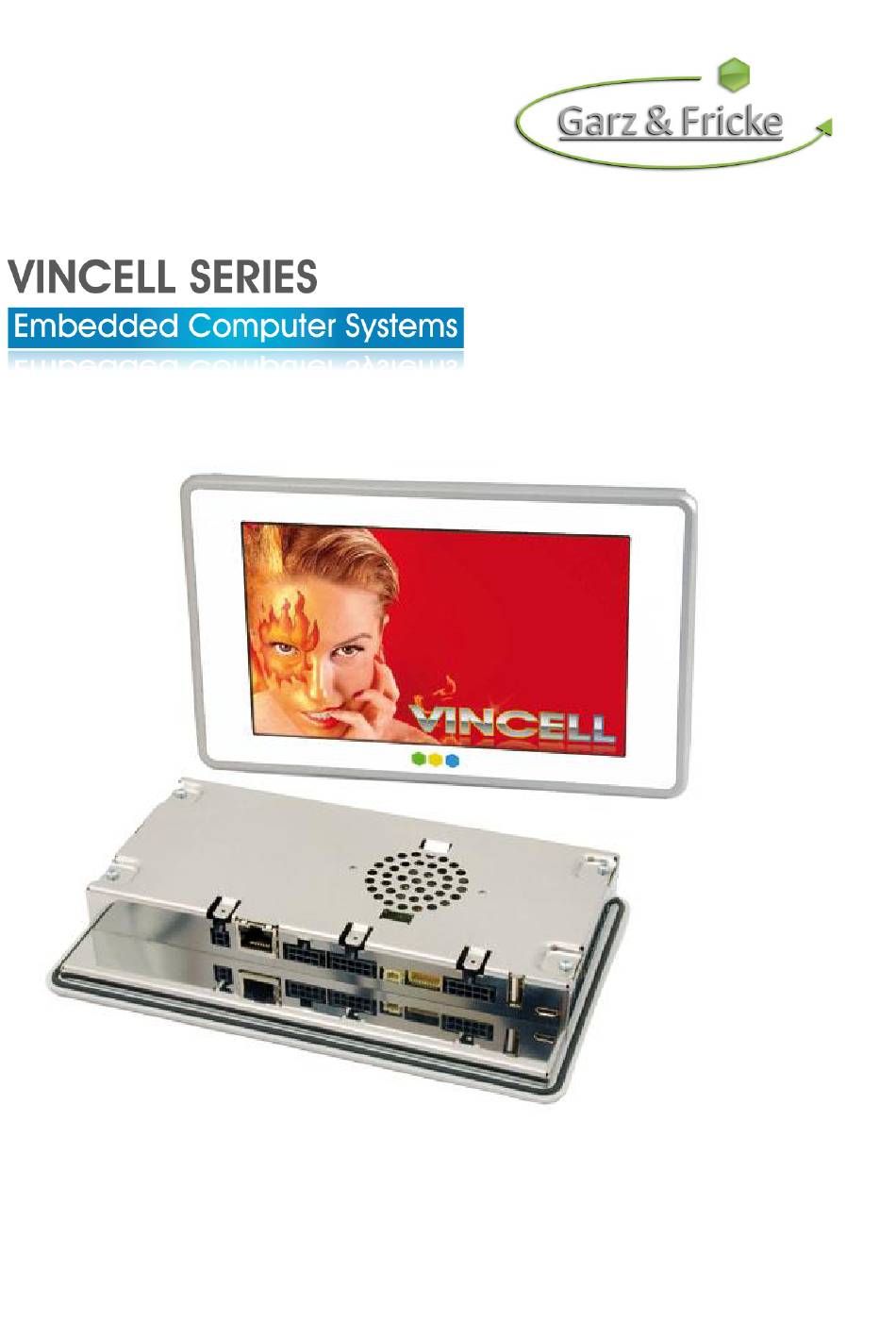

  • Page 1 VINCELL 7.0" Boxed Manual For PCB revision 0.7 or for HW 1.1 or later...

  • Page 2: Table Of Contents

    VINCELL 7.0" Boxed Manual Content Introduction Safety Hints Product Introduction Product introduction Type plate and device information Related documents and online support Product Description Technical data PCB design Installation and start up Connection Scheme (Example) External interfaces and Schematics Ethernet (X24) Power (X1) Digital I/O (X14) CAN/RS-485 Interface (X39)

  • Page 3: Introduction

    VINCELL 7.0" Boxed Manual 1 Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades.

  • Page 4: Safety Hints

    VINCELL 7.0" Boxed Manual 2 Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded system have been built and tested by us and left the company in a perfectly safe condition.

  • Page 5: Product Introduction

    VINCELL 7.0" Boxed Manual 3 Product Introduction This document is applicable for hardware revisions 1.0 or later of the VINCELL SERIES and thereon based customized variants. Please note that customized variants might possibly not support all features listed herein. Please find the hardware version grid in Annex B: Product introduction VINCELL is an Embedded System to be used as human machine interface (HMI) in various applications.

  • Page 6: Related Documents And Online Support

    VINCELL 7.0" Boxed Manual Related documents and online support This document contains product specific information. Additional documentation is available for the use of embedded operating systems and the related tool chain and the RedBoot BIOS. Description Title Link to Garz & Fricke Website Contains relevant information about RedBoot User Manual GF_RedBoot_User_Manual_V.0.7.pdf...

  • Page 7: Product Description

    VINCELL 7.0" Boxed Manual 4 Product Description This drawing is meant for your orientation. For drawing please refer to Annex C: You will get 3D Modell (CAD) Drawings after signed a NDA contract. Aluminium Frame Front Cover Display with Resistive Touch Reset switch SD-card slot...

  • Page 8: Technical Data

    VINCELL 7.0" Boxed Manual Technical data Class Freescale ARM®-Cortex -A8 i.MX537 Type/Clock 800 MHz NEON SIMD media acceleration and VFP operations L1 cache, 32 KB for instruction, 32 KB for data Features Unified 256 KB L2 Cache Multi-format HD 1080p video decoder and HD 720p video encoder hardware engine OpenGL®...
  • Page 9 VINCELL 7.0" Boxed Manual Resistive Touch Type 4-wire analog resistive Linearity <=1.5% Surface Treatment antiglare Power Supply and Consumption Nom. 24 ± 15% Supply [V DC] Max. 9 ~ 36 PoE Supply (optional) IEEE 802.3at-2009 class 4 Consumption [W] Typ. 4.8 Type 3 V lithium manganese dioxide Type CR1220 Internal Backup Battery...

  • Page 10: Pcb Design

    VINCELL 7.0" Boxed Manual PCB design As this manual describes an boxed version, only the external interfaces will be mentioned in the following chapter Pos. Description Pos. Description Ethernet (X24) USB - Host (X34) Power (X1) USB - OTG (X20) Digital I/O (X14) SD card reader (X31) CAN/RS-485 Interface (X39)

  • Page 11: Installation And Start Up

    VINCELL 7.0" Boxed Manual 5 Installation and start up The content of this document is limited to explain the device connectors and how to access VINCELL via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software support, please refer to chapter Product Link to Garz &...

  • Page 12: External Interfaces And Schematics

    VINCELL 7.0" Boxed Manual 6 External interfaces and Schematics Ethernet (X24) Name Description Information Rx/Tx might be swapped (Auto-MDIX) +/- might be swapped SPARE1 Power Supply (PoE) (Autom. polarity correction) PoE might also be injected via Rx/Tx lines. SPARE2 Power Supply (PoE) Header: RJ45...

  • Page 13: Power (X1)

    VINCELL 7.0" Boxed Manual Power (X1) Name Description Level DC Ground Nom. 24 ± 15% Vcc_In DC Input voltage Max. 9 Header: Molex 43045-0200 Micro-Fit 2p Plug: Molex 43025-0200 Micro-Fit 2p, crimp contact Molex 43030-0007 Shielding with 6,3 mm male spade terminal connector Pin 1 (GND) is connected to frame/housing through L129.

  • Page 14: Digital I/O (X14)

    VINCELL 7.0" Boxed Manual Digital I/O (X14) Name Description Level DIG_IN1 Input 1 Low Typ. 8.3 mA / 24 V DIG_IN2 Input 2 3-36V High GND_DIO Ground for digital IO group Common ground, can be bridged with GND_DIO, when galvanic isolation is not required DIG_OUT1 Output 1 Low Max.

  • Page 15: Can/Rs-485 Interface (X39)

    VINCELL 7.0" Boxed Manual CAN/RS-485 Interface (X39) Name Description Level GND_CAN_RS485 Ground for CAN and RS485 group To enable CAN1-Termination, bridge CAN1_TERM with CAN1_H -24…+24 V CAN1_H CAN bus 1 high -24…+24 V CAN1_L CAN bus 1 low To enable CAN1-Termination, bridge CAN1_TERM with CAN1_L To enable RS485-Termination: bridge...

  • Page 16: Speaker (X9)

    VINCELL 7.0" Boxed Manual Speaker (X9) Name Description Level Speaker out + Max. 1 W @ 8 Ω or 2 W @ 4 Ω Speaker out - Header: JST S2B-PH-SM3-TB, side entry, RM = 2.0, 2-pin Plug: JST PHR-2, crimp contact BPH-002T-P0.5S...

  • Page 17: Keypad/Spi (X21)

    VINCELL 7.0" Boxed Manual Keypad/SPI (X21) Keypad/SPI/I²C, multiplexed Description Name Level Default mode Mode 1 Ground Ground Ground Ground KP_ROW0 Keypad row 0 Keypad row 0 KP_COL0 Keypad column 0 Keypad column 0 KP_ROW1 Keypad row 1 Keypad row 1 KP_COL1 Keypad column 1 Keypad column 1...
  • Page 18 VINCELL 7.0" Boxed Manual Keypad/SPI/I²C, multiplexed 1* Description Name Level Mode 2 Mode 3 1-10 Identical to standard KP_ROW4 Keypad row 4 Keypad row 4 KP_COL4 Keypad column 4 Keypad column 4 KP_ROW5_DMA Keypad row 5 SPI Interrupt Request KP_COL5_SS1 Keypad column 5 SPI Slave Select 1 3.3 V...

  • Page 19: Rs-232/Mdb (X13)

    VINCELL 7.0" Boxed Manual RS-232/MDB (X13) RS-232/RS-232 Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Ground RS232_TXD2 Port#2: Transmit data (Output) RS232_RXD2 Port#2: Receive data (Input) RS232_RTS2 Port#2: Request-to-send (Output) RS232_CTS2...

  • Page 20: Usb - Host (X34)

    VINCELL 7.0" Boxed Manual USB - Host (X34) Name Description Level USB_H1_VBUS Power supply +5 V DC USB_H1_DN Data minus (D-) USB_H1_DP Data plus (D+) Ground Header: USB Type A USB - OTG (X20) Name Description Level USB_OTG_VBUS Power supply +5 V DC USB_OTG_DN Data minus (D-)

  • Page 21: Battery

    VINCELL 7.0" Boxed Manual Battery 6.10 Battery VINCELL V1.1 Battery VINCELL V1.1.1...

  • Page 22: Suppliers And Sources

    VINCELL 7.0" Boxed Manual 7 Suppliers and sources Models and types of connectors respectively plugs related to VINCELL are listed in chapters and. Due to the purchasing situation at time of production, connectors of other brands could be used instead. For purchasing these parts, we recommend the following suppliers: ...
  • Page 23 VINCELL 7.0" Boxed Manual Technical Appendix For PCB revision 0.7 or for HW 1.1 or later...

  • Page 24: Annex A: Assembly Options And Accessory

    VINCELL 7.0" Boxed Manual Annex A: Assembly options and accessory A-1 WIFI (USB) Some appliances require a wireless network connectivity. To be more flexible in regard of upcoming WiFi Standard and approbations, we decided not to place the functionality on board. Therefore we recommend an external USB (WL250N).

  • Page 25: Vincell Boxed Version M

    VINCELL 7.0" Boxed Manual A-2 VINCELL Boxed Version M VINCELL 7.0" Boxed is also available as minor assembly version. For the details of the external connectors please use the main part on the pages 12. Pos. Description Ethernet (X24) Power (X1) RS-232/MDB (X13) USB - Host (X34) USB - OTG (X20)

  • Page 26: Annex B: Hardware Revision Information

    VINCELL 7.0" Boxed Manual Annex B: Hardware revision information This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments. Platform Article Number Interface CAN/RS-485 CAN/CAN...

  • Page 27: Annex C: Mechanical Specifications

    VINCELL 7.0" Boxed Manual Annex C: Mechanical specifications C-1 Mechanical Drawings (tbd.)

  • Page 28: Annex D: Quality And Incoming Inspections

    VINCELL 7.0" Boxed Manual Annex D: Quality and Incoming Inspections D-1 Display...
  • Page 29 VINCELL 7.0" Boxed Manual...
  • Page 30 VINCELL 7.0" Boxed Manual...

  • Page 31: Decor Film Properties

    VINCELL 7.0" Boxed Manual D-2 Decor Film Properties...
  • Page 32 VINCELL 7.0" Boxed Manual...

  • Page 33: Frontfoil Specifications

    VINCELL 7.0" Boxed Manual D-3 Frontfoil Specifications...

  • Page 34: Evaluation Criteria Of Standard Displaymodule

    VINCELL 7.0" Boxed Manual D-4 Evaluation criteria of standard displaymodule...

  • Page 35: Annex E: Battery

    VINCELL 7.0" Boxed Manual Annex E: Battery E-1 Battery Specifications The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years. In case of presence of SRAM, battery has lifetime of about 2 years. (75% power down). Danger of explosion when replaced with wrong type of battery.

  • Page 36: Annex F: Guidelines And Standards

    VINCELL 7.0" Boxed Manual Annex F: Guidelines and Standards F-1 EC Declaration of Conformity...

  • Page 37: Emc Certifications

    VINCELL 7.0" Boxed Manual F-2 EMC Certifications...
  • Page 38 VINCELL 7.0" Boxed Manual...

  • Page 39: Rohs Declaration

    VINCELL 7.0" Boxed Manual F-3 RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Page 40: Annex G: Common Documentation

    VINCELL 7.0" Boxed Manual Annex G: Common documentation G-1 Warranty hints Garz & Fricke embedded systems are subject to manufacturer’s guarantee as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the guaranteed period.

  • Page 41: Application Notes

    VINCELL 7.0" Boxed Manual G-2 Application notes The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) or (III) we highly recommend a personal contact with our consultants and/or technical sales team.
