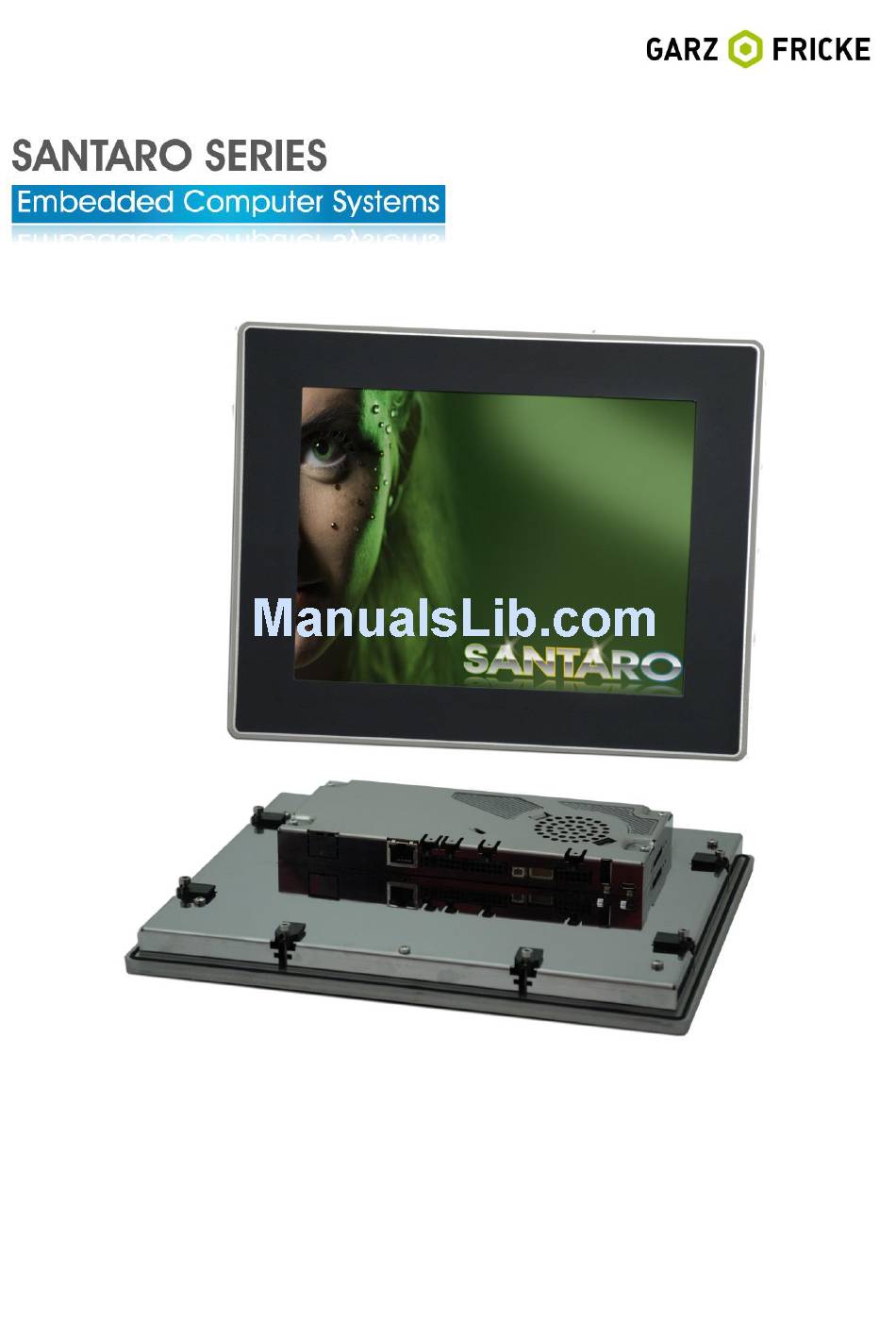

- Page 1 SANTARO 10.4" Boxed Manual For PCB revision 0.7 or for HW 1.1 or later...
-
Page 2: Table Of Contents
SANTARO 10.4" Boxed Manual Content Introduction Safety Hints Product Introduction Product introduction Type plate and device information Related documents and online support Product Description Technical data PCB design and Pin assembly Installation and start up Connection Scheme External interfaces and Schematics Ethernet (X24) Power (X1) Digital I/O (X14) -
Page 3: Introduction
SANTARO 10.4" Boxed Manual 1 Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 4: Safety Hints
SANTARO 10.4" Boxed Manual 2 Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition. -
Page 5: Product Introduction
SANTARO 10.4" Boxed Manual 3 Product Introduction This document is applicable for hardware revisions 1.0 or later of the SANTARO SERIES. Please find the hardware version grid in Annex B: Product introduction SANTARO is an Embedded System to be used as human machine interface (HMI) in various applications. -
Page 6: Related Documents And Online Support
SANTARO 10.4" Boxed Manual Related documents and online support This document contains product specific information. The following additional documentations are available: Description Title Link to Garz & Fricke Website Contains information about Windows Embedded CE, the tool Windows OS Manual GF_WindowsCE_Manual_Vn.n.pdf chain, the development environment Visual Studio, Garz &... -
Page 7: Product Description
SANTARO 10.4" Boxed Manual 4 Product Description This drawing is meant for your orientation. For drawing please refer to Annex C: You will get 3 D model (CAD) Drawings after signed a NDA contract. Aluminium Frame Front Cover Display with resistive touch Heatsink Back cover... -
Page 8: Technical Data
SANTARO 10.4" Boxed Manual Technical data Singlecore M Singlecore Dualcore Quadcore Type CPU Freescale ARM®-Cortex -A9 i.MX6S/D/Q Cores Clock/Frequency 800 MHz 1 GHz per core NEON for SIMD media acceleration and VFP operations L1 cache, 32 KB for instruction, 32 KB for data 512 KB L2 cache (Singlecore) Features 1 MB L2 cache (Dualcore and Quadcore) - Page 9 SANTARO 10.4" Boxed Manual LCD Display Singlecore M Singlecore Dualcore Quadcore Size [inch/mm] 10.4 / 264.0 Orientation 6 o`clock Display Technology TFT-TN Width x Height [pixel] 800 x 600 Colors [bit] 18 (262 K colors) Backlight Unit Luminance [cd/m²] 400 (Typ.) Active Area W x H [mm] 211.2 x 158.4 Viewing Angle...
- Page 10 SANTARO 10.4" Boxed Manual Lifetime Backlight Lifetime 30,000 Display [h] Operating Lifetime Touch 100,000 (by pen), 1,000,000 (by finger) ≥ 50,000 MTBF Backlight lifetime is dictated by the LCD manufacture´s specification. Backlight lifetime is the approximate time at which the brightness decreases to half of its original brightness. Reduction of brightness due to backlight lifetime is not considered as failure.
-
Page 11: Pcb Design And Pin Assembly
SANTARO 10.4" Boxed Manual PCB design and Pin assembly As this manual describes a boxed version, only the external interfaces will be mentioned in the following chapter. (The illustration shows the fully equipped Santaro Quadcore). Pos. Description Pos. Description Ethernet (X24) USB - Host (X34) Power (X1) USB - OTG (X20) -
Page 12: Installation And Start Up
SANTARO 10.4" Boxed Manual 5 Installation and start up The content of this document is limited to explain the device connectors and how to access SANTARO via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software support, please refer to chapter 3.3 Related documents and online support Product... -
Page 13: External Interfaces And Schematics
SANTARO 10.4" Boxed Manual 6 External interfaces and Schematics Ethernet (X24) Name Description Information Rx/Tx might be swapped (Auto-MDIX) +/- might be swapped (Autom. polarity correction) SPARE1 Power Supply (PoE) PoE might also be injected via Rx/Tx lines. SPARE2 Power Supply (PoE) Header: RJ45 Green LED (link) is default on and turns of when link is detected. -
Page 14: Power (X1)
SANTARO 10.4" Boxed Manual Power (X1) Name Description Level DC Ground Nom. 24 ± 15% Vcc_In DC Input voltage Max. 14 ̴ 30 Header: Molex 43045-0200 Micro-Fit 2p Plug: Molex 43025-0200 Micro-Fit 2p, crimp contact Molex 43030-0007 Shielding with 6,3 mm male spade terminal connector Pin 1 (GND) is connected to frame/housing. -
Page 15: Digital I/O (X14)
SANTARO 10.4" Boxed Manual Digital I/O (X14) Name Description Level DIG_IN1 Input 1 Low Typ. 8,3 DIG_IN2 Input 2 3-36V High mA / 24 V GND_DIO Ground for digital IO group Common ground, can be bridged with GND_DIO, when galvanic isolation is not required DIG_OUT1 Output 1... -
Page 16: Can/Rs-485 Interface (X39)
SANTARO 10.4" Boxed Manual CAN/RS-485 Interface (X39) Name Description Level GND_CAN_RS485 Ground for CAN and RS485 group To enable CAN1-Termination, bridge CAN1_TERM with CAN1_H -24…+24 V CAN1_H CAN bus 1 high -24…+24 V CAN1_L CAN bus 1 low To enable CAN1-Termination, bridge CAN1_TERM with CAN1_L To enable RS485-Termination: bridge... -
Page 17: Keypad/Spi (X21)
SANTARO 10.4" Boxed Manual Keypad/SPI (X21) Keypad/SPI/I²C, multiplexed Description Name Level Default mode Mode 1 Ground Ground Ground Ground KP_ROW0 Keypad row 0 Keypad row 0 KP_COL0 Keypad column 0 Keypad column 0 KP_ROW1 Keypad row 1 Keypad row 1 KP_COL1 Keypad column 1 Keypad column 1... - Page 18 SANTARO 10.4" Boxed Manual Keypad/SPI/I²C, multiplexed 1* Description Name Level Mode 2 Mode 3 1-10 Identical to standard KP_ROW4 Keypad row 4 Keypad row 4 KP_COL4 Keypad column 4 Keypad column 4 KP_ROW5_DMA Keypad row 5 SPI Interrupt Request KP_COL5_SS1 Keypad column 5 SPI Slave Select 1 3,3 V...
-
Page 19: Rs-232/Mdb (X13)
SANTARO 10.4" Boxed Manual RS-232/MDB (X13) RS-232/RS-232 Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Ground RS232_TXD2 Port#2: Transmit data (Output) RS232_RXD2 Port#2: Receive data (Input) RS232_RTS2 Port#2: Request-to-send (Output) RS232_CTS2... -
Page 20: Usb - Host (X34)
SANTARO 10.4" Boxed Manual USB - Host (X34) Name Description Level USB_H1_VBUS Power supply 5V/500mA (max) USB_H1_DN Data minus (D-) USB_H1_DP Data plus (D+) Ground Header: USB Type A USB - OTG (X20) Name Description Level USB_OTG_VBUS Power supply 5V/500mA (max) USB_OTG_DN Data minus (D-) USB_OTG_DP... -
Page 21: Battery
SANTARO 10.4" Boxed Manual Battery 6.10 Battery SANTARO Boxed Singlecore, Dualcore Battery holder X2 Name Description Level Supply Ground Header: Keystone 1056 Battery: CR1220 Battery SANTARO Boxed Quadcore Connector X112 Name Description Level Supply Ground Header: Molex 53398_0271 Plug: Molex 51021_0200... -
Page 22: Hdmi Type-D (X111)
SANTARO 10.4" Boxed Manual HDMI Type-D (X111) 6.11 Name Description Level HOT_PLUG_DETECT Hot plug detection Utility not connected TMDS Data2+ TMDS Data2 Schirm TMDS Data2- TMDS Data1+ TMDS Data1 Schirm TMDS Data1- TMDS Data0+ TMDS Data0 Schirm TMDS Data0- TMDS Clock+ TMDS Clock Schirm TMDS Clock- DDC/CEC_GND... -
Page 23: Document Revision History
SANTARO 10.4" Boxed Manual 7 Document revision history The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. Author Description Revision... -
Page 24: Technical Support
SANTARO 10.4" Boxed Manual 8 Technical support Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or any other documentation provided by Garz & Fricke or the related websites. If this does not help at all, please feel free to contact us. Our technicans and engineers will be glad to support you. - Page 25 SANTARO 10.4" Boxed Manual Technical Appendix For PCB revision 0.7 or for HW 1.1...
-
Page 26: Annex A: Assembly Options
SANTARO 10.4" Boxed Manual Annex A: Assembly options A-1 WIFI (USB) Some appliances require a wireless network connectivity. To be more flexible in regard of upcoming WiFi Standard and approbations, we decided not to place the functionality on board. Therefore we recommend an external USB (WL250N). -
Page 27: Annex B: Hardware Revision Information
SANTARO 10.4" Boxed Manual Annex B: Hardware revision information This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments. Platform Article Number Marking on PCB Galvanic Isolation SANTARO x 1 10.4 Boxed V1.2 M... -
Page 28: Annex C: Mechanical Specifications
SANTARO 10.4" Boxed Manual Annex C: Mechanical specifications C-1 Mechanical Drawings... -
Page 29: Annex D: Quality And Incoming Inspections
SANTARO 10.4" Boxed Manual Annex D: Quality and Incoming Inspections D-1 Display and Touch Maximum Maximum amount Specification amount Notes display other area area Bright Dot Minimum One dot = one sub- Electrical distance pixel L ≥ 5mm defects Dark Dot between One pixel consists (only... -
Page 30: Evaluation Criteria Of Standard Display Module
SANTARO 10.4" Boxed Manual D-2 Evaluation criteria of standard display module Evaluated Zone 1: Areas in the immediate viewing area: dirt and dust enclosures / stains / striae / scratches from max. 500 µm (diameter) or 0.02 mm2 (surface), 5 pcs. per dm permitted, but no clustering. -
Page 31: Annex E: Battery
SANTARO 10.4" Boxed Manual Annex E: Battery E-1 Battery Specifications SANTARO Boxed Singlecore, Singlecore Version M, Dualcore The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years. In case of presence of SRAM, battery has lifetime of about 2 years. (75% power down). Type Garz &... -
Page 32: Replacement Of The Internal Battery
SANTARO 10.4" Boxed Manual E-2 Replacement of the internal battery The internal battery is placed as per figure below. For replacement, the SD-card and the back cover have to be removed. The device shall be opened by authorized and skilled personnel only. Danger of electric hazard! First before opening, please make sure that the unit is completely disconnected from any power supply, direct or indirect. - Page 33 SANTARO 10.4" Boxed Manual SANTARO Boxed Quadcore Connector (X112) for the batterycable (Exemplary illustration) Battery is fixed with cable ties at the cover...
-
Page 34: Annex F: Guidelines And Standards
SANTARO 10.4" Boxed Manual Annex F: Guidelines and Standards F-1 EC Declaration of Conformity Tbd. F-2 EMC Certifications Tbd. F-3 RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 35: Annex G: Common Documentation
SANTARO 10.4" Boxed Manual Annex G: Common documentation G-1 Warranty hints Garz & Fricke embedded systems are subject to manufacturer’s guarantee as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the guaranteed period. -
Page 36: Application Notes
SANTARO 10.4" Boxed Manual G-2 Application notes The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) or (III) we highly recommend a personal contact with our consultants and/or technical sales team.
