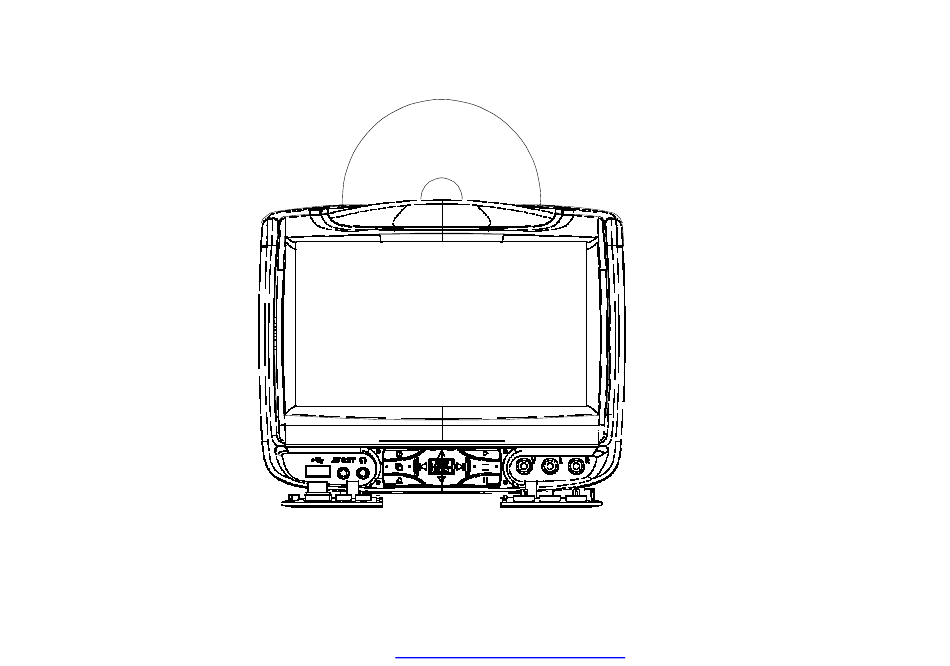

- Page 1 Owner’s Manual SSLM7BA1 MONITOR-SLIMLINE 7 INCH-A SSLM8AA1 MONITOR-SLIMLINE 8 INCH-A SSLM7BB1 MONITOR-SLIMLINE 7 INCH-B SSLM8AB1 MONITOR-SLIMLINE 8 INCH-B - 1 - PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint...
- Page 2 SSLM7BA1/SSLM7BB1/SSLM8AA1/SSLM8AB1 MONITOR-SLIMLINE 7 INCH and 8 INCH Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle.
- Page 3 Product Features • 7-inch Color TFT-LCD Panel (480x3(RGB)x234) with 16:9 Aspect for SLIMLINE 7-inch model • 8-inch Color TFT-LCD Panel (800x3(RGB)x480) with 16:9 Aspect for SLIMLINE 8-inch model • Built-in Slim Type Top-Loading Slot-In DVD Player • Infrared Transmitters for IR Wireless Headphones •...
- Page 4 the user's authority to operate the equipment. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 5 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. - 3 - PDF 檔案使用...
-
Page 6: Table Of Contents
Table of Contents 1. Optional Accessories· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·7 Wireless Headphone ·... - Page 7 Loading and Playing Discs · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·23 To Load and Play a Disc·...
- Page 8 13. Troubleshooting · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·35 14.
-
Page 9: Optional Accessories
Optional Accessories Wireless Headphone This SLIMLINE includes a built-in dual channel infrared transmitter for use with a wireless headphone. The volume can then be adjusted with the controls on each headset. The wireless headphone must be used within a line of sight from the transmitter, as infrared transmission, like visible light travels only in a straight line. -
Page 10: Installation Sequence
Installation Sequences After safety mandated preparatory steps have been taken, the installation sequence is the suggested method for completing the accessory installation. In some instances the suggested sequence is written for one associate to install and in others the sequence is given as part of a team accessory installation. Unless otherwise stated in the document, the associates may perform the installation steps in any order to make the installation as efficient as possible while maintaining consistent quality. - Page 11 - 9 - PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint...
-
Page 12: Router Cabling Under Driver Seat & Passenger Seat
Router Cabling under Driver Seat & Passenger Seat • Connect 6-pin signal cord 1A (white) and 6-pin signal + power cord 2A (red) of driver seat to corresponding with the connectors of signal cord 3A, and then fix both connectors with a clamp if available. -
Page 13: Functional Verification
Functional Verification Accessory Function Checks: Look for: Turn vehicle ignition to ON, depress power Monitor should power on start up screen should button on each headrest monitor. appear on screen. Insert disc into DVD player, press ENTER Disc should begin playing. button on the remote control or LCD panel. -
Page 14: Control Description On The Front Panel
Control Description on the Front Panel - 12 - PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint... - Page 15 • Caution children to avoid touching or 1. DVD Player Busy Light The busy light indicates the activity state of the scratching the screen, as it may become dirty or DVD player. damaged. 2. DVD Compartment Slot 6. USB 1.1 Port Insert a disc to play.
- Page 16 12. STOP/LEFT Button This button function will changed to ENTER This button function allows you to navigation when the DVD is running in the title menu or the contents when enter DVD menu, besides DVD OSD setup menu. this button is act as STOP function for DVD 15.
-
Page 17: Remote Control Operations
Remote Control Operations Installing the Battery Before attempting to operate your remote control, install the batteries as described below. 1. Turn the remote control face down. Press down on the ridged area of the battery cover and slide it off. 2. -
Page 18: Button Function Descriptions
Button Function Descriptions 1. SOURCE Any video equipment connected to the audio/video inputs can be used with the monitor by pressing this button. Each time the button is pressed, the audio/ video source will change in the following sequence: Monitor A→Monitor B→AUX→TV. 2. - Page 19 7. MENU Press the button to go to the Root Menu included on the disc. 8. UP, DOWN For DVD: Navigation button, you can use this button to move the select bar to one of items among the menu or file list. For TV: Use these buttons to advance to the next higher or lower channel.
- Page 20 15. SUBTITLE Press this button. If the current disc has different subtitles options, this now appears on the screen. Press this button repeatedly until you have reached your desired subtitles option. 16. Numbers Decimal number: 0 to 9; and +100: Add 100. 17.
- Page 21 23. TV-Monitor B (If TV mode is available) Transmit IR codes for TV mode of monitor B. 24. DVD-Monitor B Transmit IR codes for DVD mode of monitor B. 25. SOUND AROUND SELECT (If available) Select a FM transmitter channel. There are 6 channels: CH1: 88.3MHz;...
- Page 22 red. When the SKIP mode is on, the device will be tuned to only the stored channels when using the UP/DOWN buttons. 31. AUDIO Press this button. If the current disc has different language options, this now appears on the screen. Press this button repeatedly until you have reached your desired language option.
- Page 23 38. PBC (Video CD only) Turn the PBC (Play Back Control) on or off. 39. ZOOM Enlarge the picture in the movie by 2x, 3x, and 4x, or Shrink the picture in the movie by 1/2x, 1/3x, and 1/4x. 40. NEXT When a disc has more than one Chapter, Track, or File, you can move to another Chapter/Track/File.
-
Page 24: General Operating Instructions
General Operating Instructions Turning the Device ON or OFF 1. Pivot the screen downward until a comfortable viewing angle is reached. 2. Pressing the POWER button on the lower-left corner of the front panel or the remote control will turn the device on or off. When in use, the controls will be lit. 3. -
Page 25: Dvd Basic
DVD Basic To get the most use out of each DVD, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The system’s code may be region 1. Other regional may not be played in this system. -
Page 26: Notes On Discs
Notes on Discs • To keep a disc clean, do not touch its surface. Handle the disc by its edge. • Keep your discs in their cases or disc magazines when not in use. Also, do not subject disc to heat/high temperature. -
Page 27: How To Use The Dvd Osd Menu
How to use the DVD OSD Menu This section describes how to set and adjust using the on-screen setup pages included in the OSD Menu. You can use the OSD menu screen to adjust all the settings on your screen. Follow the steps outlined below to select the function you desire, and refer to the pages indicated for more information. -
Page 28: General Setup Page
General Setup Page Setting the Language for On-Screen Display Press the SETUP button on the remote control, use the buttons to navigating to General Setup Page, then use the buttons to select OSD Lang sub-menu. OSD (On Screen Display) Language Menu The OSD Lang sub-menu allows the user to select the language for the on-screen display. -
Page 29: Preference Page
Preference Page Default Setting Press the SETUP button, and use the buttons on the remote control to navigate to the Default sub-menu under Preference Page. The default setup allows you to reset all options to factory defaults. Press the button and then press ENTER button to carry out the reset. Note: This function will not effect the parental setting. -
Page 30: Password Setup Page
Password Setup Page Setting for Password (Parental Control Password) Press the SETUP button and navigate to the Password submenu under the Password Setup Page. The menu appears and allows you to change the parental control password. Press the button and then press the ENTER button on the remote control to entering the sub-menu. -
Page 31: Playing Audio
Playing Audio CD When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track and the amount of the time that track playing, the total amount of time on the disc and the current time running on the disc. Press the DISPLAY button on the remote control to display the DISPLAY banner. The options below show you what happens when you press the DISPLAY button. -
Page 32: Playing Mp3 Discs
Playing MP3 Discs MP3 is the format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while talking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. Press the DISPLAY button on the remote control to show DISPLAY Banner. -
Page 33: Skipping Songs
shift to left side of the screen and the song s in the folder appear on the right). 3. Press the UP or DOWN arrow button on the remote control to go through the song list and highlight the song you want. Press the ENTER button to begin the playback of the highlighted song. Skipping Songs Use the (NEXT) button on the remote control to move to the next song. -
Page 34: How To Use The Device Osd Menu
How to use the Device OSD Menu Picture Adjustment This section describes how to set and adjust using the on-screen in the device OSD Menu. You can use the device OSD menu screen to adjust advanced picture selections on your screen. •... - Page 35 Technical Specification SLIMLINE SSLM7A: 204.90(W)x160.18(H)x57.62(D) mm Dimensions SLIMLINE SSLM8A: 232.76(W)x180.63(H)x57.88(D) mm SLIMLINE 7A: 1.26Kg Weight SLIMLINE 8A: 1.55Kg Operation <16W (max.)/SSLM7A, <15.6W (max.)/SSLM8A Power Consumption Standby <1.5W (max.)/SSLM7A, <1.5W (max.)/SSLM8A LCD Backlight 480x3(RGB)x234 for 7-inch TFT LCD Panel Resolution 800x3(RGB)x480 for 8-inch TFT LCD Panel Luminance 400cd/m (min.)
- Page 36 Supply Input Voltage 10V~16V DC 1.3A Vin= 10V DC (DSLM7A) Maximum Input Current 1.56A Vin= 10V DC (DSLM8A) 20Hz~20KHz ± 1dB Frequency Response ≥ 85dB Signal/Noise Ratio ≤ 0.02 Audio Distortion Acoustic Noise 40dB POWER/SOURCE, STOP/LEFT, UP, SETUP/ENTER, Control Button on the Front Panel PLAY/PAUSE/RIGHT, EJECT, and DOWN USB 1.1 Port, 1/8”...
- Page 37 Troubleshooting If it appears that the device is faulty, first consult this checklist. It may be that something has been overlooked. Symptom Remedy • Check if both plugs of the main cord are properly connected. Device does not power “ •...
- Page 38 • Check that the signal source is connected. • Check that the setting may be in the wrong status. Match your source No picture selected correctly. • Contact the service department. • Check the disc for fingerprints and clean with a soft cloth, wiping from center to edge.
- Page 39 WEEE Notice Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that device shall not be treated as household waste.
