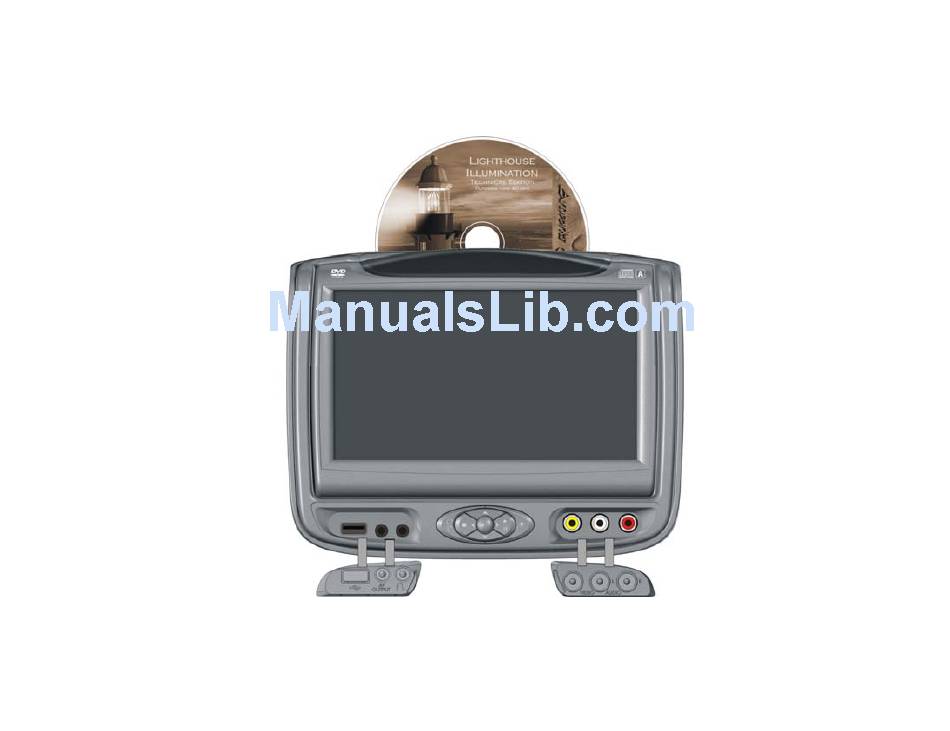

- Page 1 Owner’s Manual SSLM7BA1 MONITOR-SLIMLINE 7 INCH-A SSLM7BB1 MONITOR-SLIMLINE 7 INCH-B - 1 -...
-
Page 2: Important Notice
MONITOR-SLIMLINE 7 INCH Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. -
Page 3: Product Features
Welcome Thank you for purchasing this Headrest Video Monitor with built-in DVD player. Before operating this system, read this manual thoroughly and retain it for future reference. Product Features • 7-inch Color TFT-LCD Panel (480x3(RGB)x234) with 16:9 • Built-in Slim Type Top-Loading Slot-In DVD Player •... - Page 4 Table of Contents 1. Optional Accessories······························································································································ 7 Wireless Headphone ······························································································································ 7 Wired Headphone ·································································································································· 7 AV Control Box ····································································································································· 7 Wired FM Modulator····························································································································· 7 2. Installation Sequence····························································································································· 8 Pre-Installation Precaution····················································································································· 8 Battery Disconnect ································································································································ 8 Remove Factory Headrest······················································································································ 8 Install SLIMLINE Headrest Monitor A and Monitor B ········································································· 8 Router Cabling under Driver Seat &...
- Page 5 Type of Discs your DVD will Play ······································································································ 23 Loading and Playing Discs ·················································································································· 23 To Load and Play a Disc ······················································································································ 23 7. Notes on Discs ······································································································································ 24 8. How to use the DVD OSD Menu ········································································································ 25 Using the Setup Menu ························································································································· 25 To Cancel using the Setup Display ······································································································...
- Page 6 12. Technical Data······································································································································ 33 13. Troubleshooting ··································································································································· 35 14. FCC Notice··········································································································································· 37 15. WEEE Notice ······································································································································· 38 16. MACROVISION Notice······················································································································ 39 - 6 -...
-
Page 7: Optional Accessories
Optional Accessories Wireless Headphone This SLIMLINE includes a built-in dual channel infrared transmitter for use with a wireless headphone. The volume can then be adjusted with the controls on each headset. The wireless headphone must be used within a line of sight from the transmitter, as infrared transmission, like visible light travels only in a straight line. -
Page 8: Installation Sequence
Installation Sequences After safety mandated preparatory steps have been taken, the installation sequence is the suggested method for completing the accessory installation. In some instances the suggested sequence is written for one associate to install and in others the sequence is given as part of a team accessory installation. Unless otherwise stated in the document, the associates may perform the installation steps in any order to make the installation as efficient as possible while maintaining consistent quality. - Page 9 - 9 -...
-
Page 10: Router Cabling Under Driver Seat & Passenger Seat
Router Cabling under Driver Seat & Passenger Seat • Connect 6-pin signal cord 1A (white) and 6-pin signal + power cord 2A (red) of driver seat to corresponding with the connectors of signal cord 3A, and then fix both connectors with a clamp if available. -
Page 11: Functional Verification
Functional Verification Accessory Function Checks: Look for: Turn vehicle ignition to ON, depress power Monitor should power on start up screen should button on each headrest monitor. appear on screen. Insert disc into DVD player, press ENTER Disc should begin playing. button on the remote control or LCD panel. -
Page 12: Control Description On The Front Panel
Control Description on the Front Panel - 12 -... - Page 13 1. DVD Player Busy Light • Caution children to avoid touching or The busy light indicates the activity state of the scratching the screen, as it may become dirty or DVD player. damaged. 2. DVD Compartment Slot 6. USB 1.1 Port Insert a disc to play.
- Page 14 12. STOP/LEFT Button This button function will changed to ENTER This button function allows you to navigation when the DVD is running in the title menu or the contents when enter DVD menu, besides DVD OSD setup menu. this button is act as STOP function for DVD 15.
-
Page 15: Remote Control Operations
Remote Control Operations Installing the Battery Before attempting to operate your remote control, install the batteries as described below. 1. Turn the remote control face down. Press down on the ridged area of the battery cover and slide it off. 2. -
Page 16: Button Function Descriptions
Monitor A→Monitor B→AUX→TV. 2. POWER Press the button to turn the SSLM7BA1/SSLM7BB1 device on. The current video source will be displayed on the screen, and the picture will appear in a few seconds. - Page 17 7. MENU Press the button to go to the Root Menu included on the disc. 8. UP, DOWN For DVD: Navigation button, you can use this button to move the select bar to one of items among the menu or file list. For TV: Use these buttons to advance to the next higher or lower channel.
- Page 18 15. SUBTITLE Press this button. If the current disc has different subtitles options, this now appears on the screen. Press this button repeatedly until you have reached your desired subtitles option. 16. Numbers Decimal number: 0 to 9; and +100: Add 100. 17.
- Page 19 23. TV-Monitor B (If TV mode is available) Transmit IR codes for TV mode of monitor B. 24. DVD-Monitor B Transmit IR codes for DVD mode of monitor B. 25. SOUND AROUND SELECT (If available) Select a FM transmitter channel. There are 6 channels: CH1: 88.3MHz;...
- Page 20 red. When the SKIP mode is on, the device will be tuned to only the stored channels when using the UP/DOWN buttons. 31. AUDIO Press this button. If the current disc has different language options, this now appears on the screen. Press this button repeatedly until you have reached your desired language option.
- Page 21 38. PBC (Video CD only) Turn the PBC (Play Back Control) on or off. 39. ZOOM Enlarge the picture in the movie by 2x, 3x, and 4x, or Shrink the picture in the movie by 1/2x, 1/3x, and 1/4x. 40. NEXT When a disc has more than one Chapter, Track, or File, you can move to another Chapter/Track/File.
-
Page 22: General Operating Instructions
General Operating Instructions Turning the Device ON or OFF 1. Pivot the screen downward until a comfortable viewing angle is reached. 2. Pressing the POWER button on the lower-left corner of the front panel or the remote control will turn the device on or off. When in use, the controls will be lit. 3. -
Page 23: Dvd Basic
DVD Basic To get the most use out of each DVD, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The system’s code may be region 1. Other regional may not be played in this system. -
Page 24: Notes On Discs
Notes on Discs • To keep a disc clean, do not touch its surface. Handle the disc by its edge. • Keep your discs in their cases or disc magazines when not in use. Also, do not subject disc to heat/high temperature. -
Page 25: Using The Setup Menu
How to use the DVD OSD Menu This section describes how to set and adjust using the on-screen setup pages included in the OSD Menu. You can use the OSD menu screen to adjust all the settings on your screen. Follow the steps outlined below to select the function you desire, and refer to the pages indicated for more information. -
Page 26: General Setup Page
General Setup Page Setting the Language for On-Screen Display Press the SETUP button on the remote control, use the buttons to navigating to General Setup Page, then use the buttons to select OSD Lang sub-menu. OSD (On Screen Display) Language Menu The OSD Lang sub-menu allows the user to select the language for the on-screen display. -
Page 27: Preference Page
Preference Page Default Setting Press the SETUP button, and use the buttons on the remote control to navigate to the Default sub-menu under Preference Page. The default setup allows you to reset all options to factory defaults. Press the button and then press ENTER button to carry out the reset. Note: This function will not effect the parental setting. -
Page 28: Password Setup Page
Password Setup Page Setting for Password (Parental Control Password) Press the SETUP button and navigate to the Password submenu under the Password Setup Page. The menu appears and allows you to change the parental control password. Press the button and then press the ENTER button on the remote control to entering the sub-menu. -
Page 29: Playing Audio Cd
Playing Audio CD When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track and the amount of the time that track playing, the total amount of time on the disc and the current time running on the disc. Press the DISPLAY button on the remote control to display the DISPLAY banner. The options below show you what happens when you press the DISPLAY button. -
Page 30: Playing Mp3 Discs
Playing MP3 Discs MP3 is the format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while talking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. Press the DISPLAY button on the remote control to show DISPLAY Banner. -
Page 31: Skipping Songs
shift to left side of the screen and the song s in the folder appear on the right). 3. Press the UP or DOWN arrow button on the remote control to go through the song list and highlight the song you want. Press the ENTER button to begin the playback of the highlighted song. Skipping Songs Use the (NEXT) button on the remote control to move to the next song. -
Page 32: How To Use The Device Osd Menu
How to use the Device OSD Menu Picture Adjustment This section describes how to set and adjust using the on-screen in the device OSD Menu. You can use the device OSD menu screen to adjust advanced picture selections on your screen. •... -
Page 33: Technical Specification
Technical Specification Dimensions 204.90(W)x160.18(H)x57.62(D) mm Weight 1.26Kg Operation <16W (max.) Power Consumption <1.5W (max.) Standby LCD Backlight Resolution 480x3(RGB)x234 for 7-inch TFT LCD Panel Luminance 400cd/m (min.) Slim Type Slot-In Loader DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer, Supported Disc DVD-RW/+RW, CD, CD-R, CD-RW DVD-Video Navigation Ver1.0, VCD Ver1.0/2.0, SVCD, Supported Format... - Page 34 20Hz~20KHz ± 1dB Frequency Response ≥ 85dB Signal/Noise Ratio ≤ 0.02 Audio Distortion Acoustic Noise 40dB POWER/SOURCE, STOP/LEFT, UP, SETUP/ENTER, Control Button on the Front Panel PLAY/PAUSE/RIGHT, EJECT, and DOWN USB 1.1 Port, 1/8” AV Out Jack, 1/8” Headphone Jack, I/O Ports AV In RCA Jacks Output Level: 2V ±...
-
Page 35: Troubleshooting
Troubleshooting If it appears that the device is faulty, first consult this checklist. It may be that something has been overlooked. Symptom Remedy • Check if both plugs of the main cord are properly connected. Device does not power “ •... - Page 36 • Check that the signal source is connected. • Check that the setting may be in the wrong status. Match your source No picture selected correctly. • Contact the service department. • Check the disc for fingerprints and clean with a soft cloth, wiping from center to edge.
-
Page 37: Fcc Notice
FCC Notice This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 38: Weee Notice
WEEE Notice Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that device shall not be treated as household waste.
