Operating instructions
Control element
Multi Control MC04
1

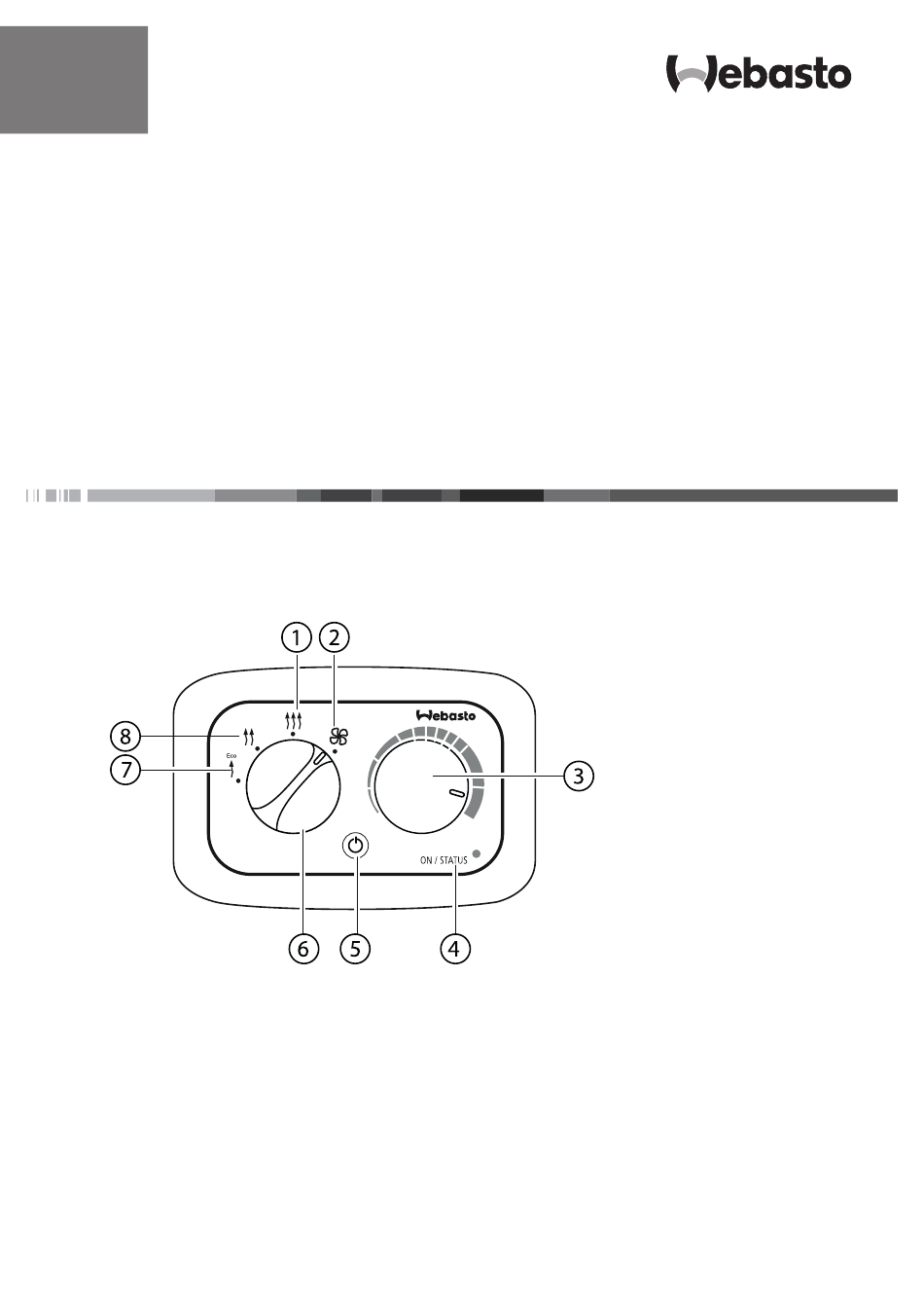

Overview of control element
1
Symbol - Quick heating function
2
Symbol - Ventilation
3
Rotary knob (temperature/fan)
4
Operating indicator/fault code
indicator/service indicator
5
On/Off button
6
Function selector switch
7
Symbol - Eco function
8
Symbol - Standard heating function
1
Advertisement
Related Manuals for Webasto Multi Control MC04
Summary of Contents for Webasto Multi Control MC04
- Page 1 Operating instructions Control element Multi Control MC04 Overview of control element Symbol - Quick heating function On/Off button Symbol - Ventilation Function selector switch Rotary knob (temperature/fan) Symbol - Eco function Operating indicator/fault code Symbol - Standard heating function indicator/service indicator...
-
Page 2: About This Document
About this document Purpose of the document These operating instructions are part of the product and provides the user with information on the safe operation of the unit. Using this document Before operating the heater, carefully read these operating instructions as well as the operating instructions for the heater. - Page 3 Co ntrol Name of controls Warranty and liability Webasto shall not assume liability for defects or damage that are the result that the installation and operating instructions as well as the instructions contained therein being disregarded. This liability exclusion particularly applies to: ■...
-
Page 4: Operation
Risk of fire from flammable materials or liquids in the hot air flow Keep the hot air flow free. Risk of injury from the defective unit Do not operate a defective heater. Contact a Webasto service workshop. Operation WARNING Risk of explosion in environments with combustible vapours, flammable dust and hazardous goods (e.g. - Page 5 Switch on the heater Press On/Off button. Operating indicator comes on. Switch off the heater Press On/Off button. Heater switches off. Operation indicator goes out after approx. 3 minutes. To set heating function Symbol Function Description Quick heating Quickly heats up the space to be heated: function The space is heated for a limited period of time at an increa- sed heating output of 110 %.
-
Page 6: Troubleshooting
Heater is on. Turn the function selector switch to the required heating function. To set heating temperature The heating temperature can be set infinitely from 5 °C to 35 °C. Heater is on. Heating function selected. To increase heating temperature Turn rotary knob clockwise. To decrease heating temperature Turn rotary knob anticlockwise. -
Page 7: Technical Data
Do you have any technical queries or a problem with your unit? Country-specific telephone numbers for our branches can be found on the Webasto service point flyer or under www.webasto.com. Technical data Operating voltage range: 12 V to 24 V Permissible ambient temperature: ■... - Page 8 In multilingual versions the German language is binding. The telephone number of each country can be found in the Webasto service center leaflet or the website of the respective Webasto represen- tative of your country. Webasto Thermo & Comfort SE...
