- Page 1 H A N N E L I S I O N Channel Vision Audio In IR Emitters AB-203 AB-908W A-Bus Single Zone Audio Kit w/Bluetooth Source & 1 pair In-Wall Speakers • Intelligent Entertainment • Infrastructure • Security Solutions...
-
Page 2: Product Introduction

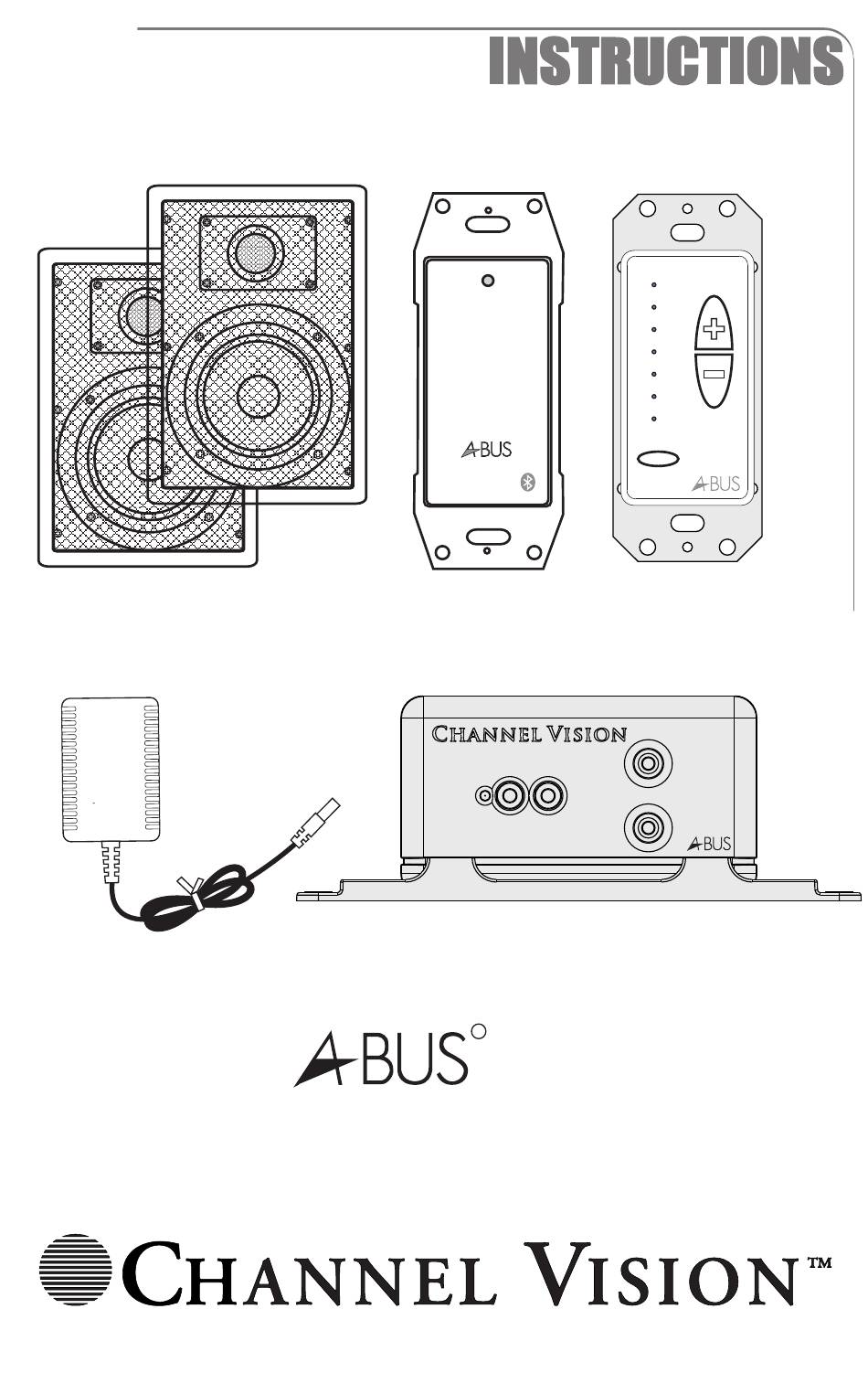

The AB-908W Kit includes the AB-203, AB-303, AB-134W, IC603 speakers, and an AB-T2410 power supply. -
Page 3: How It Works
It provides convenient volume control capabilities while its elegant decorator styling blends seamlessly with other wall switch devices. Features: • Compatible with Channel Vision single source CAT5 audio systems • Easy to use volume control Volume Controls... Increase or decrease volume level. - Page 4 Model AB-303 The AB-303 A-BUS Bluetooth local input module provides a local wireless input connection for the purpose of streaming audio from sources such as smart-phones, tablets and computers, etc with Bluetooth capability to individual A-BUS equipped rooms. When the AB-303 is paired, it will automatically switch the music source from the main audio source to the local Bluetooth source.
-
Page 5: System Diagram
Model AB-203 AB-203 Single Source & Main Module. One per system; Connects sources to the system; Mount the unit near audio components (CD player, receiver, etc.). This device is designed for your main audio source. Plug the AB-303 to the system/explansion input of this device, and plug the AB-135W on the system/A-Bus output of this device. -
Page 6: Specifications
Specifications AB-135, AB-203 & AB-303 Specifications: (typical at 77º) Operating Voltage: 24VDC 1 Amps (one keypad) Cable requirements: CAT5 or CAT6 Speaker impedance: 6-8 ohm (max two speakers) IR repeating: 30-60kHz IR sensor range: 40’@40kHz, 25’@56kHz Operating Temperature: -10ºC to +50ºC Line Level input (AB-203): Max 1VRMS IC603 Specifications: (typical at 77º) -
Page 7: Troubleshooting
Troubleshooting Problem: Hum in System Troubleshooting: Plug all parts of the system into the same outlet to see if the hum goes away. Try lifting the ground with a ground lifting plug. Possible Cause: The different components in the system are connected to different electrical grounds. -
Page 8: One Year Limited Warranty
One Year Limited Warranty Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase.
