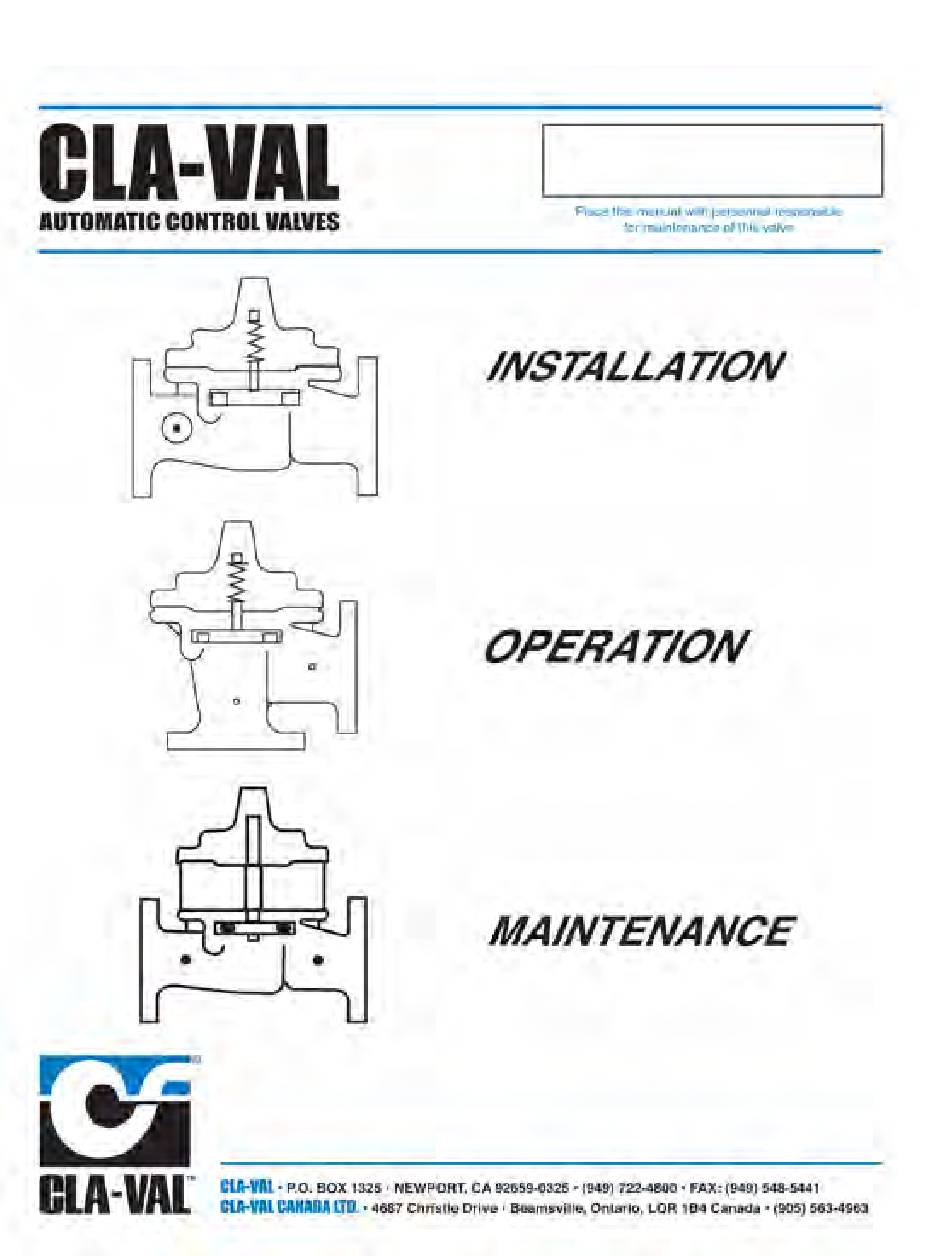

- Page 1 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 94-01/694-01...
- Page 2 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566...
- Page 3 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566...
- Page 4 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566...
- Page 5 Optional Check Feature • Fully Supported Frictionless Diaphragm The Cla-Val Model 94-01/694-01 Combination Pressure Reducing and Surge Control Valve automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate and/or varying inlet pressure. This valve is an accurate, pilot-operated control valve capable of holding downstream pressure to a pre- determined limit.
- Page 6 Nylon Reinforced Buna-N ® Rubber Stem, Nut & Spring Stainless Steel For material options not listed, consult factory. GGGG Cla-Val manufactures valves in more than 50 different alloys. Inlet DDDD Model 94-01 Dimensions AAAA (In Inches) Valve Size (Inches) A Threaded 7.25...
- Page 7 Diaphragm Nylon Reinforced Buna-N ® Rubber Stem, Nut & Spring Stainless Steel For material options not listed, consult factory. Cla-Val manufactures valves in more than 50 different alloys. Model 694-01 Dimensions (In Inches) Valve Size (Inches) A 150 ANSI 10.25 13.88...
- Page 8 Water: to 180°F Note: Available with remote sensing control. CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © E-94-01/694-01 (R-7/2011) Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
- Page 9 (usually atmosphere) the line pressure With the use of a Cla-Val. "modulating chamber the valve closes drip-tight. (5 psi Min.) at the valve inlet opens the control," which reacts to line pressure valve.
- Page 10 When flow is “up-and-over the seat,” it is in “normal” flow and the valve will fail in the open position. When flow is “over- 2. Cla-Val Model X101 Valve Position Indicator. This pro- the seat-and down,” it is in “reverse” flow and the valve will fail in the closed position.
- Page 11 (See “Maintenance” the valve should be fully open. Section for procedure.) 6. If the valve has a Cla-Val X101 Position Indicator, observe the Tight Sealing Check (#3) indicator to see that the valve opens wide. Mark the point of max- imum opening.
- Page 12 Thread Size (UNF Internal) 1 1/4" —2 1/2" Preventative Maintenance 10—32 3"—4" 1/4—28 The Cla-Val Co. Model 100-01 Hytrol Valve requires no lubrication or 6"—14" 3/8—24 packing and a minimum of maintenance. However, a periodic inspec- 16" 1/2—20 tion schedule should be established to determine how the operating 3/4-16 conditions of the system are affecting the valve.
- Page 13 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 Inspection of Parts Lime Deposits After the valve has been disassembled, each part should be One of the easiest ways to remove lime deposits from the valve examined carefully for signs of wear, corrosion, or any other stem or other metal parts is to dip them in a 5-percent muriatic abnormal condition.
- Page 14 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 INLET OUTLET TOP VIEW GLOBE PATTERN PARTS LIST Item Description Pipe Plug Drive Screws (for nameplate) Hex Nut (8” and larger) Stud (8” and larger) Cover Bearing Cover Stem Nut Diaphragm Washer Diaphragm Spacer Washers Disc Guide...
- Page 15 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566...
- Page 16 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566...
- Page 17 Globe Pattern Valves parts are going to be for a smaller size main valve. Cla-Val iden- Seat Size tifies main valve parts with the flange size of the standard 100...
- Page 18 20" — 24" COVER DETAIL 3" — 6" COVER DETAIL CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
- Page 19 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 DIST.CODE 007A X58C SHEET 1 OF 2 F:WORD/BUY/48834.TUB.DOC RESTRICTION ASSEMBLIES DWG. 48834 REV.AR TUBE CONNECTOR RESTRICTION PLUG SIZE MATERIAL X58C ORIFICE MATERIAL STOCK #. DIA. TUBE *37814B .031 (1/32) 1 / 4 1 / 8-27 NPT *80500C .062 (1/16)
- Page 20 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 DIST.CODE 007A X58C SHEET 2 OF 2 F:WORD/BUY/48834.TUB.DOC RESTRICTION ASSEMBLIES DWG. 48834 REV.AR TUBE CONNECTOR RESTRICTION PLUG SIZE MATERIAL X58C ORIFICE MATERIAL STOCK #. DIA. TUBE **12900H .125 (1/8) 1 / 2 1 / 2 -14 NPT BRASS **48834-02C...
- Page 21 Minimum Flow GPM 15-30 50-200 300-650 CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. N-CRD (R-3/2011)
- Page 22 Buna *SUGGESTED REPAIR PARTS CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL-CRD (R-8/2011)
- Page 23 CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. N-CRL (R-3/2011)
- Page 24 9170007A 9170007A 9170007A 9170007A CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL-CRL (R-8/2011)
- Page 25 ADDED CRL-13, CRL-5A, CRA, CRA-10A, CHANGED SPRING RANGES TO MATCH CURRENT CONTROLS. *This drawing is the property of CLA-VAL and same and copies made thereof, if any, shall be returned to it upon demand. Delivery and disclosure hereof are made solely upon condition that the same shall not be used, copied ore reproduced, nor shall the subject here of be disclosed in any manner to anyone for any purpose, except as herein authorized, without prior approval of CLA-VAL.
- Page 26 F), and the size of the external connection (refer to column B or G). CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
- Page 27 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
- Page 28 Cla-Val Main Valve. CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
- Page 29 BAR STOCK CONFIGURATION O-Ring Housing CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL-CV (R-3/2011)
- Page 30 0.32 NSF 61 Approved CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL-CDC-1 (R-6/2011)
- Page 31 3/8 NPT 2.06 CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com © Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice. PL- X43 (R-3/2011)
- Page 32 INLET SIZE & inquiries concerning valve operation, it is important to CAT NO. EINTRITT STOCK properly identify Cla-Val products already in service CODE ENTREE by including all nameplate data with your inquiry. MFD. BY CLA-VAL ENTRADA Pertinent product data includes valve function, size, NEWPORT BEACH, CALIF, U.S.A.
- Page 33 This product. Cla-Val shall not be liable for any damages or charges for warranty is expressly conditioned on the purchaser’s providing written labor or expense in making repairs or adjustments to the product.
- Page 34 Distributed By: M&M Control Service, Inc. www.mmcontrol.com/claval-index.php 800-876-0036 847-356-0566 INSTALLATION / OPERATION / MAINTENANCE REPAIR KITS MODEL Complete Replacement Diaphragm Assemblies for 100-01 and 100-20 Hytrol Main Valves For: Hytrol Main Valves with Ductile Iron, Bronze Trim Materials—125/150 Pressure Class Only. FACTORY ASSEMBLED Includes: Stem, Disc Guide, Disc, Disc Retainer, Spacer Washers, Diaphragm, Diaphragm Washer and Stem Nut.
- Page 35 When ordering, please give complete nameplate data of the valve and/or control being repaired. MINIMUM ORDER CHARGE APPLIES CLA-VAL P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com ©...
