WARNING
Do not store or use gasoline
or other flammable vapors
and liquids, solid
combustibles
in the vicinity of this
appliance. Keep a safe
distance away from the
heater as it is extremely hot
during operation.
Your safety is very important, please read this manual thoroughly before you install, operate and
maintain this heater. Retain this manual for future reference. If you have questions about assembly,
operation, servicing or repair of this heater, please call us directly, we will gladly provide assistance as
The Wood Pellet Patio Heater
by: Wood Pellet Products P.O. Box 761 / Mt. Angel, Oregon 97362

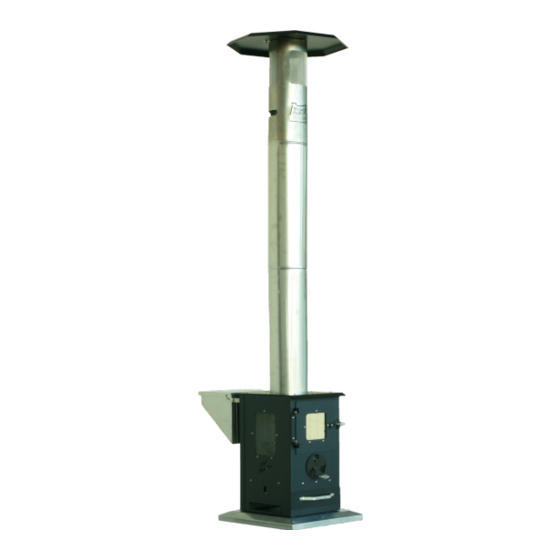

Big Timber PATIO HEATER
Model: WPPHT1.0LS Liquid Stainless
Warning: For Outdoor Use Only!
Owner's manual
!
IMPORTANT
required.
FOR OUTDOOR USE ONLY
This outdoor patio heater must
be used for outdoors only in a
well ventilated area and not be
used in a vehicle or any
enclosed building or area.
Advertisement
Table of Contents
Related Manuals for wood pellet Big Timber WPPHT1.0LS
Summary of Contents for wood pellet Big Timber WPPHT1.0LS
- Page 1 The Wood Pellet Patio Heater by: Wood Pellet Products P.O. Box 761 / Mt. Angel, Oregon 97362 Owner’s manual Big Timber PATIO HEATER Model: WPPHT1.0LS Liquid Stainless WARNING FOR OUTDOOR USE ONLY Do not store or use gasoline or other flammable vapors...
-
Page 2: Table Of Contents
Table of Contents Important Warnings……………………………………………………… …………2 Introduction………………………………………………………………………….3 Specification………………………………………………………………………...3 Important Safety Precautions…………………………………………….…… .3 Assembly…………………………………………………………………………..4 Unpacking…………………………………………………………..………………4 Installation………………………………………..…………………………….…...4 Operation……………………………………..………………………...……….…5 Storage…………………………………………..……………………….….……...5 Maintenance………………………………………………...…………………….…5 Paint Curing ……………………………………………….………………….….…6 Service and Warranty Information………………………………………….…...6 Warranty Terms……………………………………………………...……………6 IMPORTANT WARNING + Warning: For your safety Sharp contents, assemble with care. Wear gloves when assembling stove pipe. + Warning: For your safety Fuels used in gas, wood or oil-fired appliances and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth... -
Page 3: Introduction
Introduction Thank you for choosing the Wood Pellet Patio Heater. Please take the time to read these instructions and follow each step carefully for safe operation. Retain this manual for future reference. If you have any question regarding these instructions or operation of this heater, please contact us directly for assistance. -
Page 4: Assembly
This outdoor patio heater must be used for outdoors only in a well ventilated area and not be used in a vehicle or any enclosed building or space. Always place the heater on a level stable surface. Do not move or touch the heater while it is hot or burning. Do not alter or modify the heater in any manner Always keep at least a 36 ‘’... - Page 5 Carefully remove the all parts from the box. The paint on the heater is not fully cured until after you fire the unit on its initial firing, so use care when handling painted parts. Find and identify the following parts: Also included in the box is a hardware bag that contains: ¼”...
- Page 7 For use above 3,ooo feet in elevation be sure firebox bottom is setting at the lowest position on slots and under 3,000 ft in the highest position on slots. Deluxe Fire Pot- Insert (XP) Firepot Bottom slides in from rear. Insert Firepot , Enter at slight angle push until flush. Attach Large spring handle to pull rod.
-
Page 8: Installation
Step 12 Attaching Hopper Handle. Using two ¼’’ x ¾’’ bolts Align handles with holes on sides of hopper and secure with two ¼’’ lock washers and ¼’’ nuts. Step 13 Attach Stove Base- Attach (XZ)Stove base using four ¼-20 x 1/2’’ bolts and lockwashers attach by inserting bolt into top holes on based and into pemmed holes on bottom of stove. -
Page 9: Storage
4.3 This unit is manufactured as an “Outdoor Unit” from steel. If you leave it in the weather it will accumulate rust. This is normal and can be treated by using touch up paint in spray cans available from Wood Pellet Products. 5. Maintenance 5.1 To obtain the best performance from your heater make sure you perform the following... -
Page 10: Warranty Terms
8.7 This warranty does not cover commercial or rental use. 8.8 Rust and oxidation is a normally occurring process for any metal exposed to the elements and is expressly not covered under out warranty. ------------------------------------------------------------------------------------------------------------------------------------- Patent Pending: Wood Pellet Products.com Copyright 2016, All Rights Reserved www.woodpelletproducts.com...
