The Wood Pellet Patio Heater
by: Wood Pellet Products P.O. Box 761 / Mt. Angel, Oregon 97362
Owner's manual

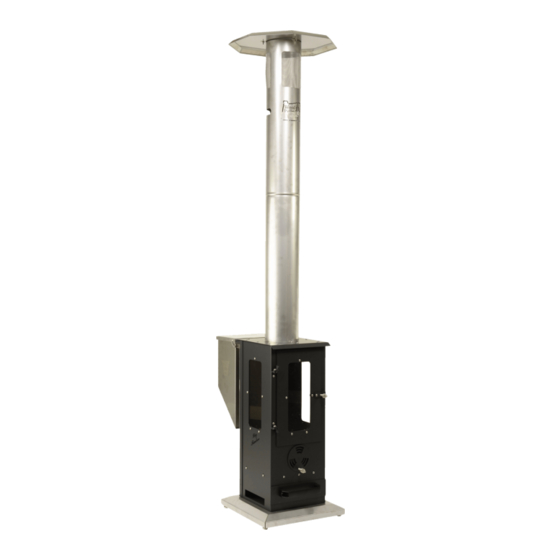

Big Timber PATIO HEATER
Model: WPPHT1.1LS Liquid Stainless
WARNING
FOR OUTDOOR USE ONLY
Do not store or use
gasoline or other
This outdoor patio heater
flammable vapors and
must be used for outdoors
liquids, solid combustibles
only in a well ventilated area
in the vicinity of this
and not be used in a vehicle
appliance. Keep a safe
or any enclosed building or
distance away from the
area.
heater as it is extremely
hot during operation.
IMPORTANT
Your safety is very important, please read this manual thoroughly before you install, operate and
maintain this heater. Retain this manual for future reference. If you have questions about assembly,
operation, servicing or repair of this heater, please call us directly, we will gladly provide assistance
as required.
Warning: For Outdoor Use Only!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for wood pellet Big Timber WPPHT1.1LS
Summary of Contents for wood pellet Big Timber WPPHT1.1LS
- Page 1 The Wood Pellet Patio Heater by: Wood Pellet Products P.O. Box 761 / Mt. Angel, Oregon 97362 Owner’s manual Big Timber PATIO HEATER Model: WPPHT1.1LS Liquid Stainless WARNING FOR OUTDOOR USE ONLY Do not store or use gasoline or other...
-
Page 2: Table Of Contents
Table of Contents Important Warnings……………………………………………………… …………2 Introduction………………………………………………………………………….3 Specification………………………………………………………………………...3 Important Safety Precautions…………………………………………….…… .3 Assembly…………………………………………………………………………..4 Unpacking…………………………………………………………..………………4 Installation………………………………………..…………………………….…...4 Operation……………………………………..………………………...……….…5 Storage…………………………………………..……………………….….……...5 Maintenance………………………………………………...…………………….…5 Paint Curing ……………………………………………….………………….….…6 Service and Warranty Information………………………………………….…...6 Warranty Terms……………………………………………………...……………6 IMPORTANT WARNING + Warning: For your safety Sharp contents, assemble with care. Wear gloves when assembling stove pipe. + Warning: For your safety Fuels used in gas, wood or oil-fired appliances and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth... -
Page 3: Specification
Thank you for choosing the Wood Pellet Patio Heater. Please take the time to read these instructions and follow each step carefully for safe operation. Retain this manual for future reference. If you have any question regarding these instructions or operation of this heater, please contact us directly for assistance. -
Page 4: Assembly
Do not alter or modify the heater in any manner Always keep at least a 36 ‘’ clearance from the stove to any combustible material. Do not use the heater if the wind velocity is greater than 10 miles per hour. Do not spray aerosols near the heater while in use. - Page 5 Find and identify the following parts:...
- Page 6 Also included in the box is a hardware bag that contains: ¼” x ½’’bolts (for (M) Door to (L) Door mounting bracket) ¼” nuts ( for (V) screw in feet, for securing (Q) Ash pan handles and hopper handles (not pictured) ¼”...
- Page 7 Step 4 Installing the Stove Top Collar onto the Stove Top. Slip (A) Stove Top Collar up from underside of (B) Stove Top so flanges match holes in Stove Top. Secure with four 10/32” bolts and nuts. Step 5 Installing the Stove Top. Place (B) Stove Top on top of (K) Firebox with the beveled edge facing down on the front of the heater.
-
Page 8: Installation
the ground when in place. If not pull up on the key until its level. Insert all the way until the keys edge makes contact with the hopper back. 2. Installation This heater is intended to be used outdoors only! It should never be used in an enclosed area or a confined space. -
Page 9: Storage
4.3 This unit is manufactured as an “Outdoor Unit” from steel. If you leave it in the weather it will accumulate rust. This is normal and can be treated by using touch up paint in spray cans available from Wood Pellet Products. 5. Maintenance 5.1 To obtain the best performance from your heater make sure you perform the following... - Page 10 8.7 This warranty does not cover commercial or rental use. 8.8 Rust and oxidation is a normally occurring process for any metal exposed to the elements and is expressly not covered under out warranty. ------------------------------------------------------------------------------------------------------------------------------------- Patent Pending: Wood Pellet Products.com Copyright 2016, All Rights Reserved www.woodpelletproducts.com...
