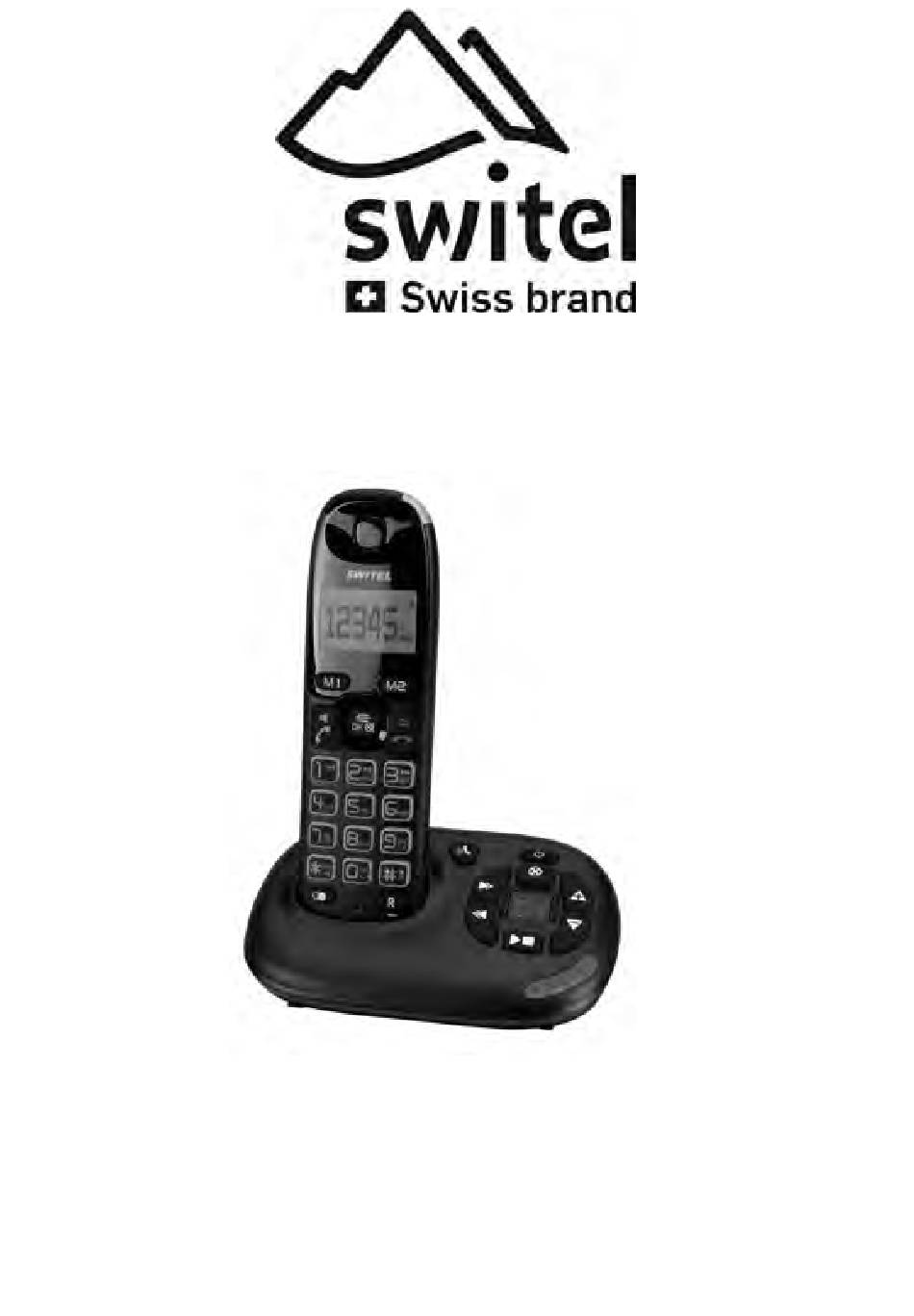

  • Page 1 Low−radiation cordless DECT/GAP telephone with answering machine Vita DCT 5007x Operating Instructions...

  • Page 2: Table Of Contents

    Contents Safety Information ....Starting Up ..... Operating Elements .

  • Page 3: Safety Information

    Safety Information 1 Safety Information Please read this operating instruction manual thoroughly. Intended use The telephone set, comprised of handset(s) and base station, is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted.
  • Page 4 Safety Information Rechargeable batteries Attention: Never throw batteries into a fire. Only use batteries of the same type. Pay attention to correct polarity. Incorrect polarity of the battery represents a risk of explo- sion during charging. Attention: Only use the rechargeable batteries prescribed. Never use standard batte- ries.

  • Page 5: Starting Up

    Starting Up 2 Starting Up Safety information Attention: It is essential to read the Safety Information in Chapter 1 before starting Checking the package contents The package contains: DCT 5007X−Model Content DCT 50071 DCT 50072 Base station with power adapter plug Charging station with power adapter plug −...
  • Page 6 Starting Up Inserting the batteries The battery compartment is located on the rear side of the handset. Open the battery compartment and insert the two re- chargeable batteries of the type AAA NiMH, 1.2 V 500 mAh. Pay attention to the correct polarity. Close the battery compartment. Charging the batteries Before the handset is used for the first time, in- sert it in the base/charging station for at least...

  • Page 7: Operating Elements

    - / Back-button...
  • Page 8 Operating Elements Icons and texts in the handset display Icon Description Displays the current battery charge capacity. ! " Off: The batteries must be charged. Run−through segments: The batteries are being charged; . Page 6. # $ % Connection to the base station. The more bars displayed the better the connection (max.
  • Page 9 1 Charging contacts 2 Paging-button 3 Call LED (Visual call alert) 4 Answering machine on / off 5 Volume up / down 6 Delete message 7 Next / Previous message 8 Display 9 Play / Stop message...

  • Page 10: Preliminary Information

    Preliminary Information 4 Preliminary Information This chapter provides basic information on using the operating instruction manual. Description of operating sequences in the manual Display Description Displays the contour of keys Press the key depicted briefly Press any button briefly 2 sec. t Press the button depicted for 2 seconds ë...
  • Page 11 Preliminary Information ë Use the digit keys to enter numbers or letters Confirm the input Return to previous menu level Cancel all programming and saving processes and return the handset to Standby mode Many entries which are concluded by pressing the M button are confirmed by an accompanying acoustic signal.
  • Page 12 Menu Structure 5 Menu Structure Intercom Handset 01 − 06 (only when the corresponding number of handsets is registered) Phonebook ë Enter name ë Number ë Number VIP melody / ... / Edit ë Enter name ë Number ë Number VIP melody / ...

  • Page 13: Menu Structure

    Menu Structure Clock/Alarm Set alarm Once ë Enter time Daily ë Enter time Date format DD/MM MM/DD Time format 24−hour 12−hour ë Set time...
  • Page 14 Menu Structure HS setting HS sound Ring volume / ... / Ext. ring / ... / Int. ring / ... / Key tone Tone Ring tone Low batt Out−of−range Equalizer Natural Bass Treble LCD contrast / ... / ë Handset Name Auto Answer Baby call ë...
  • Page 15 Menu Structure Base setting Clear VMWI Register Base PIN? Base PIN? Base PIN? Base PIN? Select base Base Base Base Base Auto Advance Dial mode Tone Pulse Recall time Short Medium Long ë Prefix 01 ' / ... / Call barring ë...

  • Page 16: Operation

    Operation 6 Operation Switching the telephone on and off No calls can be received when the telephone is switched off. No battery power is used when the telephone is switched off. No emergency calls can be made when the telephone is switched off. The telephone must be switched on beforehand, which can take a little time.
  • Page 17 Operation Redialling The handset stores the last 5 phone numbers dialled together with the date and time of the call. If you want to dial a number again, e.g. because the connection was engaged or the call was not taken, use the redialling function: c, i / j Open the redialling list and select the entry required Dial the number...
  • Page 18 Operation Taking external calls when an internal call is in progress When an external call is received while you are involved in an internal call, a message appears in the display. Take the external call With regard to the handset which did not take the external call, press the b button to end the in- ternal call.
  • Page 19 Operation 3 sec. 0 Intercom While the external call is in progress i / j, m Dial the internal call number of the handset required HS1: 2 sec. 0, Conference Start the conference call HS1 / HS2: b End the conference Displaying the duration of a call A few seconds after a call has begun, the current duration of the call appears in the display in min- utes and seconds.
  • Page 20 Operation Muting function You can switch the microphone in the handset off during a call so that the caller cannot hear you, e.g. if you need to consult someone else nearby, and then switch it on again. 2 sec. m During a call: Switch the microphone off (muting) 2 sec.
  • Page 21 Operation Mem Full When the memory capacity is used up, the message appears when an attempt is made to store another number. To create space, an existing entry must first be deleted. If a name already exists under which you want to store a new entry, the message Double name also appears in the display during the process.
  • Page 22 Operation Checking the phone book capacity You can display how many of the 50 memory locations are already assigned. Open the phone book Open the menu i / j, Usage Select the submenu and confirm it Programming one−touch dialling buttons You have the possibility of assigning two numbers already stored in the phone book to the buttons q and r respectively, so that they are dialled immediately on pressing the buttons (one−touch dialling).
  • Page 23 Operation , d or b Confirm? Cancel the deleting process Dialling phone numbers from the redialling list . Page 120 Call list All incoming calls received in your absence are recorded in a call list. The call list can contain up to 40 phone numbers.
  • Page 24 Operation , d or b Confirm? Cancel the deleting process Calling back calls received . Page 120 Acoustic and visual settings You can define various settings in order to adapt the telephone to your specific needs: Setting the ringing tone It is recommended to set different ringing tones to distinguish between internal and external calls.
  • Page 25 Operation Other settings Automatic answering If this function is activated, an incoming call is taken when the handset is removed from the base/ charging station. The automatic answering function is activated and deactivated using the menu. Activating automatic answering; . Men, Page 117 Key lock If this setting is activated, the key lock function is automatically enabled when no button has been pressed for a period of 90 seconds.
  • Page 26 Operation Special functions Alarm clock The Alarm clock" function can be used so that you are woken or alerted by the handset at a spe- cific time. When the alarm clock function is activated, the icon appears in the display. The se- Alarm lected tone is played for 1 minute at the set time.

  • Page 27: Extending The Telephone System

    The internationally approved GAP standard regulates the compatibility of handsets and tele- phones (base stations) from different manufacturers. As a result, it is possible to integrate SWITEL devices and devices from other manufacturers together in one telephone system. It is possible, however, that some functions are not available.

  • Page 28: Pbx / Supplementary Services

    PBX / Supplementary Services 8 PBX / Supplementary Services R−button and supplementary services Your telephone supports supplementary services provided by your telephone network provider, such as brokering, call waiting and conference facilities. Press the d button to use these supple- mentary services.
  • Page 29 PBX / Supplementary Services Caller number display (CLIP The caller number display (CLIP) is a supplementary service offered by your telephone network provider. Contact your network provider for further information. If this function is available with your telephone line, the number of the caller appears in the display when the phone rings.

  • Page 30: Technical Properties

    Technical Properties 9 Technical Properties Feature Value Standard DECT −GAP Power supply (base station) Input: 100−240 V, 50−60 Hz Output: 6 V, 500 mA Range Outdoors: Approx. 300 m Indoors: Approx. 50 m Frequency band 1880 - 900 MHz Max. transmission power 24 dBm Standby time Up to 110 h...

  • Page 31: In Case Of Problems

    In Case of Problems 10 In Case of Problems Problems Solutions No telephone calls possible − The telephone or base station is not connected properly or is defective. Only use the telephone connection cable supplied. − The power adapter plug is not plugged in or there is a complete power failure.

  • Page 32: Maintenance / Guarantee

    Apart from occasionally cleaning the housing, no other upkeep is necessary. Guarantee SWITEL equipment is produced and tested according to the latest production methods. The imple- mentation of carefully chosen materials and highly developed technologies ensure trouble−free functioning and a long service life. The terms of guarantee do not apply where the cause of equip- ment malfunction is the fault of the telephone network operator or any interposed private branch extension system.

  • Page 33: Index

    Index 12 Index Access code, 28 Deactivating the microphone, 20 Acoustic and visual settings, 24 Declaration of Conformity, 44 DECT, 30 Acoustic warning signal, battery capacity, 24 Acoustic warning signal, range, 24 Deleting all entries, 21 Adjusting the ringing volume, 19 Deleting all phone numbers, 23 Alarm clock, 26 Deleting an entry, 21...
  • Page 34 Index No. of call list entries, 30 GAP, 30 No. of phone book entries, 30 Guarantee, 32 No. of redialling list entries, 30 Notation, 10 Handset, 7 Handset name, 24 One−touch dialling, 17 Handsfree, 19 Operating elements, 7 Hearing aid compatibility, 4 Operation, 16 Holding a call, 18 Icons, 8...
  • Page 35 Index Safety information, 3 Saving, 11 Saving a number in the redialling list in the phone book, 22 Searching for the handset, 25 Service hotline, 30 Setting the alarm clock, 26 Setting the date, 6 Setting the display language, 109 Setting the receiver volume, 19 Setting the ringing tone, 24 Setting the time, 6...
  • Page 36 Important note The telephone base station is equipped with an energy−efficient switching power sup- ply (input 100~240 V , output 6 V , 500 mA). The zero load is approx. 0.15 W. The average efficiency is 71%. The power consumption of the base station max. 0,78 W. The charging unit(s) supplied with the telephone set is/are equipped with an energy−...

  • Page 37: Answering Machine

    Answering Machine Menu Structure Play Message No message Message 01, 02, ... Button Clear, Stop, Next, Repeat Previous, Pause / Resume Ans. machine Answer mode Ans & Rec Answer only Del all old Record memo OGM 1 OGM 2 Play OGM Delete Record OGM Call screen...
  • Page 38 Answering machine The answering machine offers a recording time of approx. 15 minutes (incl. OGMs). There are two modes possible: - OGM 1 = Answer and record - OGM 2 = Answer only. In delivery state two standard OGMs are recorded, which can be replaced with your own announcements (max.
  • Page 39 Operation on the base station Answering machine on/off Press to switch the answering machine on and off. When switching the answering machine on the current OGM is played back. To change the operation mode use the handset menu. Playback messages Press .
  • Page 40 Taking a call from the answering machine Once the answering machine has taken a call you can listen to the caller on the base station (if “Call screen“ is activated). If you want to intercept the call and speak to the caller, press .
  • Page 41 Select Record memo and press OK. Speak your memo to the handset’s microphone after the beep. To stop recording press OK. Call screening Press the menu key. Select Ans machine and press OK. Select Call screen and press OK. Select On or Off and press OK. If call screening is activated you can listen to the caller via the base stati- on’s loudspeaker.
  • Page 42 Setting the language for standard OGM Press the menu key. Select Ans machine and press OK. Select Voice lang and press OK. Select the language for the standard OGM and press OK. Setting the remote PIN Press the menu key. Select Ans machine and press OK.
  • Page 43 Remote operation The answering machine can be operated remotely using a tone-dialling (DTMF) telephone. 1. Dial your own telephone number. 2. - If the answering machine is set to on it will answer after the preset delay. During the announcement press the star key 2 times. You will hear a beep.
  • Page 44 This equipment complies with the European R&TTE directive. To view the complete Declaration of Conformity, please refer to the free download available at our web site: www.switel.com. Service Hotline In the event of technical problems, you can contact our hotline service, Tel. 0900 00 1675 within Switzerland (cost via Swisscom at time of going to print: CHF 2.60/min).
