HandyWave HandyPort-Serial User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HPS-110
HandyPort-Serial
Wireless Solutions in your Hand
User's Manual
Version 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HandyPort-Serial and is the answer not in the manual?

Questions and answers

Related Manuals for HandyWave HandyPort-Serial

Summary of Contents for HandyWave HandyPort-Serial

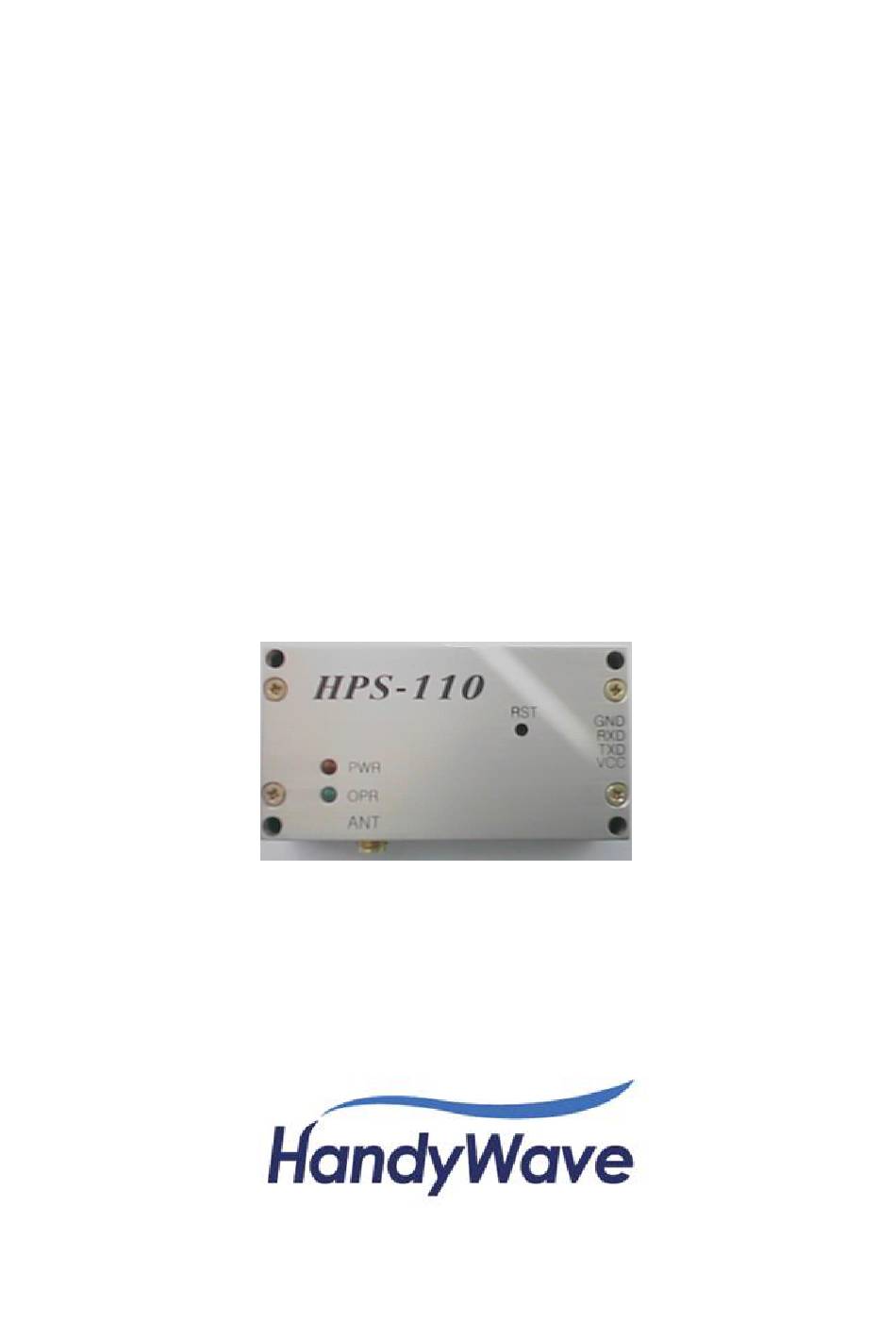

  • Page 1 HPS-110 HandyPort-Serial Wireless Solutions in your Hand User’s Manual Version 2.1...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION........................ 3 1.1........................3 EATURES 1.2........................3 ACKAGE SPECIFICATIONS ......................4 2.1........................4 ENERAL 2.2........................5 NTERFACE 2.2.1. Notation ........................5 2.2.2. RS-232 Signals ......................5 2.3......................6 ACTORY ETTINGS 2.4. LED ......................... 6 TATUS 2.5.

  • Page 3: Introduction

    Bluetooth products such as PC-cards, laptops, handheld computers, mobile phones and other HandyPort-Serial. The HandyPort-Serial is a suitable component in new products as well as in existing products.

  • Page 4: Specifications

    2. Specifications 2.1. General  Baud Rate Up to 115.2kbps (Recommend above 2.4kbps)  Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2kbps Coverage Up to 100 M Connection Point-to-Point Signal TxD, RxD, GND RS-232 Interface 2.5mm Wire to Board Connector Angle Type 4 Pin Male Frequency 2.400 ~ 2.4835GHz Tx.

  • Page 5: Interface

    2.2. Interface 2.2.1. Notation  PWR: Power LED  OPR: Link LED  ANT: Antenna Connector (SMA Female)  RST: Reset Button  GND: Signal Ground  RXD: RS-232 Received Data  TXD: RS-232 Transmitted Data  VCC: System Power 2.2.2.

  • Page 6: Factory Settings

    2.3. Factory Settings The following are the factory settings of COM port. You can change the factory settings of COM port with commands. In this case, you have to remember the changed factory settings.  Baud rate: 9600 bps  Data Bit: 8 bit ...

  • Page 7: Usage

    3. Usage You can change the configuration of HPS-110 using Hyper Terminal 3.1. Hardware Installation Step 1: Assemble a provided antenna to HPS-110 body. Step 2: Plug a HPS-110 into the COM port of device. Step 3: Power on. Step 4: Configure the HPS-110, if necessary. 3.2.

  • Page 8: Command Set

    3.4. Command Set The commands are as follows Item Syntax Description Remarks Connecting AAddr<CR> remote device local remote address address wireless BD_ADDR always need to connection. be difference. 2. Baud rate BBR[D]<CR> Change the baud rate. Baud Rate (BR) - 0: 1200, (option): Change 1: 2400, 2: 4800, 3: 9600,...
  • Page 9 Connection MMode<CR> Set a connection mode. 0: 1:1 Mode Mode: ‘0’ – ‘3’ mode 1: WAIT Mode Mode 0 & 2: Required a REGISTER remote address. CONNECT Mode Mode 2: Required a serial 3: WAIT Command Mode port. Friendly NName<CR> Set a friendly name up to name 11 characters.

This manual is also suitable for:

Hps-110
