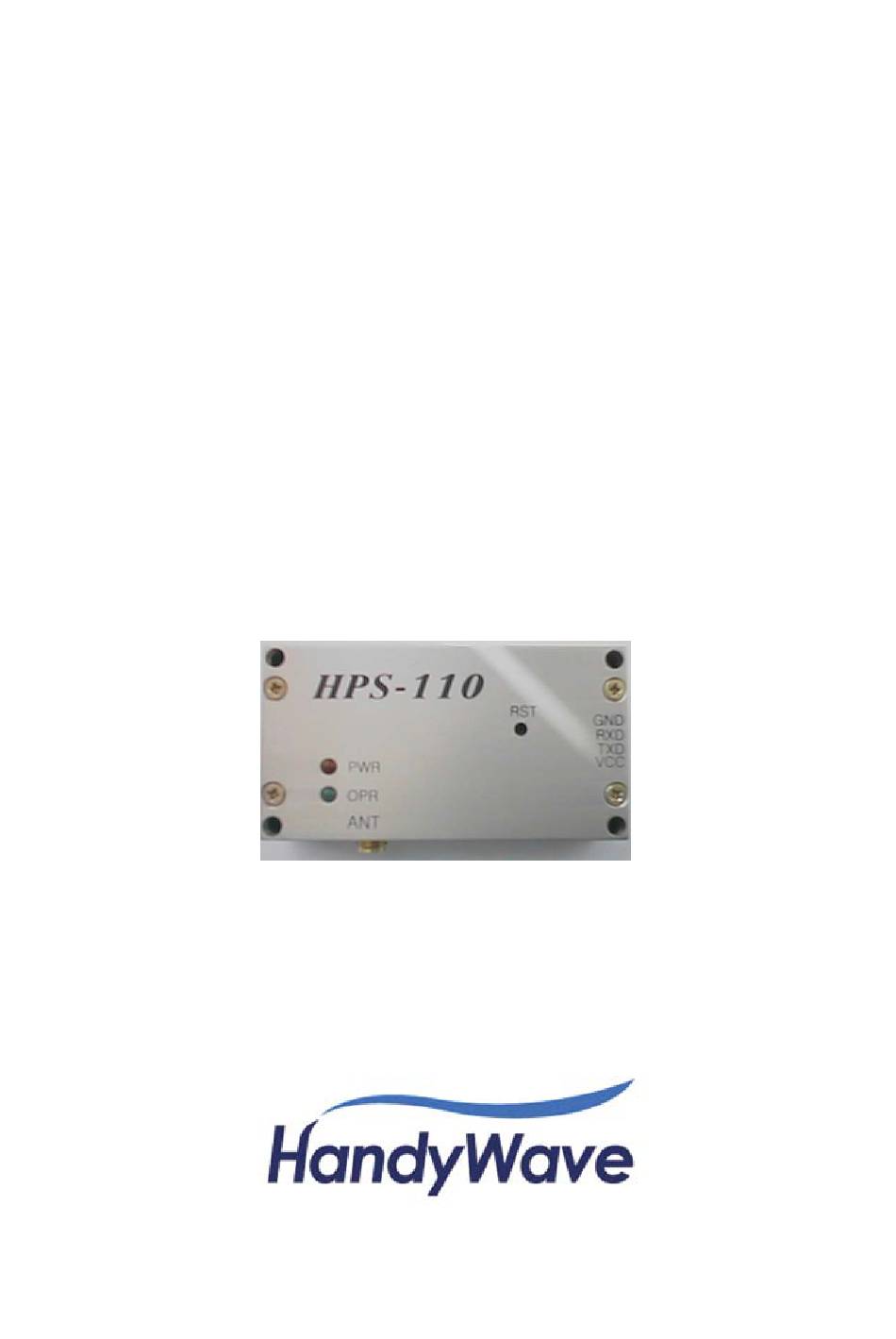

  • Page 1 HPS-110 HandyPort-Serial Wireless Solutions in your Hand User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ........................3 1.1.......................... 3 EATURES 1.2........................... 3 ACKAGE SPECIFICATIONS ......................... 4 2.1........................... 4 ENERAL 2.2......................... 5 NTERFACE 2.2.1. Notation ........................5 2.2.2. RS-232 Signals ......................5 2.3......................6 ACTORY ETTING 2.4........................

  • Page 3: Introduction

    1. Introduction Thank you for purchasing a HandyPort-Serial. The HandyPort-Serial can be used as a component in many types of systems allowing them to communicate wirelessly with other Bluetooth products such as PC-cards, laptops, handheld computers, mobile phones and other HandyPort-Serial.

  • Page 4: Specifications

    2. Specifications 2.1. General  Baud Rate Up to 115.2kbps (Recommend above 2.4kbps)  Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2kbps Coverage Up to 100 M Connection Point-to-Point Signal TxD, RxD, GND RS-232 Interface 2.5mm Wire to Board Connector Angle Type 4 Pin Male Frequency 2.400 ~ 2.4835GHz Tx.

  • Page 5: Interface

    2.2. Interface 2.2.1. Notation  PWR: Power LED  OPR: Link LED  ANT: Antenna Connector (SMA Female)  RST: Reset Button  GND: Signal Ground  RXD: RS-232 Received Data  TXD: RS-232 Transmitted Data  VCC: System Power 2.2.2.

  • Page 6: Factory Setting

    2.3. Factory Setting The following is the factory setting of COM port.  Baud rate: 9600 bps  Data Bit: 8 bit  Parity Bit: No parity  Stop Bit: 1 stop bit  Flow control: None 2.4. Display Status The following is status LED information.

  • Page 7: Usage

    3. Usage 3.1. Hardware Installation Step 1: Assemble a provided antenna to HPS-110 body. Step 2: Plug a HPS-110 into the COM port of device. Step 3: Power on. Step 4: Configure the HPS-110, if necessary. 3.2. Hyper Terminal Settings Baud Rate: 9600 bps / Data Bit: 8 / Parity Bit: None / Stop Bit: 1 / Flow Control: None / Emulation: VT100 3.3.

  • Page 8: Command Set

    3.4. Command Set 3.4.1. Command List for Local Device Item Syntax Description Remarks Connecting AAddr<Enter> Set a remote device address for a A local and remote BD_ADDR address wireless connection. always need to be difference. BBaud Rate 2. Baud rate Change the baud rate Baud Rate - 0: 1200, 1: 2400, 2: 4800, 3: 9600, 4: 19200, 5: 38400,...

  • Page 9: Command List For Remote Device

    3.4.2. Command List for Remote Device To change the configuration for a remote device via over-the-air, firstly you have to use a command “O” at the local device. The following are a procedure for changing configuration of remote device via over-the-air. ...
