Section 4: Configuration

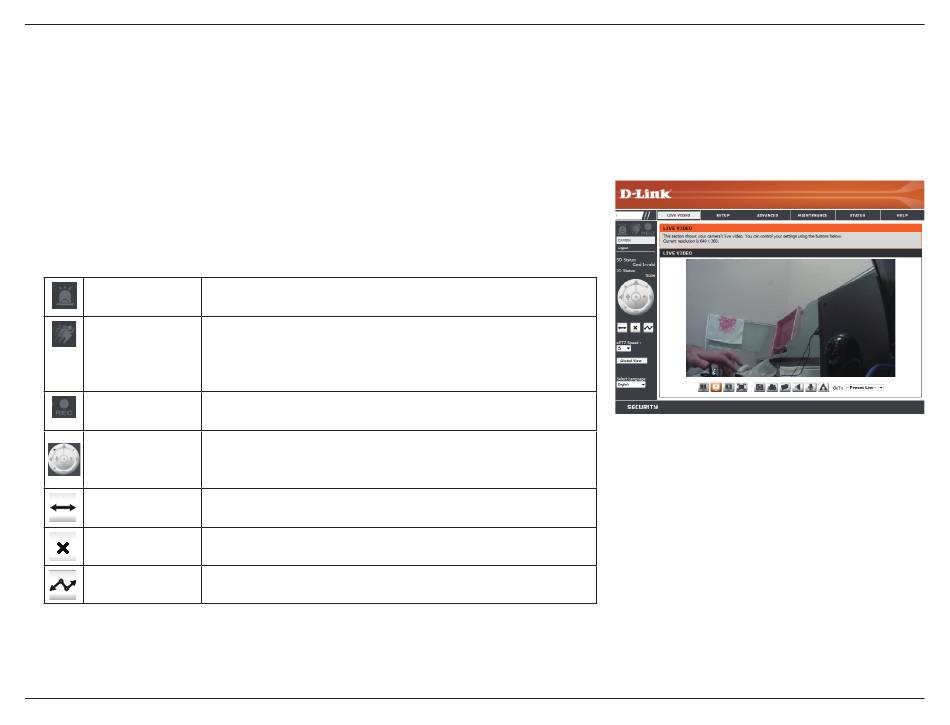

This section shows your camera's live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
SD Status: This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
IO Status: This option displays the status of your I/O device if a device has been
connected.
Digital Input
Indicator
Motion Trigger
Indicator
Recording
Indicator
Control Pad
Auto Pan
Stop
Preset Path
ePTZ Speed:
You may select a value between 0 and 64. 0 is the slowest and 64 is the
fastest.
D-Link DCS-2230L User Manual
This indicator will change color when a digital input signal is
detected.
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
When a recording is in progress, this indicator will change
color.
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predefined view area, if one
has been defined.
Starts the automatic panning function. The ROI will pan from
back and forth within the FOV.
Stops automatic panning.
Starts the camera's motion along the predefined path.

Live Video
