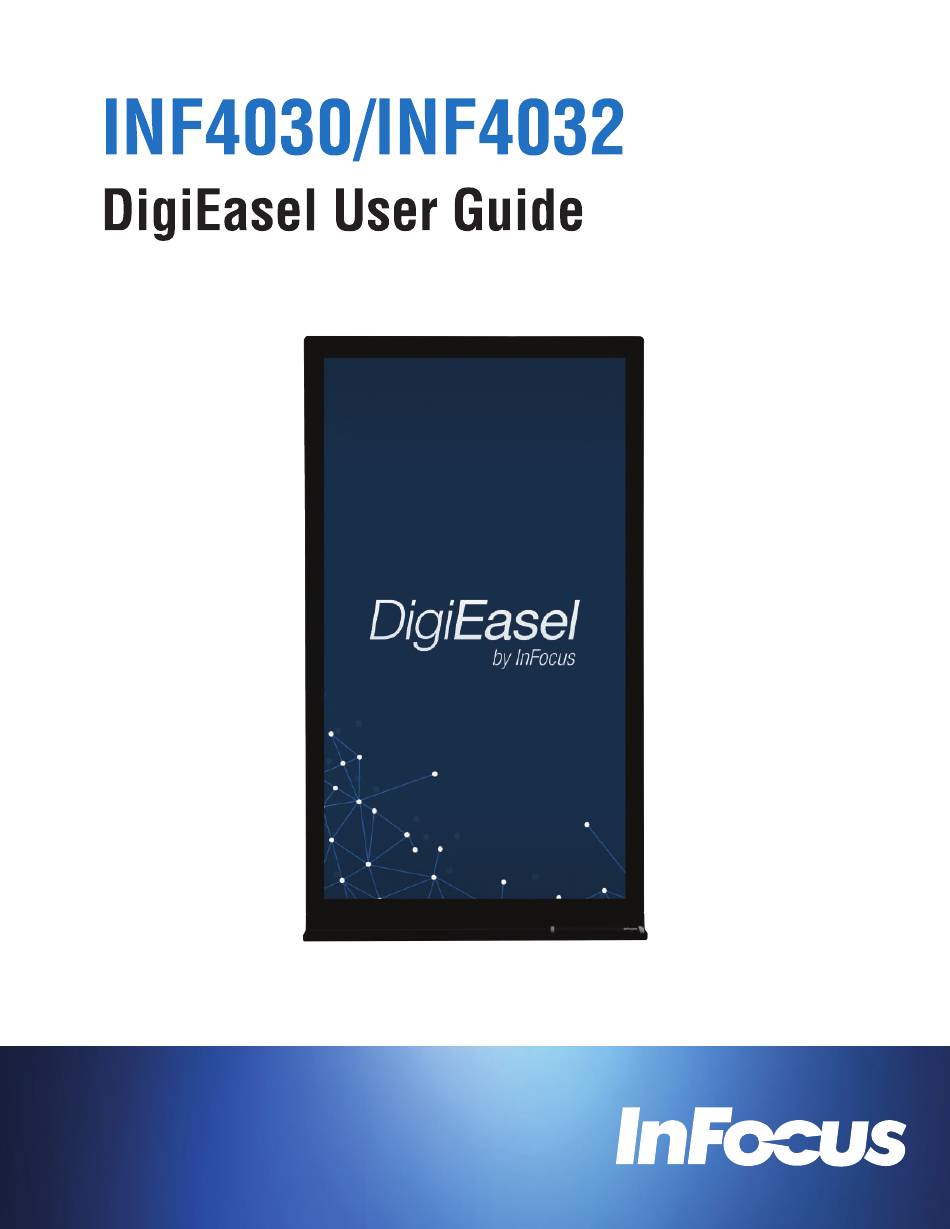

  • Page 1 009-1599-03...

  • Page 3: Table Of Contents

    Contents Declaration of Conformity ..................................3 Safety Considerations ..................................... 4 What’s Included...................................... 7 Setup ........................................8 Mounting ......................................8 Attach tray ....................................... 8 Attach stylus ....................................9 Orienting the monitor in Portrait or Landscape mode ........................9 Connect to other devices ................................10 Insert LightCast key (INF4032 only) ...............................
  • Page 4 Activate Signage mode .................................. 41 Exit Signage mode ..................................41 Update a Monitor without LightCast Key ............................. 42 OSD (On-Screen Display) Menu System ............................... 43 Picture menu ....................................44 Screen menu ....................................45 Audio menu ....................................46 PIP menu......................................47 Configuration 1 menu ..................................

  • Page 5: Declaration Of Conformity

    SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference.

  • Page 6: Safety Considerations

    This document applies to regulatory model: INF4030 Input ratings: 100-240V 50/60Hz, 1.2A InFocus reserves the right to alter product offerings and specifications at any time without notice. Safety Considerations Please read and follow all safety instructions provided below and on the monitor before connecting the monitor to a power source.
  • Page 7 Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own monitor can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...
  • Page 8 Page 6...

  • Page 9: What's Included

    Stylus Stylus shelf Documentation *Not included for all countries. For setup purposes, a keyboard and mouse are recommended. For additional accessory options, such as stands, see the InFocus website (www.infocus.com/store) or your local dealer. INF4030/INF4032 DigiEasel User Guide Page 7...

  • Page 10: Setup

    This product does not ship with mounting accessories, however it can be mounted with any industry standard VESA 200x200 pattern. This could be a stand, wall mount, or cart, etc. the monitor can be used in either portrait and landscape orientation. Please refer to InFocus.com for the latest options. •...

  • Page 11: Attach Stylus

    Orienting the monitor in Portrait or Landscape mode The monitor is automatically senses the position mode of the embedded computer. Simply follow the mounting guidelines above and orient the monitor in the desired horizontal or vertical position. INF4030/INF4032 DigiEasel User Guide Page 9...

  • Page 12: Connect To Other Devices

    Connect to other devices A range of digital and analog video inputs and audio source devices can be connected to the connection panels on the back and side of the monitor. Available jacks include: HDMI In (4), PC In (1), Composite Video (1), Component RCA (1), RS232 (1), Audio In 3.5mm (1), Audio In RCA (1-R/L), USB 2.0-A (4), USB B (1) and Audio Out RCA (1-R/L).
  • Page 13 Connect a 3.5mm audio cable to an external device (e.g., iPod player). AUDIO IN 2 Connect a RCA L/R audio cable to an external device (e.g., DVD player). AUDIO OUT Connect an RCA L/R audio cable to external stereo speakers. INF4030/INF4032 DigiEasel User Guide Page 11...

  • Page 14: Insert Lightcast Key (Inf4032 Only)

    If your monitor did not ship with a LightCast key and you would like to use the LightCast features, you can purchase a LightCast key (p/n INA-LCKEY1, INA-LCKEY2, or INA-LCKEY3 depending on your region) from InFocus (www.infocusstore.com) or your local dealer.

  • Page 15: Use The Keypad

    OSD item when the OSD menu is on. Right/Volume increase button: Incresases the audio volume when the OSD menu is on. Increases the value of the selected OSD item when the OSD menu is off. INF4030/INF4032 DigiEasel User Guide Page 13...

  • Page 16: First Time Use

    If your monitor did not ship with a LightCast key and you would like to use the LightCast features, you can purchase a LightCast key (p/n INA-LCKEY1, INA-LCKEY2, or INA-LCKEY3 depending on your region) from InFocus (www.infocusstore.com) or your local dealer.
  • Page 17 Enter the Device Name and WiFi Connection information, and tap the arrow. A confirmation page displays. (The LAN information populates when a LAN connection is detected.) Tap the arrow again and the Home page displays. INF4030/INF4032 DigiEasel User Guide Page 15...

  • Page 18: Lightcast Casting

    If your monitor did not ship with a LightCast key and you would like to use the LightCast features, you can purchase a LightCast key (p/n INA-LCKEY1, INA-LCKEY2, or INA-LCKEY3 depending on your region) from InFocus (www.infocusstore.com) or your local dealer.

  • Page 19: Airplay

    Select the device name listed in step 3 of the Connect with AirPlay window. Using an OS X device Select the Airplay icon from the menu bar on OS X device. Select the device name listed in step 2 of the Connect with AirPlay window. INF4030/INF4032 DigiEasel User Guide Page 17...

  • Page 20: Miracast

    Miracast MiraCast can make an adhoc network connector over Wifi, however you must have an Android or Windows device (Windows 8.1 or above) with embedded MiraCast in order to use the MiraCast feature on this monitor. In addition, your network must follow Miracast configuration guidelines as specified by the Wi-Fi Alliance (www.wi-fi.org).

  • Page 21: Whiteboard

    Draw on the whiteboard canvas with your finger or the stylus. TIP: Keep other objects, including writing utensils, other fingers, and knuckles away from the drawing surface to draw your image cleanly. Use Eraser, Select, Undo, and Redo to modify the drawing. See "Whiteboard Tools" on page 28 for more information. INF4030/INF4032 DigiEasel User Guide Page 19...

  • Page 22: Import An Image

    Import an image Supported image types include JPEG, PNG, BMP, GIF, and TIFF. Tap More. Tap Import. Choose Internal to import an image that has been saved to the monitor or External Storage to import an image that is located on an external device, such as a USB thumb drive.
  • Page 23 Navigate to the associated folder and tap the desired image. INF4030/INF4032 DigiEasel User Guide Page 21...
  • Page 24 Tap Done. While the object is highlighted, drag it to the desired location and re-size it as needed using the sizing handles. In addition, you can cut, copy, paste, and delete it using the features in the Select submenu. Tap Cancel when finished. Page 22...

  • Page 25: Modify Whiteboard Canvas Objects

    To cut the objects and place them on a different page of the whiteboard canvas: tap Cut. Then navigate to the desired page and tap More and Paste. While the objects are selected, drag them to the desired location. To delete the objects: tap Delete. The objects are deleted immediately. INF4030/INF4032 DigiEasel User Guide Page 23...

  • Page 26: Save The Whiteboard Canvas

    Save the whiteboard canvas Tap More. Tap Save. Type a file name in the Name text box. Select the file type: File Type Option Choose this file type if you want to... DigiEasel saves the whiteboard file for future editing. creates an image file.

  • Page 27: Save The Whiteboard Canvas To A Usb Thumb Drive

    Tap More. Tap New. Then select Save to save the existing canvas or select Don't save to delete the existing canvas and open a new one. Cancel returns the user to the current canvas. INF4030/INF4032 DigiEasel User Guide Page 25...

  • Page 28: Open A Whiteboard File

    Open a whiteboard file Tap More. Tap Open. If the whiteboard canvas contains objects, you will be prompted to save the existing canvas. Select Save to save the existing canvas or select Don't save to delete the existing canvas and open a new one. (Cancel returns the user to the current canvas.) By default, the Open Files window displays whiteboard files saved internally on the monitor.

  • Page 29: Open A Whiteboard File From A Usb Thumb Drive

    Note: The whiteboard feature supports up to 3 pages total. Tap Previous to add or go to the previous page. Note: The whiteboard feature supports up to 3 pages total. INF4030/INF4032 DigiEasel User Guide Page 27...

  • Page 30: Whiteboard Tools

    Whiteboard Tools Icon Tool Name Description Previous Tap to go to the previous page. Current tool Tap to use the current tool. Eraser Tap Eraser, and then tap and drag across the drawing object to erase the portion you touched. Color Wheel Tap to access the color submenu.
  • Page 31 Tap to import an image onto the whiteboard canvas. To remove an imported image, tap the red in the top right-hand corner of the image. Paste Tap to paste the last copied or cut object(s) on the whiteboard canvas. INF4030/INF4032 DigiEasel User Guide Page 29...
  • Page 32 Share Tap to send an email with an attachment of the whiteboard canvas as either a JPG or PDF file. Tap to save or open files from an external USB thumb drive. Setting Tap to access the Setting menu. Next Tap to go to the next page.

  • Page 33: Lightcast Browser

    If your monitor did not ship with a LightCast key and you would like to use the LightCast Browser features, you can purchase a Light- Cast key (p/n INA-LCKEY1, INA-LCKEY2, or INA-LCKEY3 depending on your region) from InFocus (www.infocusstore.com) or your local dealer.
  • Page 34 If your monitor did not ship with a LightCast key and you would like to use the LightCast features, you can purchase a LightCast key (p/n INA-LCKEY1, INA-LCKEY2, or INA-LCKEY3 depending on your region) from InFocus (www.infocusstore.com) or your local dealer.

  • Page 35: Connect Using A Wifi Network

    Tap On to use a WiFi connection. If the list of available WiFi networks does not automatically display, tap the Refresh button. Tap the desired WiFi network. Enter the WiFi password and tap OK. INF4030/INF4032 DigiEasel User Guide Page 33...

  • Page 36: Change The Monitor Name

    Change the monitor name From the Device section of the Settings menu, tap Name. The Name window displays. Type or edit the name, using the onscreen keypad or an attached keyboard. Tap OK. Page 34...

  • Page 37: Software Version

    Tap the Factory Reset check box to place a check mark in it. Tap the Reset button. Reboot the monitor From the Systems and Security section of the Settings menu, tap Reboot to reboot this monitor. The monitor reboots immediately. INF4030/INF4032 DigiEasel User Guide Page 35...

  • Page 38: Reset The Registration Parameters

    Reset the registration parameters From the Systems and Security section of the Settings menu, tap Reset to register the monitor with new information. Tap Yes to initi- ate the registration process. Page 36...

  • Page 39: Resize The Image

    Resize the image From the Systems and Security section of the Settings menu, tap Resize to digitally zoom the Display window smaller or larger, up to 100%. INF4030/INF4032 DigiEasel User Guide Page 37...

  • Page 40: Define The Default Email Address

    Define the default email address From the Accounts section of the Settings menu, tap to update the default email address. Tap OK when done. Page 38...

  • Page 41: Request Desktop Site

    Request desktop site To use a desktop formatted website, tap to select the Request Desktop site check box. Otherwise a mobile web site will be used. INF4030/INF4032 DigiEasel User Guide Page 39...

  • Page 42: Define The Default Browser Home Page

    Define the default browser home page From the Browser Preferences section of the Settings menu, tap to update the default browser home page. Tap OK when done. Page 40...

  • Page 43: Signage Mode

    This monitor can be used as a digital sign. Any HTML5 content that can be run in a browser can be securely imported and displayed on the monitor. Several HTML5 and JavaScript custom API/extensions are included with this monitor which allow for enhanced con- trol and customization of the sign. To learn more, review the Sign Manager Software Guide at www.infocus.com. Activate Signage mode Tap More.

  • Page 44: Update A Monitor Without Lightcast Key

    Update a Monitor without LightCast Key Tap More. Tap Setting. Tap Update System. Tap Update. The Update dialog box displays. Insert a USB thumb drive with the software update on it into an available USB slot or navigate to the network . Follow the prompts to update the software, or tap OK, if the software is already up-to-date.

  • Page 45: Osd (On-Screen Display) Menu System

    < > < > < > Adjust Enter Back Quit Adjust Enter Back Quit Adjust Enter Back Quit ADVANCED OPTION GAMMA SELECTION MODE1 OVER SCAN DDC/CI ADVANCED OPTION RESET < > Adjust Enter Back Quit INF4030/INF4032 DigiEasel User Guide Page 43...

  • Page 46: Picture Menu

    Picture menu PICTURE BRIGHTNESS CONTRAST SHARPNESS NATIVE COLOR TEMPERATURE COLOR CONTROL GREEN BLUE PICTURE MODE STANDARD PICTURE RESET < > Adjust Enter Back Quit Brightness: changes the intensity of the image. Range: 0-100. (Default 70.) Contrast: controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.

  • Page 47: Screen Menu

    Dimming: Adjusts brightness level. Options: 10, 30, 70 or 100. (Default 70.) Aspect Ratio: adjusts the ratio of the image width to image height. Options: 4:3 and Wide. (Default Wide.) Screen Reset: resets all Screen menu items to factory default settings. Options: Yes and No. INF4030/INF4032 DigiEasel User Guide Page 45...

  • Page 48: Audio Menu

    Audio menu AUDIO SPEAKER INTERNAL AUDIO SOURCE LIGHTCAST AUDIO RESET < > Adjust Enter Back Quit Speaker: controls whether both the internal and external speakers (sound bar, etc.) or just external speakers are used. Options in- clude: Internal (both internal and external speakers operate) and External (only external speakers operate). Default Internal. Audio Source: selects the audio input source.

  • Page 49: Pip Menu

      HDMI1       HDMI2       HDMI3      HDMI4      Lightcast      INF4030/INF4032 DigiEasel User Guide Page 47...

  • Page 50: Configuration 1 Menu

    Configuration 1 menu CONFIGURATION 1 LANGUAGE ENGLISH AUTO SOURCE CONFIGURATION RESET FACTORY RESET < > Adjust Enter Back Quit Language: switches the OSD menu language. Auto Source: When enabled, automatically searches for an active source. If no source is detected, the monitor will revert to the previously active source.

  • Page 51: Configuration 2 Menu

    Pressing the Power button again or touching the screen wakes the monitor up. Options: On (default) and Off. Monitor Information: This read-only submenu displays the model name, serial number, operation hours, and software version. INF4030/INF4032 DigiEasel User Guide Page 49...

  • Page 52: Advanced Option Menu

    Advanced Option menu ADVANCED OPTION GAMMA SELECTION MODE1 OVER SCAN DDC/CI ADVANCED OPTION RESET < > Adjust Enter Back Quit Gamma Selection: adjusts the gamma value of the image and optimizes image brightness and contrast. Options include: Mode 1, Mode 2, Mode 3. Over scan: removes noise around the edges of a video image.

  • Page 53: Troubleshooting

    If playing a video, verify the playback has not been paused and that the video’s audio has not been muted. • An HDMI® 1.3 (or higher) source and source device is required to hear audio via the HDMI cable. INF4030/INF4032 DigiEasel User Guide Page 51...
  • Page 54 • The monitor is in standby mode. Press the Power button on the keypad. Green • The monitor is powered on. For additional support, please contact: InFocus Corporation Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support Page 52...

  • Page 55: Limited Warranty

    If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new...
  • Page 56 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced. In addition, LCD burn-in as a result of excessive display of static images on the product is not covered under the terms of this Limited Warranty.
  • Page 57 Distributors originally sold the hardware product. InFocus will provide warranty service either (i) at an ASP location, where service is performed at the location, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you pre-...
  • Page 58 Upon receipt of the replacement product or part, the original product or part becomes the property of InFocus and you agree to fol- low instructions, including arranging the return of original product or part to InFocus in a timely manner. When providing a product exchange or Customer Self Repair (CSR) part requiring the return of the original product or part, InFocus may require a credit card au- thorization as security for the retail price of the replacement product or part and applicable shipping costs.
