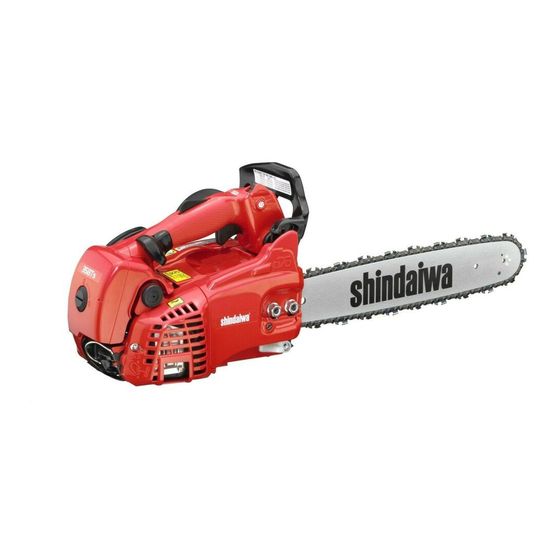

OPERATOR'S MANUAL
CHAIN SAW
358Ts
WARNING
This chain saw is designed especially for tree service by a trained
operator.
Read the instructions carefully and follow the rules for safe
operation.
Failure to do so could result in serious injury.
ECHO POWER EQUIPMENT (CANADA)
X7503323806
501 Newbold Street, London, Ontario Canada N6E 1K4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 358Ts and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shindaiwa 358Ts

  • Page 1 OPERATOR’S MANUAL CHAIN SAW 358Ts WARNING This chain saw is designed especially for tree service by a trained operator. Read the instructions carefully and follow the rules for safe operation. Failure to do so could result in serious injury. ECHO POWER EQUIPMENT (CANADA)
  • Page 2: Rules For Safe Operation

    10. Beware of carbon monoxide poisoning. D. When cutting a limb that is under tension Operate the chain saw in well-ventilated is alert for spring-back. areas only. Copyright © 2019 All Rights Reserved. 358Ts...
  • Page 3: Table Of Contents

    Scan QR codes for more information. For additional literature, including safety manuals where applicable, or questions regarding terms used in this manual, visit: https://www.echo-usa.com/manuals https://www. -usa.com/manuals shindaiwa 358Ts...
  • Page 4: Symbols And Signs

    Both of the operator’s hands Purge pump must be used to operate the chain saw Hot surface Carburetor adjustment - Low speed mixture Chain brake operation Carburetor adjustment - High speed mixture Emergency stop Carburetor adjustment STOP - Idle speed 358Ts...
  • Page 5: Packing List

    PACKING LIST The shindaiwa product you purchased has been After opening the carton, check for damage. Immediately notify your retailer or shindaiwa factory pre-assembled for your convenience. Due to packaging restrictions, guide bar and saw Dealer of damaged or missing parts.
  • Page 6: Nomenclature Of Parts

    Cette tronçonneuse doit être Cette tronçonneuse doit être utiliser seulement par des utiliser seulement par des professionnels de l’abattage. professionnels de l’abattage. * If a decal cannot be read, a new one can be ordered from your shindaiwa Dealer. 358Ts...
  • Page 7 10. Saw chain - Chain, serving as a cutting tool. techniques and use of all recommended 11. Kick Guard - Optional anti-kickback device safety equipment. which can be attached on the bar nose. 12. Fuel tank cap - For closing the fuel tank. 358Ts...
  • Page 8: Operator Safety

    • Do exercises to strengthen hand and arm www.P65Warnings.ca.gov muscles. • See a doctor if you feel tingling, numbness or pain in your fingers, hands, wrists or arms. The sooner RSI/CTS is diagnosed, the more likely permanent nerve and muscle damage can be prevented. 358Ts...
  • Page 9: Correct Use Of Chain Brake

    It is the responsibility of the owner/operator to ensure that the brake is serviced, adjusted and tested strictly in accordance with the instructions as detailed herein in order to ensure that the brake performance is maintained in compliance with the Standard CSA Z 62.1. 358Ts...
  • Page 10: Preparation For Use

    1. Remove spark plug lead. (See page 26) 2. Remove the clutch cover nuts and remove clutch cover. 3. Remove bar and saw chain if necessary. See “Maintenance and Care” section for guide bar / saw chain maintenance procedures. 358Ts...
  • Page 11 5. Pull the chain around the bar by hand. Loosen the adjustment if you feel tight spots. 6. When chain is properly tensioned, tighten clutch cover nuts securely - 20 to 23 N·m (200 to 230 kgf·cm). 7. Keep chain properly tensioned at all times. 358Ts...
  • Page 12: Fuel And Lubricant

    (wood alcohol) is NOT ap- are NOT approved for use in shindaiwa proved. Use of ECHO branded fuel is recommend- 2-stroke or Hybrid 4-stroke gasoline ed to extend engine life in all air-cooled 2-stroke engines.
  • Page 13 • Use bar and chain oil of the following grades: SAE No. 30 ..in summer SAE No. 10 ..in winter or when cutting resinous trees Oil tank cap Fuel tank cap • When refueling, also refill chain oil. 358Ts...
  • Page 14: Emission Data

    An Emission Control Label is located on the engine. THIS ENGINE MEETS * * * * U.S. EPA EXH/EVP & CALIFORNIA EXH/EVP EMISSION REGULATIONS (This is an EXAMPLE ONLY, information on label FOR S.O.R.E. REFER TO OWNER’S MANUAL FOR varies by engine FAMILY). MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. 358Ts...
  • Page 15: Operation

    (Chain brake unlocked position) Starter handle • Never use fast idle throttle latch for cutting. Use the fast idle throttle latch only in starting. • Use the chain brake only in starting or in emergencies. Unlock chain brake 358Ts...
  • Page 16 • Choke may be used if necessary, but after first Unlock chain brake firing sound, pull throttle trigger to release choke. • After starting the engine, pull front hand guard towards the operator immediately. (Chain brake unlocked position) 358Ts...
  • Page 17 If engine does not stop, move the control lever to “Cold Start” position to stop engine. Throttle trigger Return the unit to your authorized shindaiwa Dealer to check and repair stop switch before starting the engine again. CHECKING CHAIN TENSION •...
  • Page 18: Cutting Instruction

    Some material may adversely affect the housings of your chain saw. (Example palm Tree Acid, fertilizer etc.) To avoid housing deterioration, carefully remove all packed sawdust around clutch and guide bar area and wash with water. Coat metal parts with light oil. 358Ts...
  • Page 19 5 cm will act as a hinge when the Second cut tree falls, guiding it in the desired direction. One-third tree diameter When the tree starts to fall, kill the engine, place the saw on the ground and make your retreat quickly. 358Ts...
  • Page 20 • The chain saw industry and government agencies have attempted to prescribe various safety devices, but the best protection is to avoid kickback. • Comply with the safety precautions as listed in this Manual and Safety Manual. 358Ts...
  • Page 21 • When using throttle latch at starting, keep the chain brake locked. And after starting the engine, unlock the brake immediately. IMPORTANT Do not allow the saw to tip forward in order to avoid damage to the chain. 358Ts...
  • Page 22 4. The impact should lock the chain brake. IMPORTANT When checking the operation of the automatic chain brake, use a soft surface substance like wood to provide the impact so the chain is not damaged. Rear handle should be gripped lightly with the right hand. 358Ts...
  • Page 23: Chain And Guide Bar Combination

    CHAIN AND GUIDE BAR COMBINATION The following combinations are recommended for model 358Ts. Guide bar Saw chain Length mm (in.) shindaiwa shindaiwa Part No. Pitch mm (in.) Part No. Links 305 (12) S12A0ES3745 S91PXL45CQ 356 (14) S14A0ES3752 9.53 (3/8) S91PXL52CQ...
  • Page 24: Maintenance And Care

    Always equipped with the necessary tools, you may want stop engine, disconnect spark plug, and to take your unit to an shindaiwa Service Dealer make sure all moving parts have come to a for maintenance. To help you decide whether you...
  • Page 25 If the engine is adjusted for operation above stops moving. 330 m ASL, the carburetor must be readjusted When you experience trouble with the when operating the engine below 330 m ASL, carburetor, contact your dealer. otherwise severe engine damage may result. 358Ts...
  • Page 26 • Pull it out through oil filling hole with a piece of steel wire or the like. Oil filter • If the filter is dirty, wash it in gasoline or replace • When the inside of the tank gets dirty, rinsing the tank out with gasoline can clean it. 358Ts...
  • Page 27 Adjusting screw When the screw touches stopper and stops, this position indicates maximum discharge volume. (13 mL/min at 7000 r/min) - Do not turn the adjusting screw beyond the maximum or minimum limit of volume adjustment. 358Ts...
  • Page 28: Setting The Saw Chain

    • For setting saw chain, round file 4.0 mm (5/32 in.) diameter and flat file are used. • To keep correct position and correct angle, use Keep this angle ® the file holder (Sure Sharp 30° Push file as shown 90° Hold the file horizontally 358Ts...
  • Page 29 - If the saw chain becomes soiled with resin, for (0.025 in.) instance, clean it with kerosene and soak in it oil. NOTICE Parallel These angles are referred to as Oregon S91PXL. To sharpen other follow chain manufacturer’s instruction. Depth gauge 358Ts...
  • Page 30: Troubleshooting

    No fuel at • Fuel filter clogged • Clean or replace cranks carburetor carburetor • Fuel line clogged • Clean • Carburetor • Ask your shindaiwa Dealer Fuel at No fuel at • Carburetor • Ask your shindaiwa cylinder cylinder Dealer Muffler wet with •...
  • Page 31: Storage After Use

    • Store in a dry area, free from dust. • For future reference, you should keep this Operator's Manual. • If this Operator's Manual has become illegible or is lost, please purchase a new one from your shindaiwa Dealer. 358Ts...
  • Page 32: Technical Data

    TECHNICAL DATA MODEL 358Ts Dimension L × W × H 287 × 244 × 220 Mass Power head, dry 3.5 Without chain and guide bar Engine Type Air-cooled two-stroke single cylinder Displacement mL (cm³) 35.8 Carburetor Diaphragm type Magneto Flywheel magneto: CDI system...
  • Page 33: Warranty Registration Sheet

    Power Equipment shindaiwa Please go to http://www.shindaiwa.com to register your new product on-line. It’s FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for war- ranty consideration.
  • Page 34 C67515001001 - C67515999999...
