FW1179 User's Manual
Class A Digital Device (industrial & commercial environment)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to CE and
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
M4066-01
FW1179 User's Manual
(Product Guide)
Version 4.14(Rev.E)
March 30, 2012
1
Seyeon Tech Co., Ltd
Advertisement
Table of Contents
Summary of Contents for Flexwatch FW1179-MV
- Page 1 FW1179 User’s Manual FW1179 User’s Manual (Product Guide) Version 4.14(Rev.E) March 30, 2012 Class A Digital Device (industrial & commercial environment) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to CE and FCC Rules.
- Page 2 Trademarks FlexWATCH ® and FlexWATCH ® Logo are trademarks of Seyeon Tech Co., Ltd. Windows and Internet Explorer are a trademark of Microsoft Corporation.
-
Page 3: Table Of Contents
FW1179 User’s Manual Contents PRODUCT OVERVIEW ......................... 4 1.1. FW1179 ..................................4 1.2.................................. 5 EATURES 1.3............................6 ECHNICAL PECIFICATION 1.4. FW1179 P ..............................8 ACKING HARDWARE DESCRIPTION ........................ 9 2.1................................9 2.1..................................10 FW1179 INSTALLATION AND BASIC SETUP ................. 11 3.1. -
Page 4: Product Overview
1. Product Overview 1.1. FW1179 FlexWATCH® 1179 is a stand-alone device transmitting vdeo from built-in megapixel camera over IP(Internet Protocol) network. There is one type of FW1179 model: MV. It can transmit up to 30fps@1.3M over the existing network. You can monitor video of FW1179 through web browser(ie. -
Page 5: Key Features
FW1179 User’s Manual 1.2. Key Features Standalone device with a built-in web server 100M Auto-Sensing Ethernet Configuring and controlling through Web browser Max 30 fps transmission speed on TCP/IP network Effective Bandwidth & Bit-rate Control (VBR/CBR) by H.264 Supports Dual Streaming in Motion JPEG and H.264 Support Dynamic IP network by IPCCTVDNS Server Support Transparent Mode Support SNMP function... -
Page 6: Technical Specification
FW1179 User’s Manual 1.3. Technical Specification FW1179-MV 32bit Embedded CPU NAND Flash 128Mbytes / DDR2: 128Mbytes Hardware Linux version 2.6.xx operating system Battery backed up real-time clock 1/3” progressive scan MOS Active pixels 1280H x 1024V, 1.31M Effective pixels 1376H x 1070V, 1,47M Pixel size: 3.75 (H) µm ×... - Page 7 Windows XP Pro or later Internet Explorer 6.x or later Powerful API for software integration available at http://www.flexwatch.com, including Simple Viewer API, FlexWATCH Control SDK, event trigger data in video stream, System integration support embedded scripting and access to serial port peripherals over HTTP/TCP User can be installed user program daemon for event notification or sending image Embedded operating system: Linux 2.6...
-
Page 8: Fw1179 Packing List
FW1179 User’s Manual 1.4. FW1179 Packing List FW1179-MV Power Supply Unit (Power Cable & SMPS DC12V 1.0A Adapter) CD (User’s Manual, installation wizard and etc) Table 2 : FW1179 Packing List Note: Please check all the listed items are included in your package. For any missing items, please contact your local distributor. -
Page 9: Hardware Description

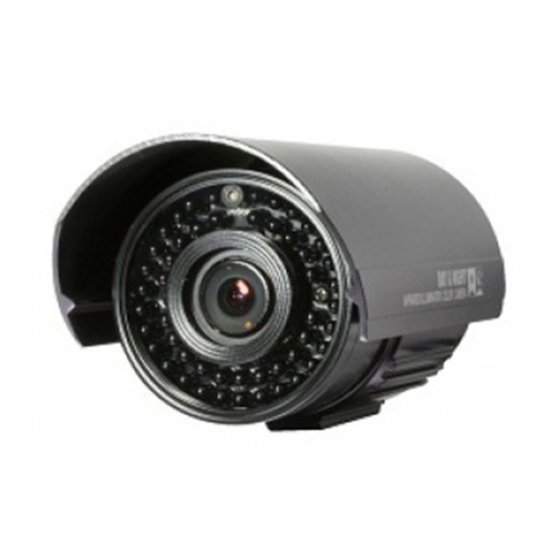

FW1179 User’s Manual 2. Hardware Description 2.1. Main Body View Picture 2 : Front View Name Description IR LED 50pcs 850nm Infrared LEDs. Lens Lens for board mount Sunshield Top covering Sunshield Table 3 : FW1179 Main Body View M4066-01 Seyeon Tech Co., Ltd... -
Page 10: Full View
FW1179 User’s Manual 2.1. Full View Picture 3 : FW1179 Full View Name Description Main body Mainbody Mounting Bracket Mounting bracket LAN Connector. Power Conn. Power Connector. Table 4 : FW1179 Full View M4066-01 Seyeon Tech Co., Ltd... -
Page 11: Fw1179 Installation And Basic Setup
Connect the power supply of FW1179. After that, you need to follow the steps below. Network Configuration: Refer to “IP Installer User’s Manual” Camera Configuration: Refer to “FlexWATCH Admin Menu User’s Manual” Service Configuration: Refer to “FlexWATCH Admin Menu User’s Manual” M4066-01...
