Fender Nashville Tele Assembly

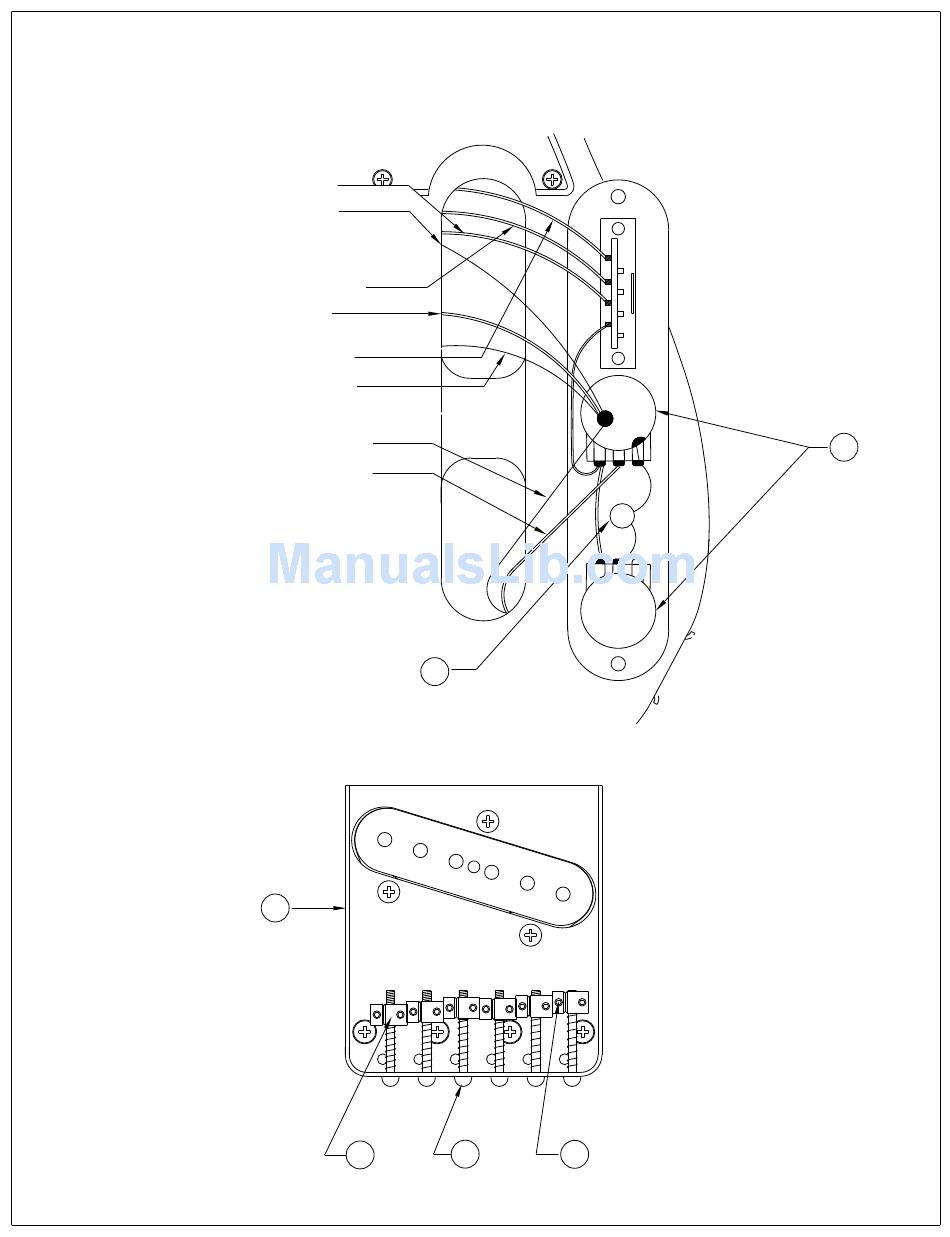

DELUXE NASHVILLE TELE 0135300/5302
WHITE WIRE FROM NECK P.U.
BLACK WIRE FROM NECK P.U.
YELLOW WIRE FROM MIDDLE P.U.
RED WIRE FROM MIDDLE P.U.
WHITE WIRE FROM BRIDGE P.U.
BLACK WIRE FROM BRIDGE P.U.
BLACK WIRE FROM OUTPUT JACK
WHITE WIRE FROM OUTPUT JACK
22
CONTROL ASSEMBLY
17

BRIDGE ASSEMBLY

FENDER
24
23
. 0 22uf
25
13
Pg. 2 of 4
11-16-99
