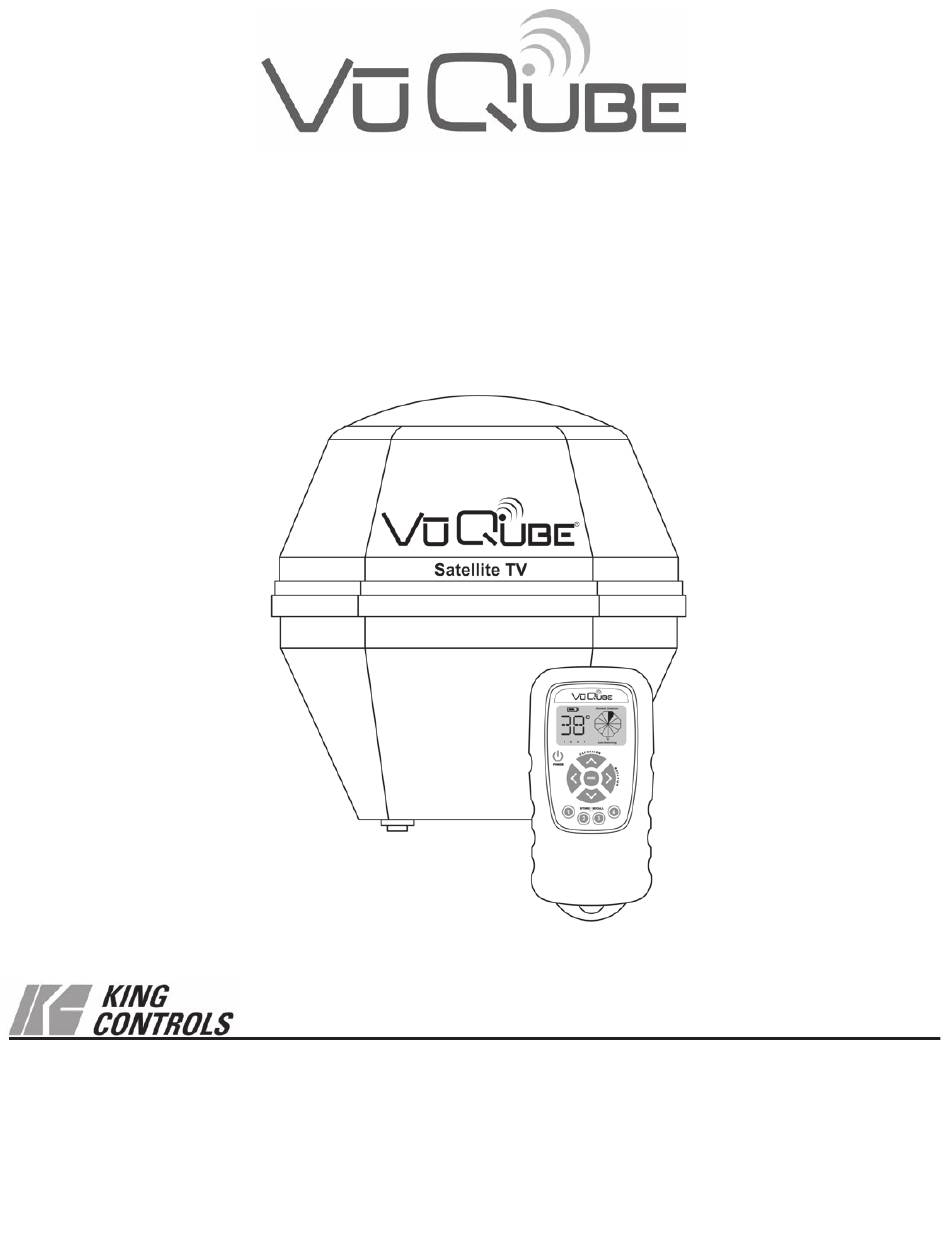

- Page 1 ® Mobile Satellite TV Antenna Owner’s Manual Model VQ1 ® Solutions for Mobile Markets 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 www.kingcontrols.com 20992 REV D...
-
Page 3: Table Of Contents
If your VuQube does not operate as outlined in this manual please call King Controls at (952) 922-6889 or visit our website at www.kingcontrols.com. This VuQube must be installed with a King Controls bracket (MB100, MB101 or MB200). Failure to use one of these brackets will void the VuQube warranty. -
Page 4: Introduction
INTRODUCTION Section 1 Congratulations on your purchase of the VuQube Model V10. The V10 is equipped with a wireless remote control (Fig. 2) to allow quick and easy one person positioning of the antenna while monitoring your receiver’s signal meter screen on your TV. -
Page 5: Installation
INSTALLATION Section 2 TOOLS AND MATERIALS REQUIRED 1. Read through the instructions and make sure you have all the tools and materials required to complete the installation, including: • King Controls mounting bracket (sold separately - for more information call King Controls at 952-922-6889 or visit our website at www.kingcontrols.com) FAILURE TO USE AN APPROVED KING CONTROLS MOUNTING BRACKET WILL VOID THE PRODUCT WARRANTY. - Page 6 IMPORTANT! The antenna unit MUST be mounted to the air ride cab, NEVER to any structure mounted directly to the frame (for example the headache rack). Mounting directly to the frame will void the VuQube warranty. 3. Determine the location of the antenna unit using the following criteria:...
- Page 7 (inside and outside of the hole). 10. Inside the vehicle, connect the coax from the VuQube to the SATELLITE IN port on the receiver. The connection between the antenna unit and the receiver must be a direct connection with no devices in between.
- Page 8 FIG. 5 IMPORTANT! Bracket mounting holes and wiring hole must be sealed so they are completely waterproof. Sealant must be cab compatible. Coax connection should be snug. DO NOT OVER TIGHTEN! Page 6...
- Page 9 This page intentionally left blank. Page 7...
-
Page 10: Operation
129 = 21 Bell TV 82 & 91 = 11 3. Press and hold POWER on VuQube remote until it turns ON. The remote will display the current antenna elevation angle. 4. Use the UP and DOWN arrows to change the... - Page 11 For DISH and Bell TV, verify the signal meter screen shows the correct satellite. 7. Press POWER again to turn the VuQube remote OFF. (The remote turns off automatically after 90 seconds if no buttons are pressed.) 8. Exit the Signal Meter Screen to download the guide and view your programming.
-
Page 12: Automatic Satellite Switching For Dish And Bell Tv
The satellite TV channels you watch may be broadcast from more than one satellite. When selecting a channel that is broadcast from a different satellite, the VuQube antenna must switch to the new satellite in order for you to view that channel. - Page 13 STEP A: CHECK SWITCH TEST (Before satellite acquisition) 1. Disconnect the coax from “SAT IN” on the back of your receiver. 2. Turn on your TV and receiver. 3. On your receiver’s remote, press (MENU, 6, 1, 1) to display the signal meter screen. 4.
- Page 14 STEP B: SATELLITE ACQUISITION Determine which satellites you wish to switch between, and for each satellite listed, follow steps B-1, B-2 and B-3. WHEN COMPLETE, GO TO PAGE 13, STEP C. Example for DISH SD: • Choose the 110 satellite on your receiver screen (Step B-1), lock onto it (Step B-2), and then store it in position 1 (Step B-3).
- Page 15 Before running the check switch test, you must put the VuQube in the proper mode. Mode 01: Normal operating mode (use without automatic satellite switching)
- Page 16 NOTE: The new check switch setting (SW21 or SW64) will remain active in your receiver until you re-run the check switch test when connected to your home dish. When moving your receiver between the VuQube and your home dish, you must always reconfigure your receiver by running a new check switch test.
- Page 17 DISH SD and HD DISH SD and HD Alternate NO “X”s MUST SHOW “SW64” DISH SD Bell SD and HD MUST SHOW “SW21” NO “X”s Page 15...
-
Page 18: Elevation Maps
ELEVATION MAPS Section 5 Page 16... - Page 19 Page 17...
- Page 20 Page 18...
- Page 21 Page 19...
-
Page 22: Troubleshooting
TROUBLESHOOTING Section 6 NOTE: If you cannot lock onto the correct satellite, it is most likely that an object is blocking the signal. If this is the case, move the vehicle to have an unobstructed view of the southern sky. ERROR CODES POSSIBLE REASON COURSE OF ACTION... -
Page 23: Accessories
ACCESSORIES Section 7 Visit your local dealer or call King Controls to order. Page 21... -
Page 24: Maintenance
IMPORTANT! Do not power wash the VuQube. If you plan on not using your VuQube for long periods of time, it is recommended that the system be put through a search procedure on a quarterly basis to keep all moving parts in good working order. -
Page 25: Fcc User Information
King Controls could void the purchaser’s or user’s authority to operate this equipment. The VuQube and VuQube Remote have been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 26: Limited Warranty
LIMITED WARRANTY Section 10 Every new VuQube Satellite System is thoroughly inspected and tested before leaving the factory, and is covered by the following one year parts limited warranty from the date of original purchase: • One year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. - Page 28 ® 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 www.kingcontrols.com ®...
