Summary of Contents for Behringer ULTRATWIN GX212

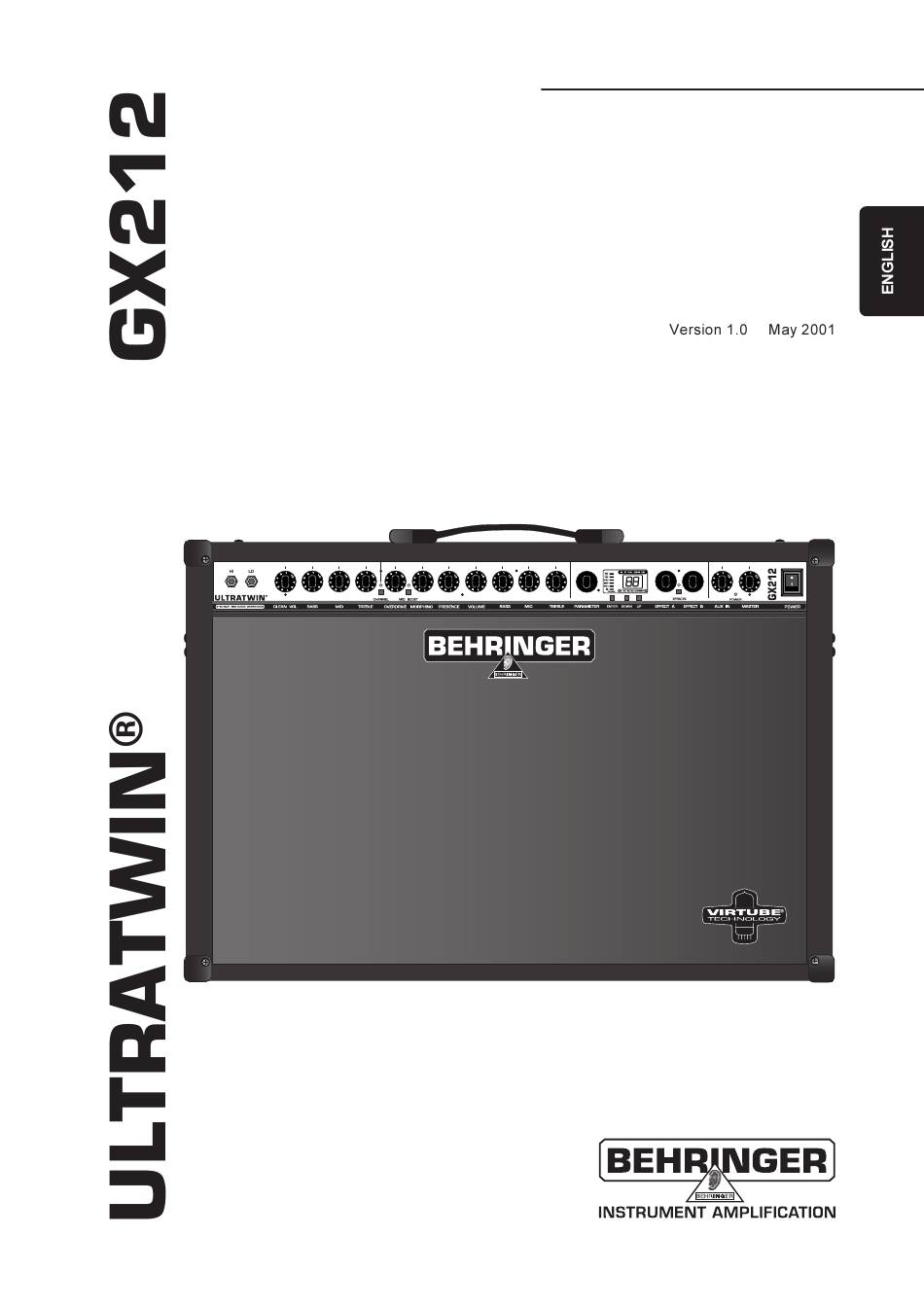

  • Page 1 User’s Manual...
  • Page 2 SAFETY INSTRUCTIONS DETAILED SAFETY INSTRUCTIONS: Retain Instructions: Heed Warnings: Follow instructions: Water and Moisture: Ventilation: Heat: Power Source: Grounding or Polarization: Power-Cord Protection: Cleaning: Non-use Periods: Object and Liquid Entry: Damage Requiring Service: Servicing:...
  • Page 3 FOREWORD...
  • Page 4 ULTRATWIN ® Ultra-flexible 2 x 60 Watt Guitar Workstation with Digital Multi-Effects Processor ® ® ®...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION ........................6 2. WIRING EXAMPLES ......................12 3. EFFECTS PROCESSOR ...................... 14 4. HISTORICAL BACKGROUND by Neville Marten (Guitarist Magazine) ......24 5. INSTALLATION ........................25 6. APPENDIX ..........................26 7. SPECIFICATIONS ......................... 30 8. WARRANTY ........................... 31 WARNING! It should be pointed out, that extreme output volumes may damage your ears and/or your headphones.

  • Page 6: Introduction

    1. INTRODUCTION This manual first describes the terminology used, so that you can fully understand the ULTRATWIN and its functions. Please read the manual carefully and keep it for future reference.
  • Page 7 1.1.2 Morphing 1.2 Before you begin If the unit is damaged, please do not return it to BEHRINGER, but notify your dealer and the shipping company immediately, otherwise claims for damage or replacement may not be granted. Shipping claims must be made by the consignee.
  • Page 8 Please make sure that all units have a proper ground connection. For your own safety, never remove or disable the ground conductor of the unit or of the AC power cable. 1.3 Control elements Fig. 1.1: The front panel of the ULTRATWIN GX212 1.3.1 Front panel Fig. 1.2: The front panel control elements 1/4"...
  • Page 9 MID BOOST MORPHING PRESENCE VOLUME Use both VOLUME controls to optimize the volume ratio of the two channels, so that no volume differences can be heard when switching from one channel to the other. This setting is also effective on the level-dependent digital effects! BASS TREBLE Please note that with all three EQ controls in the OVERDRIVE channel set fully to the left, there...
  • Page 10 numbers will be stored with the channels and can be recalled using the footswitch or the front panel buttons. When MIDI is on, this assignment feature will be disabled, so that in this mode both channels and effects can be selected separately. DOWN When you start editing a preset, the decimal point in the 2-digit display starts flashing.
  • Page 11 EXT. LEFT EXT. RIGHT INTERNAL OFF Since speakers can have quite an impact on the sound of a guitar amp, both the headphones and LINE OUT/TAPE OUT signals are frequency-corrected (Speaker Emulation). Without this frequency correction, extreme treble frequencies would deteriorate the sound. You can still tap the unprocessed signal directly after the pre-amp (INSERT SEND jack), without interrupting the signal path in the amplifier (INSERT RETURN jack may not be used in this case).

  • Page 12: Wiring Examples

    2. WIRING EXAMPLES 2.1 Standard setup consisting of guitar, footswitch and external effects device Fig. 2.1: Standard setup 2.2 Expanded setup with MIDI foot controller, playback source and mixing console...
  • Page 13 Fig. 2.2: Expanded setup 2.3 Master/slave setup 2.3.1 The ULTRATWIN GX212 as master Fig. 2.3: The ULTRATWIN GX212 as master 2.3.2 The ULTRATWIN GX212 as slave, driven by an external amp/preamp...

  • Page 14: Effects Processor

    3. EFFECTS PROCESSOR 3.1 Description of effects 01-02 Spring Reverb: 03-04 Studio: 05-06 Chamber: 07-08 Stage: 09-10 Concert: 11-12 Plate:...
  • Page 15 Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B SPRING short Pre-Delay Reverb Time Mix L Mix R REVERB long Pre-Delay Reverb Time Mix L Mix R short Pre-Delay Reverb Time Mix L Mix R STUDIO long Pre-Delay Reverb Time Mix L Mix R short Pre-Delay Reverb Time Mix L...
  • Page 16 17-19 Wah/Delay/Distortion: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B Feedback 0 % Delay Time Drive Delay Mix WAH / DELAY / Feedback 10 % Delay Time Drive Delay Mix DISTORTION Feedback 30 % Delay Time Drive Delay Mix Tab. 3.4: Parameters of effects 17 through 19 Delay/Reverb: Preset-Nr.
  • Page 17 30-33 Phaser: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B Feedback 0 % LFO Speed Depth Feedback 62 % LFO Speed Depth PHASER Feedback 62 % LFO Speed Depth Feedback 77 % LFO Speed Depth Tab. 3.7: Parameters of effects 30 through 33 34-37 Chorus: Preset-Nr.
  • Page 18 43-47 Chorus/Delay: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B ultra Delay Time Chorus Mix Delay Mix slow Delay Time Chorus Mix Delay Mix CHORUS / medium I Delay Time Chorus Mix Delay Mix DELAY medium II Delay Time Chorus Mix Delay Mix hold Delay Time Chorus Mix Delay Mix...
  • Page 19 57-61 Flanger/Delay: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B ultra Delay Time Flanger Mix Delay Mix slow Delay Time Flanger Mix Delay Mix FLANGER / medium I Delay Time Flanger Mix Delay Mix DELAY medium II Delay Time Flanger Mix Delay Mix fast Delay Time Flanger Mix Delay Mix...
  • Page 20 69-70 Magic Drive: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B Delay Time Variation Delay Mix MAGIC DRIVE Delay Time Variation Delay Mix Tab. 3.17: Parameters of effects 69 and 70 71-72 Auto Wah: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B fast Sensitivity Depth...
  • Page 21 75-81 Pitch Shifter: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B Tune Left Mix L Mix R Tune Left Mix L Mix R Tune Left Mix L Mix R PITCH Tune Left Mix L Mix R SHIFTER Tune Left Mix L Mix R +4 % Tune Left...
  • Page 22 90-91 Compressor: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B fast Sensitivity Ratio Gain COMPRESSOR slow Sensitivity Ratio Gain Tab. 3.23: Parameters of effects 90 and 91 92-93 Expander: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B Overdrive Sensitivity Ratio Gain EXPANDER Clean...
  • Page 23 97-99 Speaker Cabinet: Preset-Nr. Effect Variation PARAMETER EFFECT A EFFECT B Stack A HF Cut Peak Gain Peak Frequency SPEAKER Stack B HF Cut Peak Gain Peak Frequency CABINET Combo HF Cut Peak Gain Peak Frequency Tab. 3.26: Parameters of effects 97 through 99 3.2 Controlling the ULTRATWIN via MIDI Once you activate the MIDI functions, the automatic effect-to-channel assignment feature will be disabled, i.e.

  • Page 24: Historical Background By Neville Marten (Guitarist Magazine)

    3.2.1 Store Enable mode 4. HISTORICAL BACKGROUND by Neville Marten (Guitarist Magazine) The guitar amp: your tone generator ä ä ä ä ä ä ä ä ä ä ä ä...

  • Page 25: Installation

    5. INSTALLATION If the unit is damaged, please do not return it to BEHRINGER, but notify your dealer and the shipping company immediately, otherwise claims for damage or replacement may not be granted. Shipping claims must be made by the consignee.

  • Page 26: Appendix

    Fig. 5.2: Wiring of a stereo headphones 1/4" plug 5.2.1 Loudspeaker connection 5.3 MIDI connection Make sure that pin 4 is connected to pin 4, and pin 5 to pin 5 on both plugs. 6. APPENDIX 6.1 Preset list...
  • Page 27 Effect Variation short Pre-Delay Reverb Time 1..32 Mix L 0..50 10 Mix R 0..50 10 SPRING REVERB long Pre-Delay Reverb Time 1..32 Mix L 0..50 10 Mix R 0..50 10 short Pre-Delay Reverb Time 1..32 Mix L 0..50 10 Mix R 0..50 10 STUDIO long Pre-Delay...
  • Page 28 Effect Variation ultra Reverb Time 0..63 20 Flanger Mix 0..99 50 Reverb Mix 0..50 10 slow Reverb Time 0..63 20 Flanger Mix 0..99 40 Reverb Mix 0..50 10 FLANGER / medium I Reverb Time 0..63 50 Flanger Mix 0..99 50 Reverb Mix 0..50 10 REVERB medium II Reverb Time...
  • Page 29 6.2 MIDI implementation MIDI Implementation Chart Function Transmitted Recognized Remarks Default OFF, 1 - 16 Basic memorized Changed OFF, 1 - 16 Channel Default Messages Mode Altered Note Number True Voice Note ON Velocity Note OFF Keys After Touch Channels Pitch Bender O 7, 10 - 15, 18 see add.

  • Page 30: Specifications

    PHYSICAL BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

  • Page 31: Warranty

    8. WARRANTY § 1 WARRANTY CARD/ONLINE REGISTRATION § 2 WARRANTY § 3 RETURN AUTHORIZATION NUMBER BEFORE § 5 WARRANTY TRANSFERABILITY § 4 WARRANTY REGULATIONS § 6 CLAIM FOR DAMAGES § 7 OTHER WARRANTY RIGHTS AND NATIONAL LAW...
