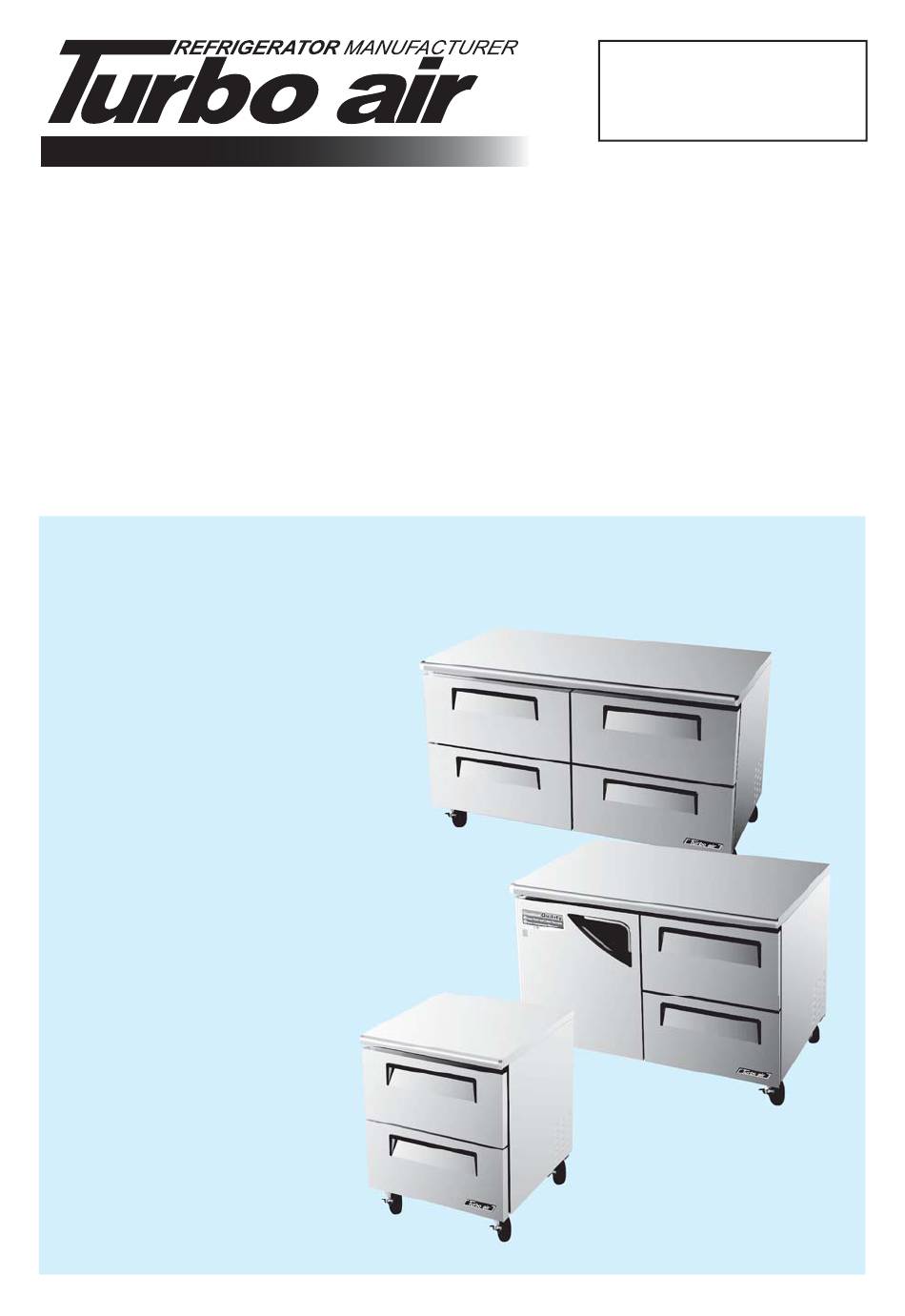

Turbo Air Speed up the Pace of Innovation
Undercounter
Refrigerator & Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
REFRIGERATOR
TUR-28SD-D2
TUR-48SD-D2
TUR-48SD-D4
TUR-60SD-D2
TUR-60SD-D2
FREEZER
TUF-28SD-D2
TUF-48SD-D2
TUF-48SD-D4
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
Full Stainless Steel Visible Exterior
