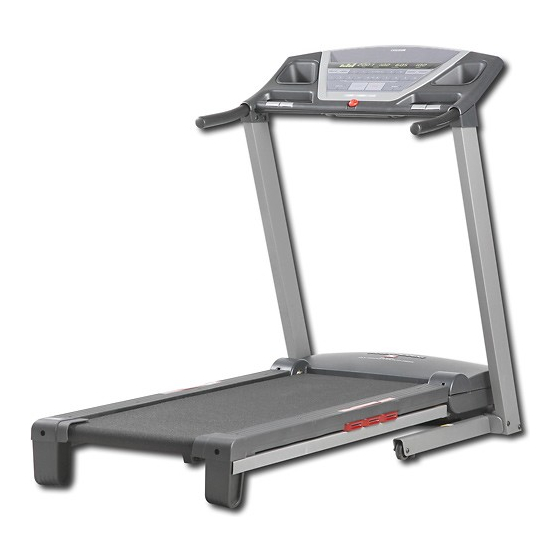

Pro-Form 665 E User Manual
  1. Manuals
  2. Brands
  3. Pro-Form Manuals
  4. Treadmill
  5. 665 E
  6. User manual

Pro-Form 665 E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

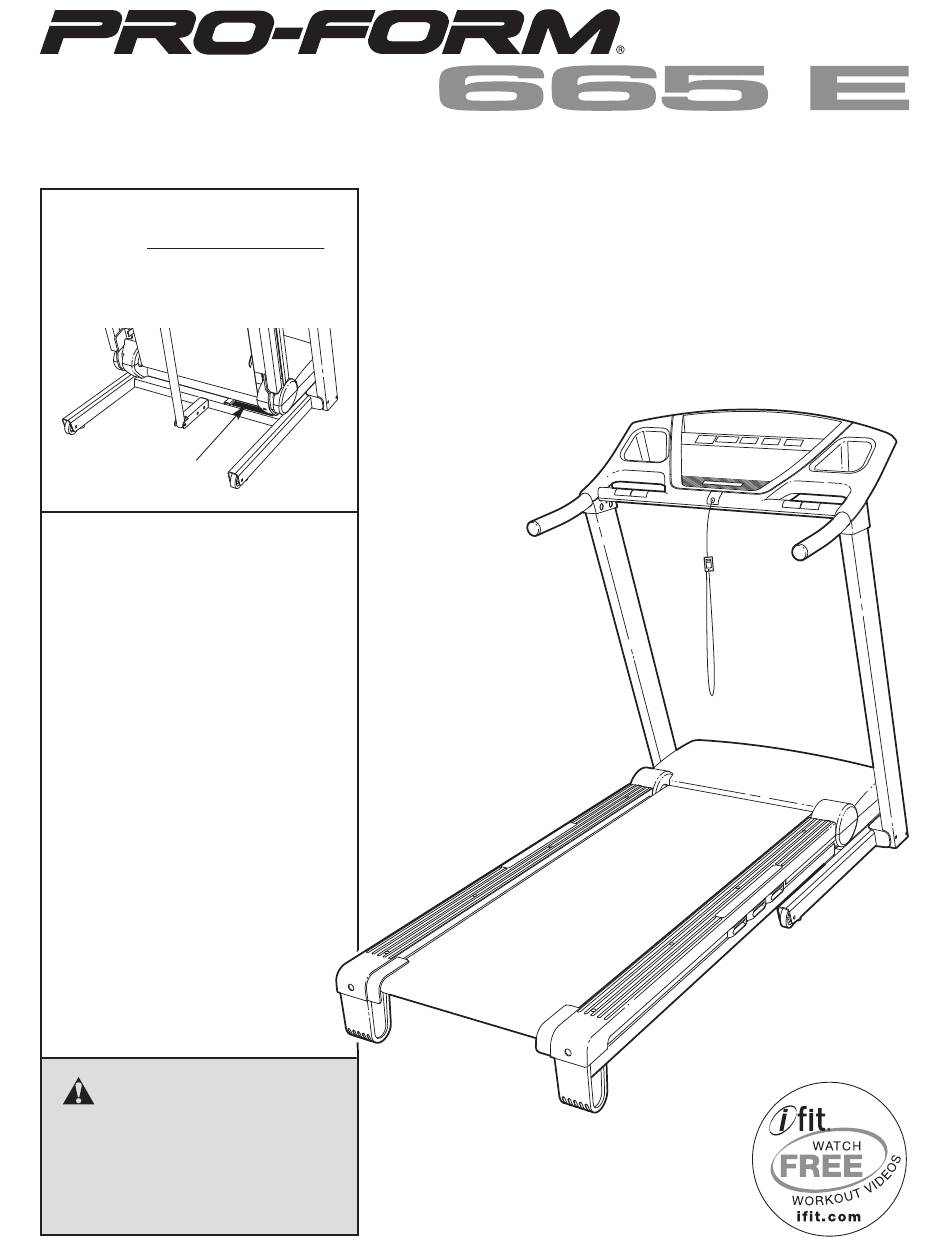

www.proform.com
Model No. PFTL56507.1
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-888-533-1333
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 665 E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Form 665 E

Summary of Contents for Pro-Form 665 E

  • Page 1 www.proform.com USER'S MANUAL Model No. PFTL56507.1 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CON- TACT THE STORE; please contact Customer Care.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 20. Never leave the treadmill unattended while it 24. Inspect and properly tighten all parts of the is running. Always remove the key, unplug treadmill regularly. DANGER: the power cord, and switch the reset/off cir- cuit breaker to the off position when the Always unplug the power treadmill is not in use.

  • Page 5: Before You Begin

    ® 665 E. The 665 E offers a selection of features de- ual. To help us assist you, note the product model signed to make your workouts at home more enjoyable number and serial number before contacting us.

  • Page 6: Assembly

    ASSEMBLY To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
  • Page 7 1. Make sure that the power cord is unplugged. With the help of a second person, carefully tip the treadmill onto its left side. Partially fold the Frame (56) so that the treadmill is more stable; Hole do not fully fold the Frame yet. Remove and discard the two indicated bolts (A) and the shipping bracket (B).
  • Page 8 4. Hold a Bolt Spacer (80) inside the lower end of the Right Upright (78). Insert a 3/8" x 4" Bolt (6) with a 3/8" Star Washer (9) into the Right Upright and the Bolt Spacer. Repeat this step with a second Bolt Spacer (80), 3/8" x 4" Bolt (6), and 3/8"...
  • Page 9 6. Hold a Bolt Spacer (80) inside the lower end of the Left Upright (74). Insert a 3/8" x 4" Bolt (6) with a 3/8" Star Washer (9) into the Left Upright and the Bolt Spacer. Repeat this step with a second Bolt Spacer (80), 3/8"...
  • Page 10 9. Set the Crossbar (39) on the console assembly. Tighten two 1/4" x 3/4" Bolts (5) with two 1/4" Star Washers (14) into the Crossbar. Start both Bolts but do not tighten them yet. Tighten four 1/2" Screws (1) into the Crossbar (39).
  • Page 11 12. Attach the Right Handrail (90) to the Right Upright (78) with three 5/16" x 1" Bolts (7) and Console Assembly three 5/16" Star Washers (10). Repeat on the left side (not shown). Start all six Bolts before tightening them. See steps 4 and 6.
  • Page 12 15. Raise the Frame (56) to the position shown. Have a second person hold the Frame until this step is completed. Orient the Storage Latch (53) so that the large barrel and the Latch Knob (54) are oriented as shown. Attach the Latch Bracket (109) and Storage Latch (53) to the Base (83) with two 3/8"...

  • Page 13: Operation And Adjustment

    OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, Your treadmill features a walking belt coated with high- performance lubricant.
  • Page 14 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE To turn on the power, see page 15. To use the man- ual mode, see page 15. To use a preset workout, see page 17. To use the information mode, see The treadmill console offers an impressive array of page 18.
  • Page 15 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
  • Page 16 4. Change the incline of the treadmill as desired. Speed display—This display shows the speed To change the incline of of the walking belt. the treadmill, press the Incline increase and de- crease buttons or one of the numbered incline To reset the displays, press the Stop button, re- buttons.
  • Page 17 HOW TO USE A PRESET WORKOUT segment, a series of Current Segment tones will sound and the 1. Insert the key into the console. next segment of the pro- file will begin to flash. If a See HOW TO TURN ON THE POWER on page 15. different speed or incline setting is programmed for 2.
  • Page 18 THE INFORMATION MODE HOW TO USE THE STEREO SOUND SYSTEM The console features an information mode that keeps To play music or audio books through the consoleʼs track of the total number of hours that the treadmill has stereo speakers, you must connect your MP3 player, been used and the total distance that the walking belt CD player, or other personal audio player to the con- has moved.

  • Page 19: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord.
  • Page 20 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. It may be neces- sary to push the frame forward as you pull the knob to the left.

  • Page 21: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 22 Remove the three 3/4" Screws (12) and carefully pivot the Hood (61) off. Locate the Reed Switch (71) and the Magnet (50) on the left side of the Pulley (51). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and 1/8 in.
  • Page 23 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left rear roller bolt clockwise 1/2 of a turn;...

  • Page 24: Exercise Guidelines

    EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 25 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 26: Part List

    PART LIST—Model No. PFTL56507.1 R0509A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description 1/2" Screw Front Roller/Pulley 1" Tek Screw 15 1/2" Wire Tie Hex Key Storage Latch 3/8"...
  • Page 27 Key No. Qty. Description Key No. Qty. Description Latch Endcap Controller Ground Wire Left Rear Foot Insert Console Clamp Right Rear Foot Insert Console Pulse Plate Lift Motor Spacer Key Plate Filter Wire Incline Motor Wire Reset/Off Circuit Breaker – 10"...

  • Page 28: Exploded Drawing

    EXPLODED DRAWING A—Model No. PFTL56507.1 R0409A...
  • Page 29 EXPLODED DRAWING B—Model No. PFTL56507.1 R0409A...
  • Page 30 EXPLODED DRAWING C—Model No. PFTL56507.1 R0409A...
  • Page 31 EXPLODED DRAWING D—Model No. PFTL56507.1 R0409A...

  • Page 32: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
