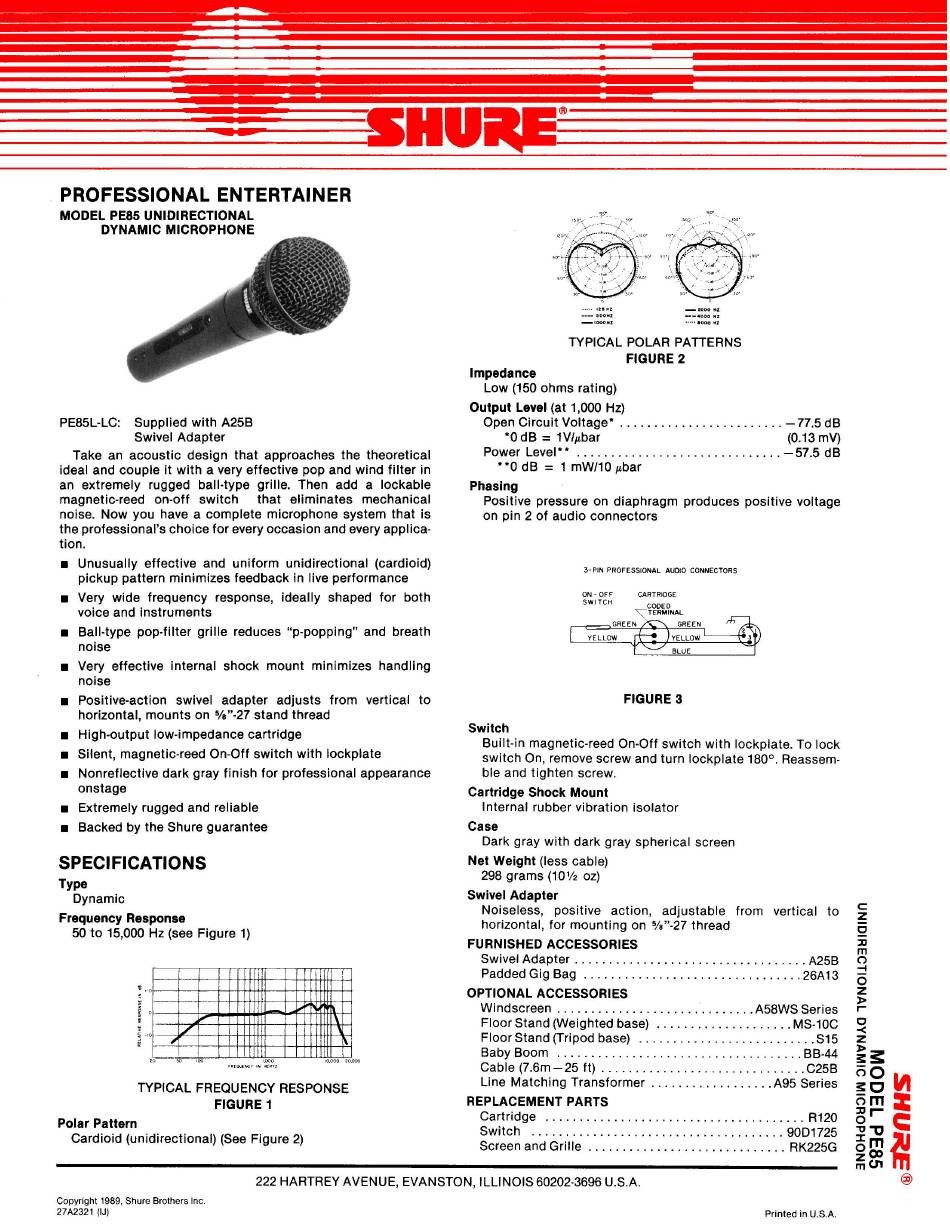

Shure PE85 Manual

PROFESSIONAL ENTERTAINER
MODEL PE85 UNIDIRECTIONAL
PE85L-LC: Supplied with A25B
Swivel Adapter
Take an acoustic design that approaches the theoretical
ideal and couple it with a very effective pop and wind filter in
an extremely rugged ball-type grille. Then add a lockable
magnetic-reed on-off switch that eliminates mechanical
noise. Now you have a complete microphone system that is
the professional's choice for every occasion and every applica-
tion.
H
Unusually effective and uniform unidirectional (cardioid)
pickup pattern minimizes feedback in live performance
H
Very wide frequency response, ideally shaped for both
voice and instruments
H
Ball-type pop-filter grille reduces "p-popping" and breath
noise
H
Very effective internal shock mount minimizes handling
noise
H
Positive-action swivel adapter adjusts from vertical to
horizontal. mounts on YE"-27 stand thread
H
High-output low-impedance cartridge
H
Silent, magnetic-reed On-Off switch with lockplate
H
Nonreflective dark gray finish for professional appearance
onstage
H
Extremely rugged and reliable
H
Backed by the Shure guarantee
SPECIFICATIONS
TY Pe
Dynamic
Frequency Response
50 to 15,000 Hz (see Figure 1)
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Cardioid (unidirectional) (See Figure 2)
TYPICAL POLAR PATTERNS
FIGURE 2
Impedance
Low (150 ohms rating)
Output Level (at 1,000 Hz)
Open Circuit Voltage*
. . . . . . . . . . . . . . . . . . . . . . . .
-77.5 dB
*O dB
=
lVlpbar
(0.13 mV)
Power Level**
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-57.5 dB
* * 0 dB
=
1 mWI10 pbar
Phasing
Positive pressure on diaphragm produces positive voltage
on pin 2 of audio connectors
3-PIN PROFESSIONAL AUDIO CONNECTORS
ON
-
OFF CARTRIDGE
S W I T C H COOED
YELLOW
BLUE
FIGURE 3
Switch
Built-in magnetic-reed On-Off switch with lockplate. To lock
switch On, remove screw and turn lockplate 180°. Reassem-
ble and tighten screw.
Cartridge Shock Mount
Internal rubber vibration isolator
Case
Dark gray with dark gray spherical screen
Net Weight (less cable)
298 grams (101/2 oz)
Swivel Adapter
Noiseless, positive action, adjustable from vertical to
horizontal, for mounting on 5/8"-27 thread
FURNISHED ACCESSORIES
Swivel Adapter
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A256
PaddedGigBag
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26A13
OPTIONAL ACCESSORIES
Windscreen
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A58WS Series
Floor Stand (Weighted base)
. . . . . . . . . . . . . . . . . . . .
MS-1OC
Floor Stand (Tripod base)
. . . . . . . . . . . . . . . . . . . . . . . . .
.S15
Baby Boom
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.BE-44
Cable (7.6m-25 ft)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.C25B
Line Matching Transformer
. . . . . . . . . . . . . . . . . .
A95 Series
REPLACEMENT PARTS
Cartridge
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
R120
Switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9001725
Screen and Grille
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RK225G
222 HARTREY AVENUE, EVANSTON, ILLINOIS 60202-3696 U.S.A.
Copyright 1989, Shure Brothers
I n c .
27A2321
(IJ)
Printed in U.S.A.
