Thank you for your purchase of Ikelite equipment. Please read this
instruction manual completely before attempting to operate or dive with this
product.
Size and Weight
Width ................10 in. (250mm) including controls
..........................13.5 in. (343mm) with Tray and Handles
Height ..............7.0 in. (178mm) including controls
..........................7.4 in. (188mm) with Tray and Handles
Depth ................6.5 in. (165mm) including controls
Weight ..............5.6 lb. (2540g) housing only
..........................7.4 lb. (3357g) housing with tray & handles
Buoyancy ..........Neutral to slightly negative in freshwater (dependent on
..........................choice of lens and lens port)

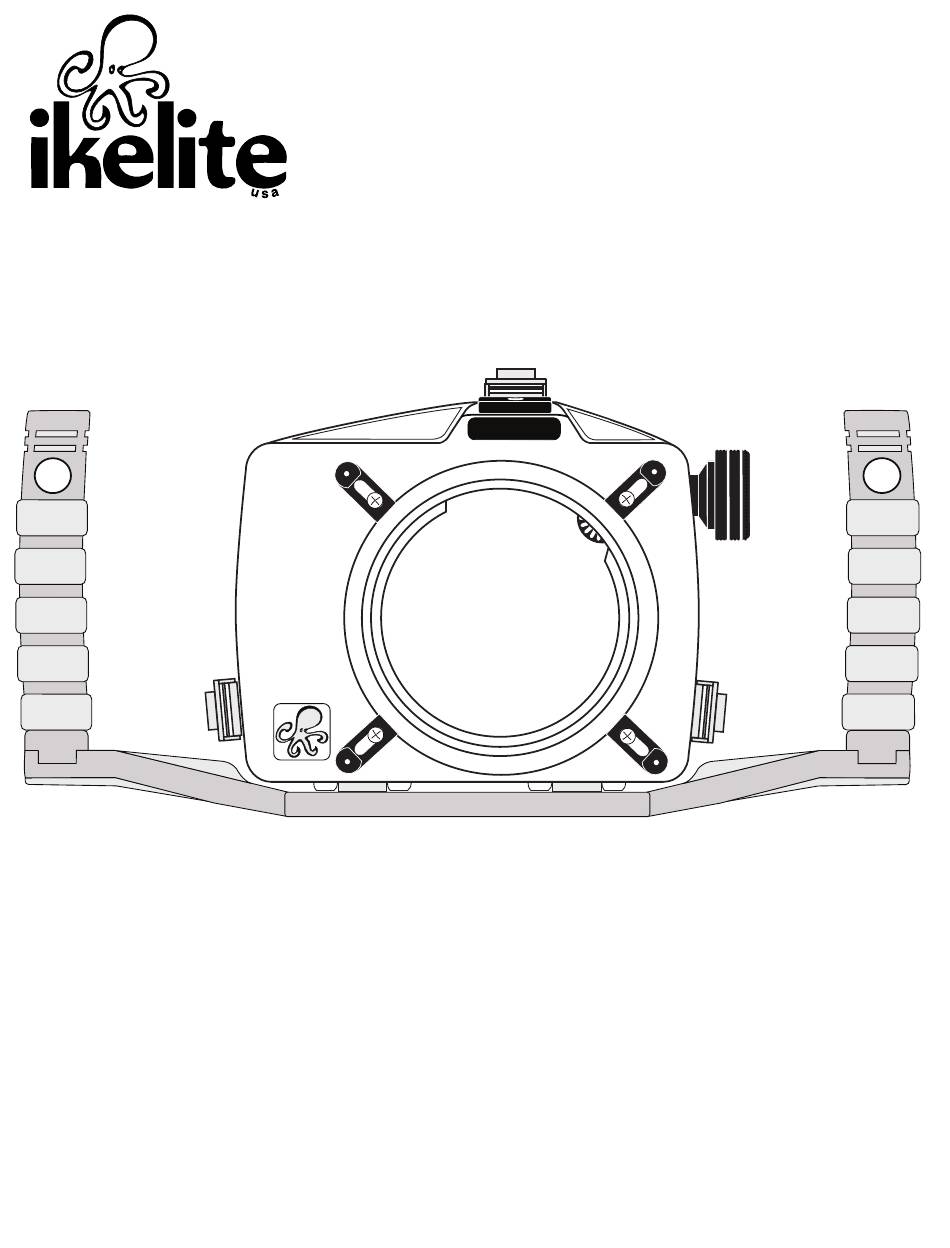

SLR-DC Housing
i n s t r u c t i o n m a n u a l
6870.60 Canon EOS 60D
IKELITE
Port Lock

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6870.60 Canon EOS 60D and is the answer not in the manual?

Questions and answers

Summary of Contents for Ikelite 6870.60 Canon EOS 60D

  • Page 1 6870.60 Canon EOS 60D Thank you for your purchase of Ikelite equipment. Please read this instruction manual completely before attempting to operate or dive with this product.
  • Page 2: Table Of Contents

    Installing Zoom Clamp and Gear Sleeve ......P. 10 Installing the Port ............P. 15 Housing Conversion Circuitry..........P. 17 DS50 and DS125 Substrobe Compatibility ....P. 18 Using Non-Ikelite or Ikelite Non-DS Substrobes ....P. 18 Usage ................P. 19 Pre-Dive your System ............P. 19 Lubricants ................P. 19 Troubleshooting ............P.
  • Page 3: Product Registration

    Product Registration Please take a moment to fill out the online Ikelite Product Registration form at http://www.ikelite.com/forms/regForm.htm. Package Contents - SLR-DC Housing - Aluminum Tray & Dual Handles - Envelope containing tray - Silicone Lubricant installation hardware, - Std. Zoom Clamp & Sleeve Set maintenance kit, and extra - #5509.28 Large Diameter Zoom...
  • Page 4: Parts Of The Housing

    Parts of the Housing - Front View Mode Dial Handle Main Dial LCD Illumination Zoom Control IKELITE Port Lock Gear Sleeve Drive Gear Port Shutter Opening Release Snap Aluminum Tray Side View Lid Snap Main Dial Port Lock Optional Gear...
  • Page 5 Back View AF Mode Selection Drive Mode Quick Release Button Metering Mode AF-ON Flash Button 121314 16 17 Lens Release 19 20 11. TTL Bulkhead 1. Power Switch 12. Multi-controller left 2. Erase 13. Setting Button 3. Optical Viewfinder 14. Multi-controller right 4.
  • Page 6: Initial Camera Setup

    Initial Camera Setup Insert a fully charged battery. Insert memory card (2GB or greater capacity recommended). Set the mode dial to “M” manual. Set shutter speed to 1/60th second or 1/125th second for fast moving subjects. Set aperture to F8 for general photography or F22 for macro photography (close-ups).
  • Page 7: Installing The Camera

    Installing the Camera Remove the back from the housing. The mounting tray for the camera is secured to the housing back. Position the camera and lens on the camera tray, and then secure it with the Hold down bolt which threads into the camera’s tripod socket.
  • Page 8: Attaching The Flash Connection For External Strobes

    Attaching the Flash Connection for External Strobes When using an external strobe, connect the housing Hotshoe Connector. Slide the Connector into the Hotshoe Mount on the camera from the back of the camera as shown. Slide the Connector forward until it stops. This can be done External Strobe Connector and before or after...
  • Page 9: Closing The Housing

    Closing the Housing Housing Back 1. Place housing face down in your lap. 2. Check to see that there is an o-ring on the housing back that is clean and in its proper location. 3. Guide the back onto the housing. The o-ring should touch the housing all the way around.
  • Page 10: Installing Zoom Clamp And Gear Sleeve

    Preparing to Install Zoom Clamp & Gear Sleeve Determine the type lens opening of lens being used zoom on the camera. ring Type 1 Lenses have a lens opening that is NOT larger in diameter than the bayonet mount zoom ring. (Fig. 1). Type 1 lens Type 2 lens (Figure 1)
  • Page 11 Installing the Zoom Clamp & Gear Sleeve On the Type 1 Lenses The Zoom Clamp has springs so it can be expanded to fit over the Zoom Ring of the lens - figure C, page 11. Install the Zoom Clamp with the extension tabs toward the rear element of the lens.
  • Page 12 Type 1 Lenses (cont.) Gear Sleeve Ribs Align Ribs with Zoom Clamp grooved tabs Figure D Apply rubber strips to inside of clamp Figure E Figure F...
  • Page 13 Installing the Zoom Clamp & Gear Sleeve On Type 2 Lenses Due to the larger diameter lens opening on Type 2 lenses, the Zoom Clamp and Gear Sleeve need to be installed from the rear (bayonet end) of the lens. Use the housing Lens Release Control and remove the camera lens from the camera body, after the camera and lens have been installed in the housing.
  • Page 14 Control Knob to see that the Gear Sleeve is properly rotating the Lens Zoom ring. Manual Focusing Note: Ikelite DSLR housings are designed for auto-focus DSLR cameras and lenses. Manual focusing is not recommended. In some cases, if you desire to manually focus a lens, the zoom clamp must be moved onto the lens Manual Focus Ring and you must use the housing zoom control knob to manually focus.
  • Page 15: Installing The Port

    Installing the Port Port Lock There are four port locks on the Release Button front of the housing, see figure G, page 14. Each port lock has a Release Button. Lift the Locked Position release button and slide each Lift Release Port Lock away from the port Button to Unlock...
  • Page 16 Lens Ports A lens port must be secured to the housing before entering the water. Ikelite DSLR housings DO NOT come with a lens port. You must select the correct port for each lens you will be using underwater. For complete lens port information and compatibility with your Ikelite system, go to http://www.ikelite.com/web_pages/slrport.html...
  • Page 17: Housing Conversion Circuitry

    The Conversion Circuitry also offers 8 manual power settings in 1/2 stop increments and is powered by the Ikelite DS Substrobe when connected to the housing with the #4103.51 single or #4103.52 dual sync cord.
  • Page 18: Ds50 And Ds125 Substrobe Compatibility

    Older DS50 Substrobes with Serial Number between 63,850 and 69,999 require upgrade of electronics to operate. Cost of update depends on strobe circuitry. Strobe must be returned to Ikelite for evaluation to provide an estimate of upgrade cost. Older DS125 Substrobes with Serial Number below 2,500 can NOT be updated to operate correctly with the latest TTL conversion circuitry.
  • Page 19: Usage

    Lubricants Ikelite provides silicone lubricant with the housing. We recommend that you use only Ikelite lubricant. Other brands may cause the o-ring to swell and not seal properly. Use only enough Ikelite lubricant to lightly cover control shafts and o-rings.
  • Page 20: Troubleshooting

    If still sticky, see the Control Maintenance section - pages 23 & 24. - Return housing to Ikelite for routine maintenance. Image is over- or - Check that the strobe(s) are firing when taking under-exposed a picture.
  • Page 21 - If water droplets or moisture is present around the controls or sealing areas, return the housing to Ikelite for evaluation. - Clean the main housing o-ring, port o-ring, and sealing surfaces of the housing.
  • Page 22: Replacement Parts

    1/4-20 threaded mounting points for attachment of a tripod or other accessories. A full range of accessories is available to support your housing. Please visit http://www.ikelite.com/web_two/can_60d.html to see the most current information about recommended accessories. Please Read If Using an EV-Controller...
  • Page 23: Maintenance

    To lubricate the control, gently pull on the knob until the stainless steel shaft is exposed. Lightly lubricate the shaft, then move the shaft in and out several times. This will lubricate the x-ring in the Ikelite control gland. This should be done before using the housing after a prolonged storage period, or once a week when the housing is in constant use.
  • Page 24 Diagram A Housing Gland Control Shaft Tighten set screw down against this flat area Lubricate end of shaft Loosen set screw when replacing the knob. before reinserting into (allen wrench required) gland Diagram B Lubricate Shaft Housing Pull out to expose shaft...
  • Page 25 Housing Maintenance Your Ikelite Housing should be given the same care and attention as your other photographic equipment. In addition to normal maintenance, we recommend your housing be returned to Ikelite (every 2-3 years or 50 dives), to be checked and pressure tested.
  • Page 26: Photo Tips

    Photo Tips The number one rule in underwater photography is to eliminate as much water between the camera and subject as possible. Get as close as you can to the subject, then use the zoom. If you are using flash for still photos, subjects beyond 6 feet (1.8m) will not have much color regardless of strobe power.
  • Page 27: Storing The Housing

    This Ikelite product is warranted against any manufacturing defects for a period of one year from the original date of purchase. Defective products should be returned prepaid to Ikelite. Ikelite will, at its discretion, repair or replace such products, and will return to customer prepaid. All other claims of any nature are not covered.
  • Page 28: Returning Products For Service

    Evidence of purchase date must be provided to obtain warranty service. No prior authorization is required. You may return directly to Ikelite or through your dealer. Please include a brief description of the problem, any relevant e-mail correspondence, and/or instructions on requested service.
