Intergraph StudioZ User Manual page 24

12

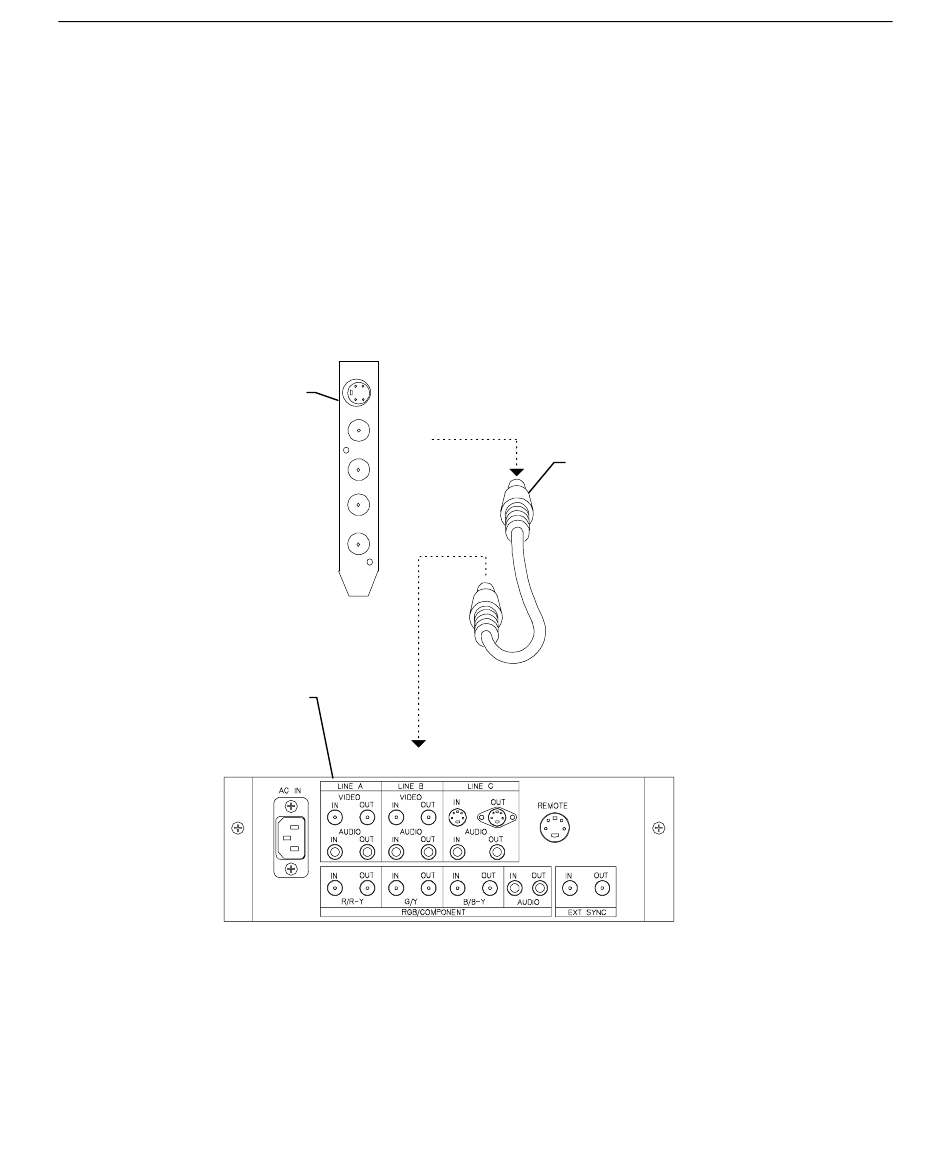

To connect a video monitor to the StudioZ SDI board:
Connect your video monitor to the SDI board using one of the following methods:
−
Connect S-video (Y/C OUT) on the SDI board to Line C IN (Y/C IN) on your video
monitor.
−
Connect COMP OUT (composite video output) on the SDI board to either Line A or
Line B Video IN (composite video input) on your video monitor.
−
Connect SDI OUT on the SDI board to Component SDI IN on your video monitor
(this is applicable only if your video monitor has Component SDI IN and SDI
OUT).
StudioZ Interface
Video Monitor
Rear Connector
Panel
Y C OUT
COMP OUT
Video
Out
SDI IN
SDI OUT
REF IN
Video In
SDI, S-video, Y/C
or Composite
Video Cable
