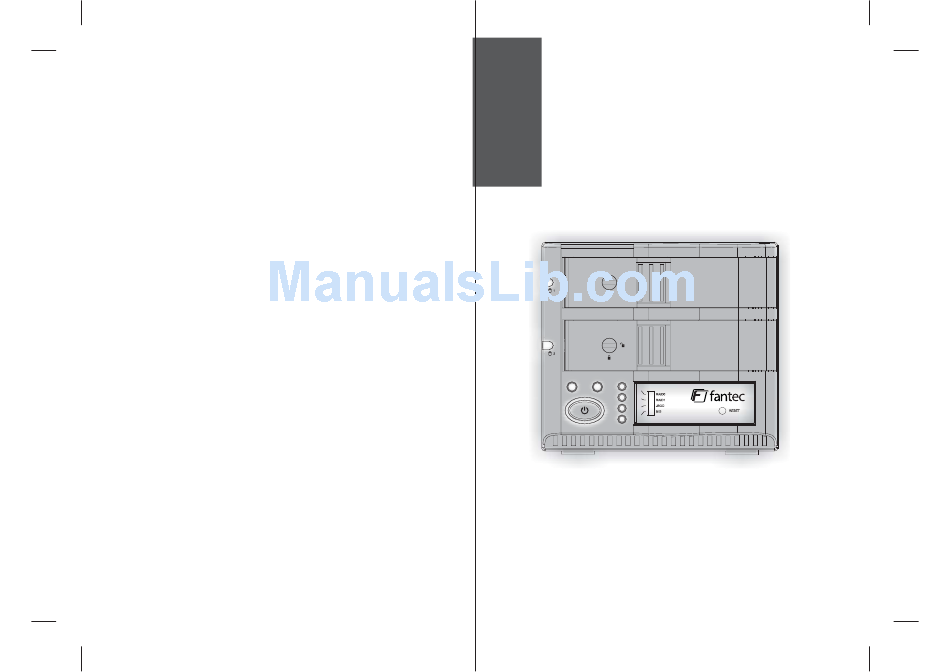

- Page 1 FANTEC MR-35DUF Rebuild POWER USER MANUAL...
-
Page 2: Table Of Contents
MENU MENU ... 1 1. Product Introduction ... 2 2. Operation ... 3 2.1 USB Interface ... 6 2.1.1 JBOD MODE ... 6 2.1.2 BIG MODE ... 7 2.1.3 RAID0/FAST MODE ... 8 2.1.4 RAID1/SAFE MODE ... 9 2.1.5 Partitioning Volumes ... 10 2.2 Firewire interface ... -
Page 3: Operation
2. Operation The Hard Disk Installation:Sway from side to side the lock doorknob to insert 1 or 2 hard disk.Close the doorknob and the installation will be completed (The step will be represented in terms of following graphs) Note:Sway from side to side the lock at the instructed point open the doorknob to install/ unload the hard disk. -
Page 4: Usb Interface
LED condition: switch on power and insert two HD in terms of different working pattern PATTERN HDD carries on the self-checking Material transmission HDD1 and HDD2 LED glitter in turn Under the material transmission: The with blue& red lights. Self- checking HDD1 and the HDD2 LED glitter with completes when LED sends blue purple light. -
Page 5: Big Mode
Click “ Disks Management ” plan: Right pop-up The additional disks (H :) and the additional disks (I :)' menus, choose “ Delete disk segmentation ”. Click “ Segmentation additional disks ”, followed by a clew to operate. 2.1.2 BIG MODE The two drives were connected to the products HDD1 and HDD2 Connector. - Page 6 2.1.4 RAID1/SAFE The two drives were connected to the products HDD1 and HDD2 Connector; USB&Power Cable were connected; Opening the power switch, pulling MODE switch to RAID1 switch, after a few seconds, the computer will automatically capture USB devices and increased 2 drives(If not drive there, then the hard disk drive management will re-zoning which format),At the moment you can Operate the disk.
- Page 7 Every disk should appear with the word “ Basic ”, a size value that shows the available storage capacity, and a status of “ Online ”. Instead of Basic, a disk could appear Unknown Dynamic , or Not Initialized If the disk appears as “ Unknown ”, right-click the disk icon and select Signature...
-
Page 8: Raid1/Safe Mode
4. Features 4.1 High speed external storage solution, USB2.0, Firewire 1394a/b. SATA Features The FANTEC MR-35DUF provides the following Serial Advanced Technology Attachment (SATA) features: Automatic negotiation between SATA I (1.5Gbps) and SATA II (3.0 Gbps) Serial ATA 2.5 specification compliance (Gen2m) -
Page 9: Serial Ata Hdd
） BIG JBOD,RAID0/FAST,RAID1/SAFE You can configure the FANTEC MR-35DUS2 to use any of the following Storage Policies to map the appliance's physical hard drives to virtual drives that are visible to the host computer. The virtual drives are called volumes in the GUI. The host operating system treats each volume as if it were a single physical drive. -
Page 10: Support System Windows 2000/Xp/Vista & Mac Os 9.0 Or Above Version
SAFE(RAID1) The SAFE storage policy stores all data in duplicate on separate drives to protect against data loss due to drive failure. One drive mirrors the other at all times, equivalent to RAID 1. Every write operation goes to both drives. SAFE provides the highest level of data protection for critical data that you cannot afford to lose if a hard drive fails, but halves the amount of storage capacity because all data must be stored twice. - Page 11 Unallocated” was not accessible for data usage. After using the disk part utility to extend the hard drive partition/volume capacity, the Windows host side matches the virtual hard drive partition/volume created in the SteelVine Manager 5. Package contens FANTEC MR-35DUF User manual AC Cable USB 2.0 Cable...
