REMOVE ONLY TO INSTALL OR RE-PROGRAM
AN OPTIONAL QUIET CALL MODULE!
To take the printed circuit board assembly out of
the radio case, first remove the 3 "T-10 TORX
screws shown below. Then lift the assembly out by the
antenna's base.
page 6
All manuals and user guides at all-guides.com
6
Battery Door (Top Edge)
®
"
Belt Clip
Attachment
Points
Battery Compartment
Frequency Color Dot

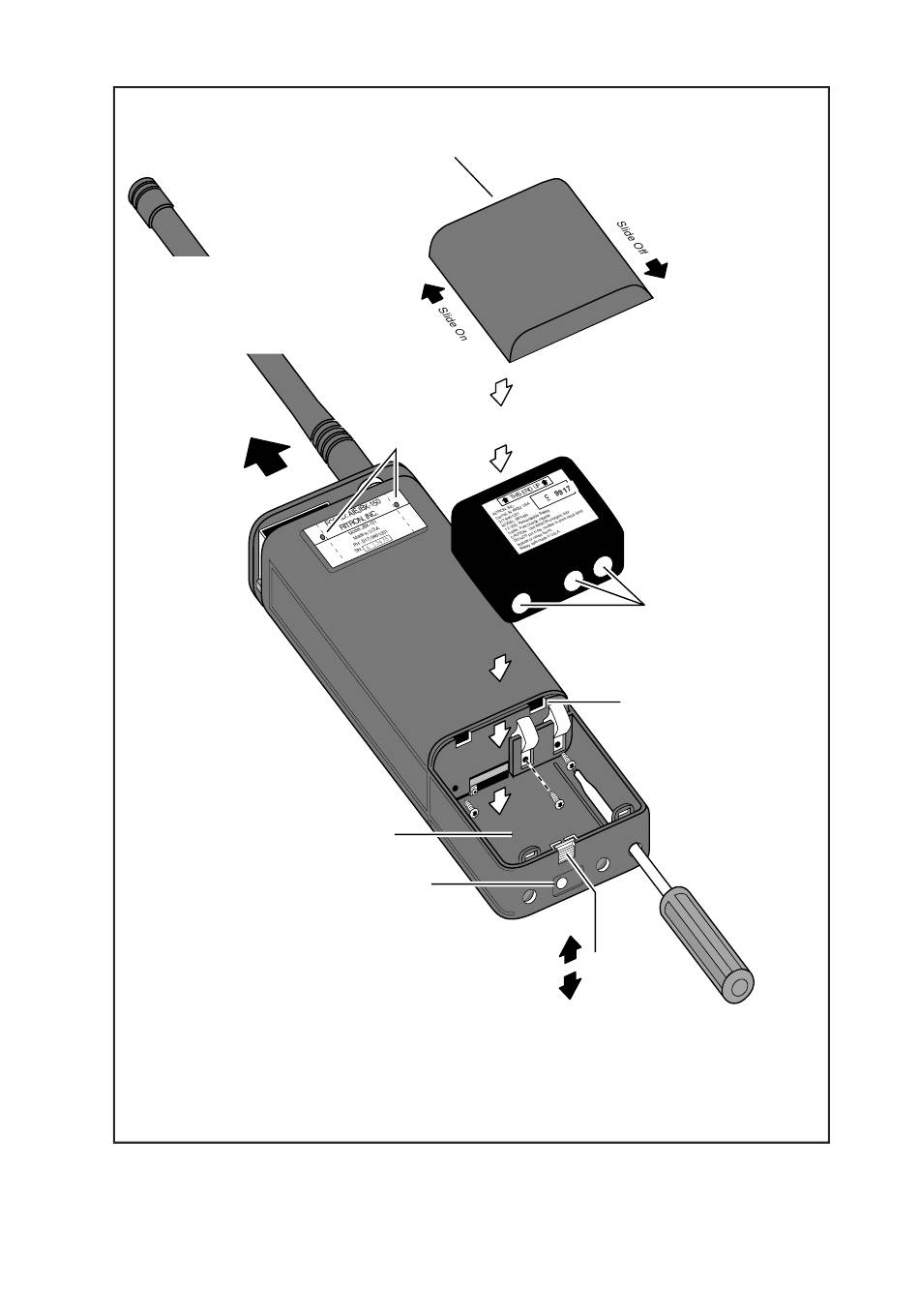

FIG-2: JBX RADIO ASSEMBLY
6
NOTE:
The battery door slides on and off
once the door latch is unlocked
(see door latch below). Lock this
latch after replacing the door.
NOTE:
Install the battery (left) AS SHOWN,
with the battery label facing you right
side up.
Charger Contacts
Slot (Two slots mate to the
battery door top edge tabs)
k
L o c
Door Latch
o c k
U n l
6
