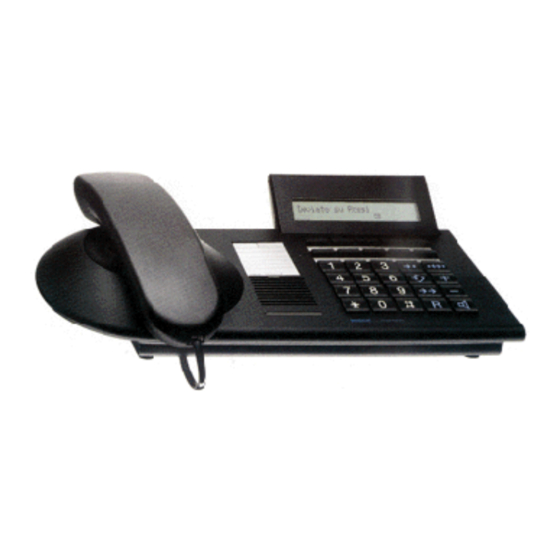

Tenovis Integral TB 13 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Tenovis Manuals
  4. IP Phone
  5. Integral TB 13
  6. Operating instructions manual

Tenovis Integral TB 13 Operating Instructions Manual

Hide thumbs Also See for Integral TB 13:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
We give you the edge.
Basic Telephone
Integral TB 13
Connected to ISDN Telecommunications Systems Integral
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Integral TB 13 and is the answer not in the manual?

Questions and answers

Related Manuals for Tenovis Integral TB 13

Summary of Contents for Tenovis Integral TB 13

  • Page 1 All manuals and user guides at all-guides.com We give you the edge. Basic Telephone Integral TB 13 Connected to ISDN Telecommunications Systems Integral Operating Instructions...
  • Page 2 TB 13 Operating instructions Important information Please note This telephone is only for connection is to Tenovis TK system digital interfaces and meets the basic requirements of the European Directive 1999/5/EC (Radio and Telekommunication Terminal Equipment, R&TTE). This telephone is not designed for direct operation on public telephone network in-...
  • Page 3 All manuals and user guides at all-guides.com TB 13 Operating instructions Your telephone at a glance 10 Freely assignable function keys Display You can assign various functions or The display helps you destinations to these keys to operate the phone Alphanumeric 8 pre--assigned letters...

  • Page 4: All Keys At A Glance

    All manuals and user guides at all-guides.com TB 13 Operating instructions All keys at a glance Digit keys with letters Alphanumeric keys for dialing call numbers and entering codes. The alphabetic labelling allows you to dial so called vanity numbers. PQRS WXYZ Star and Hash keys for special functions.
  • Page 5 All manuals and user guides at all-guides.com TB 13 Operating instructions 10 freely assignable function keys You can assign various functions or destinations to the 10 freely assignable function keys. Integral 5 / 3: The function keys are pre--assigned as follows: 1--3 Destination keys, custom speed--dial destinations 900, 901, 902 Delete...

  • Page 6: The Display Helps You

    All manuals and user guides at all-guides.com TB 13 Operating instructions The display helps you Symbols and messages in the display provide you with additional information about your connection and the current settings of the telephone. 7633 M. Miller If you are making a call to an ISDN subscriber, the subscriber’s call number will be displayed.
  • Page 7 All manuals and user guides at all-guides.com TB 13 Operating instructions How to operate your telephone The operation of some functions depends on the system with which your telephone is being used. If you mistakenly press an incorrect key during a programming sequence, simply replace / lift the handset.
  • Page 8 All manuals and user guides at all-guides.com TB 13 Operating instructions Dialing last number again (redial) Int. 5 / 3: external Lift Programme Conduct call only handset redial Storing a specific redial number Lift Dial Store Int. 5 / 3 handset call number call number...
  • Page 9 All manuals and user guides at all-guides.com TB 13 Operating instructions Special functions of the Integral 5 / 3 Hold call on line (from E6 software) During Initiate call hold Return to Enter Dial external Conduct external call ((1st caller waiting) 1st call code 2nd call...
  • Page 10 All manuals and user guides at all-guides.com TB 13 Operating instructions Sending a message to a caller Select text with function key Confirm Function key “Scroll” selection “Message” Deactivating message to a Select message caller Function key with function key “Delete”...

  • Page 11: Unlocking Your Telephone

    All manuals and user guides at all-guides.com TB 13 Operating instructions Activating “Do not disturb” (internal) Lift Replace Code handset handset “Do not disturb” signal Deactivating “Do not disturb” Lift Replace Deactivate (internal) handset handset “Do not disturb” signal Locking your telephone Lift Code...
  • Page 12 All manuals and user guides at all-guides.com TB 13 Operating instructions Special functions of the Integral 33 Programming a speed--dial number e.g. Leave handset Initiate Press speed--dial Enter End program- on--hook programming number call number ming Dialling a speed--dial number e.g.
  • Page 13 All manuals and user guides at all-guides.com TB 13 Operating instructions Retrieving messages opt. opt. Function key Read Delete Dial displayed Leave handset illuminates “Messages” messages messages call number query on--hook Programming volume and e.g. & tone Enter code and Leave handset Initiate Enter...

  • Page 14: Assigning Function Keys

    All manuals and user guides at all-guides.com TB 13 Operating instructions Setting the 9 0 0 telephone e.g. Leave handset Initiate Enter Enter End program- on--hook programming function code see 1) ming 1) Codes: VIP function on / off: 900 / 910 Charges display on / off: 906 / 916 Suppress call number on / off: 905 / 915...

  • Page 15: Making Calls

    All manuals and user guides at all-guides.com TB 13 Operating instructions What else you should know about the individual functions If you would like to make an external call, you first need to oc- Making cupy an external line. How you do this depends on the tele- calls phone system you have.

  • Page 16: Changing Your Pin

    All manuals and user guides at all-guides.com TB 13 Operating instructions Integral 33: This function enables you to use another telephone Follow me (excluding TH 13, TM 13 and TS 13) to set up call diversion for your telephone. You must, however, first set up the diversion on your phone.
  • Page 17 All manuals and user guides at all-guides.com TB 13 Operating instructions Many functions of you telephone are operated with codes. In Overview individual cases they can vary from the following standard of codes codes. Your service point can provide you with more information if necessary.
  • Page 18 All manuals and user guides at all-guides.com TB 13 Operating instructions Answer call for someone else Cut--in Hunt group line Answer calls elsewhere: prepare on your telephone Answer calls elsewhere: prepare on another tele- phone VIP function on / off 900 / 910 Suppress call number on / 905 / 915...
  • Page 19 All manuals and user guides at all-guides.com...
  • Page 20 All manuals and user guides at all-guides.com Tenovis GmbH & Co. KG Tenovis B.V., Netherlands Geschäftsbereich Neptunusstraat 71 Kommunikationstechnik, Austria NL-2132 JP Hoofddorp Hietzinger Kai 139 Telephone +31-23-5656-410 A-1131 Wien Fax +31-23-5656-411 Telephone +43-1-8-7870 www.tenovis.nl Fax +43-1-8-7870-7370 Telecomunicaciones Tenovis, S.L, www.tenovis.at...
