Summary of Contents for SONIQ W Series

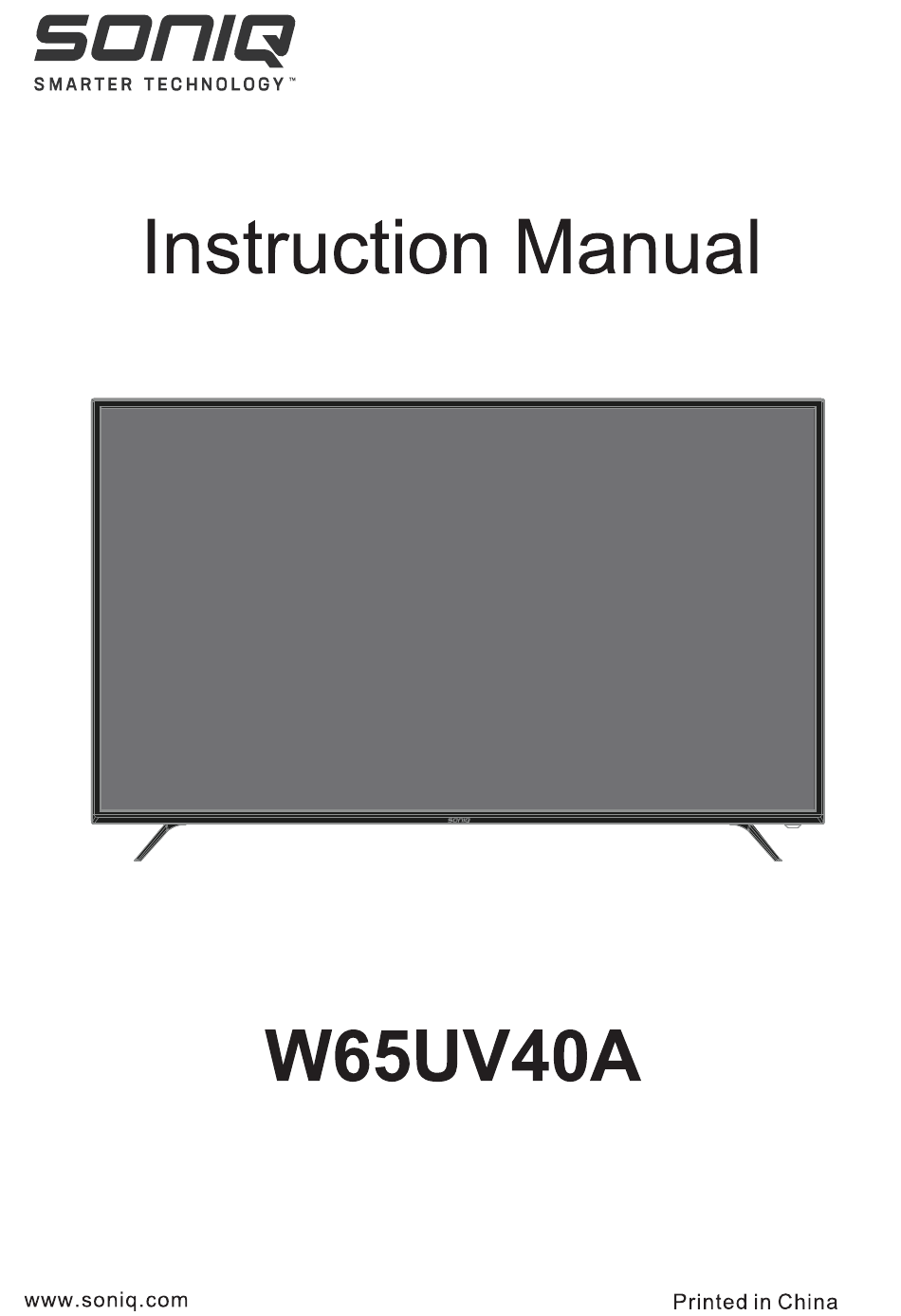

- Page 1 65’’ UltraHD SMART LED TV...
-
Page 3: Table Of Contents
CAUTION ....................2 ACCESSORY ....................4 STAND ASSEMBLY ..................5 CONTROL BUTTON ..................6 TERMINAL ....................7 REMOTE CONTROLLER ................8 INITIAL SETUP ................10 MENU OPERATION .. -
Page 6: Accessory
ACCESSORY Note There are these accessories in the carton, the style will be different according to the product model. QT WEE BM4*20 (X6) Quick installation manual Tipping prevention materials -4 -... -
Page 7: Stand Assembly
4PCS of type M6x10mm screws are required (the length of the screws fixed in the interior of the TV should not be longer than 12mm) Recommend to use SONIQ wall mount and install by professional people (do not operate while the TV is on). -
Page 8: Control Button
CONTROL BUTTON The following is only functional schematic, And the actual position and arrangement of differect models may be different. Some models has 5 buttons, some models has 7 buttons. Remote control sensor. Indicator LED: RED STANDBY. Key board STANDBY STANDBY QT WEE Middle key... -
Page 9: Terminal
USBAll the terminals are (from left to right): RJ45, OPTICAL output, VIDEO, USB2, HDMI3, ANT IN. Yellow (video) Red (audio R) White(audio L) Red(Pr or Cr) Blue(Pb or Cb) Green(Y) HDMI Optical input HDMI SONIQ does not supply Router network interface these cables. VIDEO EQUIPMENT... -
Page 10: Remote Controller
REMOTE CONTROLLER The remote controller cannot be used unless it is within the receivable range. Before you use the remote control, please make sure there's no obstacle between the remote control and the receiver. Open the battery cover and insert 2 "AAA" batteries. Point the remote control at the remote sensor located on the unit. - Page 11 Quickly switch between TV and broadcast Press to display the TV status information. Open or close subtitle. Enter the settings menu. Quickly switch channels. Press to display the Channel List. Moreactions shortcuts. Add favorite show. Press to select the teletext mode. Show program information.
-
Page 12: Initial Setup
The first time you turn on your TV, the setup wizard will quide you through setting up basic settings Please according to the Text Tip to First Time Setup. Press the arrow keys to select the desired wireless network, enter the password and click to confirm, and then click "Connect", or select Via LG Mobile. -
Page 13: Menu Operation
Enter the postal code of the service Connect LG ThinQ area and click Next. Connect TV with LG ThinQ to enjay a convenient life with Al. Check and control the status of air purifiers, air conditioners, robot cleaners, etc. on your TV. - Page 14 1.Search for TV apps or files. 2.Open Home Dashboard. In the main interface, press the arrow 3.Enter TV mode to watch TV programs. keys to select Photo & Video, press 4.Open the most recently used app. the OK button to enter the Photo & 5.APP Mall Video interface, and then press the OK 6.Browse the web after opening.
- Page 15 On the main page, go to Home Dashboard from Home Dashboard Press the arrow buttons to select the icon, and press the "OK" key to enter the submenu. In smart TV mode, check the status of external devices, multimedia, signal source, and link. to enter the submenu.
- Page 16 Enter the basic setting interface through remote control shortcut keys, or from The main menu enters the basic setting interface. Press the up and down keys to select the corresponding setting item, press the right key to enter the submenu and press the enter key. Press the arrow keys, select the All Settings icon and press OK to enter the All Settings interface.
- Page 17 Picture Programmes You can choose the picture mode that Press the setup key to enter the OSD best suits your personal preferences. menu, then enter the detailed settings, Press the setting key to enter the OSD press the arrow keys to select menu, then enter the detailed settings, "Programmes"...
- Page 18 General General Press the setting key to enter the Press the setup key to enter the OSD OSD menu, then enter the detailed menu, then enter the detailed settings, settings, press the arrow keys to press the arrow keys to select "General" select "Support"...
- Page 19 3. Press the arrow keys to select"Programmes", and then press Enter to enter "Programe Tuning". You can also choose to press the arrow keys to select Program Manager. 4.Select antenna tuning options, directly click Next, and the TV will enter the automatic scanning state.
-
Page 20: Specifications
SPECIFICATIONS Viewing Picture Size (Diagonal) inch Resolution 3840x2160 Aspect Ratio 16 : 9 TV System PAL-B/G, SECAM-B/G, DVB-T, DVB-C Video Signal System PAL / NTSC Receiving Channel DVB-T:1000, DVB-C:1000, ATV:99 Input Power Voltage 100-240V~, 50/60Hz Power consumption 180 W Audio Output Power THD 7% 2 x10W Signal input/output High-Definition Multimedia Interface(HDMI) x3... - Page 24 AUSTRALIA : www.soniq.com/au/contact-us NEW ZEALAND : www.soniq.com/nz/contact-us...
