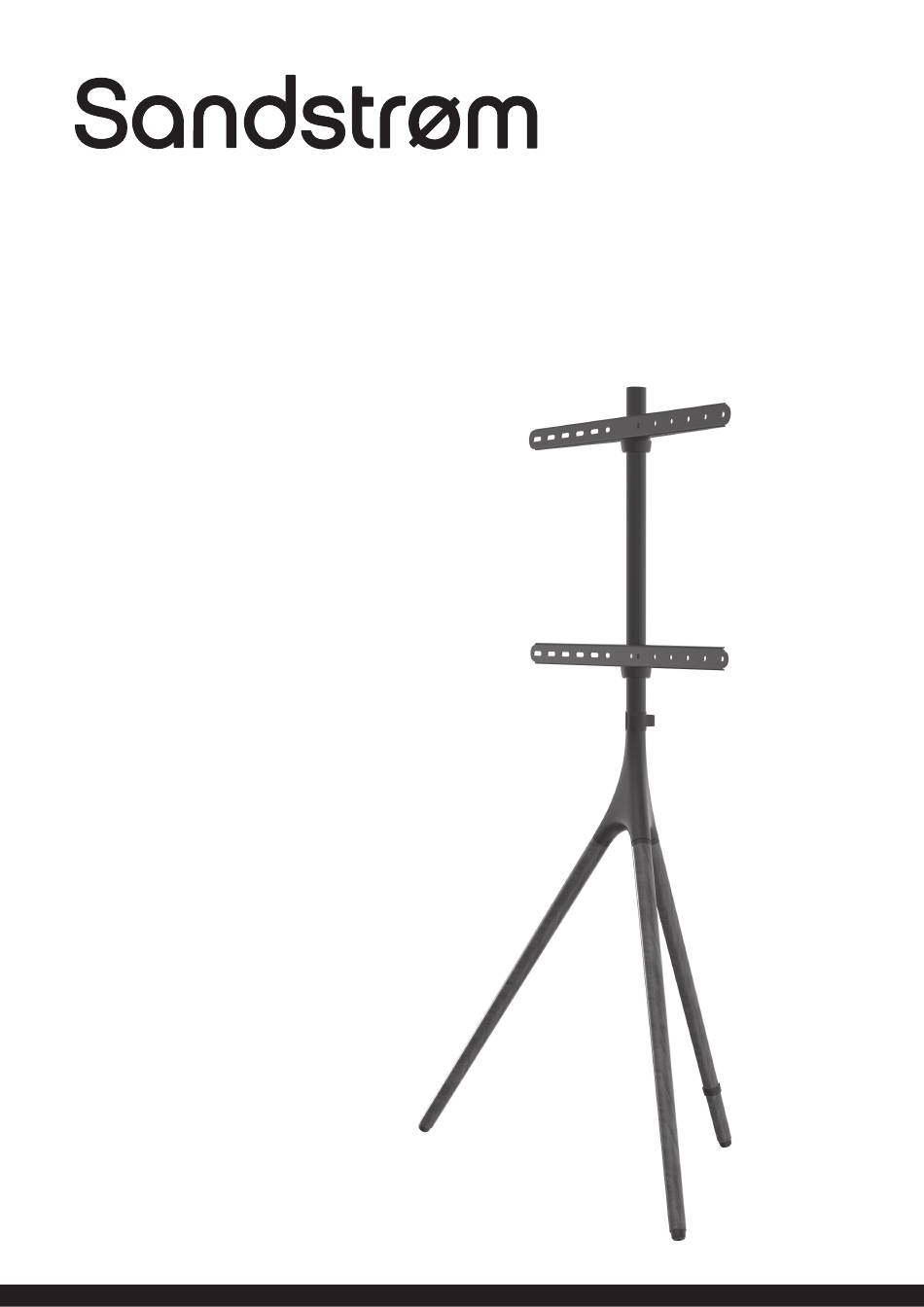

- Page 1 Chevalet TV Stand Instruction Manual SCHEV19...
-
Page 3: Safety Warnings
Safety Warnings WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION • It is the installers’ responsibility to verify that the wall will safely support the total load of the TV and the TV bracket. Never exceed the designated maximum TV load. •... - Page 4 Unpacking In st ru c ti o n M a n u a l M4 × 15 M4 × 35 M5 × 15 M5 × 30 M6 × 15 M6 × 35 M8 × 20 M8 × 35 M8 × 50 M6-M8 ×...
-
Page 5: Installation
Installation Use spacers provided for mounting TVs with M4-M5 curved/recessed backs, recessed mounting M6-M8 holes, or to allow access to A/V inputs. - Page 6 20 – 200 mm 180° 2 people are required to lift the unit during assembly.
- Page 8 • The safety strap must be used to prevent the product from falling. • To prevent falling backwards, it is recommended to place the product near the wall. 40 mm Ø7 mm 40 mm Ø3.5 mm Ensure mounting screws are in the centre of the timber stud.
- Page 9 <5 mm <30 cm...
- Page 12 Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate. Currys Group Limited (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative Currys Ireland Limited (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-SCHEV19-211103V3...
