BEGA 77 002 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

4mm Torx key
Protection Class: IP 67
Weight: 12.8 lbs.

Notice to Installer for 77 002:

1. Luminaire requires a remote 24V DC Class 2 safety isolation LED driver (by others) suitable
for the intended LED wattage load. See BEGA 580 or BEGA 591 specification sheet for
information.
2. Installer is responsible for supplying correct wire to account for voltage drop from LED driver.
3. No relamping required.
4. Luminaire is supplied with (1) ft. of cable.
5. Back housing must be installed so that the front face of the back housing is flush with the
finished wall.
6. Luminaire is non-IC rated. Insulation must be at least 3" from luminaire.
7. In conformance with UL Standard 1598, a silicone based sealant MUST be used between
luminaire and supporting wall.
8. Requires a 24V DC class 2 electronic power supply to operate intended LED wattage.

BB7002LED (back housing) installation in hollow wall construction:

1. Attach back housing to wooden block via mounting holes with (2) screws (by others).
2. Connect conduit. Pull wires for electrical connections to be made later.

BB7002LED (back housing) installation in poured concrete:

1. Attach back housing to concrete form using (2) screws (by others), such that the front face of
the back housing is flush with the finished surface.
2. Connect conduit to back housing.
3. Pour concrete. NOTE: Do not pump or drop concrete directly on top of the back housing.
4. Remove form and pull wires for electrical connections to be made later.

LED luminaire installation for 77 002:

1. Make necessary wiring connections inside the housing
BROWN LEAD TO INCOMING POSITIVE LEAD FROM REMOTE 24V LED DRIVER
BLUE LEAD TO INCOMING NEGATIVE LEAD FROM REMOTE 24V LED DRIVER
2. Place a small bead of silicone around the back side of the luminaire flange that will come in
contact with the finished wall (exterior applications only).
3. Insert LED luminaire into back housing. Make sure mounting tabs are positioned to engage
back housing when turned.
4. Turn the (2) 4mm Torx screws on the faceplate clockwise evenly up to the stop to engage the
back housing and wedge the luminaire into place.
NOTE: FOR INGRADE INSTALLTIONS, WIRING CONNECTIONS MUST BE WATER TIGHT.
SEE DIAGRAM. POTTING COMPOUND TO COVER WIRES AND CUT END OF CABLE CAN
BE PROVIDED BY BEGA, SEE ACCESSORIES.

Relamping/Maintenance

NO relamping required.
Lamp: 9.7W LED 24V DC
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2018
Recessed wall - linear floodlight LED - asymmetric
Bega-US Architectural Lighting Fixtures and Products
http://www.bega-us.com/groupdimimages.aspx?imagetype=sk&groupid=19b [6/1/2009 10:42:14 AM]
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.
Remote 25W LED driver and box
Remote 50W Dimming LED driver and box
Potting Compound (In-ground install only)

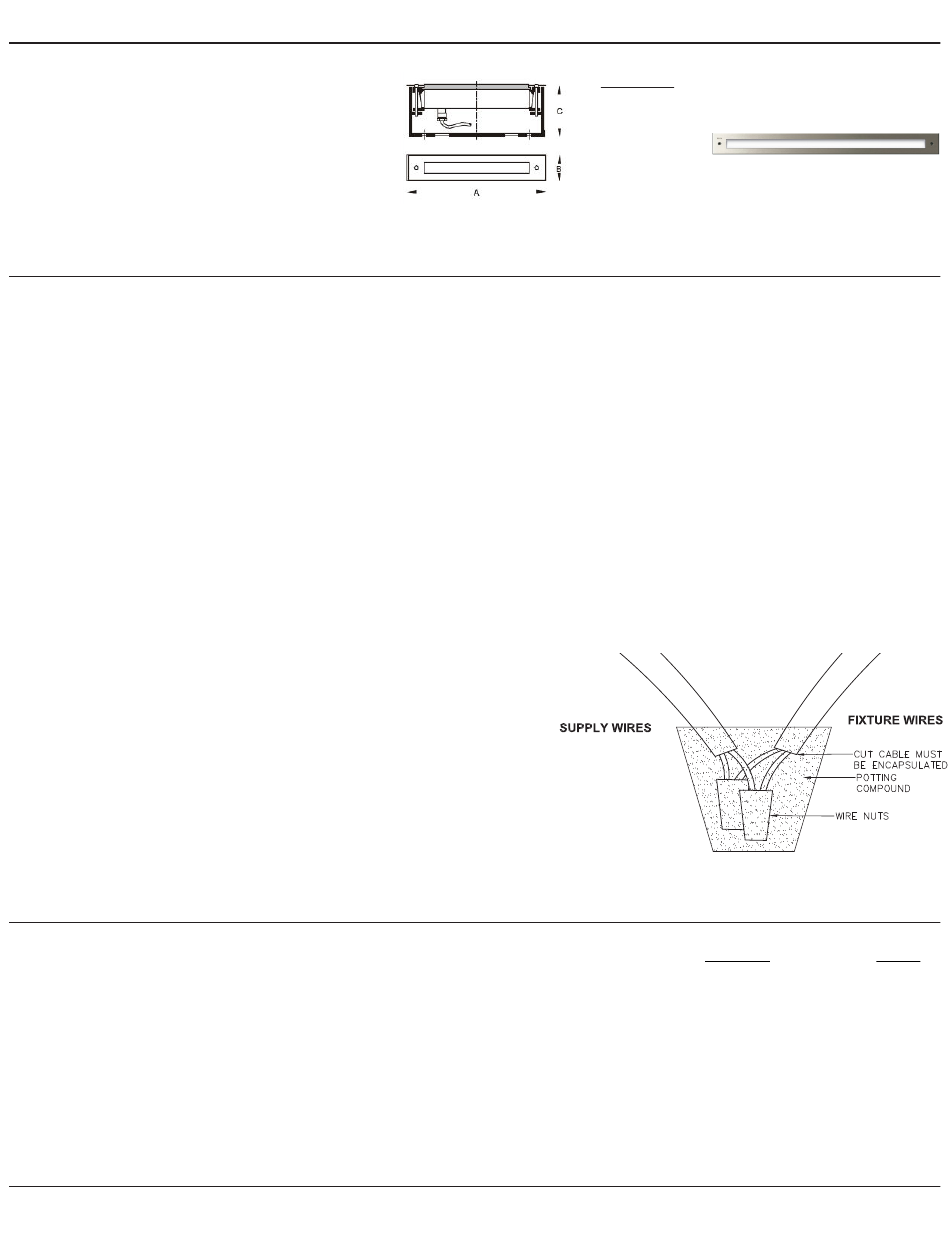

Dimensions

A:
39-3/8 "
B: 2-1/8 "
C: 4 "
POTTING COMPOUND: FOR
IN-GROUND INSTALLS ONLY
Replacement Parts
Description
Consult factory
19 580
19 591
77 269
77 002
Part No
77 002
