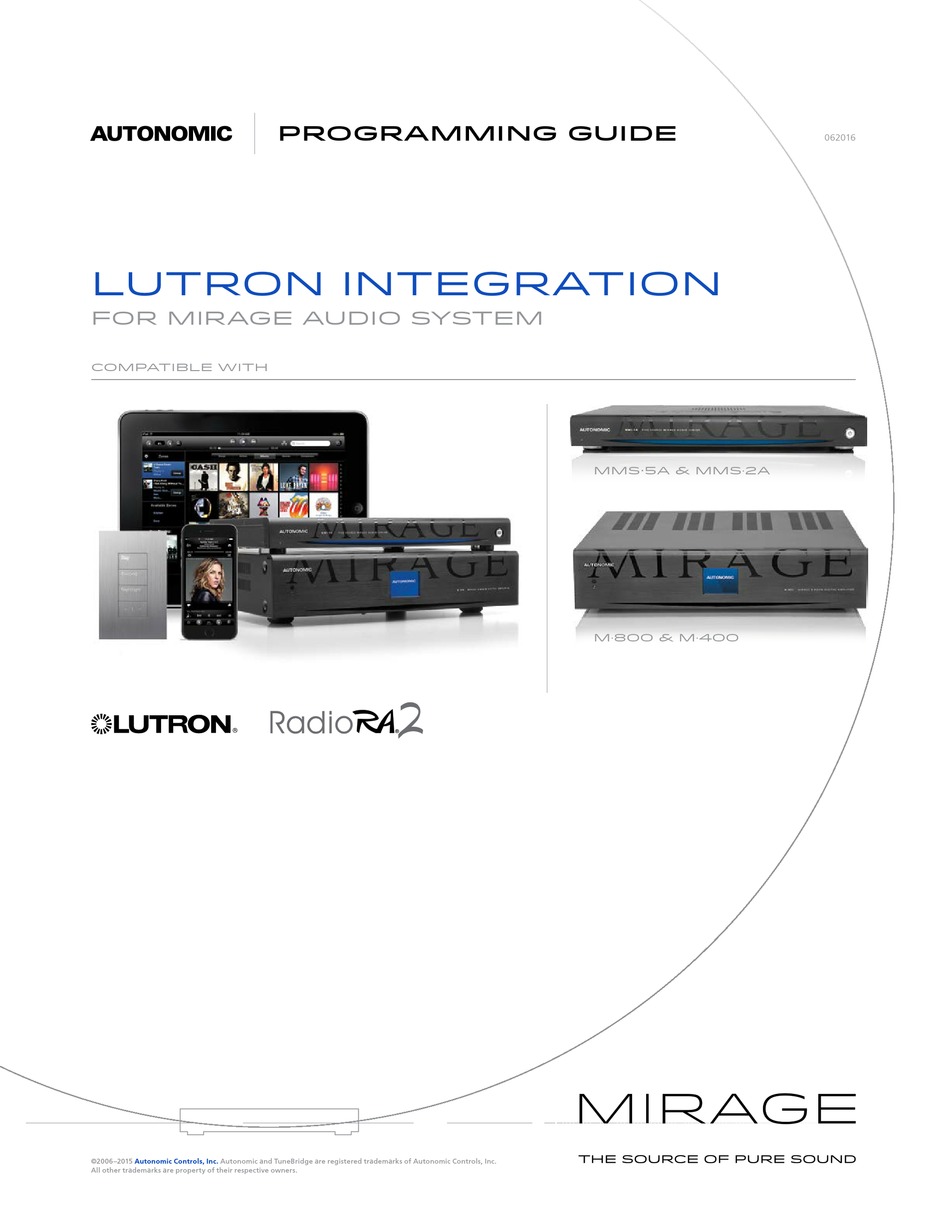

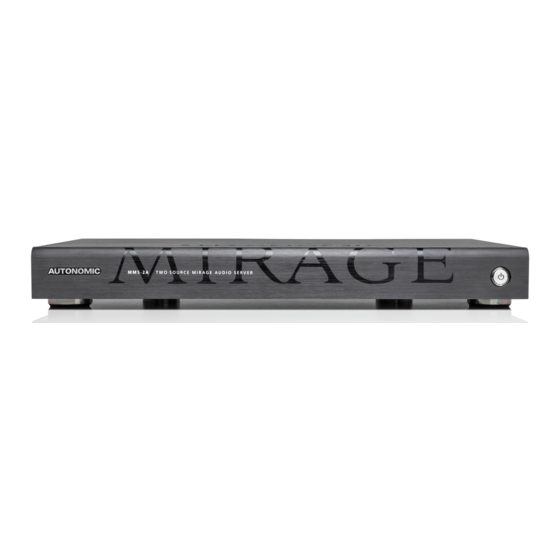

- Page 1 programming guide 062016 Lutron Integration For mirage Audio System compatible with mms·5a & MMS∙2A m∙800 & M∙400 ©2006–2015 Autonomic Controls, Inc. Autonomic and TuneBridge are registered trademarks of Autonomic Controls, Inc. All other trademarks are property of their respective owners.
-
Page 2: Table Of Contents
Autonomic Programming Guide | 2 of 9 Table of Contents Overview Mirage Audio System Integration with Lutron RadioRA 2 Discovery of a Lutron RadioRA 2 on the MMS Adding Keypads to your configuration Configuring keypads with Mirage Media commands Typical example configuration Preset Groups Saving the RadioRA 2 configuration Clearing the RadioRA 2 configuration from the MMS... -
Page 3: Overview
Autonomic Programming Guide | 3 of 9 1.0 Overview The Mirage Audio System (MAS) consists of a Mirage Media Server (MMS-1e/MMS-2A/MMS-5A) and one or more Mirage digital multi-room amplifiers (M-120e/M-400/M-800). The MAS is a multi-room streaming platform designed to work with automation and control systems such as Lutron’s RadioRA 2. -
Page 4: Mirage Audio System Integration With Lutron Radiora
Autonomic Programming Guide | 4 of 9 2.0 Mirage Audio System Integration with Lutron RadioRA 2 Autonomic Mirage Media Servers and Digital Amplifiers allow control from 3 party and mobile applications. The interface connects directly to the LAN within the residence allowing for direct integration with the Lutron RadioRA 2 system over the IP network. -
Page 5: Discovery Of A Lutron Radiora 2 On The Mms
Autonomic Programming Guide | 5 of 9 3.0 Discovery of a Lutron RadioRA 2 on the MMS: • Navigate to the Mirage media Server’s config page http://<IP of MMS>/config • Select the Source Settings* tab from the config page • Scroll down the page to the Lutron Configuration section •... -
Page 6: Adding Keypads To Your Configuration
Autonomic Programming Guide | 6 of 9 4.0 Adding Keypads to your Configuration: All or several of your RadioRA 2 keypads can be system control functions of the Mirage Audio System. If the keypads have already been configured by RadioRA 2 programming to control lighting, this functionality will still remain in addition to all MMS commands associated with the buttons. -
Page 7: Configuring Keypads With Mirage Media Commands
Autonomic Programming Guide | 7 of 9 5.0 Configuring keypads with Mirage Media commands Once a keypad is added to your configuration, all available keys with their engraving text will be displayed. To confirm the physical button you would like to program matches the the keypad button displayed, simply tap the button on the RadioRA 2 keypad for a blue check box to appear next to its matching button in the configuration. -
Page 8: Typical Example Configuration
Autonomic Programming Guide | 8 of 9 6.0 Typical Example Configuration: In this example scenario we will have a 5 button RadioRA 2 keypad engraved in the following way: Preset 1, Preset 2, Preset 3, Preset 4, Zone off, and Arrow buttons for volume increase and decrease Setting up Recall Preset button Click the [+] under the first Preset 1 button, and select the Press event Click the [+] under the Actions column and select the action Recall preset... -
Page 9: Preset Groups
Autonomic Programming Guide | 9 of 9 7.0 Preset Groups: A Preset Group is a group of keypads sharing the same presets in the Mirage amplifier web configuration page. Each keypad is a member of a particular Preset Group. For example, all 1 Floor keypads can be configured for Preset Group 1, which may be stored or recalled on any keypad in the group.
